Sockets
[Application library]

Collaboration diagram for Sockets:

Data Structures
struct	socket
	Socket specific data. More...
struct	socket_client_globals
	Socket client library global data. More...
struct	socket_port
	Bound port sockets. More...
struct	socket_core
	Socket core. More...
Files
file	socket.h
	Socket application program interface (API).
file	socket_codes.h
	Socket codes and definitions.
file	socket_client.c
	Socket application program interface (API) implementation.
file	socket_core.c
	Socket common core implementation.
file	socket_core.h
	Socket common core.
file	socket_messages.h
	Socket messages.
Defines
#define	SOCKET_INITIAL_RECEIVED_SIZE 4
	Initial received packet queue size.
#define	SOCKET_MAX_RECEIVED_SIZE 0
	Maximum received packet queue size.
#define	SOCKET_INITIAL_ACCEPTED_SIZE 1
	Initial waiting sockets queue size.
#define	SOCKET_MAX_ACCEPTED_SIZE 0
	Maximum waiting sockets queue size.
#define	SOCKET_CONNECT_TIMEOUT (1 * 1000 * 1000)
	Default timeout for connections in microseconds.
#define	SOCKET_ID_TRIES 100
	Maximum number of random attempts to find a new socket identifier before switching to the sequence.
#define	SOCKET_ID_TRIES 100
	Maximum number of random attempts to find a new socket identifier before switching to the sequence.
#define	SOCKET_INITIAL_RECEIVED_SIZE 4
	Initial size of the received packet queue.
#define	SOCKET_MAX_RECEIVED_SIZE 0
	Maximum size of the received packet queue.
#define	SOCKET_INITIAL_ACCEPTED_SIZE 1
	Initial size of the sockets for acceptance queue.
#define	SOCKET_MAX_ACCEPTEDED_SIZE 0
	Maximum size of the sockets for acceptance queue.
#define	SOCKET_MAP_KEY_LISTENING "L"
	Listening sockets' port map key.
Typedefs
typedef enum sock_type	sock_type_t
	Socket types.
typedef int32_t	socklen_t
	Type definition of the socket length.
typedef struct socket	socket_t
	Type definition of the socket specific data.
typedef socket_t *	socket_ref
	Type definition of the socket specific data pointer.
typedef struct socket_core	socket_core_t
	Type definition of the socket core.
typedef socket_core_t *	socket_core_ref
	Type definition of the socket core pointer.
typedef struct socket_port	socket_port_t
	Type definition of the socket port.
typedef socket_port_t *	socket_port_ref
	Type definition of the socket port pointer.
Enumerations
enum	sock_type { SOCK_STREAM = 1, SOCK_DGRAM = 2, SOCK_RAW = 3 }
	Socket types. More...
enum	socket_messages { NET_SOCKET = NET_SOCKET_FIRST, NET_SOCKET_BIND, NET_SOCKET_LISTEN, NET_SOCKET_ACCEPT, NET_SOCKET_CONNECT, NET_SOCKET_CLOSE, NET_SOCKET_SEND, NET_SOCKET_SENDTO, NET_SOCKET_RECV, NET_SOCKET_RECVFROM, NET_SOCKET_GETSOCKOPT, NET_SOCKET_SETSOCKOPT, NET_SOCKET_ACCEPTED, NET_SOCKET_RECEIVED, NET_SOCKET_DATA_FRAGMENT_SIZE }
	Socket client messages. More...
Functions
	INT_MAP_DECLARE (sockets, socket_t)
	Sockets map.
	INT_MAP_IMPLEMENT (sockets, socket_t)
static int	socket_get_tcp_phone (void)
	Returns the TCP module phone.

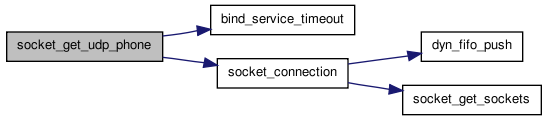

static int	socket_get_udp_phone (void)
	Returns the UDP module phone.

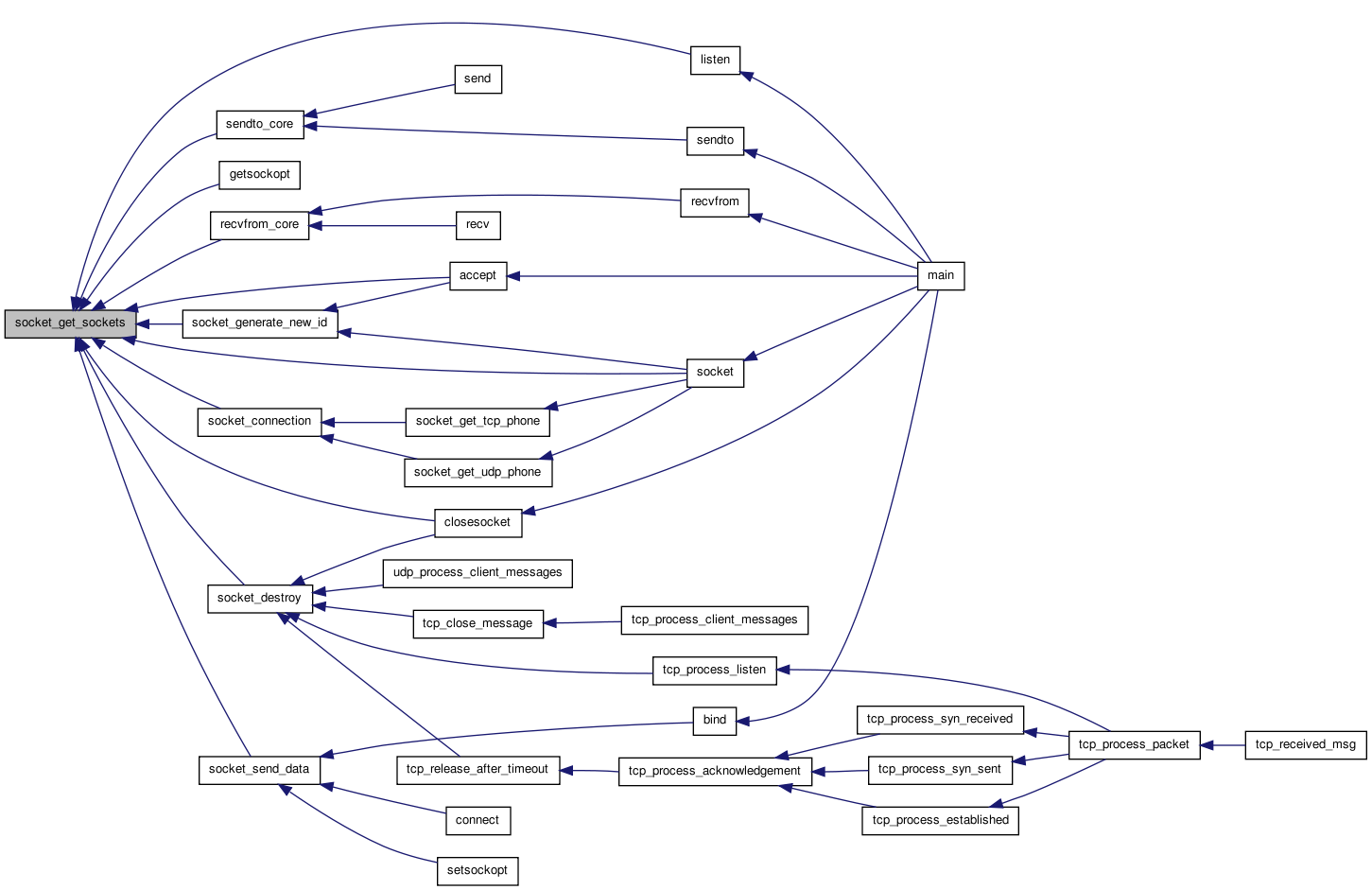

static sockets_ref	socket_get_sockets (void)
	Returns the active sockets.
static int	socket_generate_new_id (void)
	Tries to find a new free socket identifier.
void	socket_connection (ipc_callid_t iid, ipc_call_t *icall)
	Default thread for new connections.
int	socket_send_data (int socket_id, ipcarg_t message, ipcarg_t arg2, const void *data, size_t datalength)
	Sends message to the socket parent module with specified data.
void	socket_initialize (socket_ref socket, int socket_id, int phone, services_t service)
	Initializes a new socket specific data.
void	socket_destroy (socket_ref socket)
	Clears and destroys the socket.
int	recvfrom_core (ipcarg_t message, int socket_id, void data, size_t datalength, int flags, struct sockaddr fromaddr, socklen_t *addrlen)
	Receives data via the socket.
int	sendto_core (ipcarg_t message, int socket_id, const void data, size_t datalength, int flags, const struct sockaddr toaddr, socklen_t addrlen)
	Sends data via the socket to the remote address.
int	socket_bind_insert (socket_ports_ref global_sockets, socket_core_ref socket, int port)
	Binds the socket to the port.
void	socket_destroy_core (int packet_phone, socket_core_ref socket, socket_cores_ref local_sockets, socket_ports_ref global_sockets, void(*socket_release)(socket_core_ref socket))
	Destroys the socket.
int	socket_port_add_core (socket_port_ref socket_port, socket_core_ref socket, const char *key, size_t key_length)
	Adds the socket to a socket port.
static int	socket_generate_new_id (socket_cores_ref local_sockets, int positive)
	Tries to find a new free socket identifier.
	INT_MAP_IMPLEMENT (socket_cores, socket_core_t)
	GENERIC_CHAR_MAP_IMPLEMENT (socket_port_map, socket_core_ref)
	INT_MAP_IMPLEMENT (socket_ports, socket_port_t)
void	socket_cores_release (int packet_phone, socket_cores_ref local_sockets, socket_ports_ref global_sockets, void(*socket_release)(socket_core_ref socket))
	Destroys local sockets.
int	socket_bind (socket_cores_ref local_sockets, socket_ports_ref global_sockets, int socket_id, void *addr, size_t addrlen, int free_ports_start, int free_ports_end, int last_used_port)
	Binds the socket to the port.
int	socket_bind_free_port (socket_ports_ref global_sockets, socket_core_ref socket, int free_ports_start, int free_ports_end, int last_used_port)
	Binds the socket to a free port.
int	socket_create (socket_cores_ref local_sockets, int app_phone, void specific_data, int socket_id)
	Creates a new socket.
int	socket_destroy (int packet_phone, int socket_id, socket_cores_ref local_sockets, socket_ports_ref global_sockets, void(*socket_release)(socket_core_ref socket))
	Destroys the socket.
int	socket_reply_packets (packet_t packet, size_t *length)
	Replies the packet or the packet queue data to the application via the socket.
socket_core_ref	socket_port_find (socket_ports_ref global_sockets, int port, const char *key, size_t key_length)
	Finds the bound port socket.
void	socket_port_release (socket_ports_ref global_sockets, socket_core_ref socket)
	Releases the socket port.
int	socket_port_add (socket_ports_ref global_sockets, int port, socket_core_ref socket, const char *key, size_t key_length)
	Adds the socket to an already bound port.
	INT_MAP_DECLARE (socket_cores, socket_core_t)
	Sockets map.
	GENERIC_CHAR_MAP_DECLARE (socket_port_map, socket_core_ref)
	Bount port sockets map.
	INT_MAP_DECLARE (socket_ports, socket_port_t)
	Ports map.
Variables
static struct socket_client_globals	socket_globals
	Socket client library global data.
Socket application programming interface

int	socket (int domain, int type, int protocol)
	Creates a new socket.
int	bind (int socket_id, const struct sockaddr *my_addr, socklen_t addrlen)
	Binds the socket to a port address.
int	listen (int socket_id, int backlog)
	Sets the number of connections waiting to be accepted.
int	accept (int socket_id, struct sockaddr cliaddr, socklen_t addrlen)
	Accepts waiting socket.
int	connect (int socket_id, const struct sockaddr *serv_addr, socklen_t addrlen)
	Connects socket to the remote server.
int	closesocket (int socket_id)
	Closes the socket.
int	send (int socket_id, void *data, size_t datalength, int flags)
	Sends data via the socket.
int	sendto (int socket_id, const void data, size_t datalength, int flags, const struct sockaddr toaddr, socklen_t addrlen)
	Sends data via the socket to the remote address.
int	recv (int socket_id, void *data, size_t datalength, int flags)
	Receives data via the socket.
int	recvfrom (int socket_id, void data, size_t datalength, int flags, struct sockaddr fromaddr, socklen_t *addrlen)
	Receives data via the socket.
int	getsockopt (int socket_id, int level, int optname, void value, size_t optlen)
	Gets socket option.
int	setsockopt (int socket_id, int level, int optname, const void *value, size_t optlen)
	Sets socket option.
Address families definitions

#define	AF_UNSPEC 0
	Unspecified address family.
#define	AF_UNIXL 1
	Unix domain sockets address family.
#define	AF_LOCAL 1
	POSIX name for AF_UNIX address family.
#define	AF_INET 2
	Internet IP Protocol address family.
#define	AF_AX25 3
	Amateur Radio AX.25 address family.
#define	AF_IPX 4
	Novell IPX address family.
#define	AF_APPLETALK 5
	AppleTalk DDP address family.
#define	AF_NETROM 6
	Amateur Radio NET/ROM address family.
#define	AF_BRIDGE 7
	Multiprotocol bridge address family.
#define	AF_ATMPVC 8
	ATM PVCs address family.
#define	AF_X25 9
	Reserved for X.25 project address family.
#define	AF_INET6 10
	IP version 6 address family.
#define	AF_ROSE 11
	Amateur Radio X.25 PLP address family.
#define	AF_DECnet 12
	Reserved for DECnet project address family.
#define	AF_NETBEUI 13
	Reserved for 802.2LLC project address family.
#define	AF_SECURITY 14
	Security callback pseudo AF address family.
#define	AF_KEY 15
	PF_KEY key management API address family.
#define	AF_NETLINK 16
	Alias to emulate 4.4BSD address family.
#define	AF_PACKET 17
	Packet family address family.
#define	AF_ASH 18
	Ash address family.
#define	AF_ECONET 19
	Acorn Econet address family.
#define	AF_ATMSVC 20
	ATM SVCs address family.
#define	AF_SNA 22
	Linux SNA Project (nutters!) address family.
#define	AF_IRDA 23
	IRDA sockets address family.
#define	AF_PPPOX 24
	PPPoX sockets address family.
#define	AF_WANPIPE 25
	Wanpipe API Sockets address family.
#define	AF_LLC 26
	Linux LLC address family.
#define	AF_CAN 29
	Controller Area Network address family.
#define	AF_TIPC 30
	TIPC sockets address family.
#define	AF_BLUETOOTH 31
	Bluetooth sockets address family.
#define	AF_IUCV 32
	IUCV sockets address family.
#define	AF_RXRPC 33
	RxRPC sockets address family.
#define	AF_MAX 34
	Maximum address family.
Protocol families definitions
Same as address families.
#define	PF_UNSPEC AF_UNSPEC
	Unspecified protocol family.
#define	PF_UNIXL AF_UNIXL
	Unix domain sockets protocol family.
#define	PF_LOCAL AF_LOCAL
	POSIX name for AF_UNIX protocol family.
#define	PF_INET AF_INET
	Internet IP Protocol protocol family.
#define	PF_AX25 AF_AX25
	Amateur Radio AX.25 protocol family.
#define	PF_IPX AF_IPX
	Novell IPX protocol family.
#define	PF_APPLETALK AF_APPLETALK
	AppleTalk DDP protocol family.
#define	PF_NETROM AF_NETROM
	Amateur Radio NET/ROM protocol family.
#define	PF_BRIDGE AF_BRIDGE
	Multiprotocol bridge protocol family.
#define	PF_ATMPVC AF_ATMPVC
	ATM PVCs protocol family.
#define	PF_X25 AF_X25
	Reserved for X.25 project protocol family.
#define	PF_INET6 AF_INET6
	IP version 6 protocol family.
#define	PF_ROSE AF_ROSE
	Amateur Radio X.25 PLP protocol family.
#define	PF_DECnet AF_DECnet
	Reserved for DECnet project protocol family.
#define	PF_NETBEUI AF_NETBEUI
	Reserved for 802.2LLC project protocol family.
#define	PF_SECURITY AF_SECURITY
	Security callback pseudo AF protocol family.
#define	PF_KEY AF_KEY
	PF_KEY key management API protocol family.
#define	PF_NETLINK AF_NETLINK
	Alias to emulate 4.4BSD protocol family.
#define	PF_PACKET AF_PACKET
	Packet family protocol family.
#define	PF_ASH AF_ASH
	Ash protocol family.
#define	PF_ECONET AF_ECONET
	Acorn Econet protocol family.
#define	PF_ATMSVC AF_ATMSVC
	ATM SVCs protocol family.
#define	PF_SNA AF_SNA
	Linux SNA Project (nutters!) protocol family.
#define	PF_IRDA AF_IRDA
	IRDA sockets protocol family.
#define	PF_PPPOX AF_PPPOX
	PPPoX sockets protocol family.
#define	PF_WANPIPE AF_WANPIPE
	Wanpipe API Sockets protocol family.
#define	PF_LLC AF_LLC
	Linux LLC protocol family.
#define	PF_CAN AF_CAN
	Controller Area Network protocol family.
#define	PF_TIPC AF_TIPC
	TIPC sockets protocol family.
#define	PF_BLUETOOTH AF_BLUETOOTH
	Bluetooth sockets protocol family.
#define	PF_IUCV AF_IUCV
	IUCV sockets protocol family.
#define	PF_RXRPC AF_RXRPC
	RxRPC sockets protocol family.
#define	PF_MAX AF_MAX
	Maximum protocol family.
Socket option levels definitions
Thanks to BSD these must match IPPROTO_xxx
#define	SOL_IP 0
	IP socket option level.
#define	SOL_ICMP 1
	ICMP socket option level.
#define	SOL_TCP 6
	TCP socket option level.
#define	SOL_UDP 17
	UDP socket option level.
#define	SOL_IPV6 41
	IPV socket option level.
#define	SOL_ICMPV6 58
	ICMPV socket option level.
#define	SOL_SCTP 132
	SCTP socket option level.
#define	SOL_UDPLITE 136
	UDP-Lite (RFC 3828) socket option level.
#define	SOL_RAW 255
	RAW socket option level.
#define	SOL_IPX 256
	IPX socket option level.
#define	SOL_AX25 257
	AX socket option level.
#define	SOL_ATALK 258
	ATALK socket option level.
#define	SOL_NETROM 259
	NETROM socket option level.
#define	SOL_ROSE 260
	ROSE socket option level.
#define	SOL_DECNET 261
	DECNET socket option level.
#define	SOL_X25 262
	X25 socket option level.
#define	SOL_PACKET 263
	PACKET socket option level.
#define	SOL_ATM 264
	ATM layer (cell level) socket option level.
#define	SOL_AAL 265
	ATM Adaption Layer (packet level) socket option level.
#define	SOL_IRDA 266
	IRDA socket option level.
#define	SOL_NETBEUI 267
	NETBEUI socket option level.
#define	SOL_LLC 268
	LLC socket option level.
#define	SOL_DCCP 269
	DCCP socket option level.
#define	SOL_NETLINK 270
	NETLINK socket option level.
#define	SOL_TIPC 271
	TIPC socket option level.
#define	SOL_RXRPC 272
	RXRPC socket option level.
#define	SOL_PPPOL2TP 273
	PPPOL socket option level.
#define	SOL_BLUETOOTH 274
	BLUETOOTH socket option level.
Socket specific message parameters definitions

#define	SOCKET_SET_SOCKET_ID(answer) (int *) &IPC_GET_ARG1(answer)
	Sets the socket identifier in the message answer.
#define	SOCKET_GET_SOCKET_ID(call) (int) IPC_GET_ARG1(call)
	Returns the socket identifier message parameter.
#define	SOCKET_SET_READ_DATA_LENGTH(answer) (int *) &IPC_GET_ARG1(answer)
	Sets the read data length in the message answer.
#define	SOCKET_GET_READ_DATA_LENGTH(call) (int) IPC_GET_ARG1(call)
	Returns the read data length message parameter.
#define	SOCKET_GET_BACKLOG(call) (int) IPC_GET_ARG2(call)
	Returns the backlog message parameter.
#define	SOCKET_GET_OPT_LEVEL(call) (int) IPC_GET_ARG2(call)
	Returns the option level message parameter.
#define	SOCKET_GET_DATA_FRAGMENT_SIZE(call) (size_t) IPC_GET_ARG2(call)
	Returns the data fragment size message parameter.
#define	SOCKET_SET_DATA_FRAGMENT_SIZE(answer) (size_t *) &IPC_GET_ARG2(answer)
	Sets the data fragment size in the message answer.
#define	SOCKET_SET_ADDRESS_LENGTH(answer) (socklen_t *) &IPC_GET_ARG3(answer)
	Sets the address length in the message answer.
#define	SOCKET_GET_ADDRESS_LENGTH(call) (socklen_t) IPC_GET_ARG3(call)
	Returns the address length message parameter.
#define	SOCKET_SET_HEADER_SIZE(answer) (int *) &IPC_GET_ARG3(answer)
	Sets the header size in the message answer.
#define	SOCKET_GET_HEADER_SIZE(call) (int) IPC_GET_ARG3(call)
	Returns the header size message parameter.
#define	SOCKET_GET_FLAGS(call) (int) IPC_GET_ARG4(call)
	Returns the flags message parameter.
#define	SOCKET_GET_OPT_NAME(call) (int) IPC_GET_ARG4(call)
	Returns the option name message parameter.
#define	SOCKET_GET_DATA_FRAGMENTS(call) (int) IPC_GET_ARG5(call)
	Returns the data fragments message parameter.
#define	SOCKET_GET_NEW_SOCKET_ID(call) (int) IPC_GET_ARG5(call)
	Returns the new socket identifier message parameter.

Define Documentation

#define AF_APPLETALK 5

AppleTalk DDP address family.

#define AF_ASH 18

Ash address family.

#define AF_ATMPVC 8

ATM PVCs address family.

#define AF_ATMSVC 20

ATM SVCs address family.

#define AF_AX25 3

Amateur Radio AX.25 address family.

#define AF_BLUETOOTH 31

Bluetooth sockets address family.

#define AF_BRIDGE 7

Multiprotocol bridge address family.

#define AF_CAN 29

Controller Area Network address family.

#define AF_DECnet 12

Reserved for DECnet project address family.

#define AF_ECONET 19

Acorn Econet address family.

#define AF_INET 2

Internet IP Protocol address family.

Referenced by inet_ntop(), inet_pton(), ip_deliver_local(), ip_netif_initialize(), ip_prepare_icmp(), ip_process_packet(), and main().

#define AF_INET6 10

IP version 6 address family.

Referenced by inet_ntop(), inet_pton(), and main().

#define AF_IPX 4

Novell IPX address family.

#define AF_IRDA 23

IRDA sockets address family.

#define AF_IUCV 32

IUCV sockets address family.

#define AF_KEY 15

PF_KEY key management API address family.

#define AF_LLC 26

Linux LLC address family.

#define AF_LOCAL 1

POSIX name for AF_UNIX address family.

#define AF_MAX 34

Maximum address family.

#define AF_NETBEUI 13

Reserved for 802.2LLC project address family.

#define AF_NETLINK 16

Alias to emulate 4.4BSD address family.

#define AF_NETROM 6

Amateur Radio NET/ROM address family.

#define AF_PACKET 17

Packet family address family.

#define AF_PPPOX 24

PPPoX sockets address family.

#define AF_ROSE 11

Amateur Radio X.25 PLP address family.

#define AF_RXRPC 33

RxRPC sockets address family.

#define AF_SECURITY 14

Security callback pseudo AF address family.

#define AF_SNA 22

Linux SNA Project (nutters!) address family.

#define AF_TIPC 30

TIPC sockets address family.

#define AF_UNIXL 1

Unix domain sockets address family.

#define AF_UNSPEC 0

Unspecified address family.

#define AF_WANPIPE 25

Wanpipe API Sockets address family.

#define AF_X25 9

Reserved for X.25 project address family.

#define PF_APPLETALK AF_APPLETALK

AppleTalk DDP protocol family.

#define PF_ASH AF_ASH

Ash protocol family.

#define PF_ATMPVC AF_ATMPVC

ATM PVCs protocol family.

#define PF_ATMSVC AF_ATMSVC

ATM SVCs protocol family.

#define PF_AX25 AF_AX25

Amateur Radio AX.25 protocol family.

#define PF_BLUETOOTH AF_BLUETOOTH

Bluetooth sockets protocol family.

#define PF_BRIDGE AF_BRIDGE

Multiprotocol bridge protocol family.

#define PF_CAN AF_CAN

Controller Area Network protocol family.

#define PF_DECnet AF_DECnet

Reserved for DECnet project protocol family.

#define PF_ECONET AF_ECONET

Acorn Econet protocol family.

#define PF_INET AF_INET

Internet IP Protocol protocol family.

Referenced by main(), and socket().

#define PF_INET6 AF_INET6

IP version 6 protocol family.

Referenced by main().

#define PF_IPX AF_IPX

Novell IPX protocol family.

#define PF_IRDA AF_IRDA

IRDA sockets protocol family.

#define PF_IUCV AF_IUCV

IUCV sockets protocol family.

#define PF_KEY AF_KEY

PF_KEY key management API protocol family.

#define PF_LLC AF_LLC

Linux LLC protocol family.

#define PF_LOCAL AF_LOCAL

POSIX name for AF_UNIX protocol family.

#define PF_MAX AF_MAX

Maximum protocol family.

#define PF_NETBEUI AF_NETBEUI

Reserved for 802.2LLC project protocol family.

#define PF_NETLINK AF_NETLINK

Alias to emulate 4.4BSD protocol family.

#define PF_NETROM AF_NETROM

Amateur Radio NET/ROM protocol family.

#define PF_PACKET AF_PACKET

Packet family protocol family.

#define PF_PPPOX AF_PPPOX

PPPoX sockets protocol family.

#define PF_ROSE AF_ROSE

Amateur Radio X.25 PLP protocol family.

#define PF_RXRPC AF_RXRPC

RxRPC sockets protocol family.

#define PF_SECURITY AF_SECURITY

Security callback pseudo AF protocol family.

#define PF_SNA AF_SNA

Linux SNA Project (nutters!) protocol family.

#define PF_TIPC AF_TIPC

TIPC sockets protocol family.

#define PF_UNIXL AF_UNIXL

Unix domain sockets protocol family.

#define PF_UNSPEC AF_UNSPEC

Unspecified protocol family.

#define PF_WANPIPE AF_WANPIPE

Wanpipe API Sockets protocol family.

#define PF_X25 AF_X25

Reserved for X.25 project protocol family.

#define SOCKET_CONNECT_TIMEOUT (1 * 1000 * 1000)

Default timeout for connections in microseconds.

Referenced by socket_get_tcp_phone(), and socket_get_udp_phone().

#define SOCKET_GET_ADDRESS_LENGTH ( call ) (socklen_t) IPC_GET_ARG3(call)

Returns the address length message parameter.

Parameters:

[in] call The message call structure.

Referenced by accept(), and recvfrom_core().

#define SOCKET_GET_BACKLOG ( call ) (int) IPC_GET_ARG2(call)

Returns the backlog message parameter.

Parameters:

[in] call The message call structure.

Referenced by tcp_process_client_messages().

#define SOCKET_GET_DATA_FRAGMENT_SIZE ( call ) (size_t) IPC_GET_ARG2(call)

Returns the data fragment size message parameter.

Parameters:

[in] call The message call structure.

Referenced by accept(), sendto_core(), and socket_connection().

#define SOCKET_GET_DATA_FRAGMENTS ( call ) (int) IPC_GET_ARG5(call)

Returns the data fragments message parameter.

Parameters:

[in] call The message call structure.

Referenced by socket_connection(), tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_GET_FLAGS ( call ) (int) IPC_GET_ARG4(call)

Returns the flags message parameter.

Parameters:

[in] call The message call structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_GET_HEADER_SIZE ( call ) (int) IPC_GET_ARG3(call)

Returns the header size message parameter.

Parameters:

[in] call The message call structure.

#define SOCKET_GET_NEW_SOCKET_ID ( call ) (int) IPC_GET_ARG5(call)

Returns the new socket identifier message parameter.

Parameters:

[in] call The message call structure.

Referenced by tcp_process_client_messages().

#define SOCKET_GET_OPT_LEVEL ( call ) (int) IPC_GET_ARG2(call)

Returns the option level message parameter.

Parameters:

[in] call The message call structure.

#define SOCKET_GET_OPT_NAME ( call ) (int) IPC_GET_ARG4(call)

Returns the option name message parameter.

Parameters:

[in] call The message call structure.

#define SOCKET_GET_READ_DATA_LENGTH ( call ) (int) IPC_GET_ARG1(call)

Returns the read data length message parameter.

Parameters:

[in] call The message call structure.

Referenced by recvfrom_core().

#define SOCKET_GET_SOCKET_ID ( call ) (int) IPC_GET_ARG1(call)

Returns the socket identifier message parameter.

Parameters:

[in] call The message call structure.

Referenced by socket_connection(), tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_ID_TRIES 100

Maximum number of random attempts to find a new socket identifier before switching to the sequence.

#define SOCKET_ID_TRIES 100

Maximum number of random attempts to find a new socket identifier before switching to the sequence.

Referenced by socket_generate_new_id().

#define SOCKET_INITIAL_ACCEPTED_SIZE 1

Initial size of the sockets for acceptance queue.

#define SOCKET_INITIAL_ACCEPTED_SIZE 1

Initial waiting sockets queue size.

Referenced by socket_initialize().

#define SOCKET_INITIAL_RECEIVED_SIZE 4

Initial size of the received packet queue.

#define SOCKET_INITIAL_RECEIVED_SIZE 4

Initial received packet queue size.

Referenced by socket_initialize().

#define SOCKET_MAP_KEY_LISTENING "L"

Listening sockets' port map key.

Referenced by socket_bind_insert(), tcp_process_listen(), tcp_process_packet(), and udp_process_packet().

#define SOCKET_MAX_ACCEPTED_SIZE 0

Maximum waiting sockets queue size.

Referenced by socket_connection().

#define SOCKET_MAX_ACCEPTEDED_SIZE 0

Maximum size of the sockets for acceptance queue.

#define SOCKET_MAX_RECEIVED_SIZE 0

Maximum size of the received packet queue.

#define SOCKET_MAX_RECEIVED_SIZE 0

Maximum received packet queue size.

Referenced by socket_connection(), tcp_queue_received_packet(), and udp_process_packet().

#define SOCKET_SET_ADDRESS_LENGTH ( answer ) (socklen_t *) &IPC_GET_ARG3(answer)

Sets the address length in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_SET_DATA_FRAGMENT_SIZE ( answer ) (size_t *) &IPC_GET_ARG2(answer)

Sets the data fragment size in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_SET_HEADER_SIZE ( answer ) (int *) &IPC_GET_ARG3(answer)

Sets the header size in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_SET_READ_DATA_LENGTH ( answer ) (int *) &IPC_GET_ARG1(answer)

Sets the read data length in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOCKET_SET_SOCKET_ID ( answer ) (int *) &IPC_GET_ARG1(answer)

Sets the socket identifier in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

#define SOL_AAL 265

ATM Adaption Layer (packet level) socket option level.

#define SOL_ATALK 258

ATALK socket option level.

#define SOL_ATM 264

ATM layer (cell level) socket option level.

#define SOL_AX25 257

AX socket option level.

#define SOL_BLUETOOTH 274

BLUETOOTH socket option level.

#define SOL_DCCP 269

DCCP socket option level.

#define SOL_DECNET 261

DECNET socket option level.

#define SOL_ICMP 1

ICMP socket option level.

#define SOL_ICMPV6 58

ICMPV socket option level.

#define SOL_IP 0

IP socket option level.

#define SOL_IPV6 41

IPV socket option level.

#define SOL_IPX 256

IPX socket option level.

#define SOL_IRDA 266

IRDA socket option level.

#define SOL_LLC 268

LLC socket option level.

#define SOL_NETBEUI 267

NETBEUI socket option level.

#define SOL_NETLINK 270

NETLINK socket option level.

#define SOL_NETROM 259

NETROM socket option level.

#define SOL_PACKET 263

PACKET socket option level.

#define SOL_PPPOL2TP 273

PPPOL socket option level.

#define SOL_RAW 255

RAW socket option level.

#define SOL_ROSE 260

ROSE socket option level.

#define SOL_RXRPC 272

RXRPC socket option level.

#define SOL_SCTP 132

SCTP socket option level.

#define SOL_TCP 6

TCP socket option level.

#define SOL_TIPC 271

TIPC socket option level.

#define SOL_UDP 17

UDP socket option level.

#define SOL_UDPLITE 136

UDP-Lite (RFC 3828) socket option level.

#define SOL_X25 262

X25 socket option level.

Typedef Documentation

typedef enum sock_type sock_type_t

Socket types.

typedef socket_core_t* socket_core_ref

Type definition of the socket core pointer.

See also:: socket_core

typedef struct socket_core socket_core_t

Type definition of the socket core.

See also:: socket_core

typedef socket_port_t* socket_port_ref

Type definition of the socket port pointer.

See also:: socket_port

typedef struct socket_port socket_port_t

Type definition of the socket port.

See also:: socket_port

typedef socket_t* socket_ref

Type definition of the socket specific data pointer.

See also:: socket

typedef struct socket socket_t

Type definition of the socket specific data.

See also:: socket

typedef int32_t socklen_t

Type definition of the socket length.

Enumeration Type Documentation

enum sock_type

Socket types.

Enumerator:

SOCK_STREAM	Stream (connection oriented) socket.
SOCK_DGRAM	Datagram (connectionless oriented) socket.
SOCK_RAW	Raw socket.

enum socket_messages

Socket client messages.

Enumerator:

NET_SOCKET	Creates a new socket. See also: socket()
NET_SOCKET_BIND	Binds the socket. See also: bind()
NET_SOCKET_LISTEN	Creates a new socket. See also: socket()
NET_SOCKET_ACCEPT	Accepts an incomming connection. See also: accept()
NET_SOCKET_CONNECT	Connects the socket. See also: connect()
NET_SOCKET_CLOSE	Closes the socket. See also: closesocket()
NET_SOCKET_SEND	Sends data via the stream socket. See also: send()
NET_SOCKET_SENDTO	Sends data via the datagram socket. See also: sendto()
NET_SOCKET_RECV	Receives data from the stream socket. See also: socket()
NET_SOCKET_RECVFROM	Receives data from the datagram socket. See also: socket()
NET_SOCKET_GETSOCKOPT	Gets the socket option. See also: getsockopt()
NET_SOCKET_SETSOCKOPT	Sets the socket option. See also: setsockopt()
NET_SOCKET_ACCEPTED	New socket for acceptence notification message.
NET_SOCKET_RECEIVED	New data received notification message.
NET_SOCKET_DATA_FRAGMENT_SIZE	New socket data fragment size notification message.

Function Documentation

int accept	(	int	socket_id,
		struct sockaddr *	cliaddr,
		socklen_t *	addrlen
	)

Accepts waiting socket.

Blocks until such a socket exists.

Parameters:

`[in]`	socket_id	Socket identifier.
`[out]`	cliaddr	The remote client address.
`[in]`	addrlen	The address length.

Returns:: EOK on success.; EBADMEM if the cliaddr or addrlen parameter is NULL.; EINVAL if the backlog parameter is not positive (<=0).; ENOTSOCK if the socket is not found.; Other error codes as defined for the NET_SOCKET_ACCEPT message.

References accept_lock, accept_signal, accepted, blocked, data_fragment_size, dyn_fifo_pop(), dyn_fifo_value(), ENOTSOCK, free, socket_client_globals::lock, NET_SOCKET_ACCEPT, phone, service, socket_generate_new_id(), SOCKET_GET_ADDRESS_LENGTH, SOCKET_GET_DATA_FRAGMENT_SIZE, socket_get_sockets(), socket_globals, socket_id, and socket_initialize().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int bind	(	int	socket_id,
		const struct sockaddr *	my_addr,
		socklen_t	addrlen
	)

Binds the socket to a port address.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	my_addr	The port address.
`[in]`	addrlen	The address length.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the my_addr parameter is NULL.; NO_DATA if the addlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_BIND message.

References NET_SOCKET_BIND, and socket_send_data().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int closesocket ( int socket_id )

Closes the socket.

Parameters:

[in] socket_id Socket identifier.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EINPROGRESS if there is another blocking function in progress.; Other error codes as defined for the NET_SOCKET_CLOSE message.

References blocked, EINPROGRESS, ENOTSOCK, ERROR_DECLARE, ERROR_PROPAGATE, socket_client_globals::lock, NET_SOCKET_CLOSE, phone, service, socket_destroy(), socket_get_sockets(), socket_globals, and socket_id.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int connect	(	int	socket_id,
		const struct sockaddr *	serv_addr,
		socklen_t	addrlen
	)

Connects socket to the remote server.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	serv_addr	The remote server address.
`[in]`	addrlen	The address length.

Returns:: EOK on success.; EBADMEM if the serv_addr parameter is NULL.; NO_DATA if the addlen parameter is zero (0).; ENOTSOCK if the socket is not found.; Other error codes as defined for the NET_SOCKET_CONNECT message.

References EDESTADDRREQ, NET_SOCKET_CONNECT, and socket_send_data().

Here is the call graph for this function:

GENERIC_CHAR_MAP_DECLARE	(	socket_port_map	,
		socket_core_ref
	)

Bount port sockets map.

The listening socket has the SOCKET_MAP_KEY_LISTENING key identifier whereas the other use the remote addresses.

GENERIC_CHAR_MAP_IMPLEMENT	(	socket_port_map	,
		socket_core_ref
	)

int getsockopt	(	int	socket_id,
		int	level,
		int	optname,
		void *	value,
		size_t *	optlen
	)

Gets socket option.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	level	The socket options level.
`[in]`	optname	The socket option to be get.
`[out]`	value	The value buffer to be filled.
`[in,out]`	optlen	The value buffer length. The maximum length is read. The actual length is set.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the value or optlen parameter is NULL.; NO_DATA if the optlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_GETSOCKOPT message.

References ENOTSOCK, socket_client_globals::lock, NET_SOCKET_GETSOCKOPT, NO_DATA, phone, service, socket_get_sockets(), socket_globals, and socket_id.

Here is the call graph for this function:

INT_MAP_DECLARE	(	socket_ports	,
		socket_port_t
	)

Ports map.

The key is the port number.

INT_MAP_DECLARE	(	socket_cores	,
		socket_core_t
	)

Sockets map.

The key is the socket identifier.

INT_MAP_DECLARE	(	sockets	,
		socket_t
	)

Sockets map.

Maps socket identifiers to the socket specific data.

See also:: int_map.h

INT_MAP_IMPLEMENT	(	socket_ports	,
		socket_port_t
	)

INT_MAP_IMPLEMENT	(	socket_cores	,
		socket_core_t
	)

INT_MAP_IMPLEMENT	(	sockets	,
		socket_t
	)

int listen	(	int	socket_id,
		int	backlog
	)

Sets the number of connections waiting to be accepted.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	backlog	The maximum number of waiting sockets to be accepted.

Returns:: EOK on success.; EINVAL if the backlog parameter is not positive (<=0).; ENOTSOCK if the socket is not found.; Other error codes as defined for the NET_SOCKET_LISTEN message.

References ENOTSOCK, socket_client_globals::lock, NET_SOCKET_LISTEN, phone, service, socket_get_sockets(), socket_globals, and socket_id.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int recv	(	int	socket_id,
		void *	data,
		size_t	datalength,
		int	flags
	)

Receives data via the socket.

Parameters:

`[in]`	socket_id	Socket identifier.
`[out]`	data	The data buffer to be filled.
`[in]`	datalength	The data length.
`[in]`	flags	Various receive flags.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data parameter is NULL.; NO_DATA if the datalength parameter is zero (0).; Other error codes as defined for the NET_SOCKET_RECV message.

References NET_SOCKET_RECV, and recvfrom_core().

Here is the call graph for this function:

int recvfrom	(	int	socket_id,
		void *	data,
		size_t	datalength,
		int	flags,
		struct sockaddr *	fromaddr,
		socklen_t *	addrlen
	)

Receives data via the socket.

Parameters:

`[in]`	socket_id	Socket identifier.
`[out]`	data	The data buffer to be filled.
`[in]`	datalength	The data length.
`[in]`	flags	Various receive flags.
`[out]`	fromaddr	The source address.
`[in,out]`	addrlen	The address length. The maximum address length is read. The actual address length is set.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data or fromaddr parameter is NULL.; NO_DATA if the datalength or addrlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_RECVFROM message.

References NET_SOCKET_RECVFROM, NO_DATA, and recvfrom_core().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int recvfrom_core	(	ipcarg_t	message,
		int	socket_id,
		void *	data,
		size_t	datalength,
		int	flags,
		struct sockaddr *	fromaddr,
		socklen_t *	addrlen
	)

Receives data via the socket.

Parameters:

`[in]`	message	The action message.
`[in]`	socket_id	Socket identifier.
`[out]`	data	The data buffer to be filled.
`[in]`	datalength	The data length.
`[in]`	flags	Various receive flags.
`[out]`	fromaddr	The source address. May be NULL for connected sockets.
`[in,out]`	addrlen	The address length. The maximum address length is read. The actual address length is set. Used only if fromaddr is not NULL.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data parameter is NULL.; NO_DATA if the datalength or addrlen parameter is zero (0).; Other error codes as defined for the spcific message.

References blocked, dyn_fifo_pop(), dyn_fifo_value(), ENOTSOCK, free, socket_client_globals::lock, NO_DATA, phone, receive_lock, receive_signal, received, service, SOCKET_GET_ADDRESS_LENGTH, SOCKET_GET_READ_DATA_LENGTH, socket_get_sockets(), socket_globals, and socket_id.

Referenced by recv(), and recvfrom().

Here is the call graph for this function:

Here is the caller graph for this function:

int send	(	int	socket_id,
		void *	data,
		size_t	datalength,
		int	flags
	)

Sends data via the socket.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	data	The data to be sent.
`[in]`	datalength	The data length.
`[in]`	flags	Various send flags.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data parameter is NULL.; NO_DATA if the datalength parameter is zero (0).; Other error codes as defined for the NET_SOCKET_SEND message.

References NET_SOCKET_SEND, and sendto_core().

Here is the call graph for this function:

int sendto	(	int	socket_id,
		const void *	data,
		size_t	datalength,
		int	flags,
		const struct sockaddr *	toaddr,
		socklen_t	addrlen
	)

Sends data via the socket to the remote address.

Binds the socket to a free port if not already connected/bound.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	data	The data to be sent.
`[in]`	datalength	The data length.
`[in]`	flags	Various send flags.
`[in]`	toaddr	The destination address.
`[in]`	addrlen	The address length.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data or toaddr parameter is NULL.; NO_DATA if the datalength or the addrlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_SENDTO message.

References EDESTADDRREQ, NET_SOCKET_SENDTO, and sendto_core().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int sendto_core	(	ipcarg_t	message,
		int	socket_id,
		const void *	data,
		size_t	datalength,
		int	flags,
		const struct sockaddr *	toaddr,
		socklen_t	addrlen
	)

Sends data via the socket to the remote address.

Binds the socket to a free port if not already connected/bound.

Parameters:

`[in]`	message	The action message.
`[in]`	socket_id	Socket identifier.
`[in]`	data	The data to be sent.
`[in]`	datalength	The data length.
`[in]`	flags	Various send flags.
`[in]`	toaddr	The destination address. May be NULL for connected sockets.
`[in]`	addrlen	The address length. Used only if toaddr is not NULL.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data or toaddr parameter is NULL.; NO_DATA if the datalength or the addrlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_SENDTO message.

References data_fragment_size, ENOTSOCK, header_size, socket_client_globals::lock, NO_DATA, phone, sending_lock, service, SOCKET_GET_DATA_FRAGMENT_SIZE, socket_get_sockets(), socket_globals, and socket_id.

Referenced by send(), and sendto().

Here is the call graph for this function:

Here is the caller graph for this function:

int setsockopt	(	int	socket_id,
		int	level,
		int	optname,
		const void *	value,
		size_t	optlen
	)

Sets socket option.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	level	The socket options level.
`[in]`	optname	The socket option to be set.
`[in]`	value	The value to be set.
`[in]`	optlen	The value length.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the value parameter is NULL.; NO_DATA if the optlen parameter is zero (0).; Other error codes as defined for the NET_SOCKET_SETSOCKOPT message.

References NET_SOCKET_SETSOCKOPT, and socket_send_data().

Here is the call graph for this function:

int socket	(	int	domain,
		int	type,
		int	protocol
	)

Creates a new socket.

Parameters:

`[in]`	domain	The socket protocol family.
`[in]`	type	Socket type.
`[in]`	protocol	Socket protocol.

Returns:: The socket identifier on success.; EPFNOTSUPPORT if the protocol family is not supported.; ESOCKNOTSUPPORT if the socket type is not supported.; EPROTONOSUPPORT if the protocol is not supported.; ENOMEM if there is not enough memory left.; ELIMIT if there was not a free socket identifier found this time.; Other error codes as defined for the NET_SOCKET message.; Other error codes as defined for the bind_service_timeout() function.

References accepted, data_fragment_size, dyn_fifo_destroy(), EPFNOSUPPORT, EPROTONOSUPPORT, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ESOCKTNOSUPPORT, free, header_size, IPPROTO_TCP, IPPROTO_UDP, socket_client_globals::lock, NET_SOCKET, NET_SOCKET_CLOSE, PF_INET, received, SOCK_DGRAM, SOCK_RAW, SOCK_STREAM, socket_generate_new_id(), socket_get_sockets(), socket_get_tcp_phone(), socket_get_udp_phone(), socket_globals, and socket_initialize().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int socket_bind	(	socket_cores_ref	local_sockets,
		socket_ports_ref	global_sockets,
		int	socket_id,
		void *	addr,
		size_t	addrlen,
		int	free_ports_start,
		int	free_ports_end,
		int	last_used_port
	)

Binds the socket to the port.

The address port is used if set, a free port is used if not.

Parameters:

`[in]`	local_sockets	The local sockets to be searched.
`[in,out]`	global_sockets	The global sockets to be updated.
`[in]`	socket_id	The new socket identifier.
`[in]`	addr	The address to be bound to.
`[in]`	addrlen	The address length.
`[in]`	free_ports_start	The minimum free port.
`[in]`	free_ports_end	The maximum free port.
`[in]`	last_used_port	The last used free port.

Returns:: EOK on success.; ENOTSOCK if the socket was not found.; EAFNOSUPPORT if the address family is not supported.; EADDRINUSE if the port is already in use.; Other error codes as defined for the socket_bind_free_port() function.; Other error codes as defined for the socket_bind_insert() function.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

Here is the caller graph for this function:

int socket_bind_free_port	(	socket_ports_ref	global_sockets,
		socket_core_ref	socket,
		int	free_ports_start,
		int	free_ports_end,
		int	last_used_port
	)

Binds the socket to a free port.

The first free port is used.

Parameters:

`[in,out]`	global_sockets	The global sockets to be updated.
`[in,out]`	socket	The socket to be bound.
`[in]`	free_ports_start	The minimum free port.
`[in]`	free_ports_end	The maximum free port.
`[in]`	last_used_port	The last used free port.

Returns:: EOK on success.; ENOTCONN if no free port was found.; Other error codes as defined for the socket_bind_insert() function.

Referenced by tcp_connect_core(), and udp_sendto_message().

Here is the caller graph for this function:

int socket_bind_insert	(	socket_ports_ref	global_sockets,
		socket_core_ref	socket,
		int	port
	)

Binds the socket to the port.

The SOCKET_MAP_KEY_LISTENING key identifier is used.

Parameters:

`[in]`	global_sockets	The global sockets to be updated.
`[in]`	socket	The socket to be added.
`[in]`	port	The port number to be bound to.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.; Other error codes as defined for the socket_ports_add() function.

References socket_port::count, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, socket_port::map, socket_core::port, SOCKET_MAP_KEY_LISTENING, and socket_port_add_core().

Here is the call graph for this function:

void socket_connection	(	ipc_callid_t	iid,
		ipc_call_t *	icall
	)

Default thread for new connections.

Parameters:

`[in]`	iid	The initial message identifier.
`[in]`	icall	The initial message call structure.

References accept_lock, accept_signal, accepted, data_fragment_size, dyn_fifo_push(), ENOTSOCK, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, socket_client_globals::lock, NET_SOCKET_ACCEPTED, NET_SOCKET_DATA_FRAGMENT_SIZE, NET_SOCKET_RECEIVED, receive_lock, receive_signal, received, sending_lock, SOCKET_GET_DATA_FRAGMENT_SIZE, SOCKET_GET_DATA_FRAGMENTS, SOCKET_GET_SOCKET_ID, socket_get_sockets(), socket_globals, SOCKET_MAX_ACCEPTED_SIZE, and SOCKET_MAX_RECEIVED_SIZE.

Referenced by socket_get_tcp_phone(), and socket_get_udp_phone().

Here is the call graph for this function:

Here is the caller graph for this function:

void socket_cores_release	(	int	packet_phone,
		socket_cores_ref	local_sockets,
		socket_ports_ref	global_sockets,
		void(*)(socket_core_ref socket)	socket_release
	)

Destroys local sockets.

Releases all buffered packets and calls the release function for each of the sockets.

Parameters:

`[in]`	packet_phone	The packet server phone to release buffered packets.
`[in]`	local_sockets	The local sockets to be destroyed.
`[in,out]`	global_sockets	The global sockets to be updated.
`[in]`	socket_release	The client release callback function.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

Here is the caller graph for this function:

int socket_create	(	socket_cores_ref	local_sockets,
		int	app_phone,
		void *	specific_data,
		int *	socket_id
	)

Creates a new socket.

Parameters:

`[in,out]`	local_sockets	The local sockets to be updated.
`[in]`	app_phone	The application phone.
`[in]`	specific_data	The socket specific data.
`[in,out]`	socket_id	The new socket identifier. A new identifier is chosen if set to zero (0) or negative. A negative identifier is chosen if set to negative.

Returns:: EOK on success.; EINVAL if the socket_id parameter is NULL.; ENOMEM if there is not enough memory left.

Referenced by tcp_process_client_messages(), tcp_process_listen(), and udp_process_client_messages().

Here is the caller graph for this function:

int socket_destroy	(	int	packet_phone,
		int	socket_id,
		socket_cores_ref	local_sockets,
		socket_ports_ref	global_sockets,
		void(*)(socket_core_ref socket)	socket_release
	)

Destroys the socket.

If the socket is bound, the port is released. Releases all buffered packets, calls the release function and removes the socket from the local sockets.

Parameters:

`[in]`	packet_phone	The packet server phone to release buffered packets.
`[in]`	socket_id	The socket identifier.
`[in,out]`	local_sockets	The local sockets to be updated.
`[in,out]`	global_sockets	The global sockets to be updated.
`[in]`	socket_release	The client release callback function.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.

void socket_destroy ( socket_ref socket )

Clears and destroys the socket.

Parameters:

[in] socket The socket to be destroyed.

References accepted, dyn_fifo_destroy(), dyn_fifo_pop(), received, socket_get_sockets(), and socket_id.

Referenced by closesocket(), tcp_close_message(), tcp_process_listen(), tcp_release_after_timeout(), and udp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

void socket_destroy_core	(	int	packet_phone,
		socket_core_ref	socket,
		socket_cores_ref	local_sockets,
		socket_ports_ref	global_sockets,
		void(*)(socket_core_ref socket)	socket_release
	)

Destroys the socket.

If the socket is bound, the port is released. Releases all buffered packets, calls the release function and removes the socket from the local sockets.

Parameters:

`[in]`	packet_phone	The packet server phone to release buffered packets.
`[in]`	socket	The socket to be destroyed.
`[in,out]`	local_sockets	The local sockets to be updated.
`[in,out]`	global_sockets	The global sockets to be updated.
`[in]`	socket_release	The client release callback function.

References socket_core::accepted, dyn_fifo_destroy(), dyn_fifo_pop(), socket_core::port, pq_release(), socket_core::received, socket_core::socket_id, and socket_port_release().

Here is the call graph for this function:

static int socket_generate_new_id	(	socket_cores_ref	local_sockets,
		int	positive
	)			`[static]`

Tries to find a new free socket identifier.

Parameters:

`[in]`	local_sockets	The local sockets to be searched.
`[in]`	positive	A value indicating whether a positive identifier is requested. A negative identifier is requested if set to false.

Returns:: The new socket identifier.; ELIMIT if there is no socket identifier available.

References count, and SOCKET_ID_TRIES.

static int socket_generate_new_id ( void ) [static]

Tries to find a new free socket identifier.

Returns:: The new socket identifier.; ELIMIT if there is no socket identifier available.

References count, socket_get_sockets(), and SOCKET_ID_TRIES.

Referenced by accept(), and socket().

Here is the call graph for this function:

Here is the caller graph for this function:

static sockets_ref socket_get_sockets ( void ) [static]

Returns the active sockets.

Returns:: The active sockets.

References free, socket_globals, and socket_client_globals::sockets.

Referenced by accept(), closesocket(), getsockopt(), listen(), recvfrom_core(), sendto_core(), socket(), socket_connection(), socket_destroy(), socket_generate_new_id(), and socket_send_data().

Here is the caller graph for this function:

static int socket_get_tcp_phone ( void ) [static]

Returns the TCP module phone.

Connects to the TCP module if necessary.

Returns:: The TCP module phone.; Other error codes as defined for the bind_service_timeout() function.

References bind_service_timeout(), SOCKET_CONNECT_TIMEOUT, socket_connection(), socket_globals, and socket_client_globals::tcp_phone.

Referenced by socket().

Here is the call graph for this function:

Here is the caller graph for this function:

static int socket_get_udp_phone ( void ) [static]

Returns the UDP module phone.

Connects to the UDP module if necessary.

Returns:: The UDP module phone.; Other error codes as defined for the bind_service_timeout() function.

References bind_service_timeout(), SOCKET_CONNECT_TIMEOUT, socket_connection(), socket_globals, and socket_client_globals::udp_phone.

Referenced by socket().

Here is the call graph for this function:

Here is the caller graph for this function:

void socket_initialize	(	socket_ref	socket,
		int	socket_id,
		int	phone,
		services_t	service
	)

Initializes a new socket specific data.

Parameters:

`[in,out]`	socket	The socket to be initialized.
`[in]`	socket_id	The new socket identifier.
`[in]`	phone	The parent module phone.
`[in]`	service	The parent module service.

References accept_lock, accept_signal, accepted, dyn_fifo_initialize(), phone, receive_lock, receive_signal, received, sending_lock, service, socket_id, SOCKET_INITIAL_ACCEPTED_SIZE, and SOCKET_INITIAL_RECEIVED_SIZE.

Referenced by accept(), and socket().

Here is the call graph for this function:

Here is the caller graph for this function:

int socket_port_add	(	socket_ports_ref	global_sockets,
		int	port,
		socket_core_ref	socket,
		const char *	key,
		size_t	key_length
	)

Adds the socket to an already bound port.

Parameters:

`[in]`	global_sockets	The global sockets to be updated.
`[in]`	port	The port number to be bound to.
`[in]`	socket	The socket to be added.
`[in]`	key	The socket key identifier.
`[in]`	key_length	The socket key length.

Returns:: EOK on success.; ENOENT if the port is not already used.; Other error codes as defined for the socket_port_add_core() function.

Referenced by tcp_process_listen().

Here is the caller graph for this function:

int socket_port_add_core	(	socket_port_ref	socket_port,
		socket_core_ref	socket,
		const char *	key,
		size_t	key_length
	)

Adds the socket to a socket port.

Parameters:

`[in,out]`	socket_port	The socket port structure.
`[in]`	socket	The socket to be added.
`[in]`	key	The socket key identifier.
`[in]`	key_length	The socket key length.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

References socket_port::count, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, socket_core::key, socket_core::key_length, and socket_port::map.

Referenced by socket_bind_insert().

Here is the caller graph for this function:

socket_core_ref socket_port_find	(	socket_ports_ref	global_sockets,
		int	port,
		const char *	key,
		size_t	key_length
	)

Finds the bound port socket.

Parameters:

`[in]`	global_sockets	The global sockets to be searched.
`[in]`	port	The port number.
`[in]`	key	The socket key identifier.
`[in]`	key_length	The socket key length.

Returns:: The found socket.; NULL if no socket was found.

Referenced by tcp_process_listen(), tcp_process_packet(), tcp_release_after_timeout(), tcp_timeout(), and udp_process_packet().

Here is the caller graph for this function:

void socket_port_release	(	socket_ports_ref	global_sockets,
		socket_core_ref	socket
	)

Releases the socket port.

If the socket is bound the port entry is released. If there are no more port entries the port is release.

Parameters:

`[in]`	global_sockets	The global sockets to be updated.
`[in]`	socket	The socket to be unbound.

Referenced by socket_destroy_core().

Here is the caller graph for this function:

int socket_reply_packets	(	packet_t	packet,
		size_t *	length
	)

Replies the packet or the packet queue data to the application via the socket.

Uses the current message processing fibril.

Parameters:

`[in]`	packet	The packet to be transfered.
`[out]`	length	The total data length.

Returns:: EOK on success.; EBADMEM if the length parameter is NULL.; ENOMEM if there is not enough memory left.; Other error codes as defined for the data_reply() function.

Referenced by tcp_recvfrom_message(), and udp_recvfrom_message().

Here is the caller graph for this function:

int socket_send_data	(	int	socket_id,
		ipcarg_t	message,
		ipcarg_t	arg2,
		const void *	data,
		size_t	datalength
	)

Sends message to the socket parent module with specified data.

Parameters:

`[in]`	socket_id	Socket identifier.
`[in]`	message	The action message.
`[in]`	arg2	The second message parameter.
`[in]`	data	The data to be sent.
`[in]`	datalength	The data length.

Returns:: EOK on success.; ENOTSOCK if the socket is not found.; EBADMEM if the data parameter is NULL.; NO_DATA if the datalength parameter is zero (0).; Other error codes as defined for the spcific message.

References ENOTSOCK, socket_client_globals::lock, NO_DATA, phone, service, socket_get_sockets(), socket_globals, and socket_id.

Referenced by bind(), connect(), and setsockopt().

Here is the call graph for this function:
