Networking Stack
[HelenOS Services]

Collaboration diagram for Networking Stack:

Data Structures
struct	in_addr
	INET address. More...
struct	sockaddr_in
	INET socket address. More...
struct	in6_addr
	INET6 address. More...
struct	sockaddr_in6
	INET6 socket address. More...
struct	sockaddr
	Socket address. More...
struct	net_globals
	Configuration settings. More...
struct	netif
	Present network interface device. More...
struct	char_map
	Character string to integer map item. More...
struct	dyn_fifo
	Dynamic first in first out positive integer queue. More...
struct	measured_string
	Character string with measured length. More...
struct	module_struct
	Module map. More...
Modules
	Network interface drivers
	Network interface layer
	Inter-networking layer
	Transport layer
	Packet management system
	Applications
	Application library
Files
file	checksum.c
	General CRC and checksum computation implementation.
file	configuration.h
	Networking subsystem compilation configuration.
file	err.h
	Common error processing codes and routines.
file	byteorder.h
	Host - network byte order manipulation functions.
file	checksum.h
	General CRC and checksum computation.
file	in.h
	INET family common definitions.
file	in6.h
	INET6 family common definitions.
file	inet.h
	Internet common definitions.
file	net_interface.h
	Networking module interface.
file	socket_errno.h
	Socket error codes.
file	inet.c
	Internet protocol address conversion functions implementation.
file	messages.h
	Networking common message definitions.
file	module.c
	Generic module skeleton implementation.
file	modules.c
	Generic module functions implementation.
file	modules.h
	Generic module functions.
file	net.c
	Networking subsystem central module implementation.
file	net.h
	Networking subsystem central module.
file	net_bundle.c
	Wrapper for the bundled networking and TCP/IP stact modules.
file	net_messages.h
	Networking subsystem central module messages.
file	net_remote.c
	Networking interface implementation for standalone remote modules.
file	net_standalone.c
	Wrapper for the standalone networking module.
file	netstart.c
	Starts the networking subsystem.
file	self_test.c
	Self tests implementation.
file	self_test.h
	Self tests.
file	char_map.c
	Character string to integer map implementation.
file	char_map.h
	Character string to integer map.
file	dynamic_fifo.c
	Dynamic first in first out positive integer queue implementation.
file	dynamic_fifo.h
	Dynamic first in first out positive integer queue.
file	generic_char_map.h
	Character string to generic type map.
file	generic_field.h
	Generic type field.
file	int_map.h
	Integer to generic type map.
file	measured_strings.c
	Character string with measured length implementation.
file	measured_strings.h
	Character string with measured length.
file	module_map.c
	Character string to module map implementation.
file	module_map.h
	Character string to module map.
Defines
#define	CRC_DIVIDER_BE 0x04C11DB7
	Big-endian encoding CRC divider.
#define	CRC_DIVIDER_LE 0xEDB88320
	Little-endian encoding CRC divider.
#define	NET_SELF_TEST 0
	Activates the self test.
#define	ERROR_CODE error_check_return_value
	An actual stored error code.
#define	ERROR_DECLARE int ERROR_CODE
	An error processing routines declaration.
#define	ERROR_OCCURRED(value) ((ERROR_CODE = (value)) != EOK)
	Stores the value as an error code and checks if an error occurred.
#define	ERROR_PROPAGATE(value) if(ERROR_OCCURRED(value)) return ERROR_CODE
	Checks if an error occurred and immediately exits the actual function returning the error code.
#define	htons(number) host2uint16_t_be(number)
	Converts the given short number (16 bit) from the host byte order to the network byte order (big endian).
#define	htonl(number) host2uint32_t_be(number)
	Converts the given long number (32 bit) from the host byte order to the network byte order (big endian).
#define	ntohs(number) uint16_t_be2host(number)
	Converts the given short number (16 bit) from the network byte order (big endian) to the host byte order.
#define	ntohl(number) uint32_t_be2host(number)
	Converts the given long number (32 bit) from the network byte order (big endian) to the host byte order.
#define	IP_CHECKSUM_ZERO 0xFFFFu
	IP checksum value for computed zero checksum.
#define	compute_crc32(seed, data, length) compute_crc32_le(seed, (uint8_t *) data, length)
	Computes CRC32 value.
#define	INET_ADDRSTRLEN (4 * 3 + 3 + 1)
	INET string address maximum length.
#define	INET6_ADDRSTRLEN (8 * 4 + 7 + 1)
	INET6 string address maximum length.
#define	IS_IN_INTERVAL(item, first_inclusive, last_exclusive) (((item) >= (first_inclusive)) && ((item) < (last_exclusive)))
	Returns a value indicating whether the value is in the interval.
#define	MODULE_WAIT_TIME (10 * 1000)
	The time between connect requests in microseconds.
#define	CONVERT_SIZE(type_from, type_to, count) ((sizeof(type_from) / sizeof(type_to)) * (count))
	Converts the data length between different types.
#define	REGISTER_ME(me, phonehash) ipc_connect_to_me(PHONE_NS, (me), 0, 0, (phonehash))
	Registers the module service at the name server.
#define	BUFFER_SIZE 256
	File read buffer size.
#define	NAME "Networking"
	Networking module name.
#define	CONF_DIR "/cfg/net"
	Configuration directory.
#define	CONF_GENERAL_FILE "general"
	General configuration file.
#define	NAME "Networking startup"
	Networking startup module name.
#define	self_test() EOK
	Self test start function.
#define	CHAR_MAP_MAGIC_VALUE 0x12345611
	Internal magic value for a consistency check.
#define	CHAR_MAP_NULL (-1)
	Invalid assigned value used also if an entry does not exist.
#define	DYN_FIFO_MAGIC_VALUE 0x58627659
	Internal magic value for a consistency check.
#define	NEXT_INDEX(fifo, index) (((index) + 1) % ((fifo)->size + 1))
	Returns the next queue index.
#define	GENERIC_CHAR_MAP_MAGIC_VALUE 0x12345622
	Internal magic value for a map consistency check.
#define	GENERIC_CHAR_MAP_DECLARE(name, type)
	Character string to generic type map declaration.
#define	GENERIC_CHAR_MAP_IMPLEMENT(name, type)
	Character string to generic type map implementation.
#define	GENERIC_FIELD_MAGIC_VALUE 0x55667788
	Internal magic value for a field consistency check.
#define	GENERIC_FIELD_DECLARE(name, type)
	Generic type field declaration.
#define	GENERIC_FIELD_IMPLEMENT(name, type)
	Generic type field implementation.
#define	INT_MAP_MAGIC_VALUE 0x11223344
	Internal magic value for a map consistency check.
#define	INT_MAP_ITEM_MAGIC_VALUE 0x55667788
	Internal magic value for an item consistency check.
#define	INT_MAP_DECLARE(name, type)
	Integer to generic type map declaration.
#define	INT_MAP_IMPLEMENT(name, type)
	Integer to generic type map implementation.
Typedefs
typedef struct in_addr	in_addr_t
	Type definition of the INET address.
typedef struct sockaddr_in	sockaddr_in_t
	Type definition of the INET socket address.
typedef struct in6_addr	in6_addr_t
	Type definition of the INET6 address.
typedef struct sockaddr_in6	sockaddr_in6_t
	Type definition of the INET6 socket address.
typedef struct sockaddr	sockaddr_t
	Type definition of the socket address.
typedef struct addrinfo	addrinfo_t
	Type definition of the address information.
typedef int	connect_module_t (services_t need)
	Connect to the needed module function type definition.
typedef struct net_globals	net_globals_t
	Type definition of the networking module global data.
typedef struct netif	netif_t
	Type definition of the network interface specific data.
typedef netif_t *	netif_ref
	Type definition of the network interface specific data pointer.
typedef struct char_map	char_map_t
	Type definition of the character string to integer map.
typedef char_map_t *	char_map_ref
	Type definition of the character string to integer map pointer.
typedef struct dyn_fifo	dyn_fifo_t
	Type definition of the dynamic fifo queue.
typedef dyn_fifo_t *	dyn_fifo_ref
	Type definition of the dynamic fifo queue pointer.
typedef struct measured_string	measured_string_t
	Type definition of the character string with measured length.
typedef measured_string_t *	measured_string_ref
	Type definition of the character string with measured length pointer.
typedef struct module_struct	module_t
	Type definition of the module structure.
typedef module_t *	module_ref
	Type definition of the module structure pointer.
Enumerations
enum	net_messages { NET_NET_GET_CONF = NET_FIRST, NET_NET_GET_DEVICE_CONF, NET_NET_STARTUP }
	Networking subsystem central module messages. More...
Functions
uint16_t	compact_checksum (uint32_t sum)
	Compacts the computed checksum to the 16 bit number adding the carries.
uint32_t	compute_checksum (uint32_t seed, uint8_t *data, size_t length)
	Computes sum of the 2 byte fields.
uint32_t	compute_crc32_be (uint32_t seed, uint8_t *data, size_t length)
	Computes CRC32 value in the big-endian environment.
uint32_t	compute_crc32_le (uint32_t seed, uint8_t *data, size_t length)
	Computes CRC32 value in the little-endian environment.

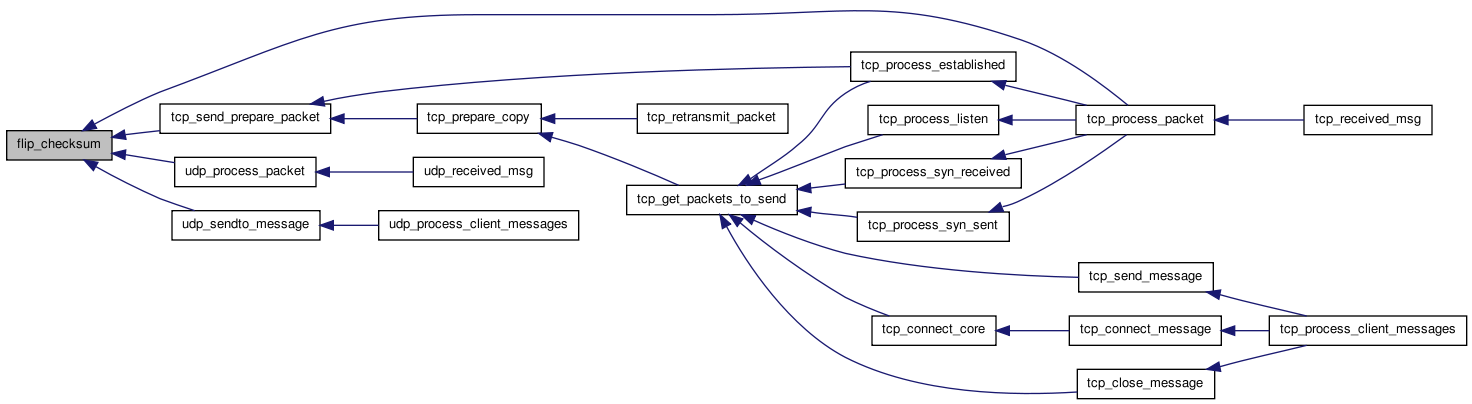

uint16_t	flip_checksum (uint16_t checksum)
	Returns or flips the checksum if zero.
uint16_t	ip_checksum (uint8_t *data, size_t length)
	Computes the ip header checksum.
int	inet_ntop (uint16_t family, const uint8_t data, char address, size_t length)
	Prints the address into the character buffer.
int	inet_pton (uint16_t family, const char address, uint8_t data)
	Parses the character string into the address.
void	client_connection (ipc_callid_t iid, ipc_call_t *icall)
	Default thread for new connections.
int	main (int argc, char *argv[])
	Starts the module.

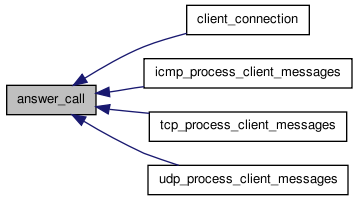

void	answer_call (ipc_callid_t callid, int result, ipc_call_t *answer, int answer_count)
	Answers the call.
int	bind_service (services_t need, ipcarg_t arg1, ipcarg_t arg2, ipcarg_t arg3, async_client_conn_t client_receiver)
	Creates bidirectional connection with the needed module service and registers the message receiver.
int	bind_service_timeout (services_t need, ipcarg_t arg1, ipcarg_t arg2, ipcarg_t arg3, async_client_conn_t client_receiver, suseconds_t timeout)
	Creates bidirectional connection with the needed module service and registers the message receiver.
int	connect_to_service (services_t need)
	Connects to the needed module.
int	connect_to_service_timeout (services_t need, suseconds_t timeout)
	Connects to the needed module.
int	data_receive (void *data, size_t length)
	Receives data from the other party.
int	data_reply (void *data, size_t data_length)
	Replies the data to the other party.

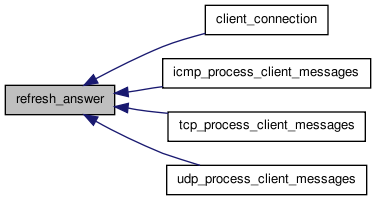

void	refresh_answer (ipc_call_t answer, int answer_count)
	Refreshes answer structure and parameters count.
device_id_t	generate_new_device_id (void)
	Generates new system-unique device identifier.
int	net_get_conf (measured_strings_ref netif_conf, measured_string_ref configuration, size_t count, char **data)
	Returns the configured values.
int	net_initialize (async_client_conn_t client_connection)
	Initializes the networking module.
int	parse_line (measured_strings_ref configuration, char *line)
int	read_configuration (void)
	Reads the networking subsystem global configuration.
int	read_configuration_file (const char directory, const char filename, measured_strings_ref configuration)
int	read_netif_configuration (const char *name, netif_ref netif)
	Reads the network interface specific configuration.
int	start_device (netif_ref netif)
	Starts the network interface according to its configuration.
int	startup (void)
	Reads the configuration and starts all network interfaces.
int	add_configuration (measured_strings_ref configuration, const char name, const char value)
	Adds the configured setting to the configuration map.
int	net_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the networking message.
int	net_initialize_build (async_client_conn_t client_connection)
	Initializes the networking module for the chosen subsystem build type.
task_id_t	spawn (const char *fname)
	Starts the module.
int	char_map_add_item (char_map_ref map, const char *identifier, size_t length, const int value)
	Adds the value with the key to the map.
char_map_ref	char_map_find_node (const char_map_ref map, const char *identifier, const size_t length)
	Returns the node assigned to the key from the map.
int	char_map_get_value (const char_map_ref map)
	Returns the value assigned to the map.
int	char_map_is_valid (const char_map_ref map)
	Checks if the map is valid.
int	char_map_add (char_map_ref map, const char *identifier, size_t length, const int value)
	Adds the value with the key to the map.
void	char_map_destroy (char_map_ref map)
	Clears and destroys the map.
int	char_map_exclude (char_map_ref map, const char *identifier, size_t length)
	Excludes the value assigned to the key from the map.
int	char_map_find (const char_map_ref map, const char *identifier, size_t length)
	Returns the value assigned to the key from the map.
int	char_map_initialize (char_map_ref map)
	Initializes the map.
int	char_map_update (char_map_ref map, const char *identifier, size_t length, const int value)
	Adds or updates the value with the key to the map.
int	dyn_fifo_is_valid (dyn_fifo_ref fifo)
	Checks if the queue is valid.
int	dyn_fifo_initialize (dyn_fifo_ref fifo, int size)
	Initializes the dynamic queue.
int	dyn_fifo_push (dyn_fifo_ref fifo, int value, int max_size)
	Appends a new item to the queue end.
int	dyn_fifo_pop (dyn_fifo_ref fifo)
	Returns and excludes the first item in the queue.
int	dyn_fifo_value (dyn_fifo_ref fifo)
	Returns and keeps the first item in the queue.
int	dyn_fifo_destroy (dyn_fifo_ref fifo)
	Clears and destroys the queue.
size_t *	prepare_lengths (const measured_string_ref strings, size_t count)
	Computes the lengths of the measured strings in the given array.
measured_string_ref	measured_string_create_bulk (const char *string, size_t length)
	Creates a new measured string bundled with a copy of the given string itself as one memory block.
measured_string_ref	measured_string_copy (measured_string_ref source)
	Copies the given measured string with separated header and data parts.
int	measured_strings_receive (measured_string_ref strings, char *data, size_t count)
	Receives a measured strings array from a calling module.
int	measured_strings_reply (const measured_string_ref strings, size_t count)
	Replies the given measured strings array to a calling module.
int	measured_strings_return (int phone, measured_string_ref strings, char *data, size_t count)
	Receives a measured strings array from another module.

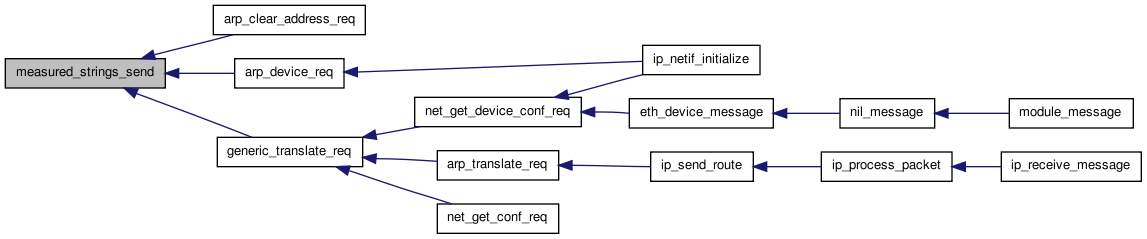

int	measured_strings_send (int phone, const measured_string_ref strings, size_t count)
	Sends the given measured strings array to another module.
int	add_module (module_ref module, modules_ref modules, const char name, const char *filename, services_t service, task_id_t task_id, connect_module_t connect_module)
module_ref	get_running_module (modules_ref modules, char *name)
	Searches and returns the specified module.
int	add_module (module_ref module, modules_ref modules, const char name, const char filename, services_t service, task_id_t task_id, connect_module_t connect_module)
	Adds module to the module map.
Variables
net_globals_t	net_globals
	Networking module global data.
net_globals_t	net_globals
	Networking module global data.
net_globals_t	net_globals
	Networking module global data.
Networking module interface
This interface is used by other modules.
int	net_get_device_conf_req (int net_phone, device_id_t device_id, measured_string_ref configuration, size_t count, char *data)
	Returns the device specific configuration.
int	net_get_conf_req (int net_phone, measured_string_ref configuration, size_t count, char *data)
	Returns the global configuration.
void	net_free_settings (measured_string_ref settings, char *data)
	Frees the received settings.
int	net_connect_module (services_t service)
	Connects to the networking module.
External module functions.
This functions have to be implemented in every module.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	External message processing function.
void	module_print_name (void)
	External function to print the module name.
int	module_start (async_client_conn_t client_connection)
	External module startup function.
Specific self tests switches

#define	NET_SELF_TEST_CHAR_MAP 1
	Activates the char map self test.
#define	NET_SELF_TEST_CRC 1
	Activates the CRC computation self test.
#define	NET_SELF_TEST_DYNAMIC_FIFO 1
	Activates the dynamic fifo self test.
#define	NET_SELF_TEST_GENERIC_CHAR_MAP 1
	Activates the generic char map self test.
#define	NET_SELF_TEST_GENERIC_FIELD 1
	Activates the generic field self test.
#define	NET_SELF_TEST_INT_MAP 1
	Activates the integral map self test.
#define	NET_SELF_TEST_MEASURED_STRINGS 1
	Activates the measured strings self test.
Socket error codes definitions

#define	EINPROGRESS (-10036)
	An API function is called while another blocking function is in progress.
#define	ENOTSOCK (-10038)
	The socket identifier is not valid.
#define	EDESTADDRREQ (-10039)
	The destination address required.
#define	EPROTONOSUPPORT (-10043)
	Protocol is not supported.
#define	ESOCKTNOSUPPORT (-10044)
	Socket type is not supported.
#define	EPFNOSUPPORT (-10046)
	Protocol family is not supported.
#define	EAFNOSUPPORT (-10047)
	Address family is not supported.
#define	EADDRINUSE (-10048)
	Address is already in use.
#define	ENOTCONN (-10057)
	The socket is not connected or bound.
#define	TRY_AGAIN (-11002)
	The requested operation was not performed.
#define	NO_DATA (-11004)
	No data.
Networking message counts

#define	NET_ARP_COUNT 5
	The number of ARP messages.
#define	NET_ETH_COUNT 0
	The number of Ethernet messages.
#define	NET_ICMP_COUNT 6
	The number of ICMP messages.
#define	NET_IL_COUNT 6
	The number of inter-network messages.
#define	NET_IP_COUNT 4
	The number of IP messages.
#define	NET_NET_COUNT 3
	The number of general networking messages.
#define	NET_NETIF_COUNT 6
	The number of network interface driver messages.
#define	NET_NIL_COUNT 7
	The number of network interface layer messages.
#define	NET_PACKET_COUNT 5
	The number of packet management system messages.
#define	NET_SOCKET_COUNT 14
	The number of socket messages.
#define	NET_TCP_COUNT 0
	The number of TCP messages.
#define	NET_TL_COUNT 1
	The number of transport layer messages.
#define	NET_UDP_COUNT 0
	The number of UDP messages.
Networking message intervals

#define	NET_FIRST 2000
	The first networking message.
#define	NET_NETIF_FIRST NET_FIRST
	The first network interface layer message.
#define	NET_NETIF_LAST (NET_NETIF_FIRST + NET_NETIF_COUNT)
	The last network interface layer message.
#define	NET_NET_FIRST (NET_NETIF_LAST + 0)
	The first general networking message.
#define	NET_NET_LAST (NET_NET_FIRST + NET_NET_COUNT)
	The last general networking message.
#define	NET_NIL_FIRST (NET_NET_LAST + 0)
	The first network interface layer message.
#define	NET_NIL_LAST (NET_NIL_FIRST + NET_NIL_COUNT)
	The last network interface layer message.
#define	NET_ETH_FIRST (NET_NIL_LAST + 0)
	The first Ethernet message.
#define	NET_ETH_LAST (NET_ETH_FIRST + NET_ETH_COUNT)
	The last Ethernet message.
#define	NET_IL_FIRST (NET_ETH_LAST + 0)
	The first inter-network message.
#define	NET_IL_LAST (NET_IL_FIRST + NET_IL_COUNT)
	The last inter-network message.
#define	NET_IP_FIRST (NET_IL_LAST + 0)
	The first IP message.
#define	NET_IP_LAST (NET_IP_FIRST + NET_IP_COUNT)
	The last IP message.
#define	NET_ARP_FIRST (NET_IP_LAST + 0)
	The first ARP message.
#define	NET_ARP_LAST (NET_ARP_FIRST + NET_ARP_COUNT)
	The last ARP message.
#define	NET_ICMP_FIRST (NET_ARP_LAST + 0)
	The first ICMP message.
#define	NET_ICMP_LAST (NET_ICMP_FIRST + NET_ICMP_COUNT)
	The last ICMP message.
#define	NET_TL_FIRST (NET_ICMP_LAST + 0)
	The first ICMP message.
#define	NET_TL_LAST (NET_TL_FIRST + NET_TL_COUNT)
	The last ICMP message.
#define	NET_UDP_FIRST (NET_TL_LAST + 0)
	The first UDP message.
#define	NET_UDP_LAST (NET_UDP_FIRST + NET_UDP_COUNT)
	The last UDP message.
#define	NET_TCP_FIRST (NET_UDP_LAST + 0)
	The first TCP message.
#define	NET_TCP_LAST (NET_TCP_FIRST + NET_TCP_COUNT)
	The last TCP message.
#define	NET_SOCKET_FIRST (NET_TCP_LAST + 0)
	The first socket message.
#define	NET_SOCKET_LAST (NET_SOCKET_FIRST + NET_SOCKET_COUNT)
	The last socket message.
#define	NET_PACKET_FIRST (NET_SOCKET_LAST + 0)
	The first packet management system message.
#define	NET_PACKET_LAST (NET_PACKET_FIRST + NET_PACKET_COUNT)
	The last packet management system message.
#define	NET_LAST NET_PACKET_LAST
	The last networking message.
#define	NET_COUNT (NET_LAST - NET_FIRST)
	The number of networking messages.
#define	IS_NET_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_FIRST, NET_LAST)
	Returns a value indicating whether the IPC call is a generic networking message.
#define	IS_NET_ARP_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ARP_FIRST, NET_ARP_LAST)
	Returns a value indicating whether the IPC call is an ARP message.
#define	IS_NET_ETH_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ETH_FIRST, NET_ETH_LAST)
	Returns a value indicating whether the IPC call is an Ethernet message.
#define	IS_NET_ICMP_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ICMP_FIRST, NET_ICMP_LAST)
	Returns a value indicating whether the IPC call is an ICMP message.
#define	IS_NET_IL_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IL_FIRST, NET_IL_LAST)
	Returns a value indicating whether the IPC call is an inter-network layer message.
#define	IS_NET_IP_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IP_FIRST, NET_IP_LAST)
	Returns a value indicating whether the IPC call is an IP message.
#define	IS_NET_NET_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NET_FIRST, NET_NET_LAST)
	Returns a value indicating whether the IPC call is a generic networking message.
#define	IS_NET_NIL_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NIL_FIRST, NET_NIL_LAST)
	Returns a value indicating whether the IPC call is a network interface layer message.
#define	IS_NET_PACKET_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_PACKET_FIRST, NET_PACKET_LAST)
	Returns a value indicating whether the IPC call is a packet manaagement system message.
#define	IS_NET_SOCKET_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_SOCKET_FIRST, NET_SOCKET_LAST)
	Returns a value indicating whether the IPC call is a socket message.
#define	IS_NET_TCP_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TCP_FIRST, NET_TCP_LAST)
	Returns a value indicating whether the IPC call is a TCP message.
#define	IS_NET_TL_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TL_FIRST, NET_TL_LAST)
	Returns a value indicating whether the IPC call is a transport layer message.
#define	IS_NET_UDP_MESSAGE(call) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_UDP_FIRST, NET_UDP_LAST)
	Returns a value indicating whether the IPC call is a UDP message.
First arguments

#define	IPC_GET_DEVICE(call) (device_id_t) IPC_GET_ARG1(*call)
	Returns the device identifier message argument.
Second arguments

#define	IPC_GET_PACKET(call) (packet_id_t) IPC_GET_ARG2(*call)
	Returns the packet identifier message argument.
#define	IPC_GET_COUNT(call) (size_t) IPC_GET_ARG2(*call)
	Returns the count message argument.
#define	IPC_GET_STATE(call) (device_state_t) IPC_GET_ARG2(*call)
	Returns the device state message argument.
#define	IPC_GET_MTU(call) (size_t) IPC_GET_ARG2(*call)
	Returns the maximum transmission unit message argument.
Third arguments

#define	IPC_GET_SERVICE(call) (services_t) IPC_GET_ARG3(*call)
	Returns the device driver service message argument.
#define	IPC_GET_TARGET(call) (services_t) IPC_GET_ARG3(*call)
	Returns the target service message argument.
#define	IPC_GET_SENDER(call) (services_t) IPC_GET_ARG3(*call)
	Returns the sender service message argument.
Fourth arguments

#define	IPC_GET_ERROR(call) (services_t) IPC_GET_ARG4(*call)
	Returns the error service message argument.
Fifth arguments

#define	IPC_GET_PHONE(call) (int) IPC_GET_ARG5(*call)
	Returns the phone message argument.
First answers

#define	IPC_SET_DEVICE(answer) ((device_id_t ) &IPC_GET_ARG1(answer))
	Sets the device identifier in the message answer.
#define	IPC_SET_ADDR(answer) ((size_t ) &IPC_GET_ARG1(answer))
	Sets the minimum address length in the message answer.
Second answers

#define	IPC_SET_PREFIX(answer) ((size_t ) &IPC_GET_ARG2(answer))
	Sets the minimum prefix size in the message answer.
Third answers

#define	IPC_SET_CONTENT(answer) ((size_t ) &IPC_GET_ARG3(answer))
	Sets the maximum content size in the message answer.
Fourth answers

#define	IPC_SET_SUFFIX(answer) ((size_t ) &IPC_GET_ARG4(answer))
	Sets the minimum suffix size in the message answer.
Modules definitions

#define	DP8390_FILENAME "/srv/dp8390"
	DP8390 network interface module full path filename.
#define	DP8390_NAME "dp8390"
	DP8390 network interface module name.
#define	ETHERNET_FILENAME "/srv/eth"
	Ethernet module full path filename.
#define	ETHERNET_NAME "ethernet"
	Ethernet module name.
#define	IP_FILENAME "/srv/ip"
	IP module full path filename.
#define	IP_NAME "ip"
	IP module name.
#define	LO_FILENAME "/srv/lo"
	Loopback network interface module full path filename.
#define	LO_NAME "lo"
	Loopback network interface module name.
#define	NILDUMMY_FILENAME "/srv/nildummy"
	Ethernet module full path filename.
#define	NILDUMMY_NAME "nildummy"
	Ethernet module name.
Configuration setting names definitions

#define	CONF_IL "IL"
	Internet protocol module name configuration label.
#define	CONF_IO "IO"
	Device input/output address configuration label.
#define	CONF_IRQ "IRQ"
	Interrupt number configuration label.
#define	CONF_MTU "MTU"
	Maximum transmission unit configuration label.
#define	CONF_NAME "NAME"
	Network interface name configuration label.
#define	CONF_NETIF "NETIF"
	Network interface module name configuration label.
#define	CONF_NIL "NIL"
	Network interface layer module name configuration label.

Define Documentation

#define BUFFER_SIZE 256

File read buffer size.

Referenced by read_configuration_file().

#define CHAR_MAP_MAGIC_VALUE 0x12345611

Internal magic value for a consistency check.

Referenced by char_map_is_valid().

#define CHAR_MAP_NULL (-1)

Invalid assigned value used also if an entry does not exist.

Referenced by char_map_add_item(), and char_map_get_value().

#define compute_crc32	(	seed,
		data,
		length	)	compute_crc32_le(seed, (uint8_t *) data, length)

Computes CRC32 value.

Parameters:

`[in]`	seed	Initial value. Often used as 0 or ~0.
`[in]`	data	Pointer to the beginning of data to process.
`[in]`	length	Length of the data in bits.

Returns:: The computed CRC32 of the length bits of the data.

Referenced by eth_prepare_packet(), and eth_process_packet().

#define CONF_DIR "/cfg/net"

Configuration directory.

Referenced by read_configuration(), and read_netif_configuration().

#define CONF_GENERAL_FILE "general"

General configuration file.

Referenced by read_configuration().

#define CONF_IL "IL"

Internet protocol module name configuration label.

Referenced by start_device().

#define CONF_IO "IO"

Device input/output address configuration label.

Referenced by start_device().

#define CONF_IRQ "IRQ"

Interrupt number configuration label.

Referenced by start_device().

#define CONF_MTU "MTU"

Maximum transmission unit configuration label.

Referenced by start_device().

#define CONF_NAME "NAME"

Network interface name configuration label.

Referenced by startup().

#define CONF_NETIF "NETIF"

Network interface module name configuration label.

Referenced by start_device().

#define CONF_NIL "NIL"

Network interface layer module name configuration label.

Referenced by start_device().

#define CONVERT_SIZE	(	type_from,
		type_to,
		count	)	((sizeof(type_from) / sizeof(type_to)) * (count))

Converts the data length between different types.

Parameters:

`[in]`	type_from	The source type.
`[in]`	type_to	The destination type.
`[in]`	count	The number units of the source type size.

Referenced by arp_receive_message(), arp_translate_message(), ip_netif_initialize(), ip_prepare_packet(), ip_send_route(), netif_get_addr_message(), and nil_initialize().

#define CRC_DIVIDER_BE 0x04C11DB7

Big-endian encoding CRC divider.

#define CRC_DIVIDER_LE 0xEDB88320

Little-endian encoding CRC divider.

#define DP8390_FILENAME "/srv/dp8390"

DP8390 network interface module full path filename.

Referenced by net_initialize().

#define DP8390_NAME "dp8390"

DP8390 network interface module name.

Referenced by net_initialize().

#define DYN_FIFO_MAGIC_VALUE 0x58627659

Internal magic value for a consistency check.

Referenced by dyn_fifo_is_valid().

#define EADDRINUSE (-10048)

Address is already in use.

#define EAFNOSUPPORT (-10047)

Address family is not supported.

Referenced by ip_deliver_local(), ip_prepare_icmp(), ip_process_packet(), and main().

#define EDESTADDRREQ (-10039)

The destination address required.

Referenced by connect(), and sendto().

#define EINPROGRESS (-10036)

An API function is called while another blocking function is in progress.

Referenced by closesocket().

#define ENOTCONN (-10057)

The socket is not connected or bound.

Referenced by icmp_bind_free_id(), tcp_recvfrom_message(), and tcp_send_message().

#define ENOTSOCK (-10038)

The socket identifier is not valid.

Referenced by accept(), closesocket(), getsockopt(), listen(), recvfrom_core(), sendto_core(), socket_connection(), socket_send_data(), tcp_accept_message(), tcp_close_message(), tcp_connect_message(), tcp_listen_message(), tcp_process_listen(), tcp_recvfrom_message(), tcp_send_message(), udp_recvfrom_message(), and udp_sendto_message().

#define EPFNOSUPPORT (-10046)

Protocol family is not supported.

Referenced by socket().

#define EPROTONOSUPPORT (-10043)

Protocol is not supported.

Referenced by socket().

#define ERROR_CODE error_check_return_value

An actual stored error code.

Referenced by add_module(), arp_device_message(), arp_proto_create(), eth_device_message(), eth_receiver(), icmp_echo(), icmp_process_client_messages(), icmp_process_message(), icmp_received_msg(), icmp_send_packet(), ip_deliver_local(), ip_fragment_packet(), ip_send_route(), main(), module_start(), netif_probe_message(), netif_start_message(), nil_initialize(), nildummy_device_message(), nildummy_receiver(), packet_return(), parse_line(), socket(), socket_bind_insert(), socket_connection(), socket_port_add_core(), startup(), tcp_close_message(), tcp_connect_core(), tcp_connect_message(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_sent(), tcp_queue_packet(), tcp_queue_received_packet(), tcp_received_msg(), udp_process_packet(), udp_recvfrom_message(), and udp_sendto_message().

#define ERROR_DECLARE int ERROR_CODE

An error processing routines declaration.

This has to be declared in the block where the error processing is desired.

Referenced by add_module(), arp_device_message(), arp_proto_create(), arp_receive_message(), closesocket(), eth_device_message(), eth_process_packet(), eth_receiver(), eth_send_message(), icmp_echo(), icmp_process_client_messages(), icmp_process_message(), icmp_process_packet(), icmp_received_msg(), icmp_send_packet(), ip_deliver_local(), ip_fragment_packet(), ip_fragment_packet_data(), ip_netif_initialize(), ip_prepare_packet(), ip_process_packet(), ip_send_route(), main(), module_start(), net_initialize(), net_initialize_build(), netif_get_addr_message(), netif_get_device_stats(), netif_probe_message(), netif_send_message(), netif_start_message(), nil_initialize(), nil_message(), nildummy_device_message(), nildummy_receiver(), packet_create(), packet_return(), parse_line(), read_configuration_file(), register_message(), socket(), socket_bind_insert(), socket_connection(), socket_port_add_core(), start_device(), startup(), tcp_accept_message(), tcp_close_message(), tcp_connect_core(), tcp_connect_message(), tcp_create_notification_packet(), tcp_get_packets_to_send(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_queue_packet(), tcp_queue_prepare_packet(), tcp_queue_received_packet(), tcp_received_msg(), tcp_recvfrom_message(), tcp_send_message(), tcp_send_prepare_packet(), udp_process_packet(), udp_recvfrom_message(), and udp_sendto_message().

#define ERROR_OCCURRED ( value ) ((ERROR_CODE = (value)) != EOK)

Stores the value as an error code and checks if an error occurred.

Parameters:

[in] value The value to be checked. May be a function call.

Returns:: FALSE if the value indicates success (EOK).; TRUE otherwise.

Referenced by add_module(), arp_device_message(), arp_proto_create(), eth_device_message(), eth_process_packet(), eth_receiver(), eth_send_message(), icmp_echo(), icmp_process_client_messages(), icmp_process_message(), icmp_received_msg(), icmp_send_packet(), ip_deliver_local(), ip_fragment_packet(), ip_netif_initialize(), ip_send_route(), main(), module_start(), netif_probe_message(), netif_start_message(), nil_initialize(), nildummy_device_message(), nildummy_receiver(), packet_create(), packet_return(), parse_line(), read_configuration_file(), socket(), socket_bind_insert(), socket_connection(), socket_port_add_core(), startup(), tcp_close_message(), tcp_connect_core(), tcp_connect_message(), tcp_get_packets_to_send(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_queue_packet(), tcp_queue_prepare_packet(), tcp_queue_received_packet(), tcp_received_msg(), tcp_send_prepare_packet(), udp_process_packet(), udp_recvfrom_message(), and udp_sendto_message().

#define ERROR_PROPAGATE ( value ) if(ERROR_OCCURRED(value)) return ERROR_CODE

Checks if an error occurred and immediately exits the actual function returning the error code.

Parameters:

[in] value The value to be checked. May be a function call.

Referenced by arp_receive_message(), closesocket(), icmp_echo(), icmp_process_packet(), ip_fragment_packet_data(), ip_netif_initialize(), ip_prepare_packet(), ip_process_packet(), main(), module_start(), net_initialize(), net_initialize_build(), netif_get_addr_message(), netif_get_device_stats(), netif_probe_message(), netif_send_message(), netif_start_message(), nil_initialize(), nil_message(), register_message(), start_device(), startup(), tcp_accept_message(), tcp_close_message(), tcp_connect_core(), tcp_create_notification_packet(), tcp_process_established(), tcp_process_syn_received(), tcp_queue_packet(), tcp_recvfrom_message(), tcp_send_message(), udp_recvfrom_message(), and udp_sendto_message().

#define ESOCKTNOSUPPORT (-10044)

Socket type is not supported.

Referenced by socket().

#define ETHERNET_FILENAME "/srv/eth"

Ethernet module full path filename.

Referenced by net_initialize().

#define ETHERNET_NAME "ethernet"

Ethernet module name.

Referenced by net_initialize().

#define GENERIC_CHAR_MAP_DECLARE	(	name,
		type		)

Value:

\
GENERIC_FIELD_DECLARE(name##_items, type)                   \
                                        \
typedef struct name   name##_t;                       \
typedef name##_t *    name##_ref;                       \
                                        \
struct  name{                                 \
  char_map_t names;                           \
  name##_items_t values;                            \
  int magic;                            \
};                                        \
                                        \
int name##_add(name##_ref map, const char * name, const size_t length, type * value); \
int name##_count(name##_ref map);                       \
void name##_destroy(name##_ref map);                      \
void name##_exclude(name##_ref map, const char * name, const size_t length);  \
type * name##_find(name##_ref map, const char * name, const size_t length);   \
int name##_initialize(name##_ref map);                      \
int name##_is_valid(name##_ref map);

Character string to generic type map declaration.

Parameters:

`[in]`	name	Name of the map.
`[in]`	type	Inner object type.

#define GENERIC_CHAR_MAP_IMPLEMENT	(	name,
		type		)

Character string to generic type map implementation.

Should follow declaration with the same parameters.

Parameters:

`[in]`	name	Name of the map.
`[in]`	type	Inner object type.

#define GENERIC_CHAR_MAP_MAGIC_VALUE 0x12345622

Internal magic value for a map consistency check.

#define GENERIC_FIELD_DECLARE	(	name,
		type		)

Value:

\
typedef struct name   name##_t;                       \
typedef name##_t *    name##_ref;                       \
                                        \
struct  name{                                 \
  int size;                                 \
  int next;                                 \
  type ** items;                                \
  int magic;                                  \
};                                        \
                                        \
int name##_add(name##_ref field, type * value);                 \
int name##_count(name##_ref field);                       \
void name##_destroy(name##_ref field);                      \
void name##_exclude_index(name##_ref field, int index);             \
type ** name##_get_field(name##_ref field);                   \
type * name##_get_index(name##_ref field, int index);             \
int name##_initialize(name##_ref field);                    \
int name##_is_valid(name##_ref field);

Generic type field declaration.

Parameters:

`[in]`	name	Name of the field.
`[in]`	type	Inner object type.

#define GENERIC_FIELD_IMPLEMENT	(	name,
		type		)

Generic type field implementation.

Should follow declaration with the same parameters.

Parameters:

`[in]`	name	Name of the field.
`[in]`	type	Inner object type.

#define GENERIC_FIELD_MAGIC_VALUE 0x55667788

Internal magic value for a field consistency check.

#define htonl ( number ) host2uint32_t_be(number)

Converts the given long number (32 bit) from the host byte order to the network byte order (big endian).

Parameters:

[in] number The number in the host byte order to be converted.

Returns:: The number in the network byte order.

Referenced by eth_prepare_packet(), tcp_queue_prepare_packet(), and tcp_send_prepare_packet().

#define htons ( number ) host2uint16_t_be(number)

Converts the given short number (16 bit) from the host byte order to the network byte order (big endian).

Parameters:

[in] number The number in the host byte order to be converted.

Returns:: The number in the network byte order.

Referenced by arp_receive_message(), arp_translate_message(), eth_prepare_packet(), eth_send_message(), ip_fragment_packet_data(), ip_prepare_packet(), main(), tcp_prepare_operation_header(), tcp_queue_prepare_packet(), tcp_send_prepare_packet(), and udp_sendto_message().

#define INET6_ADDRSTRLEN (8 * 4 + 7 + 1)

INET6 string address maximum length.

Referenced by inet_ntop(), and main().

#define INET_ADDRSTRLEN (4 * 3 + 3 + 1)

INET string address maximum length.

Referenced by inet_ntop().

#define INT_MAP_DECLARE	(	name,
		type		)

Integer to generic type map declaration.

Parameters:

`[in]`	name	Name of the map.
`[in]`	type	Inner object type.

#define INT_MAP_IMPLEMENT	(	name,
		type		)

Integer to generic type map implementation.

Should follow declaration with the same parameters.

Parameters:

`[in]`	name	Name of the map.
`[in]`	type	Inner object type.

#define INT_MAP_ITEM_MAGIC_VALUE 0x55667788

Internal magic value for an item consistency check.

#define INT_MAP_MAGIC_VALUE 0x11223344

Internal magic value for a map consistency check.

#define IP_CHECKSUM_ZERO 0xFFFFu

IP checksum value for computed zero checksum.

Zero is returned as 0xFFFF (not flipped)

Referenced by icmp_process_packet(), ip_process_packet(), tcp_process_packet(), and udp_process_packet().

#define IP_FILENAME "/srv/ip"

IP module full path filename.

Referenced by net_initialize_build().

#define IP_NAME "ip"

IP module name.

Referenced by net_initialize_build().

#define IPC_GET_COUNT ( call ) (size_t) IPC_GET_ARG2(*call)

Returns the count message argument.

Parameters:

[in] call The message call structure.

#define IPC_GET_DEVICE ( call ) (device_id_t) IPC_GET_ARG1(*call)

Returns the device identifier message argument.

Parameters:

[in] call The message call structure.

Referenced by eth_receiver(), ip_get_route_req(), nil_message(), and nildummy_receiver().

#define IPC_GET_ERROR ( call ) (services_t) IPC_GET_ARG4(*call)

Returns the error service message argument.

Parameters:

[in] call The message call structure.

#define IPC_GET_MTU ( call ) (size_t) IPC_GET_ARG2(*call)

Returns the maximum transmission unit message argument.

Parameters:

[in] call The message call structure.

Referenced by nil_message().

#define IPC_GET_PACKET ( call ) (packet_id_t) IPC_GET_ARG2(*call)

Returns the packet identifier message argument.

Parameters:

[in] call The message call structure.

Referenced by eth_receiver(), icmp_process_message(), nil_message(), and nildummy_receiver().

#define IPC_GET_PHONE ( call ) (int) IPC_GET_ARG5(*call)

Returns the phone message argument.

Parameters:

[in] call The message call structure.

Referenced by nil_message(), tcp_process_client_messages(), and udp_process_client_messages().

#define IPC_GET_SENDER ( call ) (services_t) IPC_GET_ARG3(*call)

Returns the sender service message argument.

Parameters:

[in] call The message call structure.

#define IPC_GET_SERVICE ( call ) (services_t) IPC_GET_ARG3(*call)

Returns the device driver service message argument.

Parameters:

[in] call The message call structure.

Referenced by nil_message().

#define IPC_GET_STATE ( call ) (device_state_t) IPC_GET_ARG2(*call)

Returns the device state message argument.

Parameters:

[in] call The message call structure.

Referenced by eth_receiver(), and nildummy_receiver().

#define IPC_GET_TARGET ( call ) (services_t) IPC_GET_ARG3(*call)

Returns the target service message argument.

Parameters:

[in] call The message call structure.

#define IPC_SET_ADDR ( answer ) ((size_t *) &IPC_GET_ARG1(*answer))

Sets the minimum address length in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by nil_message().

#define IPC_SET_CONTENT ( answer ) ((size_t *) &IPC_GET_ARG3(*answer))

Sets the maximum content size in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by nil_message().

#define IPC_SET_DEVICE ( answer ) ((device_id_t *) &IPC_GET_ARG1(*answer))

Sets the device identifier in the message answer.

Parameters:

[out] answer The message answer structure.

#define IPC_SET_PREFIX ( answer ) ((size_t *) &IPC_GET_ARG2(*answer))

Sets the minimum prefix size in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by nil_message().

#define IPC_SET_SUFFIX ( answer ) ((size_t *) &IPC_GET_ARG4(*answer))

Sets the minimum suffix size in the message answer.

Parameters:

[out] answer The message answer structure.

Referenced by nil_message().

#define IS_IN_INTERVAL	(	item,
		first_inclusive,
		last_exclusive	)	(((item) >= (first_inclusive)) && ((item) < (last_exclusive)))

Returns a value indicating whether the value is in the interval.

Parameters:

`[in]`	item	The value to be checked.
`[in]`	first_inclusive	The first value in the interval inclusive.
`[in]`	last_exclusive	The first value after the interval.

Referenced by tcp_process_established().

#define IS_NET_ARP_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ARP_FIRST, NET_ARP_LAST)

Returns a value indicating whether the IPC call is an ARP message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_ETH_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ETH_FIRST, NET_ETH_LAST)

Returns a value indicating whether the IPC call is an Ethernet message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_ICMP_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ICMP_FIRST, NET_ICMP_LAST)

Returns a value indicating whether the IPC call is an ICMP message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_IL_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IL_FIRST, NET_IL_LAST)

Returns a value indicating whether the IPC call is an inter-network layer message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_IP_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IP_FIRST, NET_IP_LAST)

Returns a value indicating whether the IPC call is an IP message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_FIRST, NET_LAST)

Returns a value indicating whether the IPC call is a generic networking message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_NET_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NET_FIRST, NET_NET_LAST)

Returns a value indicating whether the IPC call is a generic networking message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_NIL_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NIL_FIRST, NET_NIL_LAST)

Returns a value indicating whether the IPC call is a network interface layer message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_PACKET_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_PACKET_FIRST, NET_PACKET_LAST)

Returns a value indicating whether the IPC call is a packet manaagement system message.

Parameters:

[in] call The IPC call to be checked.

Referenced by module_message().

#define IS_NET_SOCKET_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_SOCKET_FIRST, NET_SOCKET_LAST)

Returns a value indicating whether the IPC call is a socket message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_TCP_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TCP_FIRST, NET_TCP_LAST)

Returns a value indicating whether the IPC call is a TCP message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_TL_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TL_FIRST, NET_TL_LAST)

Returns a value indicating whether the IPC call is a transport layer message.

Parameters:

[in] call The IPC call to be checked.

#define IS_NET_UDP_MESSAGE ( call ) IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_UDP_FIRST, NET_UDP_LAST)

Returns a value indicating whether the IPC call is a UDP message.

Parameters:

[in] call The IPC call to be checked.

#define LO_FILENAME "/srv/lo"

Loopback network interface module full path filename.

Referenced by net_initialize().

#define LO_NAME "lo"

Loopback network interface module name.

Referenced by net_initialize().

#define MODULE_WAIT_TIME (10 * 1000)

The time between connect requests in microseconds.

#define NAME "Networking startup"

Networking startup module name.

#define NAME "Networking"

Networking module name.

#define NET_ARP_COUNT 5

The number of ARP messages.

#define NET_ARP_FIRST (NET_IP_LAST + 0)

The first ARP message.

#define NET_ARP_LAST (NET_ARP_FIRST + NET_ARP_COUNT)

The last ARP message.

#define NET_COUNT (NET_LAST - NET_FIRST)

The number of networking messages.

#define NET_ETH_COUNT 0

The number of Ethernet messages.

#define NET_ETH_FIRST (NET_NIL_LAST + 0)

The first Ethernet message.

#define NET_ETH_LAST (NET_ETH_FIRST + NET_ETH_COUNT)

The last Ethernet message.

#define NET_FIRST 2000

The first networking message.

#define NET_ICMP_COUNT 6

The number of ICMP messages.

#define NET_ICMP_FIRST (NET_ARP_LAST + 0)

The first ICMP message.

#define NET_ICMP_LAST (NET_ICMP_FIRST + NET_ICMP_COUNT)

The last ICMP message.

#define NET_IL_COUNT 6

The number of inter-network messages.

#define NET_IL_FIRST (NET_ETH_LAST + 0)

The first inter-network message.

#define NET_IL_LAST (NET_IL_FIRST + NET_IL_COUNT)

The last inter-network message.

#define NET_IP_COUNT 4

The number of IP messages.

#define NET_IP_FIRST (NET_IL_LAST + 0)

The first IP message.

#define NET_IP_LAST (NET_IP_FIRST + NET_IP_COUNT)

The last IP message.

#define NET_LAST NET_PACKET_LAST

The last networking message.

#define NET_NET_COUNT 3

The number of general networking messages.

#define NET_NET_FIRST (NET_NETIF_LAST + 0)

The first general networking message.

#define NET_NET_LAST (NET_NET_FIRST + NET_NET_COUNT)

The last general networking message.

#define NET_NETIF_COUNT 6

The number of network interface driver messages.

#define NET_NETIF_FIRST NET_FIRST

The first network interface layer message.

#define NET_NETIF_LAST (NET_NETIF_FIRST + NET_NETIF_COUNT)

The last network interface layer message.

#define NET_NIL_COUNT 7

The number of network interface layer messages.

#define NET_NIL_FIRST (NET_NET_LAST + 0)

The first network interface layer message.

#define NET_NIL_LAST (NET_NIL_FIRST + NET_NIL_COUNT)

The last network interface layer message.

#define NET_PACKET_COUNT 5

The number of packet management system messages.

#define NET_PACKET_FIRST (NET_SOCKET_LAST + 0)

The first packet management system message.

#define NET_PACKET_LAST (NET_PACKET_FIRST + NET_PACKET_COUNT)

The last packet management system message.

#define NET_SELF_TEST 0

Activates the self test.

#define NET_SELF_TEST_CHAR_MAP 1

Activates the char map self test.

The NET_SELF_TEST has to be activated.

See also:: char_map.h

#define NET_SELF_TEST_CRC 1

Activates the CRC computation self test.

The NET_SELF_TEST has to be activated.

See also:: crc.h

#define NET_SELF_TEST_DYNAMIC_FIFO 1

Activates the dynamic fifo self test.

The NET_SELF_TEST has to be activated.

See also:: dynamic_fifo.h

#define NET_SELF_TEST_GENERIC_CHAR_MAP 1

Activates the generic char map self test.

The NET_SELF_TEST has to be activated.

See also:: generic_char_map.h

#define NET_SELF_TEST_GENERIC_FIELD 1

Activates the generic field self test.

The NET_SELF_TEST has to be activated.

See also:: generic_field.h

#define NET_SELF_TEST_INT_MAP 1

Activates the integral map self test.

The NET_SELF_TEST has to be activated.

See also:: int_map.h

#define NET_SELF_TEST_MEASURED_STRINGS 1

Activates the measured strings self test.

The NET_SELF_TEST has to be activated.

See also:: measured_strings.h

#define NET_SOCKET_COUNT 14

The number of socket messages.

#define NET_SOCKET_FIRST (NET_TCP_LAST + 0)

The first socket message.

#define NET_SOCKET_LAST (NET_SOCKET_FIRST + NET_SOCKET_COUNT)

The last socket message.

#define NET_TCP_COUNT 0

The number of TCP messages.

#define NET_TCP_FIRST (NET_UDP_LAST + 0)

The first TCP message.

#define NET_TCP_LAST (NET_TCP_FIRST + NET_TCP_COUNT)

The last TCP message.

#define NET_TL_COUNT 1

The number of transport layer messages.

#define NET_TL_FIRST (NET_ICMP_LAST + 0)

The first ICMP message.

#define NET_TL_LAST (NET_TL_FIRST + NET_TL_COUNT)

The last ICMP message.

#define NET_UDP_COUNT 0

The number of UDP messages.

#define NET_UDP_FIRST (NET_TL_LAST + 0)

The first UDP message.

#define NET_UDP_LAST (NET_UDP_FIRST + NET_UDP_COUNT)

The last UDP message.

#define NEXT_INDEX	(	fifo,
		index		)	(((index) + 1) % ((fifo)->size + 1))

Returns the next queue index.

The queue field is circular.

Parameters:

`[in]`	fifo	The dynamic queue.
`[in]`	index	The actual index to be shifted.

#define NILDUMMY_FILENAME "/srv/nildummy"

Ethernet module full path filename.

Referenced by net_initialize().

#define NILDUMMY_NAME "nildummy"

Ethernet module name.

Referenced by net_initialize().

#define NO_DATA (-11004)

No data.

#define ntohl ( number ) uint32_t_be2host(number)

Converts the given long number (32 bit) from the network byte order (big endian) to the host byte order.

Parameters:

[in] number The number in the network byte order to be converted.

Returns:: The number in the host byte order.

Referenced by eth_process_packet(), tcp_process_acknowledgement(), tcp_process_established(), tcp_process_listen(), tcp_process_syn_received(), tcp_process_syn_sent(), and tcp_send_prepare_packet().

#define ntohs ( number ) uint16_t_be2host(number)

Converts the given short number (16 bit) from the network byte order (big endian) to the host byte order.

Parameters:

[in] number The number in the network byte order to be converted.

Returns:: The number in the host byte order.

Referenced by arp_receive_message(), eth_prepare_packet(), eth_process_packet(), main(), tcp_process_acknowledgement(), tcp_process_listen(), tcp_process_packet(), udp_process_packet(), and udp_recvfrom_message().

#define REGISTER_ME	(	me,
		phonehash		)	ipc_connect_to_me(PHONE_NS, (me), 0, 0, (phonehash))

Registers the module service at the name server.

Parameters:

`[in]`	me	The module service.
`[out]`	phonehash	The created phone hash.

Referenced by module_start(), and netif_initialize().

#define self_test ( ) EOK

Self test start function.

Runs all the configured self tests.

See also:: configuration.h

Returns:: EOK on success.; The first error occurred.

Referenced by main().

#define TRY_AGAIN (-11002)

The requested operation was not performed.

Try again later.

Typedef Documentation

typedef struct addrinfo addrinfo_t

Type definition of the address information.

See also:: addrinfo

typedef char_map_t* char_map_ref

Type definition of the character string to integer map pointer.

See also:: char_map

typedef struct char_map char_map_t

Type definition of the character string to integer map.

See also:: char_map

typedef int connect_module_t(services_t need)

Connect to the needed module function type definition.

Parameters:

[in] need The needed module service.

Returns:: The phone of the needed service.

typedef dyn_fifo_t* dyn_fifo_ref

Type definition of the dynamic fifo queue pointer.

See also:: dyn_fifo

typedef struct dyn_fifo dyn_fifo_t

Type definition of the dynamic fifo queue.

See also:: dyn_fifo

typedef struct in6_addr in6_addr_t

Type definition of the INET6 address.

See also:: in6_addr

typedef struct in_addr in_addr_t

Type definition of the INET address.

See also:: in_addr

typedef measured_string_t* measured_string_ref

Type definition of the character string with measured length pointer.

See also:: measured_string

typedef struct measured_string measured_string_t

Type definition of the character string with measured length.

See also:: measured_string

typedef module_t* module_ref

Type definition of the module structure pointer.

See also:: module_struct

typedef struct module_struct module_t

Type definition of the module structure.

See also:: module_struct

typedef struct net_globals net_globals_t

Type definition of the networking module global data.

See also:: net_globals

typedef netif_t* netif_ref

Type definition of the network interface specific data pointer.

See also:: netif

typedef struct netif netif_t

Type definition of the network interface specific data.

See also:: netif

typedef struct sockaddr_in6 sockaddr_in6_t

Type definition of the INET6 socket address.

See also:: sockaddr_in6

typedef struct sockaddr_in sockaddr_in_t

Type definition of the INET socket address.

See also:: sockaddr_in

typedef struct sockaddr sockaddr_t

Type definition of the socket address.

See also:: sockaddr

Enumeration Type Documentation

enum net_messages

Networking subsystem central module messages.

Enumerator:

NET_NET_GET_CONF

Returns the general configuration.

See also:: net_get_conf_req()

NET_NET_GET_DEVICE_CONF

Returns the device specific configuration.

See also:: net_get_device_conf_req()

NET_NET_STARTUP

Starts the networking stack.

Function Documentation

int add_configuration	(	measured_strings_ref	configuration,
		const char *	name,
		const char *	value
	)

Adds the configured setting to the configuration map.

Parameters:

`[in]`	configuration	The configuration map.
`[in]`	name	The setting name.
`[in]`	value	The setting value.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

int add_module	(	module_ref *	module,
		modules_ref	modules,
		const char *	name,
		const char *	filename,
		services_t	service,
		task_id_t	task_id,
		connect_module_t *	connect_module
	)

Adds module to the module map.

Parameters:

`[out]`	module	The module structure added.
`[in]`	modules	The module map.
`[in]`	name	The module name.
`[in]`	filename	The full path filename.
`[in]`	service	The module service.
`[in]`	task_id	The module current task identifier. Zero (0) means not running.
`[in]`	connect_module	The module connecting function.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

int add_module	(	module_ref *	module,
		modules_ref	modules,
		const char *	name,
		const char *	filename,
		services_t	service,
		task_id_t	task_id,
		connect_module_t	connect_module
	)

References module_struct::connect_module, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, module_struct::filename, free, module_struct::name, module_struct::phone, module_struct::service, module_struct::task_id, and module_struct::usage.

Referenced by net_initialize(), and net_initialize_build().

Here is the caller graph for this function:

void answer_call	(	ipc_callid_t	callid,
		int	result,
		ipc_call_t *	answer,
		int	answer_count
	)

Answers the call.

Parameters:

`[in]`	callid	The call identifier.
`[in]`	result	The message processing result.
`[in]`	answer	The message processing answer.
`[in]`	answer_count	The number of answer parameters.

Referenced by client_connection(), icmp_process_client_messages(), tcp_process_client_messages(), and udp_process_client_messages().

Here is the caller graph for this function:

int bind_service	(	services_t	need,
		ipcarg_t	arg1,
		ipcarg_t	arg2,
		ipcarg_t	arg3,
		async_client_conn_t	client_receiver
	)

Creates bidirectional connection with the needed module service and registers the message receiver.

Parameters:

`[in]`	need	The needed module service.
`[in]`	arg1	The first parameter.
`[in]`	arg2	The second parameter.
`[in]`	arg3	The third parameter.
`[in]`	client_receiver	The message receiver.

Returns:: The phone of the needed service.; Other error codes as defined for the ipc_connect_to_me() function.

Referenced by ip_bind_service(), and netif_bind_service().

Here is the caller graph for this function:

int bind_service_timeout	(	services_t	need,
		ipcarg_t	arg1,
		ipcarg_t	arg2,
		ipcarg_t	arg3,
		async_client_conn_t	client_receiver,
		suseconds_t	timeout
	)

Creates bidirectional connection with the needed module service and registers the message receiver.

Parameters:

`[in]`	need	The needed module service.
`[in]`	arg1	The first parameter.
`[in]`	arg2	The second parameter.
`[in]`	arg3	The third parameter.
`[in]`	client_receiver	The message receiver.
`[in]`	timeout	The connection timeout in microseconds. No timeout if set to zero (0).

Returns:: The phone of the needed service.; ETIMEOUT if the connection timeouted.; Other error codes as defined for the ipc_connect_to_me() function.

Referenced by socket_get_tcp_phone(), and socket_get_udp_phone().

Here is the caller graph for this function:

int char_map_add	(	char_map_ref	map,
		const char *	identifier,
		size_t	length,
		const int	value
	)

Adds the value with the key to the map.

Parameters:

`[in,out]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.
`[in]`	value	The integral value to be stored for the key character string.

Returns:: EOK on success.; EINVAL if the map is not valid.; EINVAL if the identifier parameter is NULL.; EINVAL if the length parameter zero (0) and the identifier parameter is an empty character string (the first character is the terminating zero ('\0') character.; EEXIST if the key character string is already used.; Other error codes as defined for the char_map_add_item() function.

Referenced by startup().

Here is the caller graph for this function:

int char_map_add_item	(	char_map_ref	map,
		const char *	identifier,
		size_t	length,
		const int	value
	)

Adds the value with the key to the map.

Creates new nodes to map the key.

Parameters:

`[in,out]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.
`[in]`	value	The integral value to be stored for the key character string.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.; EEXIST if the key character string is already used.

References char_map::c, char_map_initialize(), CHAR_MAP_NULL, free, char_map::items, char_map::next, char_map::size, and char_map::value.

Here is the call graph for this function:

void char_map_destroy ( char_map_ref map )

Clears and destroys the map.

Parameters:

[in,out] map The character string to integer map.

int char_map_exclude	(	char_map_ref	map,
		const char *	identifier,
		size_t	length
	)

Excludes the value assigned to the key from the map.

The entry is cleared from the map.

Parameters:

`[in,out]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.

Returns:: The integral value assigned to the key character string.; CHAR_MAP_NULL if the key is not assigned a value.

int char_map_find	(	const char_map_ref	map,
		const char *	identifier,
		size_t	length
	)

Returns the value assigned to the key from the map.

Parameters:

`[in]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.

Returns:: The integral value assigned to the key character string.; CHAR_MAP_NULL if the key is not assigned a value.

char_map_ref char_map_find_node	(	const char_map_ref	map,
		const char *	identifier,
		const size_t	length
	)

Returns the node assigned to the key from the map.

Parameters:

`[in]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.

Returns:: The node holding the integral value assigned to the key character string.; NULL if the key is not assigned a node.

References char_map::c, char_map_is_valid(), char_map::items, and char_map::next.

Here is the call graph for this function:

int char_map_get_value ( const char_map_ref map )

Returns the value assigned to the map.

Parameters:

[in] map The character string to integer map.

Returns:: The integral value assigned to the map.; CHAR_MAP_NULL if the map is not assigned a value.

References char_map_is_valid(), CHAR_MAP_NULL, and char_map::value.

Here is the call graph for this function:

int char_map_initialize ( char_map_ref map )

Initializes the map.

Parameters:

[in,out] map The character string to integer map.

Returns:: EOK on success.; EINVAL if the map parameter is NULL.; ENOMEM if there is not enough memory left.

Referenced by char_map_add_item(), and net_initialize().

Here is the caller graph for this function:

int char_map_is_valid ( const char_map_ref map )

Checks if the map is valid.

Parameters:

[in] map The character string to integer map.

Returns:: TRUE if the map is valid.; FALSE otherwise.

References CHAR_MAP_MAGIC_VALUE, and char_map::magic.

Referenced by char_map_find_node(), and char_map_get_value().

Here is the caller graph for this function:

int char_map_update	(	char_map_ref	map,
		const char *	identifier,
		size_t	length,
		const int	value
	)

Adds or updates the value with the key to the map.

Parameters:

`[in,out]`	map	The character string to integer map.
`[in]`	identifier	The key zero ('\0') terminated character string. The key character string is processed until the first terminating zero ('\0') character after the given length is found.
`[in]`	length	The key character string length. The parameter may be zero (0) which means that the string is processed until the terminating zero ('\0') character is found.
`[in]`	value	The integral value to be stored for the key character string.

Returns:: EOK on success.; EINVAL if the map is not valid.; EINVAL if the identifier parameter is NULL.; EINVAL if the length parameter zero (0) and the identifier parameter is an empty character string (the first character is the terminating zero ('\0) character.; EEXIST if the key character string is already used.; Other error codes as defined for the char_map_add_item() function.

void client_connection	(	ipc_callid_t	iid,
		ipc_call_t *	icall
	)

Default thread for new connections.

Parameters:

`[in]`	iid	The initial message identifier.
`[in]`	icall	The initial message call structure.

References answer_call(), module_message(), and refresh_answer().

Here is the call graph for this function:

uint16_t compact_checksum ( uint32_t sum )

Compacts the computed checksum to the 16 bit number adding the carries.

Parameters:

[in] sum Computed checksum.

Returns:: Compacted computed checksum to the 16 bits.

Referenced by tcp_process_packet(), tcp_send_prepare_packet(), udp_process_packet(), and udp_sendto_message().

Here is the caller graph for this function:

uint32_t compute_checksum	(	uint32_t	seed,
		uint8_t *	data,
		size_t	length
	)

Computes sum of the 2 byte fields.

Padds one zero (0) byte if odd.

Parameters:

`[in]`	seed	Initial value. Often used as 0 or ~0.
`[in]`	data	Pointer to the beginning of data to process.
`[in]`	length	Length of the data in bytes.

Returns:: The computed checksum of the length bytes of the data.

Referenced by tcp_process_packet(), tcp_send_prepare_packet(), udp_process_packet(), and udp_sendto_message().

Here is the caller graph for this function:

uint32_t compute_crc32_be	(	uint32_t	seed,
		uint8_t *	data,
		size_t	length
	)

Computes CRC32 value in the big-endian environment.

Parameters:

`[in]`	seed	Initial value. Often used as 0 or ~0.
`[in]`	data	Pointer to the beginning of data to process.
`[in]`	length	Length of the data in bits.

Returns:: The computed CRC32 of the length bits of the data.

uint32_t compute_crc32_le	(	uint32_t	seed,
		uint8_t *	data,
		size_t	length
	)

Computes CRC32 value in the little-endian environment.

Parameters:

`[in]`	seed	Initial value. Often used as 0 or ~0.
`[in]`	data	Pointer to the beginning of data to process.
`[in]`	length	Length of the data in bits.

Returns:: The computed CRC32 of the length bits of the data.

int connect_to_service ( services_t need )

Connects to the needed module.

Parameters:

[in] need The needed module service.

Returns:: The phone of the needed service.

Referenced by arp_connect_module(), ip_connect_module(), main(), net_connect_module(), and net_initialize().

Here is the caller graph for this function:

int connect_to_service_timeout	(	services_t	need,
		suseconds_t	timeout
	)

Connects to the needed module.

Parameters:

`[in]`	need	The needed module service.
`[in]`	timeout	The connection timeout in microseconds. No timeout if set to zero (0).

Returns:: The phone of the needed service.; ETIMEOUT if the connection timeouted.

Referenced by icmp_connect_module().

Here is the caller graph for this function:

int data_receive	(	void **	data,
		size_t *	length
	)

Receives data from the other party.

The received data buffer is allocated and returned.

Parameters:

`[out]`	data	The data buffer to be filled.
`[out]`	length	The buffer length.

Returns:: EOK on success.; EBADMEM if the data or the length parameter is NULL.; EINVAL if the client does not send data.; ENOMEM if there is not enough memory left.; Other error codes as defined for the async_data_write_finalize() function.

Referenced by tcp_process_client_messages(), and udp_process_client_messages().

Here is the caller graph for this function:

int data_reply	(	void *	data,
		size_t	data_length
	)

Replies the data to the other party.

Parameters:

`[in]`	data	The data buffer to be sent.
`[in]`	data_length	The buffer length.

Returns:: EOK on success.; EINVAL if the client does not expect the data.; EOVERFLOW if the client does not expect all the data. Only partial data are transfered.; Other error codes as defined for the async_data_read_finalize() function.

Referenced by tcp_accept_message(), tcp_recvfrom_message(), and udp_recvfrom_message().

Here is the caller graph for this function:

int dyn_fifo_destroy ( dyn_fifo_ref fifo )

Clears and destroys the queue.

Parameters:

[in,out] fifo The dynamic queue.

Returns:: EOK on success.; EINVAL if the queue is not valid.

Referenced by socket(), socket_destroy(), and socket_destroy_core().

Here is the caller graph for this function:

int dyn_fifo_initialize	(	dyn_fifo_ref	fifo,
		int	size
	)

Initializes the dynamic queue.

Parameters:

`[in,out]`	fifo	The dynamic queue.
`[in]`	size	The initial queue size.

Returns:: EOK on success.; EINVAL if the queue is not valid.; EBADMEM if the fifo parameter is NULL.; ENOMEM if there is not enough memory left.

Referenced by socket_initialize().

Here is the caller graph for this function:

int dyn_fifo_is_valid ( dyn_fifo_ref fifo )

Checks if the queue is valid.

Parameters:

[in] fifo The dynamic queue.

Returns:: TRUE if the queue is valid.; FALSE otherwise.

References DYN_FIFO_MAGIC_VALUE, and dyn_fifo::magic_value.

int dyn_fifo_pop ( dyn_fifo_ref fifo )

Returns and excludes the first item in the queue.

Parameters:

[in,out] fifo The dynamic queue.

Returns:: Value of the first item in the queue.; EINVAL if the queue is not valid.; ENOENT if the queue is empty.

Referenced by accept(), recvfrom_core(), socket_destroy(), socket_destroy_core(), tcp_accept_message(), tcp_recvfrom_message(), and udp_recvfrom_message().

Here is the caller graph for this function:

int dyn_fifo_push	(	dyn_fifo_ref	fifo,
		int	value,
		int	max_size
	)

Appends a new item to the queue end.

Parameters:

`[in,out]`	fifo	The dynamic queue.
`[in]`	value	The new item value. Should be positive.
`[in]`	max_size	The maximum queue size. The queue is not resized beyound this limit. May be zero or negative (<=0) to indicate no limit.

Returns:: EOK on success.; EINVAL if the queue is not valid.; ENOMEM if there is not enough memory left.

Referenced by socket_connection(), tcp_process_syn_received(), tcp_queue_received_packet(), and udp_process_packet().

Here is the caller graph for this function:

int dyn_fifo_value ( dyn_fifo_ref fifo )

Returns and keeps the first item in the queue.

Parameters:

[in,out] fifo The dynamic queue.

Returns:: Value of the first item in the queue.; EINVAL if the queue is not valid.; ENOENT if the queue is empty.

Referenced by accept(), recvfrom_core(), tcp_accept_message(), tcp_recvfrom_message(), and udp_recvfrom_message().

Here is the caller graph for this function:

uint16_t flip_checksum ( uint16_t checksum )

Returns or flips the checksum if zero.

Parameters:

[in] checksum The computed checksum.

Returns:: The internet protocol header checksum.; 0xFFFF if the computed checksum is zero.

Referenced by tcp_process_packet(), tcp_send_prepare_packet(), udp_process_packet(), and udp_sendto_message().

Here is the caller graph for this function:

device_id_t generate_new_device_id ( void )

Generates new system-unique device identifier.

Returns:: The system-unique devic identifier.

Referenced by startup().

Here is the caller graph for this function:

module_ref get_running_module	(	modules_ref	modules,
		char *	name
	)

Searches and returns the specified module.

If the module is not running, the module filaname is spawned. If the module is not connected, the connect_function is called.

Parameters:

`[in]`	modules	The module map.
`[in]`	name	The module name.

Returns:: The running module found. It does not have to be connected.; NULL if there is no such module.

Referenced by ip_netif_initialize(), and start_device().

Here is the caller graph for this function:

int inet_ntop	(	uint16_t	family,
		const uint8_t *	data,
		char *	address,
		size_t	length
	)

Prints the address into the character buffer.

Parameters:

`[in]`	family	The address family.
`[in]`	data	The address data.
`[out]`	address	The character buffer to be filled.
`[in]`	length	The buffer length.

Returns:: EOK on success.; EINVAL if the data or address parameter is NULL.; ENOMEM if the character buffer is not long enough.; ENOTSUP if the address family is not supported.

References AF_INET, AF_INET6, INET6_ADDRSTRLEN, and INET_ADDRSTRLEN.

Referenced by main().

Here is the caller graph for this function:

int inet_pton	(	uint16_t	family,
		const char *	address,
		uint8_t *	data
	)

Parses the character string into the address.

If the string is shorter than the full address, zero bytes are added.

Parameters:

`[in]`	family	The address family.
`[in]`	address	The character buffer to be parsed.
`[out]`	data	The address data to be filled.

Returns:: EOK on success.; EINVAL if the data parameter is NULL.; ENOENT if the address parameter is NULL.; ENOTSUP if the address family is not supported.

The base number of the values.

The number of bytes per a section.

The number of bytes of the address data.

References AF_INET, AF_INET6, and count.

Referenced by ip_netif_initialize(), and main().

Here is the caller graph for this function:

uint16_t ip_checksum	(	uint8_t *	data,
		size_t	length
	)

Computes the ip header checksum.

To compute the checksum of a new packet, the checksum header field must be zero. To check the checksum of a received packet, the checksum may be left set. The zero (0) value will be returned in this case if valid.

Parameters:

`[in]`	data	The header data.
`[in]`	length	The header length in bytes.

Returns:: The internet protocol header checksum.; 0xFFFF if the computed checksum is zero.

int main	(	int	argc,
		char *	argv[]
	)

Starts the module.

Module entry point.

Parameters:

	argc	The count of the command line arguments. Ignored parameter.
	argv	The command line parameters. Ignored parameter.

Returns:: EOK on success.; Other error codes as defined for each specific module start function.

Parameters:

`[in]`	argc	The number of command line parameters.
`[in]`	argv	The command line parameters.

Returns:: EOK on success.; EINVAL if the net module cannot be started.; Other error codes as defined for the self_test() function.; Other error codes as defined for the NET_NET_STARTUP message.

References connect_to_service(), ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, NAME, NET_NET_STARTUP, self_test, and spawn().

Here is the call graph for this function:

measured_string_ref measured_string_copy ( measured_string_ref source )

Copies the given measured string with separated header and data parts.

Parameters:

[in] source The source measured string to be copied.

Returns:: The copy of the given measured string.; NULL if the source parameter is NULL.; NULL if there is not enough memory left.

measured_string_ref measured_string_create_bulk	(	const char *	string,
		size_t	length
	)

Creates a new measured string bundled with a copy of the given string itself as one memory block.

If the measured string is being freed, whole memory block is freed. The measured string should be used only as a constant.

Parameters:

`[in]`	string	The initial character string to be stored.
`[in]`	length	The length of the given string without the terminating zero ('/0') character. If the length is zero (0), the actual length is computed. The given length is used and appended with the terminating zero ('\0') character otherwise.

Returns:: The new bundled character string with measured length.; NULL if there is not enough memory left.

Referenced by arp_receive_message(), nil_initialize(), and parse_line().

Here is the caller graph for this function:

int measured_strings_receive	(	measured_string_ref *	strings,
		char **	data,
		size_t	count
	)

Receives a measured strings array from a calling module.

Creates the array and the data memory blocks. This method should be used only while processing IPC messages as the array size has to be negotiated in advance.

Parameters:

`[out]`	strings	The received measured strings array.
`[out]`	data	The measured strings data. This memory block stores the actual character strings.
`[in]`	count	The size of the measured strings array.

Returns:: EOK on success.; EINVAL if the strings or data parameter is NULL.; EINVAL if the count parameter is zero (0).; EINVAL if the sent array differs in size.; EINVAL if there is inconsistency in sent measured strings' lengths (should not occur).; ENOMEM if there is not enough memory left.; Other error codes as defined for the async_data_write_finalize() function.

int measured_strings_reply	(	const measured_string_ref	strings,
		size_t	count
	)

Replies the given measured strings array to a calling module.

This method should be used only while processing IPC messages as the array size has to be negotiated in advance.

Parameters:

`[in]`	strings	The measured strings array to be transferred.
`[in]`	count	The measured strings array size.

Returns:: EOK on success.; EINVAL if the strings parameter is NULL.; EINVAL if the count parameter is zero (0).; EINVAL if the calling module does not accept the given array size.; EINVAL if there is inconsistency in sent measured strings' lengths (should not occur).; Other error codes as defined for the async_data_read_finalize() function.

Referenced by nil_message().

Here is the caller graph for this function:

int measured_strings_return	(	int	phone,
		measured_string_ref *	strings,
		char **	data,
		size_t	count
	)

Receives a measured strings array from another module.

Creates the array and the data memory blocks. This method should be used only following other IPC messages as the array size has to be negotiated in advance.

Parameters:

`[in]`	phone	The other module phone.
`[out]`	strings	The returned measured strings array.
`[out]`	data	The measured strings data. This memory block stores the actual character strings.
`[in]`	count	The size of the measured strings array.

Returns:: EOK on success.; EINVAL if the strings or data parameter is NULL.; EINVAL if the phone or count parameter is not positive (<=0).; EINVAL if the sent array differs in size.; ENOMEM if there is not enough memory left.; Other error codes as defined for the async_data_read_start() function.

Referenced by generic_get_addr_req(), and generic_translate_req().

Here is the caller graph for this function:

int measured_strings_send	(	int	phone,
		const measured_string_ref	strings,
		size_t	count
	)

Sends the given measured strings array to another module.

This method should be used only following other IPC messages as the array size has to be negotiated in advance.

Parameters:

`[in]`	phone	The other module phone.
`[in]`	strings	The measured strings array to be transferred.
`[in]`	count	The measured strings array size.

Returns:: EOK on success.; EINVAL if the strings parameter is NULL.; EINVAL if the phone or count parameter is not positive (<=0).; Other error codes as defined for the async_data_write_start() function.

Referenced by arp_clear_address_req(), arp_device_req(), and generic_translate_req().

Here is the caller graph for this function:

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

External message processing function.

Processes the module message.

Should process the messages. The function has to be defined in each module.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each specific module message function.

Distributes the message to the right bundled module.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each bundled module message function.

References IS_NET_PACKET_MESSAGE, net_message(), and packet_server_message().

Here is the call graph for this function:

void module_print_name ( void )

External function to print the module name.

Prints the module name.

Should print the module name. The function has to be defined in each module.

See also:: NAME

References NAME.

int module_start ( async_client_conn_t client_connection )

External module startup function.

Starts the networking module.

Should start and initialize the module and register the given client connection function. The function has to be defined in each module.

Parameters:

[in] client_connection The client connection function to be registered.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on successful module termination.; Other error codes as defined for the net_initialize() function.; Other error codes as defined for the REGISTER_ME() macro function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, net_initialize(), pm_destroy(), pm_init(), and REGISTER_ME.

Here is the call graph for this function:

int net_connect_module ( services_t service )

Connects to the networking module.

Parameters:

service

The networking module service. Ignored parameter.

Returns:: The networking module phone on success.; 0 if called by the bundle module.

References connect_to_service().

Referenced by module_start().

Here is the call graph for this function:

Here is the caller graph for this function:

void net_free_settings	(	measured_string_ref	settings,
		char *	data
	)

Frees the received settings.

Parameters:

`[in]`	settings	The received settings.
`[in]`	data	The received settings data.

See also:: net_get_device_conf_req(); net_get_conf_req()

References free.

Referenced by eth_device_message(), and ip_netif_initialize().

Here is the caller graph for this function:

int net_get_conf	(	measured_strings_ref	netif_conf,
		measured_string_ref	configuration,
		size_t	count,
		char **	data
	)

Returns the configured values.

The network interface configuration is searched first.

Parameters:

`[in]`	netif_conf	The network interface configuration setting.
`[out]`	configuration	The found configured values.
`[in]`	count	The desired settings count.
`[out]`	data	The found configuration settings data.

Returns:: EOK.

References net_globals::configuration, measured_string::length, and measured_string::value.

int net_get_conf_req	(	int	net_phone,
		measured_string_ref *	configuration,
		size_t	count,
		char **	data
	)

Returns the global configuration.

The configuration names are read and the appropriate settings are set instead. Call net_free_settings() function to release the returned configuration.

Parameters:

`[in]`	net_phone	The networking module phone.
`[in,out]`	configuration	The requested configuration. The names are read and the appropriate settings are set instead.
`[in]`	count	The configuration entries count.
`[in,out]`	data	The configuration and settings data.

Returns:: EOK on success.; EINVAL if the configuration is NULL.; EINVAL if the count is zero (0).; Other error codes as defined for the generic_translate_req() function.

References generic_translate_req(), and NET_NET_GET_DEVICE_CONF.

Here is the call graph for this function:

int net_get_device_conf_req	(	int	net_phone,
		device_id_t	device_id,
		measured_string_ref *	configuration,
		size_t	count,
		char **	data
	)

Returns the device specific configuration.

Returns the global configuration if the device specific is not found. The configuration names are read and the appropriate settings are set instead. Call net_free_settings() function to release the returned configuration.

Parameters:

`[in]`	net_phone	The networking module phone.
`[in]`	device_id	The device identifier.
`[in,out]`	configuration	The requested device configuration. The names are read and the appropriate settings are set instead.
`[in]`	count	The configuration entries count.
`[in,out]`	data	The configuration and settings data.

Returns:: EOK on success.; EINVAL if the configuration is NULL.; EINVAL if the count is zero (0).; Other error codes as defined for the generic_translate_req() function.

References generic_translate_req(), and NET_NET_GET_DEVICE_CONF.

Referenced by eth_device_message(), and ip_netif_initialize().

Here is the call graph for this function:

Here is the caller graph for this function:

int net_initialize ( async_client_conn_t client_connection )

Initializes the networking module.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

References add_module(), char_map_initialize(), net_globals::configuration, connect_to_service(), DP8390_FILENAME, DP8390_NAME, ERROR_DECLARE, ERROR_PROPAGATE, ETHERNET_FILENAME, ETHERNET_NAME, LO_FILENAME, LO_NAME, net_globals::modules, net_initialize_build(), net_globals::netif_names, net_globals::netifs, NILDUMMY_FILENAME, NILDUMMY_NAME, and read_configuration().

Referenced by module_start().

Here is the call graph for this function:

Here is the caller graph for this function:

int net_initialize_build ( async_client_conn_t client_connection )

Initializes the networking module for the chosen subsystem build type.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

References add_module(), ERROR_DECLARE, ERROR_PROPAGATE, ip_connect_module(), IP_FILENAME, IP_NAME, net_globals::modules, and spawn().

Referenced by net_initialize().

Here is the call graph for this function:

Here is the caller graph for this function:

int net_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the networking message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.

See also:: net_interface.h; IS_NET_NET_MESSAGE()

Referenced by module_message().

Here is the caller graph for this function:

int parse_line	(	measured_strings_ref	configuration,
		char *	line
	)

Todo:

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, and measured_string_create_bulk().

Referenced by read_configuration_file().

Here is the call graph for this function:

Here is the caller graph for this function:

size_t * prepare_lengths	(	const measured_string_ref	strings,
		size_t	count
	)

Computes the lengths of the measured strings in the given array.

Parameters:

`[in]`	strings	The measured strings array to be processed.
`[in]`	count	The measured strings array size.

Returns:: The computed sizes array.; NULL if there is not enough memory left.

References measured_string::length.

int read_configuration ( void )

Reads the networking subsystem global configuration.

Returns:: EOK on success.; Other error codes as defined for the add_configuration() function.

References CONF_DIR, CONF_GENERAL_FILE, net_globals::configuration, and read_configuration_file().

Referenced by net_initialize().

Here is the call graph for this function:

Here is the caller graph for this function:

int read_configuration_file	(	const char *	directory,
		const char *	filename,
		measured_strings_ref	configuration
	)

Todo:

References BUFFER_SIZE, ERROR_DECLARE, ERROR_OCCURRED, and parse_line().

Referenced by read_configuration(), and read_netif_configuration().

Here is the call graph for this function:

Here is the caller graph for this function:

int read_netif_configuration	(	const char *	name,
		netif_ref	netif
	)

Reads the network interface specific configuration.

Parameters:

`[in]`	name	The network interface name.
`[in,out]`	netif	The network interface structure.

Returns:: EOK on success.; Other error codes as defined for the add_configuration() function.

References CONF_DIR, netif::configuration, and read_configuration_file().

Referenced by startup().

Here is the call graph for this function:

Here is the caller graph for this function:

void refresh_answer	(	ipc_call_t *	answer,
		int *	answer_count
	)

Refreshes answer structure and parameters count.

Erases all attributes.

Parameters:

`[in,out]`	answer	The message processing answer structure.
`[in,out]`	answer_count	The number of answer parameters.

Referenced by client_connection(), icmp_process_client_messages(), tcp_process_client_messages(), and udp_process_client_messages().

Here is the caller graph for this function:

task_id_t spawn ( const char * fname )

Starts the module.

Starts the given module.

Parameters:

[in] fname The module absolute name.

Returns:: The started module task identifier.; Other error codes as defined for the task_spawn() function.

Parameters:

[in] fname The module full or relative path filename.

Returns:: The new module task identifier on success.; 0 if there is no such module.

Referenced by main(), and net_initialize_build().

Here is the caller graph for this function:

int start_device ( netif_ref netif )

Starts the network interface according to its configuration.

Registers the network interface with the subsystem modules. Starts the needed subsystem modules.

Parameters:

[in] netif The network interface specific data.

Returns:: EOK on success.; EINVAL if there are some settings missing.; ENOENT if the internet protocol module is not known.; Other error codes as defined for the netif_probe_req() function.; Other error codes as defined for the nil_device_req() function.; Other error codes as defined for the needed internet layer registering function.

References CONF_IL, CONF_IO, CONF_IRQ, CONF_MTU, CONF_NETIF, CONF_NIL, net_globals::configuration, netif::configuration, netif::driver, ERROR_DECLARE, ERROR_PROPAGATE, get_running_module(), netif::id, netif::il, ip_device_req(), net_globals::modules, netif_probe_req(), netif_start_req(), netif::nil, nil_device_req, module_struct::phone, module_struct::service, and measured_string::value.

Referenced by startup().

Here is the call graph for this function:

Here is the caller graph for this function:

int startup ( void )

Reads the configuration and starts all network interfaces.

Returns:: EOK on success.; EXDEV if there is no available system-unique device identifier.; EINVAL if any of the network interface names are not configured.; ENOMEM if there is not enough memory left.; Other error codes as defined for the read_configuration() function.; Other error codes as defined for the read_netif_configuration() function.; Other error codes as defined for the start_device() function.

References char_map_add(), CONF_NAME, netif::configuration, netif::driver, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, free, generate_new_device_id(), netif::id, netif::il, module_struct::name, netif::name, net_globals::netif_names, net_globals::netifs, netif::nil, read_netif_configuration(), start_device(), module_struct::usage, and measured_string::value.

Here is the call graph for this function:

Variable Documentation

net_globals_t net_globals

Networking module global data.

net_globals_t net_globals

Networking module global data.

net_globals_t net_globals

Networking module global data.

Networking Stack [HelenOS Services]

Data Structures

Modules

Files

Defines

Typedefs

Enumerations

Functions

Variables

Networking module interface

External module functions.

Specific self tests switches

Socket error codes definitions

Networking message counts

Networking message intervals

First arguments

Second arguments

Third arguments

Fourth arguments

Fifth arguments

First answers

Second answers

Third answers

Fourth answers

Modules definitions

Configuration setting names definitions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation

Networking Stack
[HelenOS Services]
