Packet management system
[Networking Stack]

Collaboration diagram for Packet management system:

Data Structures
struct	packet_dimension
	Packet dimension. More...
struct	packet
	Packet header. More...
Files
file	packet.c
	Packet map and queue implementation.
file	packet.h
	Packet map and queue.
file	packet_client.c
	Packet client implementation.
file	packet_client.h
	Packet client.
file	packet_header.h
	Packet header.
file	packet_messages.h
	Packet server module messages.
file	packet_remote.c
	Packet client interface implementation for standalone remote modules.
file	packet_server.c
	Packet server implementation.
file	packet_server.h
	Packet server.
Defines
#define	PACKET_MAP_SIZE 100
	Packet map page size.
#define	PACKET_MAP_PAGE(packet_id) (((packet_id) - 1) / PACKET_MAP_SIZE)
	Returns the packet map page index.
#define	PACKET_MAP_INDEX(packet_id) (((packet_id) - 1) % PACKET_MAP_SIZE)
	Returns the packet index in the corresponding packet map page.
#define	PACKET_DATA_LENGTH(header) ((header)->data_end - (header)->data_start)
	Returns the actual packet data length.
#define	PACKET_MAX_ADDRESS_LENGTH(header) ((header)->dest_addr - (header)->src_addr)
	Returns the maximum packet address length.
#define	PACKET_MIN_SUFFIX(header) ((header)->length - (header)->data_start - (header)->max_content)
	Returns the minimum packet suffix.
#define	PACKET_MAGIC_VALUE 0x11227788
	Packet integrity check magic value.
#define	ARP_GET_PROTO(call) (services_t) IPC_GET_ARG2(*call)
	Returns the protocol service message parameter.
#define	IPC_GET_ID(call) (packet_id_t) IPC_GET_ARG1(*call)
	Returns the packet identifier message parameter.
#define	IPC_GET_CONTENT(call) (size_t) IPC_GET_ARG1(*call)
	Returns the maximal content length message parameter.
#define	IPC_GET_ADDR_LEN(call) (size_t) IPC_GET_ARG2(*call)
	Returns the maximal address length message parameter.
#define	IPC_GET_PREFIX(call) (size_t) IPC_GET_ARG3(*call)
	Returns the maximal prefix length message parameter.
#define	IPC_GET_SUFFIX(call) (size_t) IPC_GET_ARG4(*call)
	Returns the maximal suffix length message parameter.
#define	FREE_QUEUES_COUNT 7
#define	DEFAULT_ADDR_LEN 32
	The default address length reserved for new packets.
#define	DEFAULT_PREFIX 64
	The default prefix reserved for new packets.
#define	DEFAULT_SUFFIX 64
	The default suffix reserved for new packets.
Typedefs
typedef packet_t	packet_map_t [PACKET_MAP_SIZE]
	Type definition of the packet map page.
typedef packet_map_t *	packet_map_ref
	Type definition of the packet map page pointer.
typedef int	packet_id_t
	Packet identifier type.
typedef struct packet *	packet_t
	Type definition of the packet.
typedef packet_t *	packet_ref
	Type definition of the packet pointer.
typedef struct packet_dimension	packet_dimension_t
	Type definition of the packet dimension.
typedef packet_dimension_t *	packet_dimension_ref
	Type definition of the packet dimension pointer.
Enumerations
enum	packet_messages { NET_PACKET_CREATE_1 = NET_PACKET_FIRST, NET_PACKET_CREATE_4, NET_PACKET_GET, NET_PACKET_GET_SIZE, NET_PACKET_RELEASE }
	Packet server module messages. More...
Functions
	GENERIC_FIELD_DECLARE (gpm, packet_map_t)
	Packet map.
int	packet_destroy (packet_t packet)
	Releases the packet.
	GENERIC_FIELD_IMPLEMENT (gpm, packet_map_t)
static int	packet_is_valid (const packet_t packet)
	Returns whether the packet is valid.
int	packet_return (int phone, packet_ref packet, packet_id_t packet_id, size_t size)
	Obtains the packet from the packet server as the shared memory block.
int	packet_server_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the packet server message.
Variables
struct {
fibril_rwlock_t lock
	Safety lock.
gpm_t packet_map
	Packet map.
}	pm_globals
	Packet map global data.
struct {
fibril_mutex_t lock
	Safety lock.
packet_t free [FREE_QUEUES_COUNT]
	Free packet queues.
size_t sizes [FREE_QUEUES_COUNT]
	Packet length upper bounds of the free packet queues.
unsigned int count
	Total packets allocated.
}	ps_globals
	Packet server global data.
Packet management system interface

int	pm_init (void)
	Initializes the packet map.

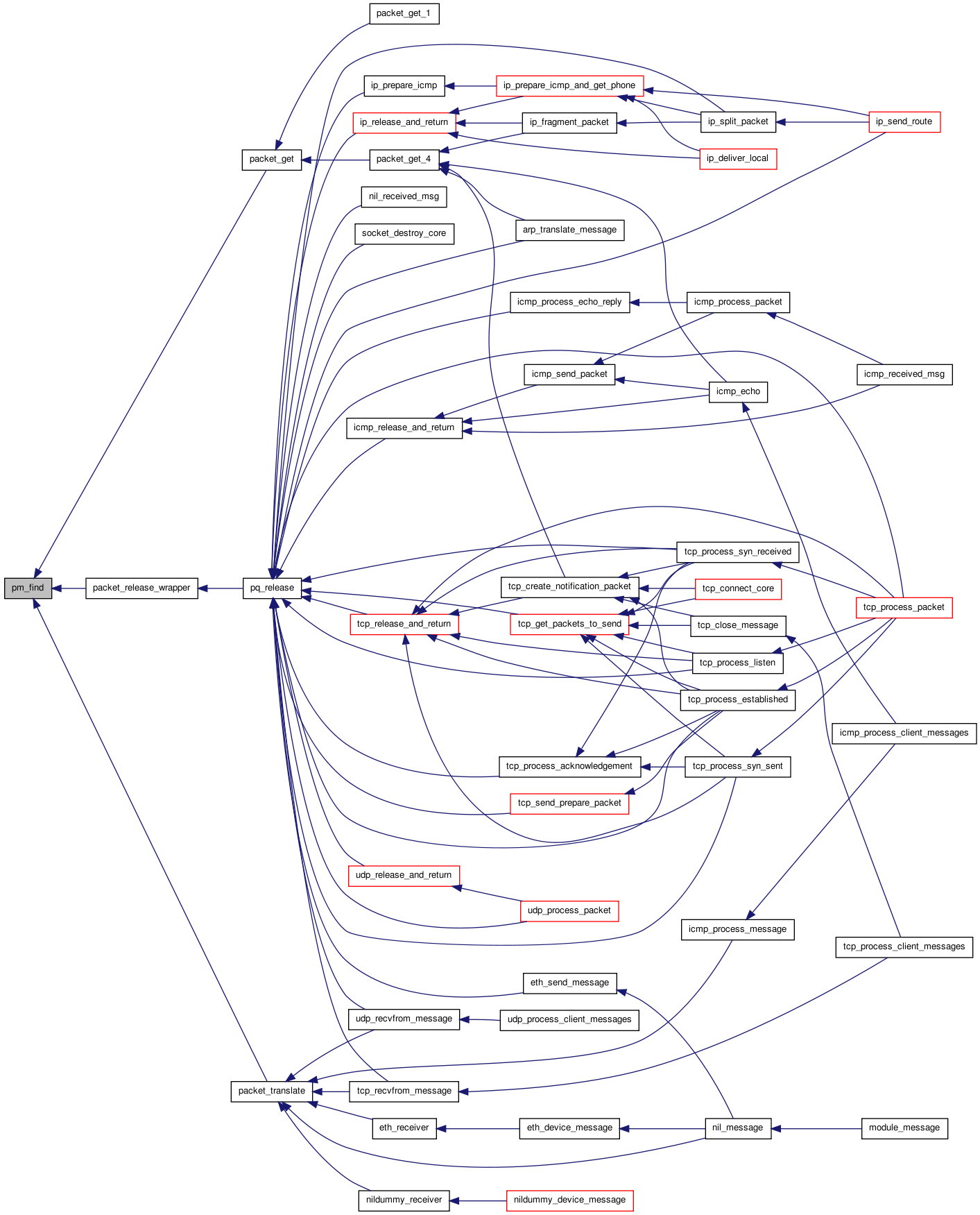

packet_t	pm_find (packet_id_t packet_id)
	Finds the packet mapping.
int	pm_add (packet_t packet)
	Adds the packet mapping.
void	pm_destroy (void)
	Releases the packet map.
int	pq_add (packet_t *first, packet_t packet, size_t order, size_t metric)
	Add packet to the sorted queue.
packet_t	pq_find (packet_t first, size_t order)
	Finds the packet with the given order.

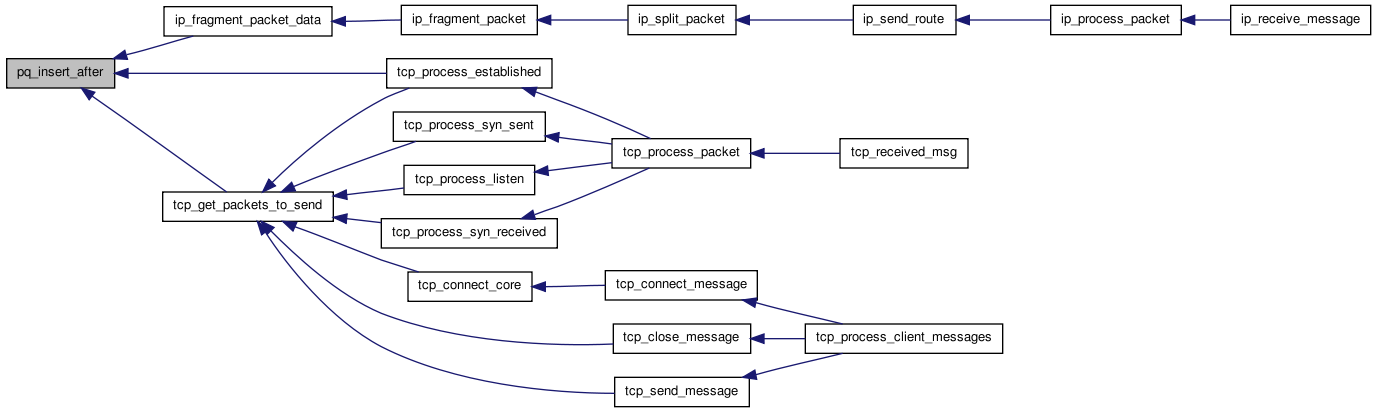

int	pq_insert_after (packet_t packet, packet_t new_packet)
	Inserts packet after the given one.
packet_t	pq_detach (packet_t packet)
	Detach the packet from the queue.
int	pq_set_order (packet_t packet, size_t order, size_t metric)
	Sets the packet order and metric attributes.

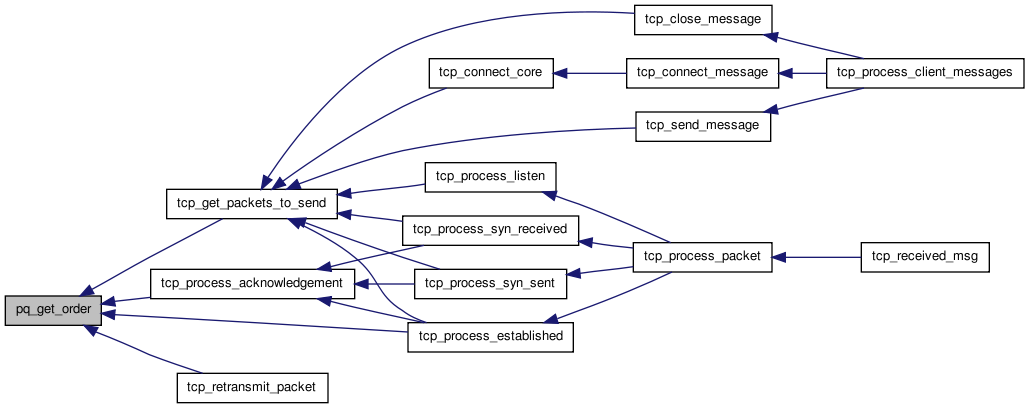

int	pq_get_order (packet_t packet, size_t order, size_t metric)
	Sets the packet order and metric attributes.
void	pq_destroy (packet_t first, void(*packet_release)(packet_t packet))
	Releases the whole queue.
packet_t	pq_next (packet_t packet)
	Returns the next packet in the queue.
packet_t	pq_previous (packet_t packet)
	Returns the previous packet in the queue.
Packet client interface

int	packet_copy_data (packet_t packet, const void *data, size_t length)
	Copies the specified data to the beginning of the actual packet content.
void *	packet_prefix (packet_t packet, size_t length)
	Allocates the specified space right before the actual packet content and returns its pointer.
void *	packet_suffix (packet_t packet, size_t length)
	Allocates the specified space right after the actual packet content and returns its pointer.

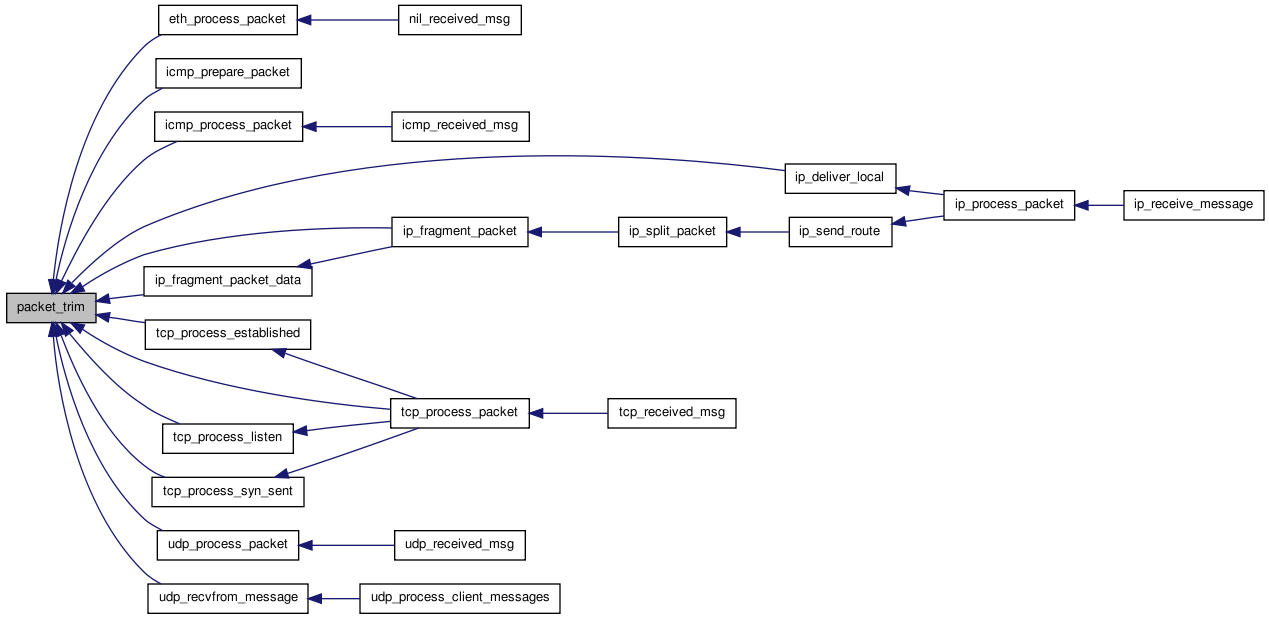

int	packet_trim (packet_t packet, size_t prefix, size_t suffix)
	Trims the actual packet content by the specified prefix and suffix lengths.

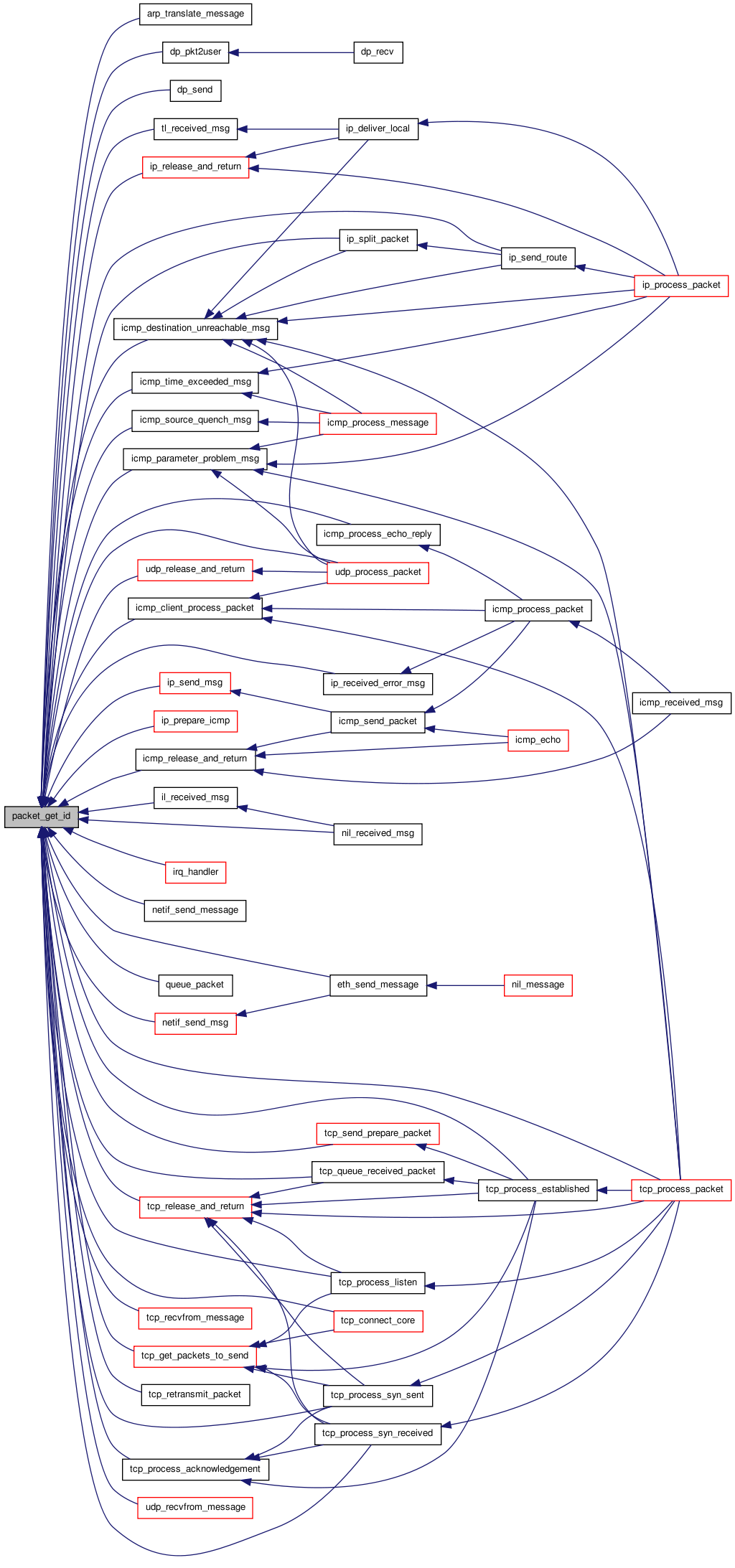

packet_id_t	packet_get_id (const packet_t packet)
	Returns the packet identifier.

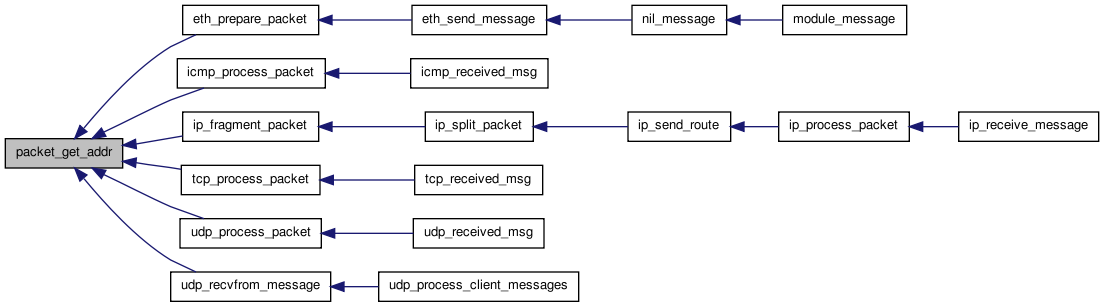

int	packet_get_addr (const packet_t packet, uint8_t src, uint8_t dest)
	Returns the stored packet addresses and their length.
size_t	packet_get_data_length (const packet_t packet)
	Returns the packet content length.

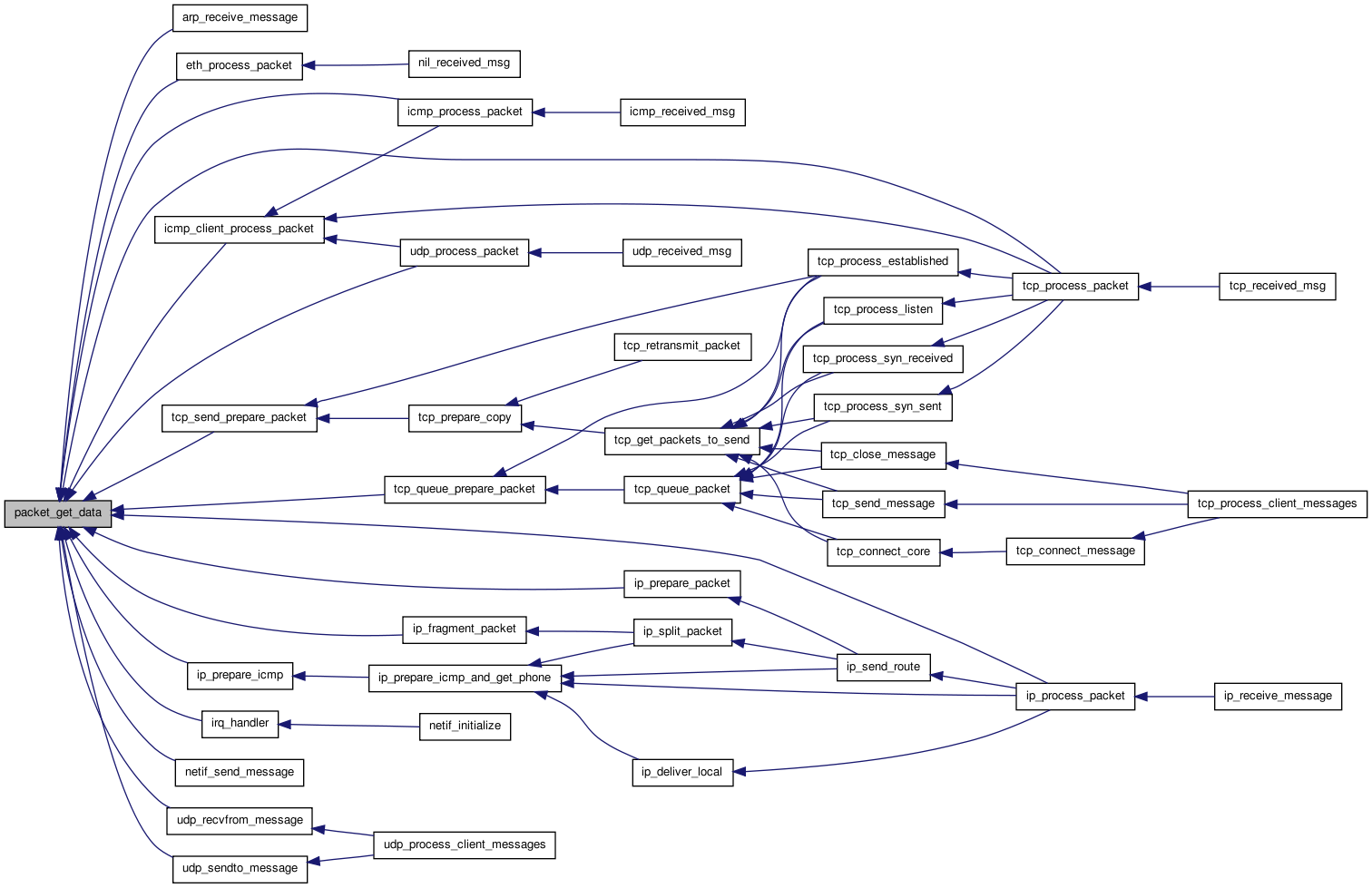

void *	packet_get_data (const packet_t packet)
	Returns the pointer to the beginning of the packet content.
int	packet_set_addr (packet_t packet, const uint8_t src, const uint8_t dest, size_t addr_len)
	Sets the packet addresses.
packet_t	packet_get_copy (int phone, packet_t packet)
	Returns the packet copy.

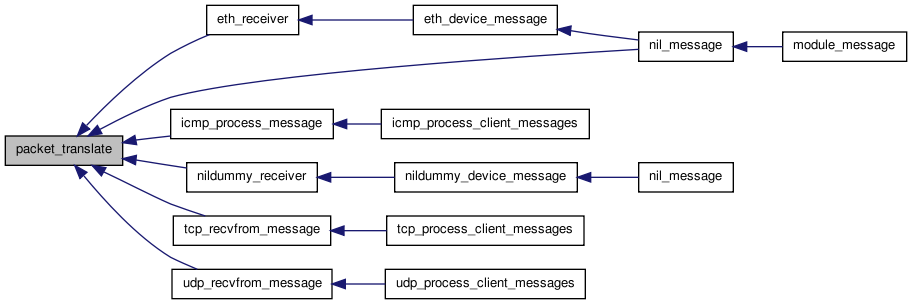

int	packet_translate (int phone, packet_ref packet, packet_id_t packet_id)
	Translates the packet identifier to the packet reference.

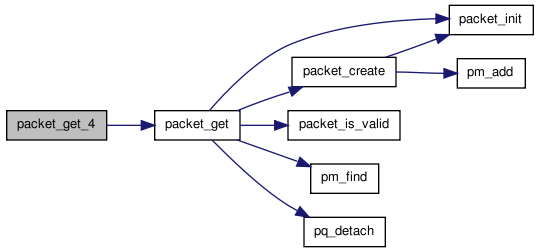

packet_t	packet_get_4 (int phone, size_t max_content, size_t addr_len, size_t max_prefix, size_t max_suffix)
	Obtains the packet of the given dimensions.
packet_t	packet_get_1 (int phone, size_t content)
	Obtains the packet of the given content size.
void	pq_release (int phone, packet_id_t packet_id)
	Releases the packet queue.
#define	PACKET_PREFIX(packet, type) (type *) packet_prefix((packet), sizeof(type))
	Allocates the specified type right before the actual packet content and returns its pointer.
#define	PACKET_SUFFIX(packet, type) (type *) packet_suffix((packet), sizeof(type))
	Allocates the specified type right after the actual packet content and returns its pointer.
#define	PACKET_TRIM(packet, prefix, suffix) packet_trim((packet), sizeof(prefix), sizeof(suffix))
	Trims the actual packet content by the specified prefix and suffix types.
Packet server support functions

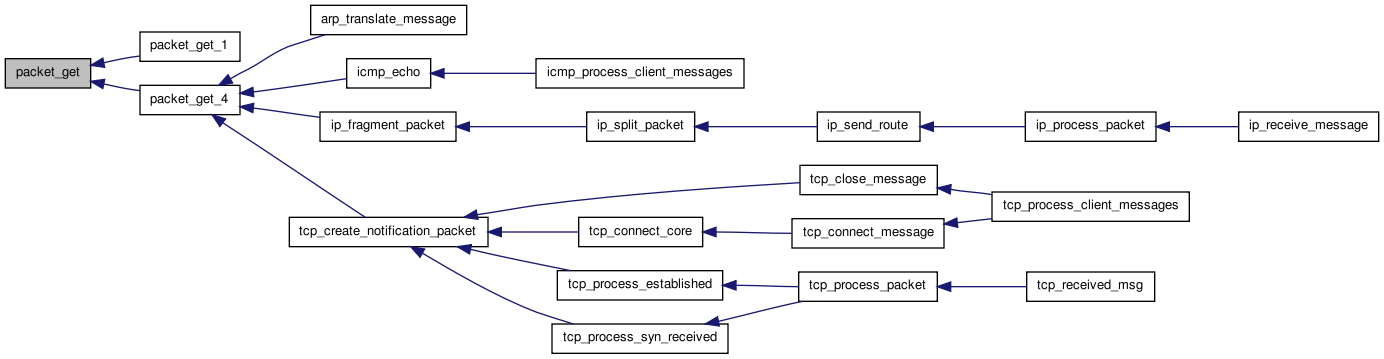

packet_t	packet_get (size_t addr_len, size_t max_prefix, size_t max_content, size_t max_suffix)
	Returns the packet of dimensions at least as given.

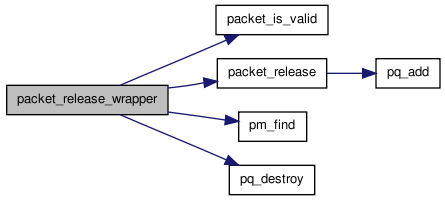

int	packet_release_wrapper (packet_id_t packet_id)
	Releases the packet queue.

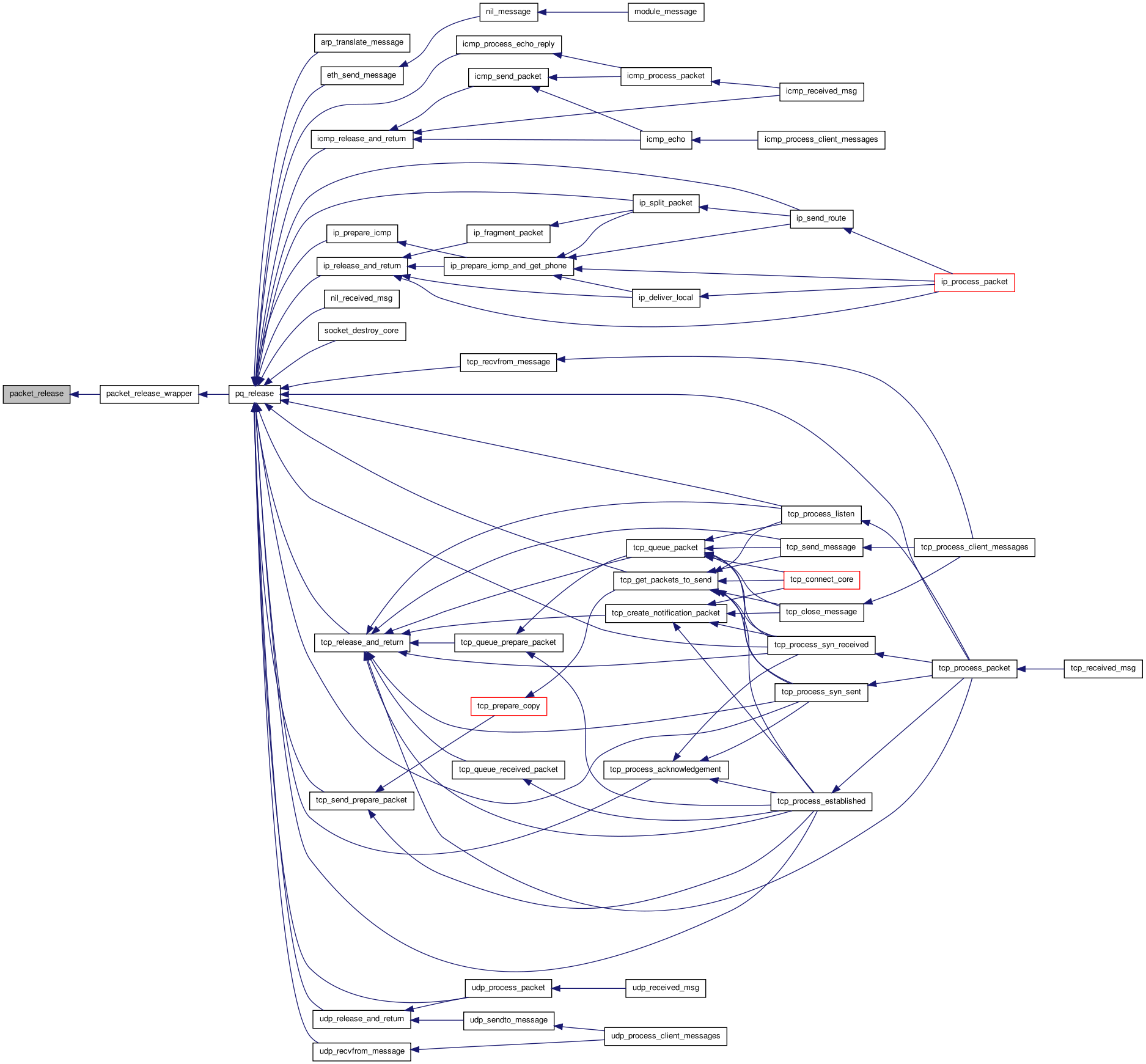

void	packet_release (packet_t packet)
	Releases the packet and returns it to the appropriate free packet queue.
packet_t	packet_create (size_t length, size_t addr_len, size_t max_prefix, size_t max_content, size_t max_suffix)
	Creates a new packet of dimensions at least as given.
void	packet_init (packet_t packet, size_t addr_len, size_t max_prefix, size_t max_content, size_t max_suffix)
	Clears and initializes the packet according to the given dimensions.
int	packet_reply (const packet_t packet)
	Shares the packet memory block.

Define Documentation

#define ARP_GET_PROTO ( call ) (services_t) IPC_GET_ARG2(*call)

Returns the protocol service message parameter.

#define DEFAULT_ADDR_LEN 32

The default address length reserved for new packets.

#define DEFAULT_PREFIX 64

The default prefix reserved for new packets.

Referenced by packet_get_1().

#define DEFAULT_SUFFIX 64

The default suffix reserved for new packets.

Referenced by packet_get_1().

#define FREE_QUEUES_COUNT 7

Referenced by packet_get(), and packet_release().

#define IPC_GET_ADDR_LEN ( call ) (size_t) IPC_GET_ARG2(*call)

Returns the maximal address length message parameter.

#define IPC_GET_CONTENT ( call ) (size_t) IPC_GET_ARG1(*call)

Returns the maximal content length message parameter.

#define IPC_GET_ID ( call ) (packet_id_t) IPC_GET_ARG1(*call)

Returns the packet identifier message parameter.

#define IPC_GET_PREFIX ( call ) (size_t) IPC_GET_ARG3(*call)

Returns the maximal prefix length message parameter.

#define IPC_GET_SUFFIX ( call ) (size_t) IPC_GET_ARG4(*call)

Returns the maximal suffix length message parameter.

#define PACKET_DATA_LENGTH ( header ) ((header)->data_end - (header)->data_start)

Returns the actual packet data length.

Parameters:

[in] header The packet header.

#define PACKET_MAGIC_VALUE 0x11227788

Packet integrity check magic value.

Referenced by packet_create(), and packet_is_valid().

#define PACKET_MAP_INDEX ( packet_id ) (((packet_id) - 1) % PACKET_MAP_SIZE)

Returns the packet index in the corresponding packet map page.

Parameters:

[in] packet_id The packet identifier.

#define PACKET_MAP_PAGE ( packet_id ) (((packet_id) - 1) / PACKET_MAP_SIZE)

Returns the packet map page index.

Parameters:

[in] packet_id The packet identifier.

#define PACKET_MAP_SIZE 100

Packet map page size.

#define PACKET_MAX_ADDRESS_LENGTH ( header ) ((header)->dest_addr - (header)->src_addr)

Returns the maximum packet address length.

Parameters:

[in] header The packet header.

#define PACKET_MIN_SUFFIX ( header ) ((header)->length - (header)->data_start - (header)->max_content)

Returns the minimum packet suffix.

Parameters:

[in] header The packet header.

#define PACKET_PREFIX	(	packet,
		type		)	(type *) packet_prefix((packet), sizeof(type))

Allocates the specified type right before the actual packet content and returns its pointer.

The wrapper of the packet_prepend() function.

Parameters:

`[in]`	packet	The packet to be used.
`[in]`	type	The type to be allocated at the beginning of the packet content.

Returns:: The typed pointer to the allocated memory.; NULL if the packet is not valid.; NULL if there is not enough memory left.

Referenced by eth_prepare_packet(), icmp_echo(), icmp_prepare_packet(), tcp_send_message(), and udp_sendto_message().

#define PACKET_SUFFIX	(	packet,
		type		)	(type *) packet_suffix((packet), sizeof(type))

Allocates the specified type right after the actual packet content and returns its pointer.

The wrapper of the packet_append() function.

Parameters:

`[in]`	packet	The packet to be used.
`[in]`	type	The type to be allocated at the end of the packet content.

Returns:: The typed pointer to the allocated memory.; NULL if the packet is not valid.; NULL if there is not enough memory left.

Referenced by eth_prepare_packet(), and tcp_create_notification_packet().

#define PACKET_TRIM	(	packet,
		prefix,
		suffix	)	packet_trim((packet), sizeof(prefix), sizeof(suffix))

Trims the actual packet content by the specified prefix and suffix types.

The wrapper of the packet_trim() function.

Parameters:

`[in]`	packet	The packet to be trimmed.
`[in]`	prefix	The type of the prefix to be removed from the beginning of the packet content.
`[in]`	suffix	The type of the suffix to be removed from the end of the packet content.

Returns:: EOK on success.; EINVAL if the packet is not valid.; ENOMEM if there is not enough memory left.

Typedef Documentation

typedef packet_dimension_t* packet_dimension_ref

Type definition of the packet dimension pointer.

See also:: packet_dimension

typedef struct packet_dimension packet_dimension_t

Type definition of the packet dimension.

See also:: packet_dimension

typedef int packet_id_t

Packet identifier type.

Value zero (0) is used as an invalid identifier.

typedef packet_map_t* packet_map_ref

Type definition of the packet map page pointer.

typedef packet_t packet_map_t[PACKET_MAP_SIZE]

Type definition of the packet map page.

typedef packet_t* packet_ref

Type definition of the packet pointer.

See also:: packet

typedef struct packet* packet_t

Type definition of the packet.

See also:: packet

Enumeration Type Documentation

enum packet_messages

Packet server module messages.

Enumerator:

NET_PACKET_CREATE_1	Create packet message with specified content length. See also: packet_get_1()
NET_PACKET_CREATE_4	Create packet message with specified address length, prefix, content and suffix. See also: packet_get_4()
NET_PACKET_GET	Get packet message. See also: packet_return()
NET_PACKET_GET_SIZE	Get packet size message. See also: packet_translate()
NET_PACKET_RELEASE	Release packet message. See also: pq_release()

Function Documentation

GENERIC_FIELD_DECLARE	(	gpm	,
		packet_map_t
	)

Packet map.

Maps packet identifiers to the packet references.

See also:: generic_field.h

GENERIC_FIELD_IMPLEMENT	(	gpm	,
		packet_map_t
	)

int packet_copy_data	(	packet_t	packet,
		const void *	data,
		size_t	length
	)

Copies the specified data to the beginning of the actual packet content.

Pushes the content end if needed.

Parameters:

`[in]`	packet	The packet to be filled.
`[in]`	data	The data to be copied.
`[in]`	length	The length of the copied data.

Returns:: EOK on success.; EINVAL if the packet is not valid.; ENOMEM if there is not enough memory left.

packet_t packet_create	(	size_t	length,
		size_t	addr_len,
		size_t	max_prefix,
		size_t	max_content,
		size_t	max_suffix
	)

Creates a new packet of dimensions at least as given.

Should be used only when the global data are locked.

Parameters:

`[in]`	length	The total length of the packet, including the header, the addresses and the data of the packet.
`[in]`	addr_len	The source and destination addresses maximal length in bytes.
`[in]`	max_prefix	The maximal prefix length in bytes.
`[in]`	max_content	The maximal content length in bytes.
`[in]`	max_suffix	The maximal suffix length in bytes.

Returns:: The packet of dimensions at least as given.; NULL if there is not enough memory left.

References ERROR_DECLARE, ERROR_OCCURRED, length, magic_value, packet_id, packet_init(), PACKET_MAGIC_VALUE, pm_add(), and ps_globals.

Referenced by packet_get().

Here is the call graph for this function:

Here is the caller graph for this function:

int packet_destroy ( packet_t packet )

Releases the packet.

Parameters:

[in] packet The packet to be released.

Returns:: EOK on success.; EINVAL if the packet is not valid.

References length, and packet_is_valid().

Here is the call graph for this function:

packet_t packet_get	(	size_t	addr_len,
		size_t	max_prefix,
		size_t	max_content,
		size_t	max_suffix
	)

Returns the packet of dimensions at least as given.

Tries to reuse free packets first. Creates a new packet aligned to the memory page size if none available. Locks the global data during its processing.

Parameters:

`[in]`	addr_len	The source and destination addresses maximal length in bytes.
`[in]`	max_prefix	The maximal prefix length in bytes.
`[in]`	max_content	The maximal content length in bytes.
`[in]`	max_suffix	The maximal suffix length in bytes.

Returns:: The packet of dimensions at least as given.; NULL if there is not enough memory left.

References FREE_QUEUES_COUNT, length, next, packet_create(), packet_init(), packet_is_valid(), pm_find(), pq_detach(), and ps_globals.

Referenced by packet_get_1(), and packet_get_4().

Here is the call graph for this function:

Here is the caller graph for this function:

packet_t packet_get_1	(	int	phone,
		size_t	content
	)

Obtains the packet of the given content size.

Contacts the packet server to return the appropriate packet.

Parameters:

`[in]`	phone	The packet server module phone.
`[in]`	content	The maximal content length in bytes.

Returns:: The packet reference.; NULL on error.

References DEFAULT_ADDR_LEN, DEFAULT_PREFIX, DEFAULT_SUFFIX, and packet_get().

Here is the call graph for this function:

packet_t packet_get_4	(	int	phone,
		size_t	max_content,
		size_t	addr_len,
		size_t	max_prefix,
		size_t	max_suffix
	)

Obtains the packet of the given dimensions.

Contacts the packet server to return the appropriate packet.

Parameters:

`[in]`	phone	The packet server module phone.
`[in]`	addr_len	The source and destination addresses maximal length in bytes.
`[in]`	max_prefix	The maximal prefix length in bytes.
`[in]`	max_content	The maximal content length in bytes.
`[in]`	max_suffix	The maximal suffix length in bytes.

Returns:: The packet reference.; NULL on error.

References packet_get().

Referenced by arp_translate_message(), icmp_echo(), ip_fragment_packet(), and tcp_create_notification_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int packet_get_addr	(	const packet_t	packet,
		uint8_t **	src,
		uint8_t **	dest
	)

Returns the stored packet addresses and their length.

Parameters:

`[in]`	packet	The packet.
`[out]`	src	The source address. May be NULL if not desired.
`[out]`	dest	The destination address. May be NULL if not desired.

Returns:: The stored addresses length.; Zero (0) if the addresses are not present.; EINVAL if the packet is not valid.

Referenced by eth_prepare_packet(), icmp_process_packet(), ip_fragment_packet(), tcp_process_packet(), udp_process_packet(), and udp_recvfrom_message().

Here is the caller graph for this function:

packet_t packet_get_copy	(	int	phone,
		packet_t	packet
	)

Returns the packet copy.

Copies the addresses, data, order and metric values. Does not copy the queue placement.

Parameters:

`[in]`	phone	The packet server module phone.
`[in]`	packet	The original packet.

Returns:: The packet copy.; NULL on error.

Referenced by tcp_prepare_copy().

Here is the caller graph for this function:

void * packet_get_data ( const packet_t packet )

Returns the pointer to the beginning of the packet content.

Parameters:

[in] packet The packet.

Returns:: The pointer to the beginning of the packet content.; NULL if the packet is not valid.

Referenced by arp_receive_message(), eth_process_packet(), icmp_client_process_packet(), icmp_process_packet(), ip_fragment_packet(), ip_prepare_icmp(), ip_prepare_packet(), ip_process_packet(), irq_handler(), netif_send_message(), tcp_process_packet(), tcp_queue_prepare_packet(), tcp_send_prepare_packet(), udp_process_packet(), udp_recvfrom_message(), and udp_sendto_message().

Here is the caller graph for this function:

size_t packet_get_data_length ( const packet_t packet )

Returns the packet content length.

Parameters:

[in] packet The packet.

Returns:: The packet content length in bytes.; Zero (0) if the packet is not valid.

Referenced by arp_receive_message(), eth_prepare_packet(), eth_process_packet(), icmp_client_header_length(), icmp_client_process_packet(), icmp_prepare_packet(), icmp_process_packet(), icmp_send_packet(), ip_deliver_local(), ip_fragment_packet(), ip_prepare_icmp(), ip_prepare_packet(), ip_split_packet(), irq_handler(), netif_send_message(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_sent(), tcp_send_prepare_packet(), udp_process_packet(), and udp_sendto_message().

Here is the caller graph for this function:

packet_id_t packet_get_id ( const packet_t packet )

Returns the packet identifier.

Parameters:

[in] packet The packet.

Returns:: The packet identifier.; Zero (0) if the packet is not valid.

Referenced by arp_translate_message(), dp_pkt2user(), dp_send(), eth_send_message(), icmp_client_process_packet(), icmp_destination_unreachable_msg(), icmp_parameter_problem_msg(), icmp_process_echo_reply(), icmp_release_and_return(), icmp_source_quench_msg(), icmp_time_exceeded_msg(), il_received_msg(), ip_prepare_icmp(), ip_received_error_msg(), ip_release_and_return(), ip_send_msg(), ip_send_route(), ip_split_packet(), irq_handler(), netif_send_message(), netif_send_msg(), nil_received_msg(), queue_packet(), tcp_connect_core(), tcp_get_packets_to_send(), tcp_process_acknowledgement(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_queue_received_packet(), tcp_recvfrom_message(), tcp_release_and_return(), tcp_retransmit_packet(), tcp_send_prepare_packet(), tl_received_msg(), udp_process_packet(), udp_recvfrom_message(), and udp_release_and_return().

Here is the caller graph for this function:

void packet_init	(	packet_t	packet,
		size_t	addr_len,
		size_t	max_prefix,
		size_t	max_content,
		size_t	max_suffix
	)

Clears and initializes the packet according to the given dimensions.

Parameters:

`[in]`	packet	The packet to be initialized.
`[in]`	addr_len	The source and destination addresses maximal length in bytes.
`[in]`	max_prefix	The maximal prefix length in bytes.
`[in]`	max_content	The maximal content length in bytes.
`[in]`	max_suffix	The maximal suffix length in bytes.

Referenced by packet_create(), and packet_get().

Here is the caller graph for this function:

static int packet_is_valid ( const packet_t packet ) [inline, static]

Returns whether the packet is valid.

Parameters:

[in] packet The packet to be checked.

Returns:: true if the packet is not NULL and the magic value is correct.; false otherwise.

References magic_value, and PACKET_MAGIC_VALUE.

Referenced by packet_destroy(), packet_get(), packet_release_wrapper(), and packet_reply().

Here is the caller graph for this function:

void * packet_prefix	(	packet_t	packet,
		size_t	length
	)

Allocates the specified space right before the actual packet content and returns its pointer.

Parameters:

`[in]`	packet	The packet to be used.
`[in]`	length	The space length to be allocated at the beginning of the packet content.

Returns:: The pointer to the allocated memory.; NULL if there is not enough memory left.

Referenced by ip_prepare_packet().

Here is the caller graph for this function:

void packet_release ( packet_t packet )

Releases the packet and returns it to the appropriate free packet queue.

Should be used only when the global data are locked.

Parameters:

[in] packet The packet to be released.

References FREE_QUEUES_COUNT, length, pq_add(), and ps_globals.

Referenced by packet_release_wrapper().

Here is the call graph for this function:

Here is the caller graph for this function:

int packet_release_wrapper ( packet_id_t packet_id )

Releases the packet queue.

Parameters:

[in] packet_id The first packet identifier.

Returns:: EOK on success.; ENOENT if there is no such packet.

References packet_is_valid(), packet_release(), pm_find(), pq_destroy(), and ps_globals.

Referenced by pq_release().

Here is the call graph for this function:

Here is the caller graph for this function:

int packet_reply ( const packet_t packet )

Shares the packet memory block.

Parameters:

[in] packet The packet to be shared.

Returns:: EOK on success.; EINVAL if the packet is not valid.; EINVAL if the calling module does not accept the memory.; ENOMEM if the desired and actual sizes differ.; Other error codes as defined for the async_share_in_finalize() function.

References length, and packet_is_valid().

Here is the call graph for this function:

int packet_return	(	int	phone,
		packet_ref	packet,
		packet_id_t	packet_id,
		size_t	size
	)

Obtains the packet from the packet server as the shared memory block.

Creates the local packet mapping as well.

Parameters:

`[in]`	phone	The packet server module phone.
`[out]`	packet	The packet reference pointer to store the received packet reference.
`[in]`	packet_id	The packet identifier.
`[in]`	size	The packet total size in bytes.

Returns:: EOK on success.; Other error codes as defined for the pm_add() function.; Other error codes as defined for the async_share_in_start() function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, NET_PACKET_GET, and pm_add().

Here is the call graph for this function:

int packet_server_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the packet server message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.; ENOENT if there is no such packet as in the packet message parameter..; ENOTSUP if the message is not known.; Other error codes as defined for the packet_release_wrapper() function.

Referenced by module_message().

Here is the caller graph for this function:

int packet_set_addr	(	packet_t	packet,
		const uint8_t *	src,
		const uint8_t *	dest,
		size_t	addr_len
	)

Sets the packet addresses.

Parameters:

`[in]`	packet	The packet.
`[in]`	src	The new source address. May be NULL.
`[in]`	dest	The new destination address. May be NULL.
`[in]`	addr_len	The addresses length.

Returns:: EOK on success.; EINVAL if the packet is not valid.; ENOMEM if there is not enough memory left.

Referenced by arp_receive_message(), arp_translate_message(), eth_process_packet(), icmp_echo(), icmp_process_packet(), ip_deliver_local(), ip_fragment_packet_data(), ip_prepare_icmp(), ip_prepare_packet(), ip_process_packet(), and tcp_queue_prepare_packet().

Here is the caller graph for this function:

void * packet_suffix	(	packet_t	packet,
		size_t	length
	)

Allocates the specified space right after the actual packet content and returns its pointer.

Parameters:

`[in]`	packet	The packet to be used.
`[in]`	length	The space length to be allocated at the end of the packet content.

Returns:: The pointer to the allocated memory.; NULL if there is not enough memory left.

Referenced by arp_translate_message(), dp_pkt2user(), eth_prepare_packet(), icmp_echo(), ip_create_middle_header(), ip_fragment_packet(), and ip_fragment_packet_data().

Here is the caller graph for this function:

int packet_translate	(	int	phone,
		packet_ref	packet,
		packet_id_t	packet_id
	)

Translates the packet identifier to the packet reference.

Tries to find mapping first. Contacts the packet server to share the packet if the mapping is not present.

Parameters:

`[in]`	phone	The packet server module phone.
`[out]`	packet	The packet reference.
`[in]`	packet_id	The packet identifier.

Returns:: EOK on success.; EINVAL if the packet parameter is NULL.; Other error codes as defined for the NET_PACKET_GET_SIZE message.; Other error codes as defined for the packet_return() function.

References pm_find().

Referenced by eth_receiver(), icmp_process_message(), nil_message(), nildummy_receiver(), tcp_recvfrom_message(), and udp_recvfrom_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int packet_trim	(	packet_t	packet,
		size_t	prefix,
		size_t	suffix
	)

Trims the actual packet content by the specified prefix and suffix lengths.

Parameters:

`[in]`	packet	The packet to be trimmed.
`[in]`	prefix	The prefix length to be removed from the beginning of the packet content.
`[in]`	suffix	The suffix length to be removed from the end of the packet content.

Returns:: EOK on success.; EINVAL if the packet is not valid.; ENOMEM if there is not enough memory left.

Referenced by eth_process_packet(), icmp_prepare_packet(), icmp_process_packet(), ip_deliver_local(), ip_fragment_packet(), ip_fragment_packet_data(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_sent(), udp_process_packet(), and udp_recvfrom_message().

Here is the caller graph for this function:

int pm_add ( packet_t packet )

Adds the packet mapping.

Parameters:

[in] packet The packet to be remembered.

Returns:: EOK on success.; EINVAL if the packet is not valid.; EINVAL if the packet map is not initialized.; ENOMEM if there is not enough memory left.

Referenced by packet_create(), and packet_return().

Here is the caller graph for this function:

void pm_destroy ( void )

Releases the packet map.

Referenced by module_start().

Here is the caller graph for this function:

packet_t pm_find ( packet_id_t packet_id )

Finds the packet mapping.

Parameters:

[in] packet_id The packet identifier to be found.

Returns:: The found packet reference.; NULL if the mapping does not exist.

Referenced by packet_get(), packet_release_wrapper(), and packet_translate().

Here is the caller graph for this function:

int pm_init ( void )

Initializes the packet map.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

Referenced by module_start().

Here is the caller graph for this function:

int pq_add	(	packet_t *	first,
		packet_t	packet,
		size_t	order,
		size_t	metric
	)

Add packet to the sorted queue.

The queue is sorted in the ascending order. The packet is inserted right before the packets of the same order value.

Parameters:

`[in,out]`	first	The first packet of the queue. Sets the first packet of the queue. The original first packet may be shifted by the new packet.
`[in]`	packet	The packet to be added.
`[in]`	order	The packet order value.
`[in]`	metric	The metric value of the packet.

Returns:: EOK on success.; EINVAL if the first parameter is NULL.; EINVAL if the packet is not valid.

Referenced by dp_pkt2user(), packet_release(), queue_packet(), tcp_process_acknowledgement(), tcp_process_established(), tcp_queue_packet(), and udp_sendto_message().

Here is the caller graph for this function:

void pq_destroy	(	packet_t	first,
		void(*)(packet_t packet)	packet_release
	)

Releases the whole queue.

Detaches all packets of the queue and calls the packet_release() for each of them.

Parameters:

`[in]`	first	The first packet of the queue.
`[in]`	packet_release	The releasing function called for each of the packets after its detachment.

Referenced by packet_release_wrapper().

Here is the caller graph for this function:

packet_t pq_detach ( packet_t packet )

Detach the packet from the queue.

Parameters:

[in] packet The packet to be detached.

Returns:: The next packet in the queue. If the packet is the first one of the queue, this becomes the new first one.; NULL if there is no packet left.; NULL if the packet is not valid.

Referenced by dp_send(), eth_send_message(), ip_prepare_icmp(), ip_receive_message(), ip_split_packet(), netif_send_message(), nil_received_msg(), packet_get(), tcp_process_acknowledgement(), tcp_process_established(), tcp_process_listen(), tcp_process_syn_sent(), tcp_send_packets(), and udp_process_packet().

Here is the caller graph for this function:

packet_t pq_find	(	packet_t	first,
		size_t	order
	)

Finds the packet with the given order.

Parameters:

`[in]`	first	The first packet of the queue.
`[in]`	order	The packet order value.

Returns:: The packet with the given order.; NULL if the first packet is not valid.; NULL if the packet is not found.

Referenced by tcp_get_packets_to_send(), and tcp_retransmit_packet().

Here is the caller graph for this function:

int pq_get_order	(	packet_t	packet,
		size_t *	order,
		size_t *	metric
	)

Sets the packet order and metric attributes.

Parameters:

`[in]`	packet	The packet to be set.
`[out]`	order	The packet order value.
`[out]`	metric	The metric value of the packet.

Returns:: EOK on success.; EINVAL if the packet is invalid..

Referenced by tcp_get_packets_to_send(), tcp_process_acknowledgement(), tcp_process_established(), and tcp_retransmit_packet().

Here is the caller graph for this function:

int pq_insert_after	(	packet_t	packet,
		packet_t	new_packet
	)

Inserts packet after the given one.

Parameters:

`[in]`	packet	The packet in the queue.
`[in]`	new_packet	The new packet to be inserted.

Returns:: EOK on success.; EINVAL if etiher of the packets is invalid.

Referenced by ip_fragment_packet_data(), tcp_get_packets_to_send(), and tcp_process_established().

Here is the caller graph for this function:

packet_t pq_next ( packet_t packet )

Returns the next packet in the queue.

Parameters:

[in] packet The packet queue member.

Returns:: The next packet in the queue.; NULL if there is no next packet.; NULL if the packet is not valid.

Referenced by eth_send_message(), ip_prepare_packet(), ip_split_packet(), netif_send_message(), queue_packet(), tcp_get_packets_to_send(), tcp_process_established(), tcp_process_packet(), and udp_process_packet().

Here is the caller graph for this function:

packet_t pq_previous ( packet_t packet )

Returns the previous packet in the queue.

Parameters:

[in] packet The packet queue member.

Returns:: The previous packet in the queue.; NULL if there is no previous packet.; NULL if the packet is not valid.

void pq_release	(	int	phone,
		packet_id_t	packet_id
	)

Releases the packet queue.

All packets in the queue are marked as free for use. The packet queue may be one packet only. The module should not use the packets after this point until they are received or obtained again.

Parameters:
