[Memory management]


Files
file	as.h
file	buddy.h
file	frame.h
file	page.h
file	slab.h
file	tlb.h
file	as.c
	Address space related functions.
file	backend_anon.c
	Backend for anonymous memory address space areas.
file	backend_elf.c
	Backend for address space areas backed by an ELF image.
file	backend_phys.c
	Backend for address space areas backed by continuous physical memory.
file	buddy.c
	Buddy allocator framework.
file	frame.c
	Physical frame allocator.
file	page.c
	Virtual Address Translation subsystem.
file	slab.c
	Slab allocator.
file	tlb.c
	Generic TLB shootdown algorithm.
Data Structures
struct	buddy_system_operations
struct	buddy_system
struct	page_mapping_operations
struct	slab_magazine_t
struct	slab_mag_cache_t
struct	slab_cache_t
struct	tlb_shootdown_msg
struct	frame_t
struct	zone_t
struct	slab_t
Defines
#define	AS_AREA_READ 1
#define	AS_AREA_WRITE 2
#define	AS_AREA_EXEC 4
#define	AS_AREA_CACHEABLE 8
#define	BUDDY_SYSTEM_INNER_BLOCK 0xff
#define	ONE_FRAME 0
#define	TWO_FRAMES 1
#define	STACK_FRAMES ONE_FRAME
#define	ZONES_MAX 16
#define	ZONE_JOIN 0x1
#define	FRAME_KA 0x1
#define	FRAME_PANIC 0x2
#define	FRAME_ATOMIC 0x4
#define	FRAME_NO_RECLAIM 0x8
#define	FRAME_OK 0
#define	FRAME_NO_MEMORY 1
#define	FRAME_ERROR 2
#define	IS_BUDDY_ORDER_OK(index, order) ((~(((__native) -1) << (order)) & (index)) == 0)
#define	IS_BUDDY_LEFT_BLOCK(zone, frame) (((frame_index((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 0)
#define	IS_BUDDY_RIGHT_BLOCK(zone, frame) (((frame_index((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 1)
#define	IS_BUDDY_LEFT_BLOCK_ABS(zone, frame) (((frame_index_abs((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 0)
#define	IS_BUDDY_RIGHT_BLOCK_ABS(zone, frame) (((frame_index_abs((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 1)
#define	frame_alloc(order, flags) frame_alloc_generic(order, flags, NULL, NULL)
#define	frame_alloc_rc(order, flags, status) frame_alloc_generic(order, flags, status, NULL)
#define	frame_alloc_rc_zone(order, flags, status, zone) frame_alloc_generic(order, flags, status, zone)
#define	PAGE_CACHEABLE_SHIFT 0
#define	PAGE_NOT_CACHEABLE_SHIFT PAGE_CACHEABLE_SHIFT
#define	PAGE_PRESENT_SHIFT 1
#define	PAGE_NOT_PRESENT_SHIFT PAGE_PRESENT_SHIFT
#define	PAGE_USER_SHIFT 2
#define	PAGE_KERNEL_SHIFT PAGE_USER_SHIFT
#define	PAGE_READ_SHIFT 3
#define	PAGE_WRITE_SHIFT 4
#define	PAGE_EXEC_SHIFT 5
#define	PAGE_GLOBAL_SHIFT 6
#define	PAGE_NOT_CACHEABLE (0<<PAGE_CACHEABLE_SHIFT)
#define	PAGE_CACHEABLE (1<<PAGE_CACHEABLE_SHIFT)
#define	PAGE_PRESENT (0<<PAGE_PRESENT_SHIFT)
#define	PAGE_NOT_PRESENT (1<<PAGE_PRESENT_SHIFT)
#define	PAGE_USER (1<<PAGE_USER_SHIFT)
#define	PAGE_KERNEL (0<<PAGE_USER_SHIFT)
#define	PAGE_READ (1<<PAGE_READ_SHIFT)
#define	PAGE_WRITE (1<<PAGE_WRITE_SHIFT)
#define	PAGE_EXEC (1<<PAGE_EXEC_SHIFT)
#define	PAGE_GLOBAL (1<<PAGE_GLOBAL_SHIFT)
#define	SLAB_MIN_MALLOC_W 4
#define	SLAB_MAX_MALLOC_W 18
#define	SLAB_MAG_SIZE 4
#define	SLAB_INSIDE_SIZE (PAGE_SIZE >> 3)
#define	SLAB_MAX_BADNESS(cache) ((PAGE_SIZE << (cache)->order) >> 2)
#define	SLAB_RECLAIM_ALL 0x1
#define	SLAB_CACHE_NOMAGAZINE 0x1
#define	SLAB_CACHE_SLINSIDE 0x2
#define	SLAB_CACHE_MAGDEFERRED (0x4 \| SLAB_CACHE_NOMAGAZINE)
#define	TLB_MESSAGE_QUEUE_LEN 10
Typedefs
typedef enum pf_access	pf_access_t
typedef page_mapping_operations	page_mapping_operations_t
typedef enum tlb_invalidate_type	tlb_invalidate_type_t
typedef tlb_shootdown_msg	tlb_shootdown_msg_t
Enumerations
enum	pf_access { PF_ACCESS_READ, PF_ACCESS_WRITE, PF_ACCESS_EXEC }
enum	tlb_invalidate_type { TLB_INVL_INVALID = 0, TLB_INVL_ALL, TLB_INVL_ASID, TLB_INVL_PAGES }
Functions
void	buddy_system_create (buddy_system_t b, __u8 max_order, buddy_system_operations_t op, void *data)
link_t *	buddy_system_alloc (buddy_system_t *b, __u8 i)
bool	buddy_system_can_alloc (buddy_system_t *b, __u8 order)
void	buddy_system_free (buddy_system_t b, link_t block)
void	buddy_system_structure_print (buddy_system_t *b, size_t elem_size)
size_t	buddy_conf_size (int max_order)
link_t *	buddy_system_alloc_block (buddy_system_t b, link_t block)
static __address	PFN2ADDR (pfn_t frame)
static pfn_t	ADDR2PFN (__address addr)
static count_t	SIZE2FRAMES (size_t size)
void	frame_init (void)
pfn_t	frame_alloc_generic (__u8 order, int flags, int status, int pzone)
void	frame_free (pfn_t pfn)
void	frame_reference_add (pfn_t pfn)

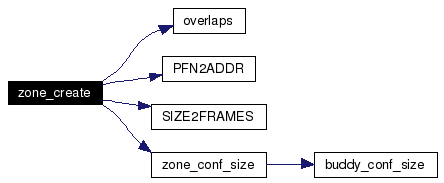

int	zone_create (pfn_t start, count_t count, pfn_t confframe, int flags)
void *	frame_get_parent (pfn_t frame, int hint)
void	frame_set_parent (pfn_t frame, void *data, int hint)
void	frame_mark_unavailable (pfn_t start, count_t count)
__address	zone_conf_size (count_t count)
void	zone_merge (int z1, int z2)
void	zone_merge_all (void)
void	zone_print_list (void)
void	zone_print_one (int znum)
void	page_init (void)
void	page_table_lock (as_t *as, bool lock)
void	page_table_unlock (as_t *as, bool unlock)
void	page_mapping_insert (as_t *as, __address page, __address frame, int flags)
void	page_mapping_remove (as_t *as, __address page)
pte_t *	page_mapping_find (as_t *as, __address page)
pte_t *	page_table_create (int flags)
void	page_table_destroy (pte_t *page_table)
void	map_structure (__address s, size_t size)
__address	hw_map (__address physaddr, size_t size)
slab_cache_t *	slab_cache_create (char name, size_t size, size_t align, int(constructor)(void obj, int kmflag), int(destructor)(void *obj), int flags)
void	slab_cache_destroy (slab_cache_t *cache)
void *	slab_alloc (slab_cache_t *cache, int flags)
void	slab_free (slab_cache_t cache, void obj)
count_t	slab_reclaim (int flags)
void	slab_cache_init (void)
void	slab_enable_cpucache (void)
void	slab_print_list (void)

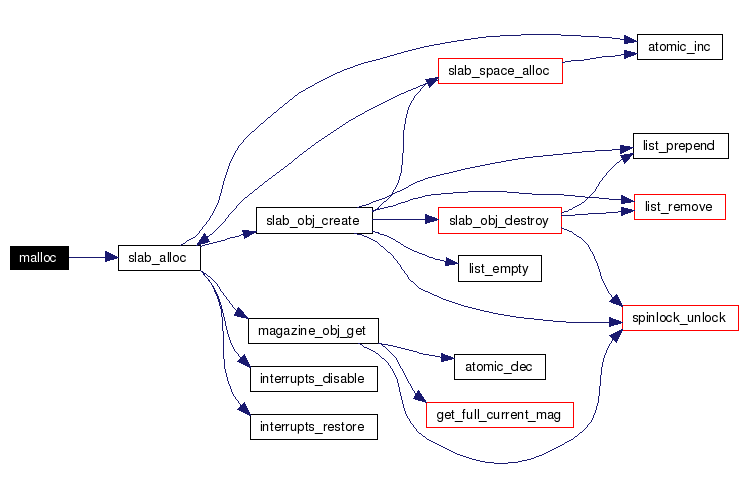

void *	malloc (unsigned int size, int flags)
void	free (void *obj)
void	tlb_init (void)
void	tlb_shootdown_start (tlb_invalidate_type_t type, asid_t asid, __address page, count_t count)
void	tlb_shootdown_finalize (void)
void	tlb_shootdown_ipi_recv (void)
void	tlb_arch_init (void)
void	tlb_print (void)
void	tlb_shootdown_ipi_send (void)
void	tlb_invalidate_all (void)
void	tlb_invalidate_asid (asid_t asid)
void	tlb_invalidate_pages (asid_t asid, __address page, count_t cnt)
	SPINLOCK_INITIALIZE (inactive_as_with_asid_lock)
	LIST_INITIALIZE (inactive_as_with_asid_head)
static int	area_flags_to_page_flags (int aflags)
static as_area_t *	find_area_and_lock (as_t *as, __address va)

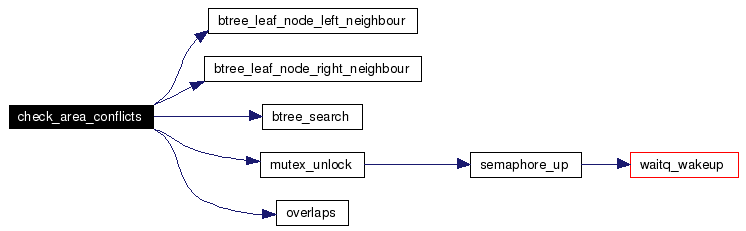

static bool	check_area_conflicts (as_t as, __address va, size_t size, as_area_t avoid_area)
static void	sh_info_remove_reference (share_info_t *sh_info)
void	as_init (void)
as_t *	as_create (int flags)
void	as_destroy (as_t *as)
as_area_t *	as_area_create (as_t as, int flags, size_t size, __address base, int attrs, mem_backend_t backend, mem_backend_data_t *backend_data)
int	as_area_resize (as_t *as, __address address, size_t size, int flags)
int	as_area_destroy (as_t *as, __address address)
int	as_area_share (as_t src_as, __address src_base, size_t acc_size, as_t dst_as, __address dst_base, int dst_flags_mask)
bool	as_area_check_access (as_area_t *area, pf_access_t access)
int	as_page_fault (__address page, pf_access_t access, istate_t *istate)
void	as_switch (as_t old, as_t new)
int	as_area_get_flags (as_area_t *a)
size_t	as_get_size (__address base)
int	used_space_insert (as_area_t *a, __address page, count_t count)
int	used_space_remove (as_area_t *a, __address page, count_t count)

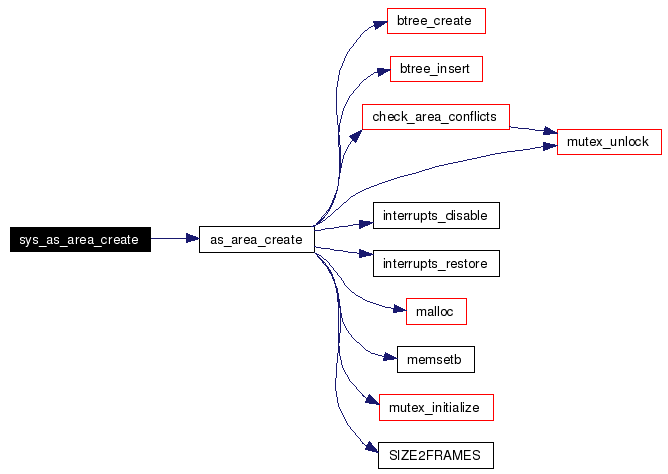

__native	sys_as_area_create (__address address, size_t size, int flags)
__native	sys_as_area_resize (__address address, size_t size, int flags)
__native	sys_as_area_destroy (__address address)
static int	anon_page_fault (as_area_t *area, __address addr, pf_access_t access)
static void	anon_frame_free (as_area_t *area, __address page, __address frame)

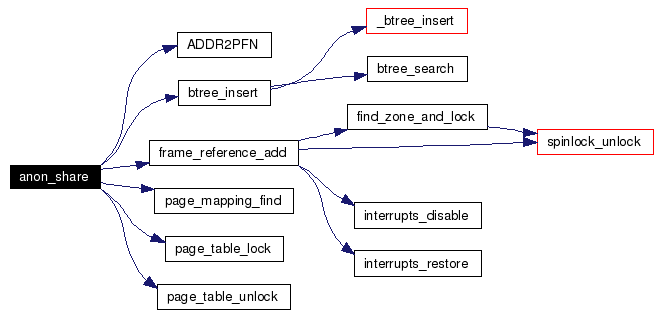

static void	anon_share (as_area_t *area)
static int	elf_page_fault (as_area_t *area, __address addr, pf_access_t access)
static void	elf_frame_free (as_area_t *area, __address page, __address frame)

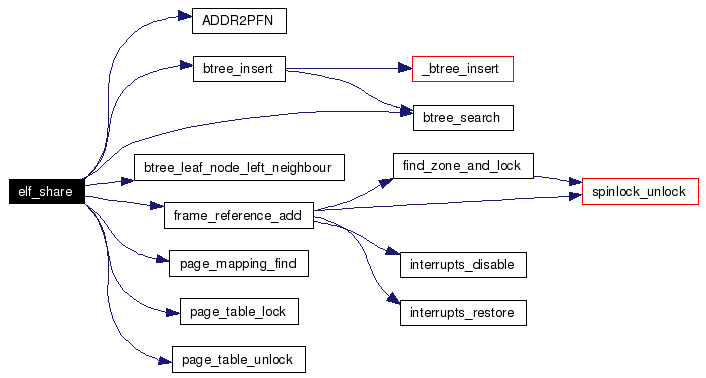

static void	elf_share (as_area_t *area)
static int	phys_page_fault (as_area_t *area, __address addr, pf_access_t access)
static void	phys_share (as_area_t *area)
static index_t	frame_index (zone_t zone, frame_t frame)
static index_t	frame_index_abs (zone_t zone, frame_t frame)
static int	frame_index_valid (zone_t *zone, index_t index)
static index_t	make_frame_index (zone_t zone, frame_t frame)
static void	frame_initialize (frame_t *frame)
static int	zones_add_zone (zone_t *newzone)
static zone_t *	find_zone_and_lock (pfn_t frame, int *pzone)
static int	zone_can_alloc (zone_t *z, __u8 order)

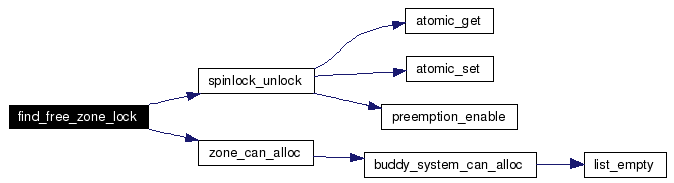

static zone_t *	find_free_zone_lock (__u8 order, int *pzone)
static link_t *	zone_buddy_find_block (buddy_system_t b, link_t child, __u8 order)
static void	zone_buddy_print_id (buddy_system_t b, link_t block)
static link_t *	zone_buddy_find_buddy (buddy_system_t b, link_t block)
static link_t *	zone_buddy_bisect (buddy_system_t b, link_t block)
static link_t *	zone_buddy_coalesce (buddy_system_t b, link_t block_1, link_t *block_2)
static void	zone_buddy_set_order (buddy_system_t b, link_t block, __u8 order)
static __u8	zone_buddy_get_order (buddy_system_t b, link_t block)
static void	zone_buddy_mark_busy (buddy_system_t b, link_t block)
static void	zone_buddy_mark_available (buddy_system_t b, link_t block)
static pfn_t	zone_frame_alloc (zone_t *zone, __u8 order)
static void	zone_frame_free (zone_t *zone, index_t frame_idx)
static frame_t *	zone_get_frame (zone_t *zone, index_t frame_idx)
static void	zone_mark_unavailable (zone_t *zone, index_t frame_idx)
static void	_zone_merge (zone_t z, zone_t z1, zone_t *z2)
static void	return_config_frames (zone_t newzone, zone_t oldzone)
static void	zone_reduce_region (zone_t *zone, pfn_t frame_idx, count_t count)
static void	zone_construct (pfn_t start, count_t count, zone_t *z, int flags)
	SPINLOCK_INITIALIZE (slab_cache_lock)
static	LIST_INITIALIZE (slab_cache_list)
static slab_t *	slab_space_alloc (slab_cache_t *cache, int flags)
static count_t	slab_space_free (slab_cache_t cache, slab_t slab)
static slab_t *	obj2slab (void *obj)
static count_t	slab_obj_destroy (slab_cache_t cache, void obj, slab_t *slab)
static void *	slab_obj_create (slab_cache_t *cache, int flags)
static slab_magazine_t *	get_mag_from_cache (slab_cache_t *cache, int first)
static void	put_mag_to_cache (slab_cache_t cache, slab_magazine_t mag)

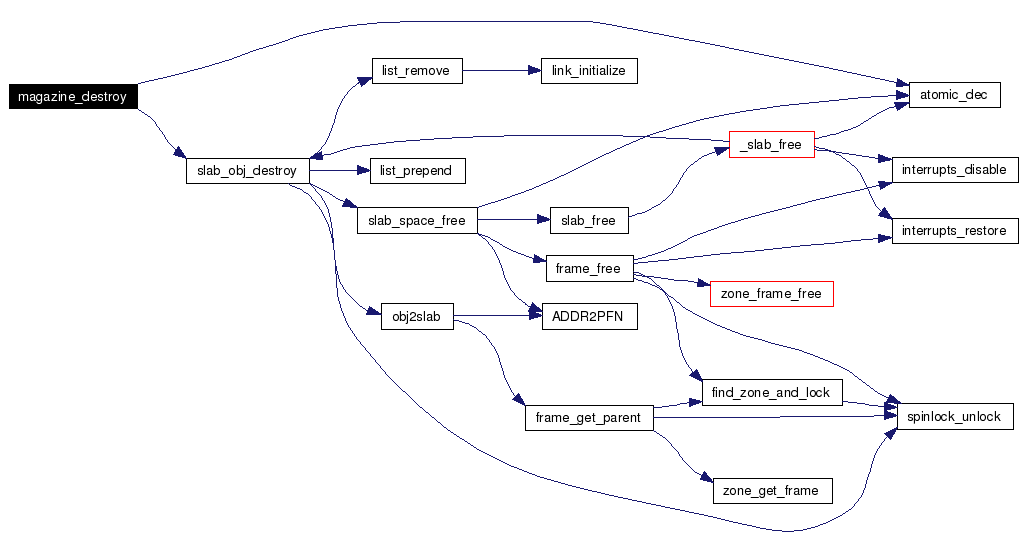

static count_t	magazine_destroy (slab_cache_t cache, slab_magazine_t mag)
static slab_magazine_t *	get_full_current_mag (slab_cache_t *cache)
static void *	magazine_obj_get (slab_cache_t *cache)
static slab_magazine_t *	make_empty_current_mag (slab_cache_t *cache)
static int	magazine_obj_put (slab_cache_t cache, void obj)
static int	comp_objects (slab_cache_t *cache)
static int	badness (slab_cache_t *cache)
static void	make_magcache (slab_cache_t *cache)
static void	_slab_cache_create (slab_cache_t cache, char name, size_t size, size_t align, int(constructor)(void obj, int kmflag), int(destructor)(void obj), int flags)
static count_t	_slab_reclaim (slab_cache_t *cache, int flags)
static void	_slab_free (slab_cache_t cache, void obj, slab_t *slab)
	SPINLOCK_INITIALIZE (tlblock)
Variables
page_mapping_operations_t *	page_mapping_operations
as_operations_t *	as_operations = NULL
as_t *	AS_KERNEL = NULL
mem_backend_t	anon_backend
mem_backend_t	elf_backend
mem_backend_t	phys_backend
struct {
	SPINLOCK_DECLARE (lock)
const char * name
iroutine f
int count
zone_t * info [ZONES_MAX]
}	zones
static struct buddy_system_operations	zone_buddy_system_operations
page_mapping_operations_t *	page_mapping_operations = NULL
static slab_cache_t	mag_cache
static slab_cache_t	slab_cache_cache
static slab_cache_t *	slab_extern_cache
static slab_cache_t *	malloc_caches [SLAB_MAX_MALLOC_W-SLAB_MIN_MALLOC_W+1]
char *	malloc_names []

Define Documentation

#define AS_AREA_CACHEABLE 8

Definition at line 42 of file as.h.
Referenced by area_flags_to_page_flags(), as_area_share(), load_segment(), sys_as_area_create(), and task_run_program().

#define AS_AREA_EXEC 4

Definition at line 41 of file as.h.
Referenced by area_flags_to_page_flags(), as_area_check_access(), as_area_create(), and load_segment().

#define AS_AREA_READ 1

Address space area flags.
Definition at line 39 of file as.h.
Referenced by area_flags_to_page_flags(), as_area_check_access(), load_segment(), and task_run_program().

#define AS_AREA_WRITE 2

Definition at line 40 of file as.h.
Referenced by area_flags_to_page_flags(), as_area_check_access(), as_area_create(), elf_share(), load_segment(), and task_run_program().

#define BUDDY_SYSTEM_INNER_BLOCK 0xff

Definition at line 41 of file buddy.h.
Referenced by buddy_system_alloc_block(), buddy_system_create(), and buddy_system_free().

#define frame_alloc ( order,
flags ) frame_alloc_generic(order, flags, NULL, NULL)

Definition at line 92 of file frame.h.
Referenced by anon_page_fault(), clock_counter_init(), cpu_init(), klog_init(), pt_mapping_insert(), and ptl0_create().

#define frame_alloc_rc ( order,
flags,
status ) frame_alloc_generic(order, flags, status, NULL)

Definition at line 93 of file frame.h.
Referenced by fb_init(), smp_init(), and thr_constructor().

#define frame_alloc_rc_zone ( order,
flags,
status,
zone ) frame_alloc_generic(order, flags, status, zone)

Definition at line 94 of file frame.h.
Referenced by slab_space_alloc().

#define FRAME_ATOMIC 0x4

Definition at line 62 of file frame.h.
Referenced by acpi_madt_parse(), clock_counter_init(), cpu_init(), ddi_iospace_enable_arch(), fb_init(), frame_alloc_generic(), ipc_irq_send_msg(), ipc_irq_send_notif(), klog_init(), make_empty_current_mag(), pm_init(), and smp_init().

#define FRAME_ERROR 2

Definition at line 67 of file frame.h.

#define FRAME_KA 0x1

Definition at line 60 of file frame.h.
Referenced by cpu_init(), pt_mapping_insert(), ptl0_create(), slab_space_alloc(), smp_init(), and thr_constructor().

#define FRAME_NO_MEMORY 1

Definition at line 66 of file frame.h.
Referenced by frame_alloc_generic().

#define FRAME_NO_RECLAIM 0x8

Definition at line 63 of file frame.h.
Referenced by frame_alloc_generic(), and make_empty_current_mag().

#define FRAME_OK 0

Definition at line 65 of file frame.h.
Referenced by frame_alloc_generic(), slab_space_alloc(), and smp_init().

#define FRAME_PANIC 0x2

Definition at line 61 of file frame.h.
Referenced by cpu_init(), frame_alloc_generic(), and ptl0_create().

#define IS_BUDDY_LEFT_BLOCK ( zone,
frame ) (((frame_index((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 0)

Definition at line 87 of file frame.h.

#define IS_BUDDY_LEFT_BLOCK_ABS ( zone,
frame ) (((frame_index_abs((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 0)

Definition at line 89 of file frame.h.
Referenced by zone_buddy_find_buddy().

#define IS_BUDDY_ORDER_OK ( index,
order ) ((~(((__native) -1) << (order)) & (index)) == 0)

Definition at line 86 of file frame.h.
Referenced by zone_buddy_find_buddy().

#define IS_BUDDY_RIGHT_BLOCK ( zone,
frame ) (((frame_index((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 1)

Definition at line 88 of file frame.h.

#define IS_BUDDY_RIGHT_BLOCK_ABS ( zone,
frame ) (((frame_index_abs((zone), (frame)) >> (frame)->buddy_order) & 0x1) == 1)

Definition at line 90 of file frame.h.
Referenced by zone_buddy_find_buddy().

#define ONE_FRAME 0

Definition at line 47 of file frame.h.
Referenced by anon_page_fault(), pt_mapping_insert(), ptl0_create(), and smp_init().

#define PAGE_CACHEABLE (1<<PAGE_CACHEABLE_SHIFT)

Definition at line 55 of file page.h.
Referenced by area_flags_to_page_flags(), page_arch_init(), and pt_mapping_insert().

#define PAGE_CACHEABLE_SHIFT 0

Definition at line 43 of file page.h.

#define PAGE_EXEC (1<<PAGE_EXEC_SHIFT)

Definition at line 65 of file page.h.
Referenced by area_flags_to_page_flags(), and pt_mapping_insert().

#define PAGE_EXEC_SHIFT 5

Definition at line 51 of file page.h.

#define PAGE_GLOBAL (1<<PAGE_GLOBAL_SHIFT)

Definition at line 67 of file page.h.
Referenced by page_arch_init().

#define PAGE_GLOBAL_SHIFT 6

Definition at line 52 of file page.h.

#define PAGE_KERNEL (0<<PAGE_USER_SHIFT)

Definition at line 61 of file page.h.

#define PAGE_KERNEL_SHIFT PAGE_USER_SHIFT

Definition at line 48 of file page.h.

#define PAGE_NOT_CACHEABLE (0<<PAGE_CACHEABLE_SHIFT)

Definition at line 54 of file page.h.
Referenced by hw_map(), map_sdt(), map_structure(), and smp_init().

#define PAGE_NOT_CACHEABLE_SHIFT PAGE_CACHEABLE_SHIFT

Definition at line 44 of file page.h.

#define PAGE_NOT_PRESENT (1<<PAGE_PRESENT_SHIFT)

Definition at line 58 of file page.h.
Referenced by pt_mapping_find(), pt_mapping_insert(), and pt_mapping_remove().

#define PAGE_NOT_PRESENT_SHIFT PAGE_PRESENT_SHIFT

Definition at line 46 of file page.h.

#define PAGE_PRESENT (0<<PAGE_PRESENT_SHIFT)

Definition at line 57 of file page.h.
Referenced by area_flags_to_page_flags(), and pt_mapping_insert().

#define PAGE_PRESENT_SHIFT 1

Definition at line 45 of file page.h.

#define PAGE_READ (1<<PAGE_READ_SHIFT)

Definition at line 63 of file page.h.
Referenced by area_flags_to_page_flags().

#define PAGE_READ_SHIFT 3

Definition at line 49 of file page.h.

#define PAGE_USER (1<<PAGE_USER_SHIFT)

Definition at line 60 of file page.h.
Referenced by area_flags_to_page_flags(), and pt_mapping_insert().

#define PAGE_USER_SHIFT 2

Definition at line 47 of file page.h.

#define PAGE_WRITE (1<<PAGE_WRITE_SHIFT)

Definition at line 64 of file page.h.
Referenced by area_flags_to_page_flags(), and pt_mapping_insert().

#define PAGE_WRITE_SHIFT 4

Definition at line 50 of file page.h.

#define SLAB_CACHE_MAGDEFERRED (0x4 | SLAB_CACHE_NOMAGAZINE)

We add magazine cache later, if we have this flag
Definition at line 66 of file slab.h.
Referenced by btree_init(), slab_cache_init(), and slab_enable_cpucache().

#define SLAB_CACHE_NOMAGAZINE 0x1

Do not use per-cpu cache
Definition at line 63 of file slab.h.
Referenced by _slab_cache_create(), _slab_free(), _slab_reclaim(), slab_alloc(), slab_cache_destroy(), and slab_cache_init().

#define SLAB_CACHE_SLINSIDE 0x2

Have control structure inside SLAB
Definition at line 64 of file slab.h.
Referenced by _slab_cache_create(), badness(), comp_objects(), slab_cache_init(), slab_print_list(), slab_space_alloc(), and slab_space_free().

#define SLAB_INSIDE_SIZE (PAGE_SIZE >> 3)

If object size is less, store control structure inside SLAB
Definition at line 53 of file slab.h.
Referenced by _slab_cache_create().

#define SLAB_MAG_SIZE 4

Initial Magazine size (TODO: dynamically growing magazines)
Definition at line 50 of file slab.h.
Referenced by make_empty_current_mag(), and slab_cache_init().

#define SLAB_MAX_BADNESS ( cache ) ((PAGE_SIZE << (cache)->order) >> 2)

Maximum wasted space we allow for cache
Definition at line 56 of file slab.h.
Referenced by _slab_cache_create().

#define SLAB_MAX_MALLOC_W 18

Maximum size to be allocated by malloc
Definition at line 47 of file slab.h.
Referenced by malloc(), and slab_cache_init().

#define SLAB_MIN_MALLOC_W 4

Minimum size to be allocated by malloc
Definition at line 44 of file slab.h.
Referenced by malloc(), and slab_cache_init().

#define SLAB_RECLAIM_ALL 0x1

Reclaim all possible memory, because we are in memory stress
Definition at line 59 of file slab.h.
Referenced by _slab_reclaim(), frame_alloc_generic(), and slab_cache_destroy().

#define STACK_FRAMES ONE_FRAME

Definition at line 53 of file frame.h.
Referenced by cpu_init(), thr_constructor(), and thread_create().

#define TLB_MESSAGE_QUEUE_LEN 10

Number of TLB shootdown messages that can be queued in processor tlb_messages queue.
Definition at line 46 of file tlb.h.
Referenced by tlb_shootdown_ipi_recv(), and tlb_shootdown_start().

#define TWO_FRAMES 1

Definition at line 48 of file frame.h.

#define ZONE_JOIN 0x1

If possible, merge with neighbouring zones
Definition at line 58 of file frame.h.

#define ZONES_MAX 16

Maximum number of zones in system
Definition at line 56 of file frame.h.
Referenced by zones_add_zone().

Typedef Documentation

typedef struct page_mapping_operations page_mapping_operations_t

Definition at line 83 of file page.h.

typedef enum pf_access pf_access_t

Definition at line 75 of file page.h.

typedef enum tlb_invalidate_type tlb_invalidate_type_t

Definition at line 55 of file tlb.h.

typedef struct tlb_shootdown_msg tlb_shootdown_msg_t

Definition at line 64 of file tlb.h.

Enumeration Type Documentation

enum pf_access

Page fault access type.
Enumerator:

PF_ACCESS_READ

PF_ACCESS_WRITE

PF_ACCESS_EXEC

Definition at line 70 of file page.h.

enum tlb_invalidate_type

Type of TLB shootdown message.
Enumerator:

TLB_INVL_INVALID Invalid type.

TLB_INVL_ALL Invalidate all entries in TLB.

TLB_INVL_ASID Invalidate all entries belonging to one address space.

TLB_INVL_PAGES Invalidate specified page range belonging to one address space.

Definition at line 49 of file tlb.h.

Function Documentation

static void _slab_cache_create ( slab_cache_t * cache,

char * name,

size_t size,

size_t align,

int(*)(void *obj, int kmflag) constructor,

int(*)(void *obj) destructor,

int flags

) [static]

Initialize allocated memory as a slab cache
Definition at line 563 of file slab.c.
References ALIGN_UP, badness(), comp_objects(), fnzb, interrupts_disable(), interrupts_restore(), list_append(), list_initialize(), make_magcache(), memsetb(), SIZE2FRAMES(), SLAB_CACHE_NOMAGAZINE, SLAB_CACHE_SLINSIDE, SLAB_INSIDE_SIZE, SLAB_MAX_BADNESS, spinlock_initialize(), spinlock_lock, and spinlock_unlock().
Referenced by slab_cache_create(), and slab_cache_init().
Here is the call graph for this function:

static void _slab_free ( slab_cache_t * cache,

void * obj,

slab_t * slab

) [static]

Return object to cache, use slab if known
Definition at line 748 of file slab.c.
References slab_cache_t::allocated_objs, atomic_dec(), slab_cache_t::flags, interrupts_disable(), interrupts_restore(), magazine_obj_put(), SLAB_CACHE_NOMAGAZINE, and slab_obj_destroy().
Referenced by free(), and slab_free().
Here is the call graph for this function:

static count_t _slab_reclaim ( slab_cache_t * cache,

int flags

) [static]

Reclaim space occupied by objects that are already free

Parameters:

flags If contains SLAB_RECLAIM_ALL, do aggressive freeing

Returns:
Number of freed pages

Definition at line 647 of file slab.c.
References atomic_get(), config, config_t::cpu_count, slab_mag_cache_t::current, slab_cache_t::flags, get_mag_from_cache(), slab_mag_cache_t::last, slab_cache_t::mag_cache, slab_cache_t::magazine_counter, magazine_destroy(), NULL, SLAB_CACHE_NOMAGAZINE, SLAB_RECLAIM_ALL, spinlock_lock, and spinlock_unlock().
Referenced by slab_cache_destroy(), and slab_reclaim().
Here is the call graph for this function:

static void _zone_merge ( zone_t * z,

zone_t * z1,

zone_t * z2

) [static]

Join 2 zones
Expect zone_t *z to point to space at least zone_conf_size large
Assume z1 & z2 are locked

Parameters:

z Target zone structure pointer

z1 Zone to merge

z2 Zone to merge

Definition at line 538 of file frame.c.
References ASSERT, zone_t::base, buddy_conf_size(), zone_t::buddy_system, buddy_system_create(), zone_t::busy_count, zone_t::count, zone_t::flags, fnzb, frame_initialize(), zone_t::free_count, overlaps(), spinlock_initialize(), and zone_buddy_system_operations.
Referenced by zone_merge().
Here is the call graph for this function:

static pfn_t ADDR2PFN ( __address addr ) [static]

Definition at line 74 of file frame.h.
References FRAME_WIDTH.
Referenced by anon_frame_free(), anon_share(), elf_frame_free(), elf_share(), frame_arch_init(), frame_init(), hw_map(), init_e820_memory(), obj2slab(), ptl0_destroy(), return_config_frames(), sh_info_remove_reference(), slab_space_alloc(), slab_space_free(), and thr_destructor().

void anon_frame_free ( as_area_t * area,

__address page,

__address frame

) [static]

Free a frame that is backed by the anonymous memory backend.
The address space area and page tables must be already locked.

Parameters:

area Ignored.

page Ignored.

frame Frame to be released.

Definition at line 159 of file backend_anon.c.
References ADDR2PFN(), and frame_free().
Here is the call graph for this function:

int anon_page_fault ( as_area_t * area,

__address addr,

pf_access_t access

) [static]

Service a page fault in the anonymous memory address space area.
The address space area and page tables must be already locked.

Parameters:

area Pointer to the address space area.

addr Faulting virtual address.

access Access mode that caused the fault (i.e. read/write/exec).

Returns:
AS_PF_FAULT on failure (i.e. page fault) or AS_PF_OK on success (i.e. serviced).

Definition at line 74 of file backend_anon.c.
References ALIGN_DOWN, as_area_check_access(), btree_insert(), btree_search(), frame_alloc, FRAME_SIZE, btree_node::key, btree_node::keys, memsetb(), mutex_lock, ONE_FRAME, PAGE_SIZE, and PFN2ADDR().
Here is the call graph for this function:

void anon_share ( as_area_t * area ) [static]

Share the anonymous address space area.
Sharing of anonymous area is done by duplicating its entire mapping to the pagemap. Page faults will primarily search for frames there.
The address space and address space area must be already locked.

Parameters:

area Address space area to be shared.

Definition at line 173 of file backend_anon.c.
References ADDR2PFN(), ASSERT, btree_insert(), count, frame_reference_add(), btree_node::key, btree_node::keys, list_get_instance, mutex_lock, link::next, NULL, page_mapping_find(), PAGE_SIZE, page_table_lock(), page_table_unlock(), and btree_node::value.
Here is the call graph for this function:

int area_flags_to_page_flags ( int aflags ) [static]

Convert address space area flags to page flags.

Parameters:

aflags Flags of some address space area.

Returns:
Flags to be passed to page_mapping_insert().

Definition at line 832 of file as.c.
References AS_AREA_CACHEABLE, AS_AREA_EXEC, AS_AREA_READ, AS_AREA_WRITE, PAGE_CACHEABLE, PAGE_EXEC, PAGE_PRESENT, PAGE_READ, PAGE_USER, and PAGE_WRITE.
Referenced by as_area_get_flags().

bool as_area_check_access ( as_area_t * area,

pf_access_t access

)

Check access mode for address space area.
The address space area must be locked prior to this call.

Parameters:

area Address space area.

access Access mode.

Returns:
False if access violates area's permissions, true otherwise.

Definition at line 634 of file as.c.
References AS_AREA_EXEC, AS_AREA_READ, AS_AREA_WRITE, PF_ACCESS_EXEC, PF_ACCESS_READ, and PF_ACCESS_WRITE.
Referenced by anon_page_fault(), elf_page_fault(), and phys_page_fault().

as_area_t* as_area_create ( as_t * as,

int flags,

size_t size,

__address base,

int attrs,

mem_backend_t * backend,

mem_backend_data_t * backend_data

)

Create address space area of common attributes.
The created address space area is added to the target address space.

Parameters:

as Target address space.

flags Flags of the area memory.

size Size of area.

base Base address of area.

attrs Attributes of the area.

backend Address space area backend. NULL if no backend is used.

backend_data NULL or a pointer to an array holding two void *.

Returns:
Address space area on success or NULL on failure.

Definition at line 198 of file as.c.
References AS_AREA_EXEC, AS_AREA_WRITE, btree_create(), btree_insert(), check_area_conflicts(), interrupts_disable(), interrupts_restore(), malloc(), memsetb(), mutex_initialize(), mutex_lock, mutex_unlock(), NULL, PAGE_SIZE, and SIZE2FRAMES().
Referenced by as_area_share(), ddi_physmem_map(), load_segment(), sys_as_area_create(), and task_run_program().
Here is the call graph for this function:

int as_area_destroy ( as_t * as,

__address address

)

Destroy address space area.

Parameters:

as Address space.

address Address withing the area to be deleted.

Returns:
Zero on success or a value from errno.h on failure.

Definition at line 417 of file as.c.
References AS, ASSERT, ENOENT, find_area_and_lock(), interrupts_disable(), interrupts_restore(), btree_node::key, btree_node::keys, list_get_instance, mutex_lock, mutex_unlock(), link::next, page_mapping_find(), page_mapping_remove(), PAGE_SIZE, page_table_lock(), page_table_unlock(), TLB_INVL_PAGES, tlb_shootdown_start(), and btree_node::value.
Referenced by as_destroy(), and sys_as_area_destroy().
Here is the call graph for this function:

int as_area_get_flags ( as_area_t * a )

Compute flags for virtual address translation subsytem.
The address space area must be locked. Interrupts must be disabled.

Parameters:

a Address space area.

Returns:
Flags to be used in page_mapping_insert().

Definition at line 862 of file as.c.
References area_flags_to_page_flags().
Referenced by phys_page_fault().
Here is the call graph for this function:

int as_area_resize ( as_t * as,

__address address,

size_t size,

int flags

)

Find address space area and change it.

Parameters:

as Address space.

address Virtual address belonging to the area to be changed. Must be page-aligned.

size New size of the virtual memory block starting at address.

flags Flags influencing the remap operation. Currently unused.

Returns:
Zero on success or a value from errno.h otherwise.

Definition at line 258 of file as.c.
References AS, ASSERT, ENOENT, ENOTSUP, EPERM, find_area_and_lock(), interrupts_disable(), interrupts_restore(), list_empty(), list_get_instance, mutex_lock, mutex_unlock(), overlaps(), page_mapping_find(), page_mapping_remove(), PAGE_SIZE, page_table_lock(), page_table_unlock(), PAGE_WIDTH, panic, phys_backend, SIZE2FRAMES(), TLB_INVL_PAGES, tlb_shootdown_start(), and used_space_remove().
Referenced by sys_as_area_resize().
Here is the call graph for this function:

int as_area_share ( as_t * src_as,

__address src_base,

size_t acc_size,

as_t * dst_as,

__address dst_base,

int dst_flags_mask

)

Share address space area with another or the same address space.
Address space area mapping is shared with a new address space area. If the source address space area has not been shared so far, a new sh_info is created. The new address space area simply gets the sh_info of the source area. The process of duplicating the mapping is done through the backend share function.

Parameters:

src_as Pointer to source address space.

src_base Base address of the source address space area.

acc_size Expected size of the source area.

dst_as Pointer to destination address space.

dst_base Target base address.

dst_flags_mask Destination address space area flags mask.

Returns:
Zero on success or ENOENT if there is no such task or if there is no such address space area, EPERM if there was a problem in accepting the area or ENOMEM if there was a problem in allocating destination address space area. ENOTSUP is returned if an attempt to share non-anonymous address space area is detected.

Definition at line 517 of file as.c.
References AS_AREA_CACHEABLE, as_area_create(), btree_create(), ENOENT, ENOMEM, ENOTSUP, EPERM, find_area_and_lock(), interrupts_disable(), interrupts_restore(), malloc(), mutex_initialize(), mutex_lock, mutex_unlock(), PAGE_SIZE, and sh_info_remove_reference().
Referenced by answer_preprocess().
Here is the call graph for this function:

as_t* as_create ( int flags )

Create address space.

Parameters:

flags Flags that influence way in wich the address space is created.

Definition at line 114 of file as.c.
References btree_create(), link_initialize(), malloc(), mutex_initialize(), and page_table_create().
Referenced by as_init(), and task_run_program().
Here is the call graph for this function:

void as_destroy ( as_t * as )

Destroy adress space.
When there are no tasks referencing this address space (i.e. its refcount is zero), the address space can be destroyed.
Definition at line 140 of file as.c.
References AS, as_area_destroy(), AS_KERNEL, ASSERT, interrupts_disable(), list_empty(), list_get_instance, list_remove(), spinlock_lock, and spinlock_unlock().
Referenced by task_destroy(), and task_run_program().
Here is the call graph for this function:

size_t as_get_size ( __address base )

Return size of the address space area with given base.
Definition at line 1070 of file as.c.
References AS, find_area_and_lock(), interrupts_disable(), interrupts_restore(), mutex_unlock(), and PAGE_SIZE.
Referenced by request_preprocess().
Here is the call graph for this function:

void as_init ( void )

Initialize address space subsystem.
Definition at line 101 of file as.c.
References as_arch_init(), as_create(), AS_KERNEL, and panic.
Referenced by main_bsp_separated_stack().
Here is the call graph for this function:

int as_page_fault ( __address page,

pf_access_t access,

istate_t * istate

)

Handle page fault within the current address space.
This is the high-level page fault handler. It decides whether the page fault can be resolved by any backend and if so, it invokes the backend to resolve the page fault.
Interrupts are assumed disabled.

Parameters:

page Faulting page.

access Access mode that caused the fault (i.e. read/write/exec).

istate Pointer to interrupted state.

Returns:
AS_PF_FAULT on page fault, AS_PF_OK on success or AS_PF_DEFER if the fault was caused by copy_to_uspace() or copy_from_uspace().

Definition at line 664 of file as.c.
References AS, ASSERT, find_area_and_lock(), mutex_lock, mutex_unlock(), page_fault(), page_mapping_find(), page_table_lock(), page_table_unlock(), PF_ACCESS_EXEC, PF_ACCESS_READ, PF_ACCESS_WRITE, and THREAD.
Referenced by page_fault().
Here is the call graph for this function:

void as_switch ( as_t * old,

as_t * new

)

Switch address spaces.
Note that this function cannot sleep as it is essentially a part of scheduling. Sleeping here would lead to deadlock on wakeup.

Parameters:

old Old address space or NULL.

new New address space.

Definition at line 762 of file as.c.
References AS, as_install_arch, AS_KERNEL, ASSERT, interrupts_disable(), interrupts_restore(), list_append(), list_remove(), mutex_lock_active, mutex_unlock(), spinlock_lock, and spinlock_unlock().
Referenced by scheduler_separated_stack().
Here is the call graph for this function:

static int badness ( slab_cache_t * cache ) [static]

Return wasted space in slab
Definition at line 531 of file slab.c.
References comp_objects(), slab_cache_t::flags, slab_cache_t::order, PAGE_SIZE, slab_cache_t::size, and SLAB_CACHE_SLINSIDE.
Referenced by _slab_cache_create().
Here is the call graph for this function:

size_t buddy_conf_size ( int max_order )

Return size needed for the buddy configuration data
Definition at line 51 of file buddy.c.
Referenced by _zone_merge(), zone_conf_size(), and zone_construct().

link_t * buddy_system_alloc ( buddy_system_t * b,

__u8 i

)

Allocate block from buddy system.

Parameters:

b Buddy system pointer.

i Returned block will be 2^i big.

Returns:
Block of data represented by link_t.

Definition at line 170 of file buddy.c.
References ASSERT, buddy_system_operations::bisect, buddy_system_free(), list_empty(), list_remove(), buddy_system_operations::mark_busy, buddy_system::max_order, link::next, NULL, buddy_system::op, buddy_system::order, and buddy_system_operations::set_order.
Referenced by zone_frame_alloc().
Here is the call graph for this function:

link_t * buddy_system_alloc_block ( buddy_system_t * b,

link_t * block

)

Allocate PARTICULAR block from buddy system
@ return Block of data or NULL if no such block was found
Definition at line 130 of file buddy.c.
References ASSERT, buddy_system_operations::bisect, buddy_system_free(), BUDDY_SYSTEM_INNER_BLOCK, buddy_system_operations::find_block, buddy_system_operations::get_order, list_remove(), buddy_system_operations::mark_available, buddy_system_operations::mark_busy, buddy_system::op, and buddy_system_operations::set_order.
Referenced by zone_mark_unavailable().
Here is the call graph for this function:

bool buddy_system_can_alloc ( buddy_system_t * b,

__u8 i

)

Check if buddy system can allocate block

Parameters:

b Buddy system pointer

i Size of the block (2^i)

Returns:
True if block can be allocated

Definition at line 104 of file buddy.c.
References list_empty(), buddy_system::max_order, and buddy_system::order.
Referenced by zone_can_alloc().
Here is the call graph for this function:

void buddy_system_create ( buddy_system_t * b,

__u8 max_order,

buddy_system_operations_t * op,

void * data

)

Create buddy system
Allocate memory for and initialize new buddy system.

Parameters:

b Preallocated buddy system control data.

max_order The biggest allocable size will be 2^max_order.

op Operations for new buddy system.

data Pointer to be used by implementation.

Returns:
New buddy system.

Definition at line 68 of file buddy.c.
References ASSERT, buddy_system_operations::bisect, BUDDY_SYSTEM_INNER_BLOCK, buddy_system_operations::coalesce, buddy_system::data, buddy_system_operations::find_buddy, buddy_system_operations::get_order, list_initialize(), buddy_system_operations::mark_busy, buddy_system::max_order, buddy_system::op, buddy_system::order, and buddy_system_operations::set_order.
Referenced by _zone_merge(), and zone_construct().
Here is the call graph for this function:

void buddy_system_free ( buddy_system_t * b,

link_t * block

)

Return block to buddy system.

Parameters:

b Buddy system pointer.

block Block to return.

Definition at line 230 of file buddy.c.
References ASSERT, BUDDY_SYSTEM_INNER_BLOCK, buddy_system_operations::find_buddy, buddy_system_operations::get_order, list_append(), list_remove(), buddy_system::max_order, buddy_system::op, and buddy_system::order.
Referenced by buddy_system_alloc(), buddy_system_alloc_block(), and zone_frame_free().
Here is the call graph for this function:

void buddy_system_structure_print ( buddy_system_t * b,

size_t elem_size

)

Prints out structure of buddy system

Parameters:

b Pointer to buddy system

elem_size Element size

Definition at line 291 of file buddy.c.
References list_empty(), buddy_system::max_order, link::next, buddy_system::order, and printf().
Here is the call graph for this function:

bool check_area_conflicts ( as_t * as,

__address va,

size_t size,

as_area_t * avoid_area

) [static]

Check area conflicts with other areas.
The address space must be locked and interrupts must be disabled.

Parameters:

as Address space.

va Starting virtual address of the area being tested.

size Size of the area being tested.

avoid_area Do not touch this area.

Returns:
True if there is no conflict, false otherwise.

Definition at line 997 of file as.c.
References btree_leaf_node_left_neighbour(), btree_leaf_node_right_neighbour(), btree_search(), btree_node::keys, mutex_lock, mutex_unlock(), NULL, overlaps(), PAGE_SIZE, and btree_node::value.
Referenced by as_area_create().
Here is the call graph for this function:

static int comp_objects ( slab_cache_t * cache ) [static]

Return number of objects that fit in certain cache size
Definition at line 522 of file slab.c.
References slab_cache_t::flags, slab_cache_t::order, PAGE_SIZE, slab_cache_t::size, and SLAB_CACHE_SLINSIDE.
Referenced by _slab_cache_create(), and badness().

void elf_frame_free ( as_area_t * area,

__address page,

__address frame

) [static]

Free a frame that is backed by the ELF backend.
The address space area and page tables must be already locked.

Parameters:

area Pointer to the address space area.

page Page that is mapped to frame. Must be aligned to PAGE_SIZE.

frame Frame to be released.

Definition at line 204 of file backend_elf.c.
References ADDR2PFN(), ALIGN_UP, ASSERT, entry, frame_free(), FRAME_SIZE, PAGE_SIZE, PAGE_WIDTH, and PF_W.
Here is the call graph for this function:

int elf_page_fault ( as_area_t * area,

__address addr,

pf_access_t access

) [static]

Service a page fault in the ELF backend address space area.
The address space area and page tables must be already locked.

Parameters:

area Pointer to the address space area.

addr Faulting virtual address.

access Access mode that caused the fault (i.e. read/write/exec).

Returns:
AS_PF_FAULT on failure (i.e. page fault) or AS_PF_OK on success (i.e. serviced).

Definition at line 73 of file backend_elf.c.
References ALIGN_DOWN, ALIGN_UP, as_area_check_access(), ASSERT, btree_search(), entry, FRAME_SIZE, btree_node::key, btree_node::keys, mutex_lock, PAGE_SIZE, and PAGE_WIDTH.
Here is the call graph for this function:

void elf_share ( as_area_t * area ) [static]

Share ELF image backed address space area.
If the area is writable, then all mapped pages are duplicated in the pagemap. Otherwise only portions of the area that are not backed by the ELF image are put into the pagemap.
The address space and address space area must be locked prior to the call.

Parameters:

area Address space area.

Definition at line 243 of file backend_elf.c.
References ADDR2PFN(), AS_AREA_WRITE, ASSERT, btree_insert(), btree_leaf_node_left_neighbour(), btree_search(), count, entry, frame_reference_add(), btree_node::key, btree_node::keys, btree_node::leaf_link, list_get_instance, mutex_lock, link::next, NULL, page_mapping_find(), PAGE_SIZE, page_table_lock(), page_table_unlock(), and btree_node::value.
Here is the call graph for this function:

as_area_t * find_area_and_lock ( as_t * as,

__address va

) [static]

Find address space area and lock it.
The address space must be locked and interrupts must be disabled.

Parameters:

as Address space.

va Virtual address.

Returns:
Locked address space area containing va on success or NULL on failure.

Definition at line 941 of file as.c.
References btree_search(), btree_node::keys, mutex_lock, PAGE_SIZE, and btree_node::value.
Referenced by as_area_destroy(), as_area_resize(), as_area_share(), as_get_size(), and as_page_fault().
Here is the call graph for this function:

static zone_t* find_free_zone_lock ( __u8 order,

int * pzone

) [static]

Find AND LOCK zone that can allocate order frames
Assume interrupts are disabled!!

Parameters:

order Size (2^order) of free space we are trying to find

pzone Pointer to preferred zone or NULL, on return contains zone number

Definition at line 233 of file frame.c.
References NULL, spinlock_lock, spinlock_unlock(), zone_can_alloc(), and zones.
Referenced by frame_alloc_generic().
Here is the call graph for this function:

static zone_t* find_zone_and_lock ( pfn_t frame,

int * pzone

) [static]

Try to find a zone where can we find the frame

Parameters:

frame Frame number contained in zone

pzone If not null, it is used as zone hint. Zone index is filled into the variable on success.

Returns:
Pointer to LOCKED zone containing frame
Assume interrupts disable
Definition at line 187 of file frame.c.
References zone_t::base, zone_t::count, NULL, spinlock_lock, spinlock_unlock(), and zones.
Referenced by frame_free(), frame_get_parent(), frame_mark_unavailable(), frame_reference_add(), and frame_set_parent().
Here is the call graph for this function:

pfn_t frame_alloc_generic ( __u8 order,

int flags,

int * status,

int * pzone

)

Allocate power-of-two frames of physical memory.

Parameters:

order Allocate exactly 2^order frames.

flags Flags for host zone selection and address processing.

status Allocation status (FRAME_OK on success), unused if NULL.

pzone Preferred zone

Returns:
Allocated frame.

Definition at line 934 of file frame.c.
References ASSERT, zone_t::base, find_free_zone_lock(), FRAME_ATOMIC, FRAME_NO_MEMORY, FRAME_NO_RECLAIM, FRAME_OK, FRAME_PANIC, interrupts_disable(), interrupts_restore(), NULL, panic, slab_reclaim(), SLAB_RECLAIM_ALL, spinlock_unlock(), and zone_frame_alloc().
Here is the call graph for this function:

void frame_free ( pfn_t pfn )

Free a frame.
Find respective frame structure for supplied PFN. Decrement frame reference count. If it drops to zero, move the frame structure to free list.

Parameters:

pfn Frame number of the frame to be freed.

Definition at line 1000 of file frame.c.
References ASSERT, zone_t::base, find_zone_and_lock(), interrupts_disable(), interrupts_restore(), NULL, spinlock_unlock(), and zone_frame_free().
Referenced by anon_frame_free(), elf_frame_free(), ptl0_destroy(), sh_info_remove_reference(), slab_space_alloc(), slab_space_free(), and thr_destructor().
Here is the call graph for this function:

void * frame_get_parent ( pfn_t frame,

int hint

)

Definition at line 912 of file frame.c.
References ASSERT, zone_t::base, find_zone_and_lock(), frame_t::parent, spinlock_unlock(), and zone_get_frame().
Referenced by obj2slab().
Here is the call graph for this function:

static index_t frame_index ( zone_t * zone,

frame_t * frame

) [static]

Definition at line 104 of file frame.c.
References zone_t::frames.
Referenced by zone_buddy_find_block(), zone_buddy_find_buddy(), and zone_buddy_print_id().

static index_t frame_index_abs ( zone_t * zone,

frame_t * frame

) [static]

Definition at line 108 of file frame.c.
References zone_t::base, and zone_t::frames.
Referenced by zone_buddy_find_buddy().

static int frame_index_valid ( zone_t * zone,

index_t index

) [static]

Definition at line 112 of file frame.c.
References zone_t::count.
Referenced by zone_buddy_find_buddy().

void frame_init ( void )

Initialize physical memory management
Initialize physical memory managemnt.
Definition at line 1068 of file frame.c.
References init_task_t::addr, ADDR2PFN(), config_t::base, init_t::cnt, config, config_t::cpu_active, frame_arch_init(), frame_mark_unavailable(), init, config_t::kernel_size, init_task_t::size, SIZE2FRAMES(), spinlock_initialize(), init_t::tasks, and zones.
Referenced by main_ap(), and main_bsp_separated_stack().
Here is the call graph for this function:

static void frame_initialize ( frame_t * frame ) [static]

Initialize frame structure
Initialize frame structure.

Parameters:

frame Frame structure to be initialized.

Definition at line 129 of file frame.c.
References frame_t::buddy_order, and frame_t::refcount.
Referenced by _zone_merge(), and zone_construct().

void frame_mark_unavailable ( pfn_t start,

count_t count

)

Mark given range unavailable in frame zones
Definition at line 1048 of file frame.c.
References zone_t::base, find_zone_and_lock(), spinlock_unlock(), and zone_mark_unavailable().
Referenced by frame_arch_init(), and frame_init().
Here is the call graph for this function:

void frame_reference_add ( pfn_t pfn )

Add reference to frame.
Find respective frame structure for supplied PFN and increment frame reference count.

Parameters:

pfn Frame number of the frame to be freed.

Definition at line 1026 of file frame.c.
References ASSERT, zone_t::base, find_zone_and_lock(), zone_t::frames, interrupts_disable(), interrupts_restore(), NULL, frame_t::refcount, and spinlock_unlock().
Referenced by anon_share(), and elf_share().
Here is the call graph for this function:

void frame_set_parent ( pfn_t pfn,

void * data,

int hint

)

Set parent of frame
Definition at line 902 of file frame.c.
References ASSERT, zone_t::base, find_zone_and_lock(), frame_t::parent, spinlock_unlock(), and zone_get_frame().
Referenced by slab_space_alloc().
Here is the call graph for this function:

void free ( void * obj )

Definition at line 900 of file slab.c.
References _slab_free(), slab_t::cache, and obj2slab().
Referenced by bubblesort(), code_free(), code_from_uspace(), ddi_iospace_enable_arch(), futex_ht_remove_callback(), qsort(), sh_info_remove_reference(), slab_cache_destroy(), sys_io(), sys_sysinfo_valid(), sys_sysinfo_value(), sys_thread_create(), task_destroy(), task_destroy_arch(), and uinit().
Here is the call graph for this function:

static slab_magazine_t* get_full_current_mag ( slab_cache_t * cache ) [static]

Find full magazine, set it as current and return it
Assume cpu_magazine lock is held
Definition at line 384 of file slab.c.
References slab_magazine_t::busy, CPU, slab_mag_cache_t::current, get_mag_from_cache(), slab_mag_cache_t::last, slab_cache_t::mag_cache, magazine_destroy(), and NULL.
Referenced by magazine_obj_get().
Here is the call graph for this function:

static slab_magazine_t* get_mag_from_cache ( slab_cache_t * cache,

int first

) [static]

Finds a full magazine in cache, takes it from list and returns it

Parameters:

first If true, return first, else last mag

Definition at line 327 of file slab.c.
References atomic_dec(), slab_magazine_t::link, list_empty(), list_get_instance, list_remove(), slab_cache_t::magazine_counter, slab_cache_t::magazines, link::next, NULL, link::prev, spinlock_lock, and spinlock_unlock().
Referenced by _slab_reclaim(), and get_full_current_mag().
Here is the call graph for this function:

__address hw_map ( __address physaddr,

size_t size

)

Definition at line 81 of file page.c.
References ADDR2PFN(), ALIGN_UP, AS_KERNEL, FRAME_SIZE, KERNEL_ADDRESS_SPACE_END_ARCH, last_frame, page_mapping_insert(), PAGE_NOT_CACHEABLE, PAGE_SIZE, panic, and PFN2ADDR().
Referenced by ega_init(), and fb_init().
Here is the call graph for this function:

static LIST_INITIALIZE ( slab_cache_list ) [static]

LIST_INITIALIZE ( inactive_as_with_asid_head )

This list contains address spaces that are not active on any processor and that have valid ASID.

static count_t magazine_destroy ( slab_cache_t * cache,

slab_magazine_t * mag

) [static]

Free all objects in magazine and free memory associated with magazine

Returns:
Number of freed pages

Definition at line 363 of file slab.c.
References atomic_dec(), slab_magazine_t::busy, slab_cache_t::cached_objs, NULL, slab_magazine_t::objs, and slab_obj_destroy().
Referenced by _slab_reclaim(), and get_full_current_mag().
Here is the call graph for this function:

static void* magazine_obj_get ( slab_cache_t * cache ) [static]

Try to find object in CPU-cache magazines

Returns:
Pointer to object or NULL if not available

Definition at line 418 of file slab.c.
References atomic_dec(), slab_magazine_t::busy, slab_cache_t::cached_objs, CPU, get_full_current_mag(), slab_cache_t::mag_cache, NULL, slab_magazine_t::objs, spinlock_lock, and spinlock_unlock().
Referenced by slab_alloc().
Here is the call graph for this function:

static int magazine_obj_put ( slab_cache_t * cache,

void * obj

) [static]

Put object into CPU-cache magazine

Returns:
0 - success, -1 - could not get memory

Definition at line 495 of file slab.c.
References atomic_inc(), slab_magazine_t::busy, slab_cache_t::cached_objs, CPU, slab_cache_t::mag_cache, make_empty_current_mag(), slab_magazine_t::objs, spinlock_lock, and spinlock_unlock().
Referenced by _slab_free().
Here is the call graph for this function:

static slab_magazine_t* make_empty_current_mag ( slab_cache_t * cache ) [static]

Assure that the current magazine is empty, return pointer to it, or NULL if no empty magazine is available and cannot be allocated
Assume mag_cache[CPU->id].lock is held
We have 2 magazines bound to processor. First try the current. If full, try the last. If full, put to magazines list. allocate new, exchange last & current
Definition at line 453 of file slab.c.
References slab_magazine_t::busy, CPU, slab_mag_cache_t::current, FRAME_ATOMIC, FRAME_NO_RECLAIM, slab_mag_cache_t::last, mag_cache, slab_cache_t::mag_cache, NULL, put_mag_to_cache(), slab_magazine_t::size, slab_alloc(), and SLAB_MAG_SIZE.
Referenced by magazine_obj_put().
Here is the call graph for this function:

static index_t make_frame_index ( zone_t * zone,

frame_t * frame

) [static]

Compute pfn_t from frame_t pointer & zone pointer
Definition at line 118 of file frame.c.
References zone_t::frames.
Referenced by zone_frame_alloc().

static void make_magcache ( slab_cache_t * cache ) [static]

Initialize mag_cache structure in slab cache
Definition at line 546 of file slab.c.
References ASSERT, config, config_t::cpu_count, slab_cache_t::mag_cache, malloc(), memsetb(), and spinlock_initialize().
Referenced by _slab_cache_create(), and slab_enable_cpucache().
Here is the call graph for this function:

void * malloc ( unsigned int size,

int flags

)

Definition at line 885 of file slab.c.
References ASSERT, fnzb, malloc_caches, slab_alloc(), SLAB_MAX_MALLOC_W, and SLAB_MIN_MALLOC_W.
Referenced by acpi_madt_parse(), as_area_create(), as_area_share(), as_create(), bubblesort(), code_from_uspace(), cpu_init(), ddi_iospace_enable_arch(), fb_init(), futex_find(), hash_table_create(), ipc_irq_make_table(), make_magcache(), pm_init(), qsort(), sys_io(), sys_sysinfo_valid(), sys_sysinfo_value(), sys_thread_create(), sysinfo_create_path(), task_create(), and task_run_program().
Here is the call graph for this function:

void map_structure ( __address s,

size_t size

)

Map memory structure
Identity-map memory structure considering possible crossings of page boundaries.

Parameters:

s Address of the structure.

size Size of the structure.

Definition at line 72 of file page.c.
References AS_KERNEL, page_mapping_insert(), PAGE_NOT_CACHEABLE, and PAGE_SIZE.
Referenced by map_sdt().
Here is the call graph for this function:

static slab_t* obj2slab ( void * obj ) [static]

Map object to slab structure
Definition at line 216 of file slab.c.
References ADDR2PFN(), and frame_get_parent().
Referenced by free(), and slab_obj_destroy().
Here is the call graph for this function:

void page_init ( void )

Definition at line 58 of file page.c.
References page_arch_init().
Referenced by main_ap(), and main_bsp_separated_stack().
Here is the call graph for this function:

pte_t * page_mapping_find ( as_t * as,

__address page

)

Find mapping for virtual page
Find mapping for virtual page.
The page table must be locked and interrupts must be disabled.

Parameters:

as Address space to wich page belongs.

page Virtual page.

Returns:
NULL if there is no such mapping; requested mapping otherwise.

Definition at line 134 of file page.c.
References ASSERT, page_mapping_operations::mapping_find, and page_mapping_operations.
Referenced by anon_share(), as_area_destroy(), as_area_resize(), as_page_fault(), elf_share(), sys_futex_sleep_timeout(), and sys_futex_wakeup().

void page_mapping_insert ( as_t * as,

__address page,

__address frame,

int flags

)

Insert mapping of page to frame.
Map virtual address page to physical address frame using flags. Allocate and setup any missing page tables.
The page table must be locked and interrupts must be disabled.

Parameters:

as Address space to wich page belongs.

page Virtual address of the page to be mapped.

frame Physical address of memory frame to which the mapping is done.

flags Flags to be used for mapping.

Definition at line 96 of file page.c.
References ASSERT, page_mapping_operations::mapping_insert, and page_mapping_operations.
Referenced by hw_map(), map_sdt(), map_structure(), page_arch_init(), phys_page_fault(), and smp_init().

void page_mapping_remove ( as_t * as,

__address page

)

Remove mapping of page.
Remove any mapping of page within address space as. TLB shootdown should follow in order to make effects of this call visible.
The page table must be locked and interrupts must be disabled.

Parameters:

as Address space to wich page belongs.

page Virtual address of the page to be demapped.

Definition at line 115 of file page.c.
References ASSERT, page_mapping_operations::mapping_remove, and page_mapping_operations.
Referenced by as_area_destroy(), and as_area_resize().

pte_t * page_table_create ( int flags )

Create page table.
Depending on architecture, create either address space private or global page table.

Parameters:

flags Flags saying whether the page table is for kernel address space.

Returns:
First entry of the page table.

Definition at line 876 of file as.c.
References as_operations, and ASSERT.
Referenced by as_create().

void page_table_destroy ( pte_t * page_table )

Destroy page table.
Destroy page table in architecture specific way.

Parameters:

page_table Physical address of PTL0.

Definition at line 890 of file as.c.
References as_operations, and ASSERT.

void page_table_lock ( as_t * as,

bool lock

)

Lock page table.
This function should be called before any page_mapping_insert(), page_mapping_remove() and page_mapping_find().
Locking order is such that address space areas must be locked prior to this call. Address space can be locked prior to this call in which case the lock argument is false.

Parameters:

as Address space.

lock If false, do not attempt to lock as->lock.

Definition at line 910 of file as.c.
References as_operations, and ASSERT.
Referenced by anon_share(), as_area_destroy(), as_area_resize(), as_page_fault(), elf_share(), sys_futex_sleep_timeout(), and sys_futex_wakeup().

void page_table_unlock ( as_t * as,

bool unlock

)

Unlock page table.

Parameters:

as Address space.

unlock If false, do not attempt to unlock as->lock.

Definition at line 923 of file as.c.
References as_operations, and ASSERT.
Referenced by anon_share(), as_area_destroy(), as_area_resize(), as_page_fault(), elf_share(), sys_futex_sleep_timeout(), and sys_futex_wakeup().

static __address PFN2ADDR ( pfn_t frame ) [static]

Definition at line 69 of file frame.h.
References FRAME_WIDTH.
Referenced by anon_page_fault(), clock_counter_init(), cpu_init(), fb_init(), hw_map(), klog_init(), pt_mapping_insert(), ptl0_create(), slab_space_alloc(), smp_init(), thr_constructor(), zone_create(), zone_merge(), zone_print_list(), and zone_print_one().

int phys_page_fault ( as_area_t * area,

__address addr,

pf_access_t access

) [static]

Service a page fault in the address space area backed by physical memory.
The address space area and page tables must be already locked.

Parameters:

area Pointer to the address space area.

addr Faulting virtual address.

access Access mode that caused the fault (i.e. read/write/exec).

Returns:
AS_PF_FAULT on failure (i.e. page fault) or AS_PF_OK on success (i.e. serviced).

Definition at line 68 of file backend_phys.c.
References ALIGN_DOWN, AS, as_area_check_access(), as_area_get_flags(), ASSERT, FRAME_SIZE, page_mapping_insert(), PAGE_SIZE, panic, and used_space_insert().
Here is the call graph for this function:

void phys_share ( as_area_t * area ) [static]

Share address space area backed by physical memory.
Do actually nothing as sharing of address space areas that are backed up by physical memory is very easy. Note that the function must be defined so that as_area_share() will succeed.
Definition at line 90 of file backend_phys.c.

static void put_mag_to_cache ( slab_cache_t * cache,

slab_magazine_t * mag

) [static]

Prepend magazine to magazine list in cache
Definition at line 348 of file slab.c.
References atomic_inc(), slab_magazine_t::link, list_prepend(), slab_cache_t::magazine_counter, slab_cache_t::magazines, spinlock_lock, and spinlock_unlock().
Referenced by make_empty_current_mag().
Here is the call graph for this function:

static void return_config_frames ( zone_t * newzone,

zone_t * oldzone

) [static]

Return old configuration frames into the zone
We have several cases

the conf. data is outside of zone -> exit, shall we call frame_free??
the conf. data was created by zone_create or updated with reduce_region -> free every frame

Parameters:

newzone The actual zone where freeing should occur

oldzone Pointer to old zone configuration data that should be freed from new zone

Definition at line 620 of file frame.c.
References ADDR2PFN(), ASSERT, zone_t::base, frame_t::buddy_order, zone_t::busy_count, zone_t::count, zone_t::frames, SIZE2FRAMES(), zone_conf_size(), and zone_frame_free().
Referenced by zone_merge().
Here is the call graph for this function:

void sh_info_remove_reference ( share_info_t * sh_info ) [static]

Remove reference to address space area share info.
If the reference count drops to 0, the sh_info is deallocated.

Parameters:

sh_info Pointer to address space area share info.

Definition at line 1475 of file as.c.
References ADDR2PFN(), ASSERT, btree_destroy(), frame_free(), free(), btree_node::keys, list_get_instance, mutex_lock, mutex_unlock(), link::next, and btree_node::value.
Referenced by as_area_share().
Here is the call graph for this function:

static count_t SIZE2FRAMES ( size_t size ) [static]

Definition at line 79 of file frame.h.
References FRAME_WIDTH.
Referenced by _slab_cache_create(), as_area_create(), as_area_resize(), fb_init(), frame_init(), init_e820_memory(), return_config_frames(), zone_create(), and zone_merge().

void * slab_alloc ( slab_cache_t * cache,

int flags

)

Allocate new object from cache - if no flags given, always returns memory
Definition at line 725 of file slab.c.
References slab_cache_t::allocated_objs, atomic_inc(), slab_cache_t::flags, interrupts_disable(), interrupts_restore(), magazine_obj_get(), NULL, SLAB_CACHE_NOMAGAZINE, and slab_obj_create().
Referenced by _btree_insert(), btree_create(), ipc_call_alloc(), make_empty_current_mag(), malloc(), node_split(), slab_cache_create(), slab_space_alloc(), thr_constructor(), and thread_create().
Here is the call graph for this function:

slab_cache_t * slab_cache_create ( char * name,

size_t size,

size_t align,

int(*)(void *obj, int kmflag) constructor,

int(*)(void *obj) destructor,

int flags

)

Create slab cache
Definition at line 626 of file slab.c.
References _slab_cache_create(), slab_alloc(), and slab_cache_cache.
Referenced by btree_init(), ipc_init(), slab_cache_init(), and thread_init().
Here is the call graph for this function:

void slab_cache_destroy ( slab_cache_t * cache )

Check that there are no slabs and remove cache from system
Definition at line 691 of file slab.c.
References _slab_reclaim(), slab_cache_t::flags, free(), slab_cache_t::full_slabs, interrupts_disable(), interrupts_restore(), slab_cache_t::link, list_empty(), list_remove(), slab_cache_t::mag_cache, panic, slab_cache_t::partial_slabs, slab_cache_cache, SLAB_CACHE_NOMAGAZINE, slab_free(), SLAB_RECLAIM_ALL, spinlock_lock, and spinlock_unlock().
Here is the call graph for this function:

void slab_cache_init ( void )

Initialize slab subsytem
Definition at line 817 of file slab.c.
References _slab_cache_create(), mag_cache, malloc_caches, malloc_names, NULL, slab_cache_cache, slab_cache_create(), SLAB_CACHE_MAGDEFERRED, SLAB_CACHE_NOMAGAZINE, SLAB_CACHE_SLINSIDE, slab_extern_cache, SLAB_MAG_SIZE, SLAB_MAX_MALLOC_W, and SLAB_MIN_MALLOC_W.
Referenced by main_bsp_separated_stack().
Here is the call graph for this function:

void slab_enable_cpucache ( void )

Enable cpu_cache
Kernel calls this function, when it knows the real number of processors. Allocate slab for cpucache and enable it on all existing slabs that are SLAB_CACHE_MAGDEFERRED
Definition at line 861 of file slab.c.
References slab_cache_t::flags, list_get_instance, make_magcache(), link::next, SLAB_CACHE_MAGDEFERRED, spinlock_lock, and spinlock_unlock().
Referenced by main_bsp_separated_stack().
Here is the call graph for this function:

void slab_free ( slab_cache_t * cache,

void * obj

)

Return slab object to cache
Definition at line 765 of file slab.c.
References _slab_free(), and NULL.
Referenced by _btree_remove(), ipc_call_free(), slab_cache_destroy(), slab_space_free(), thr_constructor(), thr_destructor(), thread_create(), and thread_destroy().
Here is the call graph for this function:

static void* slab_obj_create ( slab_cache_t * cache,

int flags

) [static]

Take new object from slab or create new if needed

Returns:
Object address or null

Definition at line 274 of file slab.c.
References slab_t::available, slab_cache_t::constructor, slab_cache_t::full_slabs, slab_t::link, list_empty(), list_get_instance, list_prepend(), list_remove(), link::next, slab_t::nextavail, NULL, slab_cache_t::partial_slabs, slab_cache_t::size, slab_obj_destroy(), slab_space_alloc(), spinlock_lock, spinlock_unlock(), and slab_t::start.
Referenced by slab_alloc().
Here is the call graph for this function:

static count_t slab_obj_destroy ( slab_cache_t * cache,

void * obj,

slab_t * slab

) [static]

Return object to slab and call a destructor

Parameters:

slab If the caller knows directly slab of the object, otherwise NULL

Returns:
Number of freed pages

Definition at line 232 of file slab.c.
References ASSERT, slab_t::available, slab_t::cache, slab_cache_t::destructor, slab_t::link, list_prepend(), list_remove(), slab_t::nextavail, obj2slab(), slab_cache_t::objects, slab_cache_t::partial_slabs, slab_cache_t::size, slab_space_free(), spinlock_lock, spinlock_unlock(), and slab_t::start.
Referenced by _slab_free(), magazine_destroy(), and slab_obj_create().
Here is the call graph for this function:

void slab_print_list ( void )

Definition at line 795 of file slab.c.
References slab_cache_t::allocated_objs, slab_cache_t::allocated_slabs, atomic_get(), slab_cache_t::cached_objs, slab_cache_t::flags, interrupts_disable(), interrupts_restore(), list_get_instance, slab_cache_t::name, link::next, slab_cache_t::objects, slab_cache_t::order, printf(), slab_cache_t::size, SLAB_CACHE_SLINSIDE, spinlock_lock, and spinlock_unlock().
Referenced by cmd_slabs().
Here is the call graph for this function:

count_t slab_reclaim ( int flags )

Definition at line 771 of file slab.c.
References _slab_reclaim(), list_get_instance, link::next, spinlock_lock, and spinlock_unlock().
Referenced by frame_alloc_generic().
Here is the call graph for this function:

static slab_t* slab_space_alloc ( slab_cache_t * cache,

int flags

) [static]

Allocate frames for slab space and initialize
Definition at line 157 of file slab.c.
References ADDR2PFN(), slab_cache_t::allocated_slabs, atomic_inc(), slab_t::available, slab_t::cache, slab_cache_t::flags, frame_alloc_rc_zone, frame_free(), FRAME_KA, FRAME_OK, frame_set_parent(), slab_t::nextavail, NULL, slab_cache_t::objects, slab_cache_t::order, PAGE_SIZE, PFN2ADDR(), slab_cache_t::size, slab_alloc(), SLAB_CACHE_SLINSIDE, slab_extern_cache, and slab_t::start.
Referenced by slab_obj_create().
Here is the call graph for this function:

static count_t slab_space_free ( slab_cache_t * cache,

slab_t * slab

) [static]

Deallocate space associated with slab

Returns:
number of freed frames

Definition at line 204 of file slab.c.
References ADDR2PFN(), slab_cache_t::allocated_slabs, atomic_dec(), slab_cache_t::flags, frame_free(), slab_cache_t::order, SLAB_CACHE_SLINSIDE, slab_extern_cache, slab_free(), and slab_t::start.
Referenced by slab_obj_destroy().
Here is the call graph for this function:

SPINLOCK_INITIALIZE ( tlblock )

This lock is used for synchronisation between sender and recipients of TLB shootdown message. It must be acquired before CPU structure lock.

SPINLOCK_INITIALIZE ( slab_cache_lock )

SPINLOCK_INITIALIZE ( inactive_as_with_asid_lock )

This lock protects inactive_as_with_asid_head list. It must be acquired before as_t mutex.

__native sys_as_area_create ( __address address,

size_t size,

int flags

)

Wrapper for as_area_create().
Definition at line 1512 of file as.c.
References anon_backend, AS, AS_AREA_CACHEABLE, as_area_create(), and NULL.
Here is the call graph for this function:

__native sys_as_area_destroy ( __address address )

Wrapper for as_area_destroy.
Definition at line 1527 of file as.c.
References AS, and as_area_destroy().
Here is the call graph for this function:

__native sys_as_area_resize ( __address address,

size_t size,

int flags

)

Wrapper for as_area_resize.
Definition at line 1521 of file as.c.
References AS, and as_area_resize().
Here is the call graph for this function:

void tlb_arch_init ( void )

void tlb_init ( void )

Definition at line 62 of file tlb.c.
References tlb_arch_init.
Referenced by main_ap(), and main_bsp_separated_stack().

void tlb_invalidate_all ( void )

Invalidate all entries in TLB.
Definition at line 42 of file tlb.c.
Referenced by tlb_invalidate_asid(), and tlb_shootdown_ipi_recv().

void tlb_invalidate_asid ( asid_t asid )

Invalidate all entries in TLB that belong to specified address space.

Parameters:

asid This parameter is ignored as the architecture doesn't support it.

Definition at line 51 of file tlb.c.
References tlb_invalidate_all().
Referenced by tlb_shootdown_ipi_recv().
Here is the call graph for this function:

void tlb_invalidate_pages ( asid_t asid,

__address page,

count_t cnt

)

Invalidate TLB entries for specified page range belonging to specified address space.

Parameters:

asid This parameter is ignored as the architecture doesn't support it.

page Address of the first page whose entry is to be invalidated.

cnt Number of entries to invalidate.

Definition at line 62 of file tlb.c.
References invlpg(), and PAGE_SIZE.
Referenced by tlb_shootdown_ipi_recv().
Here is the call graph for this function:

void tlb_print ( void )

void tlb_shootdown_finalize ( void )

Finish TLB shootdown sequence.
Definition at line 128 of file tlb.c.
References CPU, and spinlock_unlock().
Here is the call graph for this function:

void tlb_shootdown_ipi_recv ( void )

Receive TLB shootdown message.
Definition at line 140 of file tlb.c.
References ASSERT, count, CPU, panic, spinlock_lock, spinlock_unlock(), tlb_invalidate_all(), tlb_invalidate_asid(), tlb_invalidate_pages(), TLB_INVL_ALL, TLB_INVL_ASID, TLB_INVL_PAGES, and TLB_MESSAGE_QUEUE_LEN.
Referenced by tlb_shootdown_ipi().
Here is the call graph for this function:

void tlb_shootdown_ipi_send ( void )

Definition at line 134 of file tlb.c.
References ipi_broadcast(), and VECTOR_TLB_SHOOTDOWN_IPI.
Here is the call graph for this function:

void tlb_shootdown_start ( tlb_invalidate_type_t type,

asid_t asid,

__address page,

count_t count

)

Send TLB shootdown message.
This function attempts to deliver TLB shootdown message to all other processors.
This function must be called with interrupts disabled.

Parameters:

type Type describing scope of shootdown.

asid Address space, if required by type.

page Virtual page address, if required by type.

count Number of pages, if required by type.

Definition at line 81 of file tlb.c.
References config, CPU, config_t::cpu_count, cpus, spinlock_lock, TLB_INVL_ALL, and TLB_MESSAGE_QUEUE_LEN.
Referenced by as_area_destroy(), and as_area_resize().

int used_space_insert ( as_area_t * a,

__address page,

count_t count

)

Mark portion of address space area as used.
The address space area must be already locked.

Parameters:

a Address space area.

page First page to be marked.

count Number of page to be marked.

Returns:
0 on failure and 1 on success.

Definition at line 1098 of file as.c.
References ALIGN_DOWN, ASSERT, btree_insert(), btree_leaf_node_left_neighbour(), btree_leaf_node_right_neighbour(), btree_remove(), btree_search(), btree_node::key, btree_node::keys, overlaps(), PAGE_SIZE, and btree_node::value.
Referenced by phys_page_fault().
Here is the call graph for this function:

int used_space_remove ( as_area_t * a,

__address page,

count_t count

)

Mark portion of address space area as unused.
The address space area must be already locked.

Parameters:

a Address space area.

page First page to be marked.

count Number of page to be marked.

Returns:
0 on failure and 1 on success.

Definition at line 1325 of file as.c.
References ALIGN_DOWN, ASSERT, btree_remove(), btree_search(), btree_node::key, btree_node::keys, PAGE_SIZE, and btree_node::value.
Referenced by as_area_resize().
Here is the call graph for this function:

static link_t* zone_buddy_bisect ( buddy_system_t * b,

link_t * block

) [static]

Buddy system bisect implementation

Parameters:

b Buddy system.

block Block to bisect

Returns:
right block

Definition at line 349 of file frame.c.
References frame_t::buddy_link, frame_t::buddy_order, and list_get_instance.

static link_t* zone_buddy_coalesce ( buddy_system_t * b,

link_t * block_1,

link_t * block_2

) [static]

Buddy system coalesce implementation

Parameters:

b Buddy system.

block_1 First block

block_2 First block's buddy

Returns:
Coalesced block (actually block that represents lower address)

Definition at line 366 of file frame.c.
References list_get_instance.

static link_t* zone_buddy_find_block ( buddy_system_t * b,

link_t * child,

__u8 order

) [static]

Buddy system find_block implementation
Find block that is parent of current list. That means go to lower addresses, until such block is found

Parameters:

order - Order of parent must be different then this parameter!!

Definition at line 273 of file frame.c.
References frame_t::buddy_link, frame_t::buddy_order, buddy_system::data, frame_index(), zone_t::frames, list_get_instance, and NULL.
Here is the call graph for this function:

static link_t* zone_buddy_find_buddy ( buddy_system_t * b,

link_t * block

) [static]

Buddy system find_buddy implementation

Parameters:

b Buddy system.

block Block for which buddy should be found

Returns:
Buddy for given block if found

Definition at line 311 of file frame.c.
References ASSERT, frame_t::buddy_link, frame_t::buddy_order, buddy_system::data, frame_index(), frame_index_abs(), frame_index_valid(), zone_t::frames, IS_BUDDY_LEFT_BLOCK_ABS, IS_BUDDY_ORDER_OK, IS_BUDDY_RIGHT_BLOCK_ABS, list_get_instance, NULL, and frame_t::refcount.
Here is the call graph for this function:

static __u8 zone_buddy_get_order ( buddy_system_t * b,

link_t * block

) [static]

Buddy system get_order implementation

Parameters:

b Buddy system.

block Buddy system block

Returns:
Order of block

Definition at line 396 of file frame.c.
References frame_t::buddy_order, and list_get_instance.

static void zone_buddy_mark_available ( buddy_system_t * b,

link_t * block

) [static]

Buddy system mark_available implementation

Parameters:

b Buddy system

block Buddy system block

Definition at line 421 of file frame.c.
References list_get_instance, and frame_t::refcount.

static void zone_buddy_mark_busy ( buddy_system_t * b,

link_t * block

) [static]

Buddy system mark_busy implementation

Parameters:

b Buddy system

block Buddy system block

Definition at line 408 of file frame.c.
References list_get_instance, and frame_t::refcount.

static void zone_buddy_print_id ( buddy_system_t * b,

link_t * block

) [static]

Definition at line 292 of file frame.c.
References buddy_system::data, frame_index(), list_get_instance, and printf().
Here is the call graph for this function:

static void zone_buddy_set_order ( buddy_system_t * b,

link_t * block,

__u8 order

) [static]

Buddy system set_order implementation

Parameters:

b Buddy system.

block Buddy system block

order Order to set

Definition at line 383 of file frame.c.
References frame_t::buddy_order, and list_get_instance.

static int zone_can_alloc ( zone_t * z,

__u8 order

) [static]

Returns:
True if zone can allocate specified order

Definition at line 220 of file frame.c.
References zone_t::buddy_system, and buddy_system_can_alloc().
Referenced by find_free_zone_lock(), and zone_merge().
Here is the call graph for this function:

__address zone_conf_size ( count_t count )

Compute configuration data size for zone

Parameters:

count Size of zone in frames

Returns:
Size of zone configuration info (in bytes)

Definition at line 820 of file frame.c.
References buddy_conf_size(), and fnzb.
Referenced by return_config_frames(), zone_create(), and zone_merge().
Here is the call graph for this function:

static void zone_construct ( pfn_t start,

count_t count,

zone_t * z,

int flags

) [static]

Create frame zone
Create new frame zone.

Parameters:

start Physical address of the first frame within the zone.

count Count of frames in zone

z Address of configuration information of zone

flags Zone flags.

Returns:
Initialized zone.

Definition at line 779 of file frame.c.
References zone_t::base, buddy_conf_size(), zone_t::buddy_system, buddy_system_create(), zone_t::busy_count, zone_t::count, zone_t::flags, fnzb, frame_initialize(), zone_t::free_count, spinlock_initialize(), and zone_buddy_system_operations.
Here is the call graph for this function:

int zone_create ( pfn_t start,

count_t count,

pfn_t confframe,

int flags

)

Create and add zone to system

Parameters:

start First frame number (absolute)

count Size of zone in frames

confframe Where configuration frames are supposed to be. Automatically checks, that we will not disturb the kernel and possibly init. If confframe is given _outside_ this zone, it is expected, that the area is already marked BUSY and big enough to contain zone_conf_size() amount of data. If the confframe is inside the area, the zone free frame information is modified not to include it.

Returns:
Zone number or -1 on error

Definition at line 845 of file frame.c.
References init_task_t::addr, ASSERT, config_t::base, init_t::cnt, config, init, config_t::kernel_size, overlaps(), PFN2ADDR(), init_task_t::size, SIZE2FRAMES(), init_t::tasks, and zone_conf_size().
Referenced by init_e820_memory().
Here is the call graph for this function:

static pfn_t zone_frame_alloc ( zone_t * zone,

__u8 order

) [static]

Allocate frame in particular zone
Assume zone is locked Panics if allocation is impossible.

Parameters:

zone Zone to allocate from.

order Allocate exactly 2^order frames.

Returns:
Frame index in zone

Definition at line 453 of file frame.c.
References ASSERT, zone_t::buddy_system, buddy_system_alloc(), zone_t::busy_count, zone_t::free_count, list_get_instance, and make_frame_index().
Referenced by frame_alloc_generic(), and zone_merge().
Here is the call graph for this function:

static void zone_frame_free ( zone_t * zone,

index_t frame_idx

) [static]

Free frame from zone
Assume zone is locked

Parameters:

zone Pointer to zone from which the frame is to be freed

frame_idx Frame index relative to zone

Definition at line 483 of file frame.c.
References ASSERT, frame_t::buddy_link, frame_t::buddy_order, zone_t::buddy_system, buddy_system_free(), zone_t::busy_count, zone_t::frames, zone_t::free_count, and frame_t::refcount.
Referenced by frame_free(), and return_config_frames().
Here is the call graph for this function:

static frame_t* zone_get_frame ( zone_t * zone,

index_t frame_idx

) [static]

Return frame from zone
Definition at line 505 of file frame.c.
References ASSERT, count, and zone_t::frames.
Referenced by frame_get_parent(), frame_set_parent(), and zone_mark_unavailable().

static void zone_mark_unavailable ( zone_t * zone,

index_t frame_idx

) [static]

Mark frame in zone unavailable to allocation
Definition at line 512 of file frame.c.
References ASSERT, frame_t::buddy_link, zone_t::buddy_system, buddy_system_alloc_block(), zone_t::free_count, frame_t::refcount, and zone_get_frame().
Referenced by frame_mark_unavailable().
Here is the call graph for this function:

void zone_merge ( int z1,

int z2

)

Merge zones z1 and z2

the zones must be 2 zones with no zone existing in between, which means that z2 = z1+1

When you create a new zone, the frame allocator configuration does not to be 2^order size. Once the allocator is running it is no longer possible, merged configuration data occupies more space :-/

Definition at line 687 of file frame.c.
References _zone_merge(), zone_t::base, zone_t::busy_count, zone_t::count, fnzb, interrupts_disable(), interrupts_restore(), PFN2ADDR(), return_config_frames(), SIZE2FRAMES(), spinlock_lock, spinlock_unlock(), zone_can_alloc(), zone_conf_size(), zone_frame_alloc(), zone_reduce_region(), and zones.
Referenced by zone_merge_all().
Here is the call graph for this function:

void zone_merge_all ( void )

Merge all zones into one big zone
It is reasonable to do this on systems whose bios reports parts in chunks, so that we could have 1 zone (it's faster).
Definition at line 758 of file frame.c.
References count, zone_merge(), and zones.
Referenced by arch_post_mm_init().
Here is the call graph for this function:

void zone_print_list ( void )

Prints list of zones
Definition at line 1096 of file frame.c.
References zone_t::base, zone_t::busy_count, zone_t::free_count, interrupts_disable(), NULL, PFN2ADDR(), printf(), spinlock_lock, spinlock_unlock(), and zones.
Referenced by cmd_zones().
Here is the call graph for this function:

void zone_print_one ( int num )

Prints zone details.

Parameters:

num Zone base address or zone number.

Definition at line 1119 of file frame.c.
References interrupts_disable(), NULL, PFN2ADDR(), spinlock_lock, and zones.
Referenced by cmd_zone().
Here is the call graph for this function:

static void zone_reduce_region ( zone_t * zone,

pfn_t frame_idx,

count_t count

) [static]

Reduce allocated block to count of order 0 frames
The allocated block need 2^order frames of space. Reduce all frames in block to order 0 and free the unneeded frames. This means, that when freeing the previously allocated block starting with frame_idx, you have to free every frame.

Parameters:

zone

frame_idx Index to block

count Allocated space in block

Definition at line 653 of file frame.c.
References ASSERT, frame_t::buddy_order, zone_t::frames, and frame_t::refcount.
Referenced by zone_merge().

static int zones_add_zone ( zone_t * newzone ) [static]

Insert-sort zone into zones list

Parameters:

newzone New zone to be inserted into zone list

Returns:
zone number on success, -1 on error

Definition at line 144 of file frame.c.
References zone_t::base, zone_t::count, interrupts_disable(), overlaps(), panic, printf(), spinlock_lock, zones, and ZONES_MAX.
Here is the call graph for this function:

Variable Documentation

mem_backend_t anon_backend

Initial value:
{ .page_fault = anon_page_fault, .frame_free = anon_frame_free, .share = anon_share }

Definition at line 58 of file backend_anon.c.
Referenced by sys_as_area_create(), and task_run_program().

as_t* AS_KERNEL = NULL

Kernel address space.
Definition at line 93 of file as.c.
Referenced by as_destroy(), as_init(), as_switch(), hw_map(), main_bsp_separated_stack(), map_sdt(), map_structure(), page_arch_init(), ptl0_create(), and smp_init().

as_operations_t* as_operations = NULL

Definition at line 81 of file as.c.
Referenced by as_arch_init(), page_table_create(), page_table_destroy(), page_table_lock(), and page_table_unlock().

int count [inherited]

Definition at line 97 of file frame.c.

mem_backend_t elf_backend

Initial value:
{ .page_fault = elf_page_fault, .frame_free = elf_frame_free, .share = elf_share }

Definition at line 57 of file backend_elf.c.
Referenced by load_segment().

iroutine f [inherited]

Definition at line 53 of file interrupt.c.

zone_t* info[ZONES_MAX] [inherited]

Definition at line 98 of file frame.c.

slab_cache_t mag_cache [static]

Magazine cache
Definition at line 118 of file slab.c.
Referenced by make_empty_current_mag(), and slab_cache_init().

slab_cache_t* malloc_caches[SLAB_MAX_MALLOC_W-SLAB_MIN_MALLOC_W+1] [static]

Caches for malloc
Definition at line 129 of file slab.c.
Referenced by malloc(), and slab_cache_init().

char* malloc_names[]

Initial value:
{ "malloc-16","malloc-32","malloc-64","malloc-128", "malloc-256","malloc-512","malloc-1K","malloc-2K", "malloc-4K","malloc-8K","malloc-16K","malloc-32K", "malloc-64K","malloc-128K","malloc-256K" }

Definition at line 130 of file slab.c.
Referenced by slab_cache_init().

const char* name [inherited]

Definition at line 52 of file interrupt.c.

page_mapping_operations_t* page_mapping_operations = NULL

Virtual operations for page subsystem.
Definition at line 56 of file page.c.
Referenced by page_mapping_find(), page_mapping_insert(), and page_mapping_remove().

page_mapping_operations_t* page_mapping_operations

Virtual operations for page subsystem.
Definition at line 56 of file page.c.
Referenced by page_mapping_find(), page_mapping_insert(), and page_mapping_remove().

mem_backend_t phys_backend

Initial value:
{ .page_fault = phys_page_fault, .frame_free = NULL, .share = phys_share }

Definition at line 52 of file backend_phys.c.
Referenced by as_area_resize(), and ddi_physmem_map().

slab_cache_t slab_cache_cache [static]

Cache for cache descriptors
Definition at line 120 of file slab.c.
Referenced by slab_cache_create(), slab_cache_destroy(), and slab_cache_init().

slab_cache_t* slab_extern_cache [static]

Cache for external slab descriptors This time we want per-cpu cache, so do not make it static

using slab for internal slab structures will not deadlock, as all slab structures are 'small' - control structures of their caches do not require further allocation

Definition at line 127 of file slab.c.
Referenced by slab_cache_init(), slab_space_alloc(), and slab_space_free().

struct buddy_system_operations zone_buddy_system_operations [static]

Initial value:
{ .find_buddy = zone_buddy_find_buddy, .bisect = zone_buddy_bisect, .coalesce = zone_buddy_coalesce, .set_order = zone_buddy_set_order, .get_order = zone_buddy_get_order, .mark_busy = zone_buddy_mark_busy, .mark_available = zone_buddy_mark_available, .find_block = zone_buddy_find_block, .print_id = zone_buddy_print_id }

Definition at line 427 of file frame.c.
Referenced by _zone_merge(), and zone_construct().

struct { ... } zones

Referenced by find_free_zone_lock(), find_zone_and_lock(), frame_init(), zone_merge(), zone_merge_all(), zone_print_list(), zone_print_one(), and zones_add_zone().

Generated on Sun Jun 18 16:47:06 2006 for HelenOS Kernel (ia32) by

1.4.6

generic [Memory management]

Files

Data Structures

Defines

Typedefs

Enumerations
