messages.h File Reference

Networking common message definitions. More...

#include <async.h>
#include <ipc/ipc.h>
#include <ipc/services.h>
#include "include/device.h"
#include "structures/measured_strings.h"
#include "structures/packet/packet.h"

Include dependency graph for messages.h:

Defines
#define	IS_IN_INTERVAL(item, first_inclusive, last_exclusive)   (((item) >= (first_inclusive)) && ((item) < (last_exclusive)))
	Returns a value indicating whether the value is in the interval.
Networking message counts
#define	NET_ARP_COUNT   5
	The number of ARP messages.
#define	NET_ETH_COUNT   0
	The number of Ethernet messages.
#define	NET_ICMP_COUNT   6
	The number of ICMP messages.
#define	NET_IL_COUNT   6
	The number of inter-network messages.
#define	NET_IP_COUNT   4
	The number of IP messages.
#define	NET_NET_COUNT   3
	The number of general networking messages.
#define	NET_NETIF_COUNT   6
	The number of network interface driver messages.
#define	NET_NIL_COUNT   7
	The number of network interface layer messages.
#define	NET_PACKET_COUNT   5
	The number of packet management system messages.
#define	NET_SOCKET_COUNT   14
	The number of socket messages.
#define	NET_TCP_COUNT   0
	The number of TCP messages.
#define	NET_TL_COUNT   1
	The number of transport layer messages.
#define	NET_UDP_COUNT   0
	The number of UDP messages.
Networking message intervals
#define	NET_FIRST   2000
	The first networking message.
#define	NET_NETIF_FIRST   NET_FIRST
	The first network interface layer message.
#define	NET_NETIF_LAST   (NET_NETIF_FIRST + NET_NETIF_COUNT)
	The last network interface layer message.
#define	NET_NET_FIRST   (NET_NETIF_LAST + 0)
	The first general networking message.
#define	NET_NET_LAST   (NET_NET_FIRST + NET_NET_COUNT)
	The last general networking message.
#define	NET_NIL_FIRST   (NET_NET_LAST + 0)
	The first network interface layer message.
#define	NET_NIL_LAST   (NET_NIL_FIRST + NET_NIL_COUNT)
	The last network interface layer message.
#define	NET_ETH_FIRST   (NET_NIL_LAST + 0)
	The first Ethernet message.
#define	NET_ETH_LAST   (NET_ETH_FIRST + NET_ETH_COUNT)
	The last Ethernet message.
#define	NET_IL_FIRST   (NET_ETH_LAST + 0)
	The first inter-network message.
#define	NET_IL_LAST   (NET_IL_FIRST + NET_IL_COUNT)
	The last inter-network message.
#define	NET_IP_FIRST   (NET_IL_LAST + 0)
	The first IP message.
#define	NET_IP_LAST   (NET_IP_FIRST + NET_IP_COUNT)
	The last IP message.
#define	NET_ARP_FIRST   (NET_IP_LAST + 0)
	The first ARP message.
#define	NET_ARP_LAST   (NET_ARP_FIRST + NET_ARP_COUNT)
	The last ARP message.
#define	NET_ICMP_FIRST   (NET_ARP_LAST + 0)
	The first ICMP message.
#define	NET_ICMP_LAST   (NET_ICMP_FIRST + NET_ICMP_COUNT)
	The last ICMP message.
#define	NET_TL_FIRST   (NET_ICMP_LAST + 0)
	The first ICMP message.
#define	NET_TL_LAST   (NET_TL_FIRST + NET_TL_COUNT)
	The last ICMP message.
#define	NET_UDP_FIRST   (NET_TL_LAST + 0)
	The first UDP message.
#define	NET_UDP_LAST   (NET_UDP_FIRST + NET_UDP_COUNT)
	The last UDP message.
#define	NET_TCP_FIRST   (NET_UDP_LAST + 0)
	The first TCP message.
#define	NET_TCP_LAST   (NET_TCP_FIRST + NET_TCP_COUNT)
	The last TCP message.
#define	NET_SOCKET_FIRST   (NET_TCP_LAST + 0)
	The first socket message.
#define	NET_SOCKET_LAST   (NET_SOCKET_FIRST + NET_SOCKET_COUNT)
	The last socket message.
#define	NET_PACKET_FIRST   (NET_SOCKET_LAST + 0)
	The first packet management system message.
#define	NET_PACKET_LAST   (NET_PACKET_FIRST + NET_PACKET_COUNT)
	The last packet management system message.
#define	NET_LAST   NET_PACKET_LAST
	The last networking message.
#define	NET_COUNT   (NET_LAST - NET_FIRST)
	The number of networking messages.
#define	IS_NET_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_FIRST, NET_LAST)
	Returns a value indicating whether the IPC call is a generic networking message.
#define	IS_NET_ARP_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ARP_FIRST, NET_ARP_LAST)
	Returns a value indicating whether the IPC call is an ARP message.
#define	IS_NET_ETH_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ETH_FIRST, NET_ETH_LAST)
	Returns a value indicating whether the IPC call is an Ethernet message.
#define	IS_NET_ICMP_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_ICMP_FIRST, NET_ICMP_LAST)
	Returns a value indicating whether the IPC call is an ICMP message.
#define	IS_NET_IL_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IL_FIRST, NET_IL_LAST)
	Returns a value indicating whether the IPC call is an inter-network layer message.
#define	IS_NET_IP_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_IP_FIRST, NET_IP_LAST)
	Returns a value indicating whether the IPC call is an IP message.
#define	IS_NET_NET_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NET_FIRST, NET_NET_LAST)
	Returns a value indicating whether the IPC call is a generic networking message.
#define	IS_NET_NIL_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_NIL_FIRST, NET_NIL_LAST)
	Returns a value indicating whether the IPC call is a network interface layer message.
#define	IS_NET_PACKET_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_PACKET_FIRST, NET_PACKET_LAST)
	Returns a value indicating whether the IPC call is a packet manaagement system message.
#define	IS_NET_SOCKET_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_SOCKET_FIRST, NET_SOCKET_LAST)
	Returns a value indicating whether the IPC call is a socket message.
#define	IS_NET_TCP_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TCP_FIRST, NET_TCP_LAST)
	Returns a value indicating whether the IPC call is a TCP message.
#define	IS_NET_TL_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_TL_FIRST, NET_TL_LAST)
	Returns a value indicating whether the IPC call is a transport layer message.
#define	IS_NET_UDP_MESSAGE(call)   IS_IN_INTERVAL(IPC_GET_METHOD(*call), NET_UDP_FIRST, NET_UDP_LAST)
	Returns a value indicating whether the IPC call is a UDP message.
First arguments
#define	IPC_GET_DEVICE(call)   (device_id_t) IPC_GET_ARG1(*call)
	Returns the device identifier message argument.
Second arguments
#define	IPC_GET_PACKET(call)   (packet_id_t) IPC_GET_ARG2(*call)
	Returns the packet identifier message argument.
#define	IPC_GET_COUNT(call)   (size_t) IPC_GET_ARG2(*call)
	Returns the count message argument.
#define	IPC_GET_STATE(call)   (device_state_t) IPC_GET_ARG2(*call)
	Returns the device state message argument.
#define	IPC_GET_MTU(call)   (size_t) IPC_GET_ARG2(*call)
	Returns the maximum transmission unit message argument.
Third arguments
#define	IPC_GET_SERVICE(call)   (services_t) IPC_GET_ARG3(*call)
	Returns the device driver service message argument.
#define	IPC_GET_TARGET(call)   (services_t) IPC_GET_ARG3(*call)
	Returns the target service message argument.
#define	IPC_GET_SENDER(call)   (services_t) IPC_GET_ARG3(*call)
	Returns the sender service message argument.
Fourth arguments
#define	IPC_GET_ERROR(call)   (services_t) IPC_GET_ARG4(*call)
	Returns the error service message argument.
Fifth arguments
#define	IPC_GET_PHONE(call)   (int) IPC_GET_ARG5(*call)
	Returns the phone message argument.
First answers
#define	IPC_SET_DEVICE(answer)   ((device_id_t *) &IPC_GET_ARG1(*answer))
	Sets the device identifier in the message answer.
#define	IPC_SET_ADDR(answer)   ((size_t *) &IPC_GET_ARG1(*answer))
	Sets the minimum address length in the message answer.
Second answers
#define	IPC_SET_PREFIX(answer)   ((size_t *) &IPC_GET_ARG2(*answer))
	Sets the minimum prefix size in the message answer.
Third answers
#define	IPC_SET_CONTENT(answer)   ((size_t *) &IPC_GET_ARG3(*answer))
	Sets the maximum content size in the message answer.
Fourth answers
#define	IPC_SET_SUFFIX(answer)   ((size_t *) &IPC_GET_ARG4(*answer))
	Sets the minimum suffix size in the message answer.
Functions
static int	generic_device_state_msg (int phone, int message, device_id_t device_id, int state, services_t target)
	Notifies the module about the device state change.
static int	generic_device_req (int phone, int message, device_id_t device_id, int arg2, services_t service)
	Notifies a module about the device.
static int	generic_get_addr_req (int phone, int message, device_id_t device_id, measured_string_ref *address, char **data)
	Returns the address.
static int	generic_packet_size_req (int phone, int message, device_id_t device_id, packet_dimension_ref packet_dimension)
	Returns the device packet dimension for sending.
static int	generic_received_msg (int phone, int message, device_id_t device_id, packet_id_t packet_id, services_t target, services_t error)
	Passes the packet queue to the module.
static int	generic_send_msg (int phone, int message, device_id_t device_id, packet_id_t packet_id, services_t sender, services_t error)
	Sends the packet queue.
static int	generic_translate_req (int phone, int message, device_id_t device_id, services_t service, measured_string_ref configuration, size_t count, measured_string_ref *translation, char **data)
	Translates the given strings.

---

Detailed Description

Networking common message definitions.

---

Function Documentation

static int generic_device_req	(	int	phone,
		int	message,
		device_id_t	device_id,
		int	arg2,
		services_t	service
	)			[inline, static]

Notifies a module about the device.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[in]	arg2	The second argument of the message.
[in]	service	The device module service.

Returns:

EOK on success.

Other error codes as defined for the specific service message.

Referenced by ip_device_req().

Here is the caller graph for this function:

static int generic_device_state_msg	(	int	phone,
		int	message,
		device_id_t	device_id,
		int	state,
		services_t	target
	)			[inline, static]

Notifies the module about the device state change.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[in]	state	The new device state.
[in]	target	The target module service.

Returns:

EOK on success.

Referenced by il_device_state_msg(), il_mtu_changed_msg(), and nil_device_state_msg().

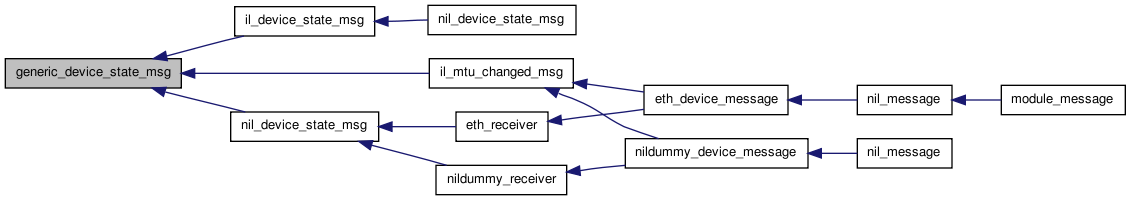

Here is the caller graph for this function:

static int generic_get_addr_req	(	int	phone,
		int	message,
		device_id_t	device_id,
		measured_string_ref *	address,
		char **	data
	)			[inline, static]

Returns the address.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[out]	address	The desired address.
[out]	data	The address data container.

Returns:

EOK on success.

EBADMEM if the address parameter and/or the data parameter is NULL.

Other error codes as defined for the specific service message.

References free, and measured_strings_return().

Referenced by netif_get_addr_req().

Here is the call graph for this function:

Here is the caller graph for this function:

static int generic_packet_size_req	(	int	phone,
		int	message,
		device_id_t	device_id,
		packet_dimension_ref	packet_dimension
	)			[inline, static]

Returns the device packet dimension for sending.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[out]	packet_dimension	The packet dimension.

Returns:

EOK on success.

EBADMEM if the packet_dimension parameter is NULL.

Other error codes as defined for the specific service message.

References packet_dimension::addr_len, packet_dimension::content, packet_dimension::prefix, and packet_dimension::suffix.

Referenced by ip_packet_size_req().

Here is the caller graph for this function:

static int generic_received_msg	(	int	phone,
		int	message,
		device_id_t	device_id,
		packet_id_t	packet_id,
		services_t	target,
		services_t	error
	)			[inline, static]

Passes the packet queue to the module.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[in]	packet_id	The received packet or the received packet queue identifier.
[in]	target	The target module service.
[in]	error	The error module service.

Returns:

EOK on success.

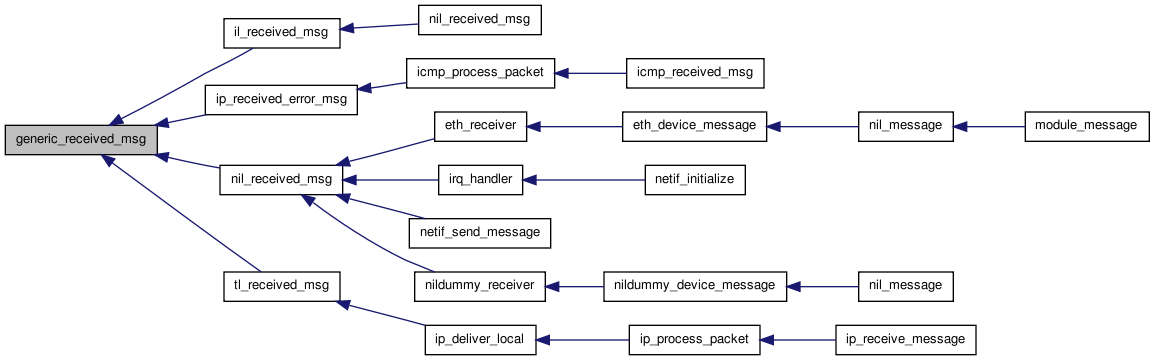

Referenced by il_received_msg(), ip_received_error_msg(), nil_received_msg(), and tl_received_msg().

Here is the caller graph for this function:

static int generic_send_msg	(	int	phone,
		int	message,
		device_id_t	device_id,
		packet_id_t	packet_id,
		services_t	sender,
		services_t	error
	)			[inline, static]

Sends the packet queue.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[in]	packet_id	The packet or the packet queue identifier.
[in]	sender	The sending module service.
[in]	error	The error module service.

Returns:

EOK on success.

Referenced by ip_send_msg(), and netif_send_msg().

Here is the caller graph for this function:

static int generic_translate_req	(	int	phone,
		int	message,
		device_id_t	device_id,
		services_t	service,
		measured_string_ref	configuration,
		size_t	count,
		measured_string_ref *	translation,
		char **	data
	)			[inline, static]

Translates the given strings.

Allocates and returns the needed memory block as the data parameter.

Parameters:

[in]	phone	The service module phone.
[in]	message	The service specific message.
[in]	device_id	The device identifier.
[in]	service	The module service.
[in]	configuration	The key strings.
[in]	count	The number of configuration keys.
[out]	translation	The translated values.
[out]	data	The translation data container.

Returns:

EOK on success.

EINVAL if the configuration parameter is NULL.

EINVAL if the count parameter is zero (0).

EBADMEM if the translation or the data parameters are NULL.

Other error codes as defined for the specific service message.

References free, measured_strings_return(), and measured_strings_send().

Referenced by arp_translate_req(), net_get_conf_req(), and net_get_device_conf_req().

Here is the call graph for this function:

Here is the caller graph for this function:
