Network interface drivers
[Networking Stack]

Collaboration diagram for Network interface drivers:

Data Structures
struct	device_stats
	Device usage statistics. More...
struct	netif_device
	Network interface device specific data. More...
struct	netif_globals
	Network interface module skeleton global data. More...
Modules
	Loopback Service
	Generic DP8390 network interface family service
Files
file	device.h
	Device identifier, state and usage statistics.
file	netif_interface.h
	Network interface module interface.
file	netif.c
	Network interface module skeleton implementation.
file	netif.h
	Network interface module skeleton.
file	netif_messages.h
	Network interface common module messages.
file	netif_module.h
	Network interface module interface.
file	netif_nil_bundle.c
	Wrapper for the bundled network interface and network interface layer module.
file	netif_remote.c
	Network interface module interface implementation for standalone remote modules.
file	netif_standalone.c
	Wrapper for the standalone network interface module.
Defines
#define	DEVICE_MAP_DECLARE INT_MAP_DECLARE
	Device identifier to generic type map declaration.
#define	DEVICE_MAP_IMPLEMENT INT_MAP_IMPLEMENT
	Device identifier to generic type map implementation.
#define	DEVICE_INVALID_ID (-1)
	Invalid device identifier.
Typedefs
typedef int	device_id_t
	Device identifier type.
typedef enum device_state	device_state_t
	Device state type.
typedef struct device_stats	device_stats_t
	Type definition of the device usage statistics.
typedef device_stats_t *	device_stats_ref
	Type definition of the device usage statistics pointer.
typedef struct netif_globals	netif_globals_t
	Network interface module skeleton global data.
typedef struct netif_device	device_t
	Type definition of the device specific data.
typedef device_t *	device_ref
	Type definition of the device specific data pointer.
Enumerations
enum	device_state { NETIF_NULL = 0, NETIF_STOPPED, NETIF_ACTIVE, NETIF_CARRIER_LOST }
	Device state. More...
enum	netif_messages { NET_NETIF_PROBE = NET_NETIF_FIRST, NET_NETIF_SEND, NET_NETIF_START, NET_NETIF_STATS, NET_NETIF_STOP, NET_NETIF_GET_ADDR }
	Network interface common module messages. More...
Functions
int	find_device (device_id_t device_id, device_ref *device)
	Finds the device specific data.
void	null_device_stats (device_stats_ref stats)
	Clears the usage statistics.
int	netif_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the netif module messages.
int	netif_init_module (async_client_conn_t client_connection)
	Initializes the netif module.
int	netif_run_module (void)
	Starts and maintains the netif module until terminated.
void	netif_pq_release (packet_id_t packet_id)
	Releases the given packet.
packet_t	netif_packet_get_1 (size_t content)
	Allocates new packet to handle the given content size.
	DEVICE_MAP_DECLARE (device_map, device_t)
	Device map.
int	netif_initialize (void)
	Initializes the specific module.
int	netif_probe_message (device_id_t device_id, int irq, uintptr_t io)
	Probes the existence of the device.
int	netif_send_message (device_id_t device_id, packet_t packet, services_t sender)
	Sends the packet queue.
int	netif_start_message (device_ref device)
	Starts the device.
int	netif_stop_message (device_ref device)
	Stops the device.
int	netif_get_addr_message (device_id_t device_id, measured_string_ref address)
	Returns the device local hardware address.
int	netif_specific_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the netif driver specific message.
int	netif_get_device_stats (device_id_t device_id, device_stats_ref stats)
	Returns the device usage statistics.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Distributes the messages between the module parts.
int	module_start (async_client_conn_t client_connection)
	Starts the bundle network interface module.
Variables
netif_globals_t	netif_globals
	Network interface module global data.
netif_globals_t	netif_globals
	Network interface module global data.
Network interface module interface
This interface is used by other modules.
int	netif_get_addr_req (int netif_phone, device_id_t device_id, measured_string_ref address, char *data)
	Returns the device local hardware address.
int	netif_probe_req (int netif_phone, device_id_t device_id, int irq, int io)
	Probes the existence of the device.
int	netif_send_msg (int netif_phone, device_id_t device_id, packet_t packet, services_t sender)
	Sends the packet queue.
int	netif_start_req (int netif_phone, device_id_t device_id)
	Starts the device.
int	netif_stop_req (int netif_phone, device_id_t device_id)
	Stops the device.
int	netif_stats_req (int netif_phone, device_id_t device_id, device_stats_ref stats)
	Returns the device usage statistics.
int	netif_bind_service (services_t service, device_id_t device_id, services_t me, async_client_conn_t receiver)
	Creates bidirectional connection with the network interface module and registers the message receiver.
Message processing functions

int	register_message (device_id_t device_id, int phone)
	Registers the device notification receiver, the network interface layer module.
Network interface specific message parameters definitions

#define	NETIF_GET_IRQ(call) (int) IPC_GET_ARG2(*call)
	Returns the interrupt number message parameter.
#define	NETIF_GET_IO(call) (int) IPC_GET_ARG3(*call)
	Returns the input/output address message parameter.

Define Documentation

#define DEVICE_INVALID_ID (-1)

Invalid device identifier.

Referenced by tcp_process_client_messages(), tcp_refresh_socket_data(), udp_process_client_messages(), and udp_sendto_message().

#define DEVICE_MAP_DECLARE INT_MAP_DECLARE

Device identifier to generic type map declaration.

#define DEVICE_MAP_IMPLEMENT INT_MAP_IMPLEMENT

Device identifier to generic type map implementation.

#define NETIF_GET_IO ( call ) (int) IPC_GET_ARG3(*call)

Returns the input/output address message parameter.

Parameters:

[in] call The message call structure.

#define NETIF_GET_IRQ ( call ) (int) IPC_GET_ARG2(*call)

Returns the interrupt number message parameter.

Parameters:

[in] call The message call structure.

Typedef Documentation

typedef int device_id_t

Device identifier type.

typedef device_t* device_ref

Type definition of the device specific data pointer.

See also:: netif_device

typedef enum device_state device_state_t

Device state type.

typedef device_stats_t* device_stats_ref

Type definition of the device usage statistics pointer.

See also:: device_stats

typedef struct device_stats device_stats_t

Type definition of the device usage statistics.

See also:: device_stats

typedef struct netif_device device_t

Type definition of the device specific data.

See also:: netif_device

typedef struct netif_globals netif_globals_t

Network interface module skeleton global data.

Enumeration Type Documentation

enum device_state

Device state.

Enumerator:

NETIF_NULL	Device not present or not initialized.
NETIF_STOPPED	Device present and stopped.
NETIF_ACTIVE	Device present and active.
NETIF_CARRIER_LOST	Device present but unable to transmit.

enum netif_messages

Network interface common module messages.

Enumerator:

NET_NETIF_PROBE	Probe device message. See also: netif_probe_req()
NET_NETIF_SEND	Send packet message. See also: netif_send_msg()
NET_NETIF_START	Start device message. See also: netif_start_req()
NET_NETIF_STATS	Get device usage statistics message. See also: netif_stats_req()
NET_NETIF_STOP	Stop device message. See also: netif_stop_req()
NET_NETIF_GET_ADDR	Get device address message. See also: netif_get_addr_req()

Function Documentation

DEVICE_MAP_DECLARE	(	device_map	,
		device_t
	)

Device map.

Maps device identifiers to the network interface device specific data.

See also:: device.h

int find_device	(	device_id_t	device_id,
		device_ref *	device
	)

Finds the device specific data.

Parameters:

`[in]`	device_id	The device identifier.
`[out]`	device	The device specific data.

Returns:: EOK on success.; ENOENT if device is not found.; EPERM if the device is not initialized.

Referenced by irq_handler(), netif_get_addr_message(), netif_get_device_stats(), netif_send_message(), and register_message().

Here is the caller graph for this function:

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Distributes the messages between the module parts.

Delegates the messages to the netif_message() function.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each specific module message function.

References netif_message().

Here is the call graph for this function:

int module_start ( async_client_conn_t client_connection )

Starts the bundle network interface module.

Starts the network interface module.

Initializes the client connection serving function, initializes both module parts, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; Other error codes as defined for each specific module message function.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; Other error codes as defined for each specific module message function.

References ERROR_DECLARE, ERROR_PROPAGATE, netif_init_module(), and netif_run_module().

Here is the call graph for this function:

int netif_bind_service	(	services_t	service,
		device_id_t	device_id,
		services_t	me,
		async_client_conn_t	receiver
	)

Creates bidirectional connection with the network interface module and registers the message receiver.

Parameters:

`[in]`	service	The network interface module service.
`[in]`	device_id	The device identifier.
`[in]`	me	The requesting module service.
`[in]`	receiver	The message receiver.

Returns:: The phone of the needed service.; EOK on success.; Other error codes as defined for the bind_service() function.

References bind_service().

Referenced by eth_device_message(), and nildummy_device_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int netif_get_addr_message	(	device_id_t	device_id,
		measured_string_ref	address
	)

Returns the device local hardware address.

Parameters:

`[in]`	device_id	The device identifier.
`[out]`	address	The device local hardware address.

Returns:: EOK on success.; EBADMEM if the address parameter is NULL.; ENOENT if there no such device.; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References CONVERT_SIZE, DEFAULT_ADDR, DEFAULT_ADDR_LEN, ERROR_DECLARE, ERROR_PROPAGATE, find_device(), measured_string::length, netif_device::specific, and measured_string::value.

Here is the call graph for this function:

int netif_get_addr_req	(	int	netif_phone,
		device_id_t	device_id,
		measured_string_ref *	address,
		char **	data
	)

Returns the device local hardware address.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.
`[out]`	address	The device local hardware address.
`[out]`	data	The address data.

Returns:: EOK on success.; EBADMEM if the address parameter is NULL.; ENOENT if there no such device.; Other error codes as defined for the netif_get_addr_message() function.

References generic_get_addr_req(), and NET_NETIF_GET_ADDR.

Referenced by eth_device_message(), and nildummy_device_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int netif_get_device_stats	(	device_id_t	device_id,
		device_stats_ref	stats
	)

Returns the device usage statistics.

Parameters:

`[in]`	device_id	The device identifier.
`[out]`	stats	The device usage statistics.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References device_stats::collisions, ERROR_DECLARE, ERROR_PROPAGATE, eth_stat::ets_carrSense, eth_stat::ets_CDheartbeat, eth_stat::ets_collision, eth_stat::ets_CRCerr, eth_stat::ets_frameAll, eth_stat::ets_missedP, eth_stat::ets_OWC, eth_stat::ets_packetR, eth_stat::ets_packetT, eth_stat::ets_recvErr, eth_stat::ets_sendErr, eth_stat::ets_transAb, find_device(), null_device_stats(), device_stats::receive_crc_errors, device_stats::receive_errors, device_stats::receive_frame_errors, device_stats::receive_missed_errors, device_stats::receive_packets, device_stats::send_aborted_errors, device_stats::send_carrier_errors, device_stats::send_errors, device_stats::send_heartbeat_errors, device_stats::send_packets, device_stats::send_window_errors, and netif_device::specific.

Here is the call graph for this function:

int netif_init_module ( async_client_conn_t client_connection )

Initializes the netif module.

The function has to be defined in each module.

Parameters:

[in] client_connection The client connection functio to be registered.

Returns:: EOK on success.; Other error codes as defined for each specific module message function.

Referenced by module_start().

Here is the caller graph for this function:

int netif_initialize ( void )

Initializes the specific module.

References irq_handler(), and REGISTER_ME.

Here is the call graph for this function:

int netif_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the netif module messages.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each specific module message function.

See also:: netif_interface.h; IS_NET_NETIF_MESSAGE()

Referenced by module_message().

Here is the caller graph for this function:

packet_t netif_packet_get_1 ( size_t content )

Allocates new packet to handle the given content size.

Parameters:

[in] content The minimum content size.

Returns:: The allocated packet.; NULL if there is an error.

Referenced by dp_pkt2user().

Here is the caller graph for this function:

void netif_pq_release ( packet_id_t packet_id )

Releases the given packet.

Parameters:

[in] packet_id The packet identifier.

Referenced by dp_pkt2user(), dp_send(), netif_send_message(), and queue_packet().

Here is the caller graph for this function:

int netif_probe_message	(	device_id_t	device_id,
		int	irq,
		uintptr_t	io
	)

Probes the existence of the device.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	irq	The device interrupt number.
`[in]`	io	The device input/output address.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References create(), dpeth::de_base_port, dpeth::de_irq, dpeth::de_mode, DEM_DISABLED, netif_device::device_id, netif_globals::device_map, do_probe(), DP8390_IO_SIZE, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, free, NETIF_STOPPED, netif_device::nil_phone, netif_device::specific, and netif_device::state.

Here is the call graph for this function:

int netif_probe_req	(	int	netif_phone,
		device_id_t	device_id,
		int	irq,
		int	io
	)

Probes the existence of the device.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.
`[in]`	irq	The device interrupt number.
`[in]`	io	The device input/output address.

Returns:: EOK on success.; Other errro codes as defined for the netif_probe_message().

References NET_NETIF_PROBE.

Referenced by start_device().

Here is the caller graph for this function:

int netif_run_module ( void )

Starts and maintains the netif module until terminated.

Returns:: EOK after the module is terminated.

Referenced by module_start().

Here is the caller graph for this function:

int netif_send_message	(	device_id_t	device_id,
		packet_t	packet,
		services_t	sender
	)

Sends the packet queue.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	packet	The packet queue.
`[in]`	sender	The sending module service.

Returns:: EOK on success.; EFORWARD if the device is not active (in the NETIF_ACTIVE state).; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References do_pwrite(), ERROR_DECLARE, ERROR_PROPAGATE, FALSE, find_device(), netif_globals::lock, NETIF_ACTIVE, netif_pq_release(), netif_device::nil_phone, nil_received_msg(), packet_get_data(), packet_get_data_length(), packet_get_id(), pq_detach(), pq_next(), netif_device::specific, and netif_device::state.

Here is the call graph for this function:

int netif_send_msg	(	int	netif_phone,
		device_id_t	device_id,
		packet_t	packet,
		services_t	sender
	)

Sends the packet queue.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.
`[in]`	packet	The packet queue.
`[in]`	sender	The sending module service.

Returns:: EOK on success.; Other error codes as defined for the generic_send_msg() function.

References generic_send_msg(), NET_NETIF_SEND, and packet_get_id().

Referenced by eth_send_message(), and nildummy_send_message().

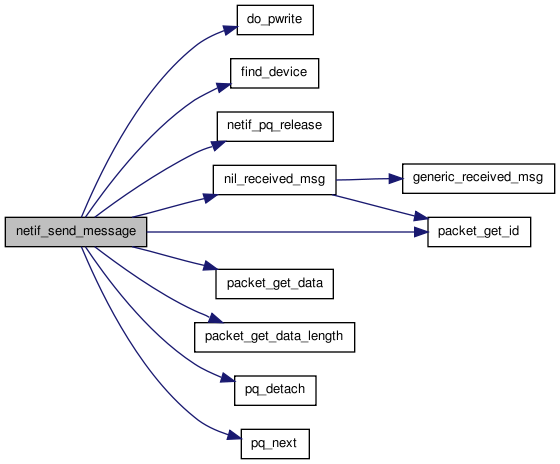

Here is the call graph for this function:

Here is the caller graph for this function:

int netif_specific_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the netif driver specific message.

This function is called for uncommon messages received by the netif skeleton.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for the specific module message implementation.

int netif_start_message ( device_ref device )

Starts the device.

Parameters:

[in] device The device structure.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References change_state(), change_state_message(), dpeth::de_dp8390_port, dpeth::de_irq, netif_device::device_id, DL_BROAD_REQ, do_init(), dp8390_cmds, dp8390_code, DP_ISR, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, NETIF_ACTIVE, netif_device::specific, and netif_device::state.

Here is the call graph for this function:

int netif_start_req	(	int	netif_phone,
		device_id_t	device_id
	)

Starts the device.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the netif_start_message() function.

References NET_NETIF_START.

Referenced by start_device().

Here is the caller graph for this function:

int netif_stats_req	(	int	netif_phone,
		device_id_t	device_id,
		device_stats_ref	stats
	)

Returns the device usage statistics.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.
`[out]`	stats	The device usage statistics.

Returns:: EOK on success.

References NET_NETIF_STATS.

int netif_stop_message ( device_ref device )

Stops the device.

Parameters:

[in] device The device structure.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the specific module message implementation.

References change_state(), change_state_message(), dpeth::de_irq, netif_device::device_id, do_stop(), NETIF_STOPPED, netif_device::specific, and netif_device::state.

Here is the call graph for this function:

int netif_stop_req	(	int	netif_phone,
		device_id_t	device_id
	)

Stops the device.

Parameters:

`[in]`	netif_phone	The network interface phone.
`[in]`	device_id	The device identifier.

Returns:: EOK on success.; Other error codes as defined for the find_device() function.; Other error codes as defined for the netif_stop_message() function.

References NET_NETIF_STOP.

void null_device_stats ( device_stats_ref stats )

Clears the usage statistics.

Parameters:

[in] stats The usage statistics.

Referenced by create(), and netif_get_device_stats().

Here is the caller graph for this function:
