Dummy network interface layer Service
[Network interface layer]

Collaboration diagram for Dummy network interface layer Service:

Data Structures
struct	nildummy_device
	Dummy nil device map. More...
struct	nildummy_proto
	Dummy nil protocol specific data. More...
struct	nildummy_globals
	Dummy nil global data. More...
Files
file	nildummy.c
	Dummy network interface layer module implementation.
file	nildummy.h
	Dummy network interface layer module.
file	nildummy_module.c
	Dummy network interface layer module stub.
Defines
#define	NET_DEFAULT_MTU 1500
	Default maximum transmission unit.
#define	NAME "Dummy nil protocol"
	The module name.
Typedefs
typedef struct nildummy_globals	nildummy_globals_t
	Type definition of the dummy nil global data.
typedef struct nildummy_device	nildummy_device_t
	Type definition of the dummy nil device specific data.
typedef nildummy_device_t *	nildummy_device_ref
	Type definition of the dummy nil device specific data pointer.
typedef struct nildummy_proto	nildummy_proto_t
	Type definition of the dummy nil protocol specific data.
typedef nildummy_proto_t *	nildummy_proto_ref
	Type definition of the dummy nil protocol specific data pointer.
Functions
int	nil_device_state_msg (int nil_phone, device_id_t device_id, int state)
int	nil_initialize (int net_phone)
	Module initialization.
int	nil_received_msg (int nil_phone, device_id_t device_id, packet_t packet, services_t target)
int	nil_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Message processing function.
void	module_print_name (void)
	Prints the module name.
int	module_start (async_client_conn_t client_connection)
	Starts the dummy nil module.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Passes the parameters to the module specific nil_message() function.
Variables
nildummy_globals_t	nildummy_globals
	Network interface layer module global data.
Message processing functions

void	nildummy_receiver (ipc_callid_t iid, ipc_call_t *icall)
	Processes IPC messages from the registered device driver modules in an infinite loop.
int	nildummy_device_message (device_id_t device_id, services_t service, size_t mtu)
	Registers new device or updates the MTU of an existing one.
int	nildummy_packet_space_message (device_id_t device_id, size_t addr_len, size_t prefix, size_t content, size_t suffix)
	Returns the device packet dimensions for sending.
int	nildummy_register_message (services_t service, int phone)
	Registers receiving module service.
int	nildummy_send_message (device_id_t device_id, packet_t packet, services_t sender)
	Sends the packet queue.
int	nildummy_addr_message (device_id_t device_id, measured_string_ref *address)
	Returns the device hardware address.

Define Documentation

#define NAME "Dummy nil protocol"

The module name.

#define NET_DEFAULT_MTU 1500

Default maximum transmission unit.

Referenced by nildummy_device_message().

Typedef Documentation

typedef nildummy_device_t* nildummy_device_ref

Type definition of the dummy nil device specific data pointer.

See also:: nildummy_device

typedef struct nildummy_device nildummy_device_t

Type definition of the dummy nil device specific data.

See also:: nildummy_device

typedef struct nildummy_globals nildummy_globals_t

Type definition of the dummy nil global data.

See also:: nildummy_globals

typedef nildummy_proto_t* nildummy_proto_ref

Type definition of the dummy nil protocol specific data pointer.

See also:: nildummy_proto

typedef struct nildummy_proto nildummy_proto_t

Type definition of the dummy nil protocol specific data.

See also:: nildummy_proto

Function Documentation

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Passes the parameters to the module specific nil_message() function.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each specific module message function.

References nil_message().

Here is the call graph for this function:

void module_print_name ( void )

Prints the module name.

References NAME.

int module_start ( async_client_conn_t client_connection )

Starts the dummy nil module.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; Other error codes as defined for the pm_init() function.; Other error codes as defined for the nil_initialize() function.; Other error codes as defined for the REGISTER_ME() macro function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, net_connect_module(), nil_initialize(), pm_destroy(), pm_init(), and REGISTER_ME.

Here is the call graph for this function:

int nil_device_state_msg	(	int	nil_phone,
		device_id_t	device_id,
		int	state
	)

References il_device_state_msg(), nildummy_proto::phone, nildummy_globals::proto, nildummy_globals::protos_lock, and nildummy_proto::service.

Here is the call graph for this function:

int nil_initialize ( int net_phone )

Module initialization.

Is called by the module_start() function.

Parameters:

[in] net_phone The networking moduel phone.

Returns:: EOK on success.; Other error codes as defined for each specific module initialize function.

References eth_globals::broadcast_addr, CONVERT_SIZE, nildummy_globals::devices, eth_globals::devices, nildummy_globals::devices_lock, eth_globals::devices_lock, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, ETH_ADDR, measured_string_create_bulk(), nildummy_globals::net_phone, eth_globals::net_phone, nildummy_proto::phone, nildummy_globals::proto, eth_globals::protos, nildummy_globals::protos_lock, and eth_globals::protos_lock.

Here is the call graph for this function:

int nil_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Message processing function.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for each specific module message function.

See also:: nil_interface.h; IS_NET_NIL_MESSAGE()

References ERROR_DECLARE, ERROR_PROPAGATE, eth_addr_message(), ETH_BROADCAST_ADDR, eth_device_message(), ETH_LOCAL_ADDR, eth_packet_space_message(), eth_register_message(), eth_send_message(), IPC_GET_DEVICE, IPC_GET_MTU, IPC_GET_PACKET, IPC_GET_PHONE, IPC_GET_SERVICE, IPC_SET_ADDR, IPC_SET_CONTENT, IPC_SET_PREFIX, IPC_SET_SUFFIX, measured_strings_reply(), NET_NIL_ADDR, NET_NIL_BROADCAST_ADDR, NET_NIL_DEVICE, NET_NIL_PACKET_SPACE, NET_NIL_SEND, nildummy_globals::net_phone, eth_globals::net_phone, NIL_GET_PROTO, nildummy_addr_message(), nildummy_device_message(), nildummy_packet_space_message(), nildummy_register_message(), nildummy_send_message(), and packet_translate().

Here is the call graph for this function:

int nil_received_msg	(	int	nil_phone,
		device_id_t	device_id,
		packet_t	packet,
		services_t	target
	)

References il_received_msg(), nildummy_proto::phone, pq_detach(), nildummy_globals::proto, nildummy_globals::protos_lock, and nildummy_proto::service.

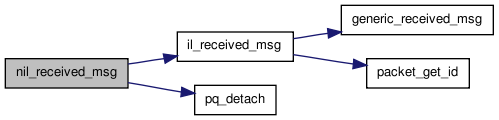

Here is the call graph for this function:

int nildummy_addr_message	(	device_id_t	device_id,
		measured_string_ref *	address
	)

Returns the device hardware address.

Parameters:

`[in]`	device_id	The device identifier.
`[out]`	address	The device hardware address.

Returns:: EOK on success.; EBADMEM if the address parameter is NULL.; ENOENT if there no such device.

References nildummy_device::addr, nildummy_globals::devices, and nildummy_globals::devices_lock.

Referenced by nil_message().

Here is the caller graph for this function:

int nildummy_device_message	(	device_id_t	device_id,
		services_t	service,
		size_t	mtu
	)

Registers new device or updates the MTU of an existing one.

Determines the device local hardware address.

Parameters:

`[in]`	device_id	The new device identifier.
`[in]`	service	The device driver service.
`[in]`	mtu	The device maximum transmission unit.

Returns:: EOK on success.; EEXIST if the device with the different service exists.; ENOMEM if there is not enough memory left.; Other error codes as defined for the netif_bind_service() function.; Other error codes as defined for the netif_get_addr_req() function.

References nildummy_device::addr, nildummy_device::addr_data, nildummy_device::device_id, nildummy_globals::devices, nildummy_globals::devices_lock, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, il_mtu_changed_msg(), nildummy_device::mtu, NET_DEFAULT_MTU, netif_bind_service(), netif_get_addr_req(), nildummy_receiver(), nildummy_device::phone, nildummy_proto::phone, nildummy_globals::proto, nildummy_globals::protos_lock, nildummy_proto::service, and nildummy_device::service.

Referenced by nil_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int nildummy_packet_space_message	(	device_id_t	device_id,
		size_t *	addr_len,
		size_t *	prefix,
		size_t *	content,
		size_t *	suffix
	)

Returns the device packet dimensions for sending.

Parameters:

`[in]`	device_id	The device identifier.
`[out]`	addr_len	The minimum reserved address length.
`[out]`	prefix	The minimum reserved prefix size.
`[out]`	content	The maximum content size.
`[out]`	suffix	The minimum reserved suffix size.

Returns:: EOK on success.; EBADMEM if either one of the parameters is NULL.; ENOENT if there is no such device.

References nildummy_globals::devices, nildummy_globals::devices_lock, and nildummy_device::mtu.

Referenced by nil_message().

Here is the caller graph for this function:

void nildummy_receiver	(	ipc_callid_t	iid,
		ipc_call_t *	icall
	)

Processes IPC messages from the registered device driver modules in an infinite loop.

Parameters:

`[in]`	iid	The message identifier.
`[in,out]`	icall	The message parameters.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, IPC_GET_DEVICE, IPC_GET_PACKET, IPC_GET_STATE, NET_NIL_DEVICE_STATE, NET_NIL_RECEIVED, nildummy_globals::net_phone, nil_device_state_msg(), nil_received_msg(), and packet_translate().

Referenced by nildummy_device_message().

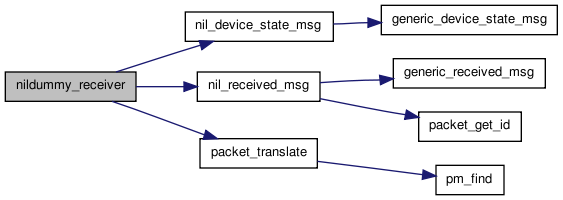

Here is the call graph for this function:

Here is the caller graph for this function:

int nildummy_register_message	(	services_t	service,
		int	phone
	)

Registers receiving module service.

Passes received packets for this service.

Parameters:

`[in]`	service	The module service.
`[in]`	phone	The service phone.

Returns:: EOK on success.; ENOENT if the service is not known.; ENOMEM if there is not enough memory left.

References nildummy_proto::phone, nildummy_globals::proto, nildummy_globals::protos_lock, and nildummy_proto::service.

Referenced by nil_message().

Here is the caller graph for this function:

int nildummy_send_message	(	device_id_t	device_id,
		packet_t	packet,
		services_t	sender
	)

Sends the packet queue.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	packet	The packet queue.
`[in]`	sender	The sending module service.

Returns:: EOK on success.; ENOENT if there no such device.; EINVAL if the service parameter is not known.

References nildummy_globals::devices, nildummy_globals::devices_lock, netif_send_msg(), and nildummy_device::phone.

Referenced by nil_message().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

nildummy_globals_t nildummy_globals

Network interface layer module global data.
