Transmission Control Protocol (TCP) Service
[Transport layer]

Collaboration diagram for Transmission Control Protocol (TCP) Service:

Data Structures
struct	tcp_timeout
	TCP reply timeout data. More...
struct	tcp_operation
	TCP operation data. More...
struct	tcp_socket_data
	TCP socket specific data. More...
struct	tcp_globals
	TCP global data. More...
struct	tcp_header
	Transmission datagram header. More...
struct	tcp_option
	Transmission datagram header option. More...
struct	tcp_max_segment_size_option
	Maximum segment size TCP option. More...
Files
file	tcp_codes.h
	TCP options definitions.
file	tcp.c
	TCP module implementation.
file	tcp.h
	TCP module.
file	tcp_header.h
	TCP header definition.
file	tcp_module.c
	TCP standalone module implementation.
file	tcp_module.h
	TCP module functions.
Defines
#define	TCPOPT_END_OF_LIST 0x0
	End of list TCP option.
#define	TCPOPT_NO_OPERATION 0x1
	No operation TCP option.
#define	TCPOPT_MAX_SEGMENT_SIZE 0x2
	Maximum segment size TCP option.
#define	TCPOPT_MAX_SEGMENT_SIZE_LENGTH 4
	Maximum segment size TCP option length.
#define	TCPOPT_WINDOW_SCALE 0x3
	Window scale TCP option.
#define	TCPOPT_WINDOW_SCALE_LENGTH 3
	Window scale TCP option length.
#define	TCPOPT_SACK_PERMITTED 0x4
	Selective acknowledgement permitted TCP option.
#define	TCPOPT_SACK_PERMITTED_LENGTH 2
	Selective acknowledgement permitted TCP option length.
#define	TCPOPT_SACK 0x5
	Selective acknowledgement TCP option.
#define	TCPOPT_TIMESTAMP 0x8
	Timestamp TCP option.
#define	TCPOPT_TIMESTAMP_LENGTH 10
	Timestamp TCP option length.
#define	NET_DEFAULT_TCP_WINDOW 10240
	The TCP window default value.
#define	NET_DEFAULT_TCP_INITIAL_TIMEOUT 3000000L
	Initial timeout for new connections.
#define	NET_DEFAULT_TCP_TIME_WAIT_TIMEOUT 2000L
	Default timeout for closing.
#define	TCP_INITIAL_SEQUENCE_NUMBER 2999
	The initial outgoing sequence number.
#define	MAX_TCP_FRAGMENT_SIZE 65535
	Maximum TCP fragment size.
#define	TCP_FREE_PORTS_START 1025
	Free ports pool start.
#define	TCP_FREE_PORTS_END 65535
	Free ports pool end.
#define	TCP_SYN_SENT_TIMEOUT 1000000L
	Timeout for connection initialization, SYN sent.
#define	TCP_MAX_TIMEOUTS 8
	The maximum number of timeouts in a row before singaling connection lost.
#define	TCP_FAST_RETRANSMIT_COUNT 3
	The number of acknowledgements before retransmit.
#define	IS_IN_INTERVAL_OVERFLOW(lower, value, higher_equal) ((((lower) < (value)) && (((value) <= (higher_equal)) \|\| ((higher_equal) < (lower)))) \|\| (((value) <= (higher_equal)) && ((higher_equal) < (lower))))
	Returns a value indicating whether the value is in the interval respecting the possible overflow.
#define	TCP_HEADER_SIZE sizeof(tcp_header_t)
	TCP header size in bytes.
#define	TCP_HEADER_LENGTH(header) ((header)->header_length * 4u)
	Returns the actual TCP header length in bytes.
#define	TCP_COMPUTE_HEADER_LENGTH(length) ((uint8_t) ((length) / 4u))
	Returns the TCP header length.
#define	NAME "TCP protocol"
	TCP module name.
Typedefs
typedef struct tcp_timeout	tcp_timeout_t
	Type definition of the TCP timeout.
typedef tcp_timeout_t *	tcp_timeout_ref
	Type definition of the TCP timeout pointer.
typedef struct tcp_globals	tcp_globals_t
	Type definition of the TCP global data.
typedef struct tcp_socket_data	tcp_socket_data_t
	Type definition of the TCP socket specific data.
typedef tcp_socket_data_t *	tcp_socket_data_ref
	Type definition of the TCP socket specific data pointer.
typedef struct tcp_operation	tcp_operation_t
	Type definition of the TCP operation data.
typedef tcp_operation_t *	tcp_operation_ref
	Type definition of the TCP operation data pointer.
typedef enum tcp_socket_state	tcp_socket_state_t
	TCP socket state type definition.
typedef struct tcp_header	tcp_header_t
	Type definition of the transmission datagram header.
typedef tcp_header_t *	tcp_header_ref
	Type definition of the transmission datagram header pointer.
typedef struct tcp_option	tcp_option_t
	Type definition of the transmission datagram header option.
typedef tcp_option_t *	tcp_option_ref
	Type definition of the transmission datagram header option pointer.
typedef struct tcp_max_segment_size_option	tcp_max_segment_size_option_t
	Type definition of the Maximum segment size TCP option.
typedef tcp_max_segment_size_option_t *	tcp_max_segment_size_option_ref
	Type definition of the Maximum segment size TCP option pointer.
Enumerations
enum	tcp_socket_state { TCP_SOCKET_INITIAL, TCP_SOCKET_LISTEN, TCP_SOCKET_SYN_SENT, TCP_SOCKET_SYN_RECEIVED, TCP_SOCKET_ESTABLISHED, TCP_SOCKET_FIN_WAIT_1, TCP_SOCKET_FIN_WAIT_2, TCP_SOCKET_CLOSING, TCP_SOCKET_CLOSE_WAIT, TCP_SOCKET_LAST_ACK, TCP_SOCKET_TIME_WAIT, TCP_SOCKET_CLOSED }
	TCP socket state. More...
Functions
int	tcp_release_and_return (packet_t packet, int result)
	Releases the packet and returns the result.
void	tcp_prepare_operation_header (socket_core_ref socket, tcp_socket_data_ref socket_data, tcp_header_ref header, int synchronize, int finalize)
int	tcp_prepare_timeout (int(timeout_function)(void tcp_timeout_t), socket_core_ref socket, tcp_socket_data_ref socket_data, size_t sequence_number, tcp_socket_state_t state, suseconds_t timeout, int globals_read_only)

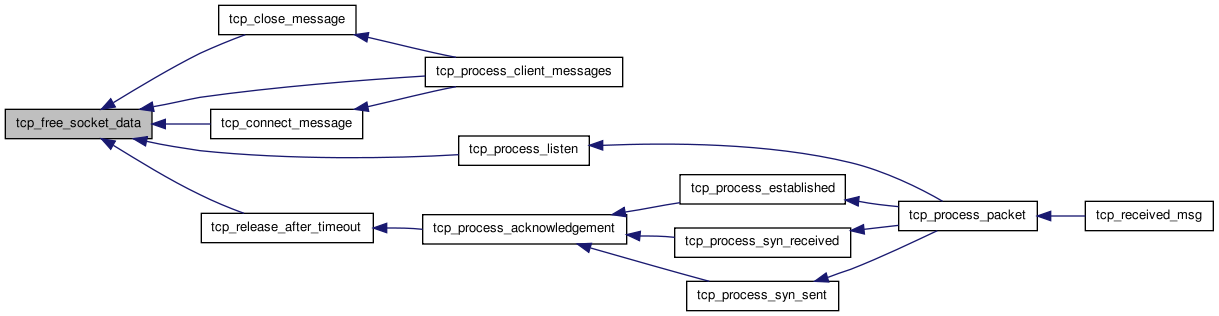

void	tcp_free_socket_data (socket_core_ref socket)
int	tcp_timeout (void *data)
int	tcp_release_after_timeout (void *data)
int	tcp_process_packet (device_id_t device_id, packet_t packet, services_t error)
int	tcp_connect_core (socket_core_ref socket, socket_cores_ref local_sockets, struct sockaddr *addr, socklen_t addrlen)
int	tcp_queue_prepare_packet (socket_core_ref socket, tcp_socket_data_ref socket_data, packet_t packet, size_t data_length)
int	tcp_queue_packet (socket_core_ref socket, tcp_socket_data_ref socket_data, packet_t packet, size_t data_length)
packet_t	tcp_get_packets_to_send (socket_core_ref socket, tcp_socket_data_ref socket_data)
void	tcp_send_packets (device_id_t device_id, packet_t packet)
void	tcp_process_acknowledgement (socket_core_ref socket, tcp_socket_data_ref socket_data, tcp_header_ref header)
packet_t	tcp_send_prepare_packet (socket_core_ref socket, tcp_socket_data_ref socket_data, packet_t packet, size_t data_length, size_t sequence_number)

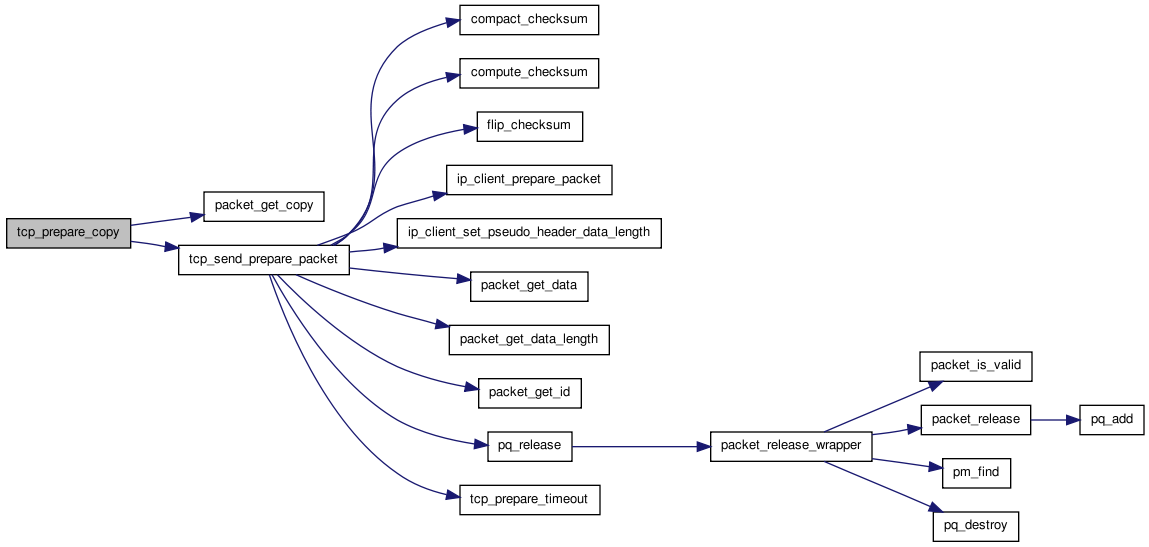

packet_t	tcp_prepare_copy (socket_core_ref socket, tcp_socket_data_ref socket_data, packet_t packet, size_t data_length, size_t sequence_number)
void	tcp_retransmit_packet (socket_core_ref socket, tcp_socket_data_ref socket_data, size_t sequence_number)
int	tcp_create_notification_packet (packet_t *packet, socket_core_ref socket, tcp_socket_data_ref socket_data, int synchronize, int finalize)
void	tcp_refresh_socket_data (tcp_socket_data_ref socket_data)
void	tcp_initialize_socket_data (tcp_socket_data_ref socket_data)
int	tcp_process_listen (socket_core_ref listening_socket, tcp_socket_data_ref listening_socket_data, tcp_header_ref header, packet_t packet, struct sockaddr src, struct sockaddr dest, size_t addrlen)
int	tcp_process_syn_sent (socket_core_ref socket, tcp_socket_data_ref socket_data, tcp_header_ref header, packet_t packet)

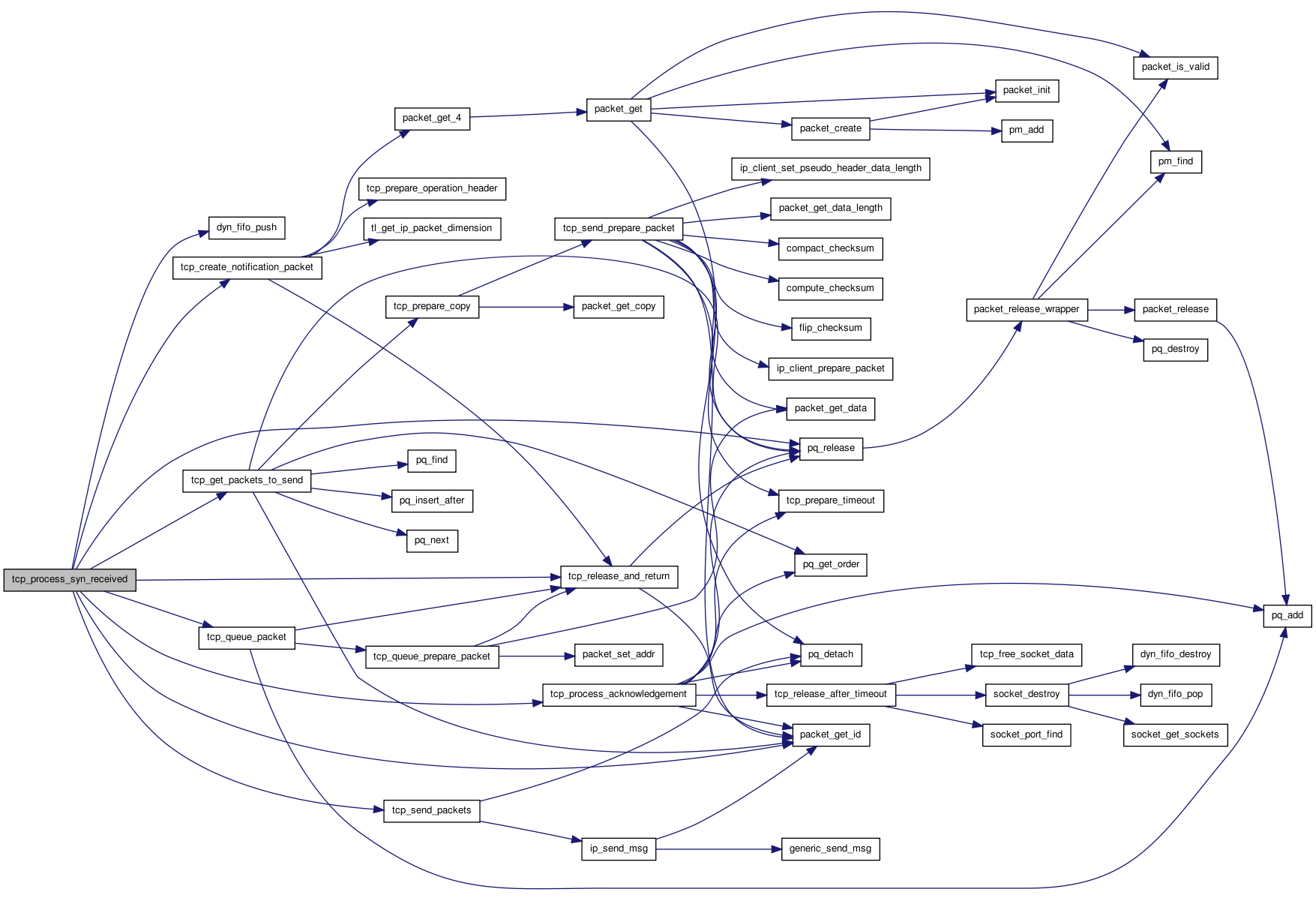

int	tcp_process_syn_received (socket_core_ref socket, tcp_socket_data_ref socket_data, tcp_header_ref header, packet_t packet)
int	tcp_process_established (socket_core_ref socket, tcp_socket_data_ref socket_data, tcp_header_ref header, packet_t packet, int fragments, size_t total_length)

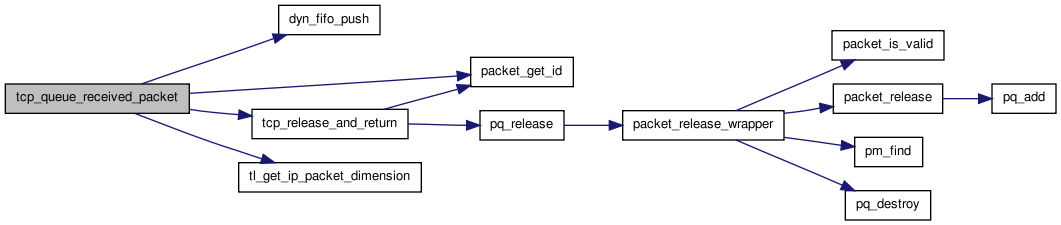

int	tcp_queue_received_packet (socket_core_ref socket, tcp_socket_data_ref socket_data, packet_t packet, int fragments, size_t total_length)
int	tcp_received_msg (device_id_t device_id, packet_t packet, services_t receiver, services_t error)
int	tcp_process_client_messages (ipc_callid_t callid, ipc_call_t call)
int	tcp_listen_message (socket_cores_ref local_sockets, int socket_id, int backlog)
int	tcp_connect_message (socket_cores_ref local_sockets, int socket_id, struct sockaddr *addr, socklen_t addrlen)
int	tcp_recvfrom_message (socket_cores_ref local_sockets, int socket_id, int flags, size_t *addrlen)
int	tcp_send_message (socket_cores_ref local_sockets, int socket_id, int fragments, size_t *data_fragment_size, int flags)
int	tcp_accept_message (socket_cores_ref local_sockets, int socket_id, int new_socket_id, size_t data_fragment_size, size_t addrlen)
int	tcp_close_message (socket_cores_ref local_sockets, int socket_id)
int	tcp_initialize (async_client_conn_t client_connection)
	Initializes the TCP module.
int	tcp_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the TCP message.
void	module_print_name (void)
	Prints the module name.
int	module_start (async_client_conn_t client_connection)
	Starts the TCP module.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the TCP message.
Variables
tcp_globals_t	tcp_globals
	TCP global data.
tcp_globals_t	tcp_globals
	TCP module global data.

Define Documentation

#define IS_IN_INTERVAL_OVERFLOW	(	lower,
		value,
		higher_equal	)	((((lower) < (value)) && (((value) <= (higher_equal)) \|\| ((higher_equal) < (lower)))) \|\| (((value) <= (higher_equal)) && ((higher_equal) < (lower))))

Returns a value indicating whether the value is in the interval respecting the possible overflow.

The high end and/or the value may overflow, be lower than the low value.

Parameters:

`[in]`	lower	The last value before the interval.
`[in]`	value	The value to be checked.
`[in]`	higher_equal	The last value in the interval.

Referenced by tcp_get_packets_to_send(), tcp_process_acknowledgement(), and tcp_process_established().

#define MAX_TCP_FRAGMENT_SIZE 65535

Maximum TCP fragment size.

Referenced by tcp_initialize_socket_data().

#define NAME "TCP protocol"

TCP module name.

#define NET_DEFAULT_TCP_INITIAL_TIMEOUT 3000000L

Initial timeout for new connections.

Referenced by tcp_connect_core(), and tcp_refresh_socket_data().

#define NET_DEFAULT_TCP_TIME_WAIT_TIMEOUT 2000L

Default timeout for closing.

Referenced by tcp_process_acknowledgement().

#define NET_DEFAULT_TCP_WINDOW 10240

The TCP window default value.

Referenced by tcp_refresh_socket_data().

#define TCP_COMPUTE_HEADER_LENGTH ( length ) ((uint8_t) ((length) / 4u))

Returns the TCP header length.

Parameters:

[in] length The TCP header length in bytes.

Referenced by tcp_prepare_operation_header().

#define TCP_FAST_RETRANSMIT_COUNT 3

The number of acknowledgements before retransmit.

Referenced by tcp_process_acknowledgement().

#define TCP_FREE_PORTS_END 65535

Free ports pool end.

Referenced by tcp_connect_core(), and tcp_process_client_messages().

#define TCP_FREE_PORTS_START 1025

Free ports pool start.

Referenced by tcp_connect_core(), and tcp_process_client_messages().

#define TCP_HEADER_LENGTH ( header ) ((header)->header_length * 4u)

Returns the actual TCP header length in bytes.

Parameters:

[in] header The TCP packet header.

Referenced by tcp_process_established().

#define TCP_HEADER_SIZE sizeof(tcp_header_t)

TCP header size in bytes.

Referenced by tcp_create_notification_packet(), tcp_process_client_messages(), tcp_process_packet(), tcp_process_syn_received(), and tcp_send_message().

#define TCP_INITIAL_SEQUENCE_NUMBER 2999

The initial outgoing sequence number.

Referenced by tcp_refresh_socket_data().

#define TCP_MAX_TIMEOUTS 8

The maximum number of timeouts in a row before singaling connection lost.

Referenced by tcp_timeout().

#define TCP_SYN_SENT_TIMEOUT 1000000L

Timeout for connection initialization, SYN sent.

#define TCPOPT_END_OF_LIST 0x0

End of list TCP option.

#define TCPOPT_MAX_SEGMENT_SIZE 0x2

Maximum segment size TCP option.

#define TCPOPT_MAX_SEGMENT_SIZE_LENGTH 4

Maximum segment size TCP option length.

#define TCPOPT_NO_OPERATION 0x1

No operation TCP option.

#define TCPOPT_SACK 0x5

Selective acknowledgement TCP option.

Has variable length.

#define TCPOPT_SACK_PERMITTED 0x4

Selective acknowledgement permitted TCP option.

#define TCPOPT_SACK_PERMITTED_LENGTH 2

Selective acknowledgement permitted TCP option length.

#define TCPOPT_TIMESTAMP 0x8

Timestamp TCP option.

#define TCPOPT_TIMESTAMP_LENGTH 10

Timestamp TCP option length.

#define TCPOPT_WINDOW_SCALE 0x3

Window scale TCP option.

#define TCPOPT_WINDOW_SCALE_LENGTH 3

Window scale TCP option length.

Typedef Documentation

typedef struct tcp_globals tcp_globals_t

Type definition of the TCP global data.

See also:: tcp_globals

typedef tcp_header_t* tcp_header_ref

Type definition of the transmission datagram header pointer.

See also:: tcp_header

typedef struct tcp_header tcp_header_t

Type definition of the transmission datagram header.

See also:: tcp_header

typedef tcp_max_segment_size_option_t* tcp_max_segment_size_option_ref

Type definition of the Maximum segment size TCP option pointer.

See also:: tcp_max_segment_size_option

typedef struct tcp_max_segment_size_option tcp_max_segment_size_option_t

Type definition of the Maximum segment size TCP option.

See also:: ...

typedef tcp_operation_t* tcp_operation_ref

Type definition of the TCP operation data pointer.

See also:: tcp_operation

typedef struct tcp_operation tcp_operation_t

Type definition of the TCP operation data.

See also:: tcp_operation

typedef tcp_option_t* tcp_option_ref

Type definition of the transmission datagram header option pointer.

See also:: tcp_option

typedef struct tcp_option tcp_option_t

Type definition of the transmission datagram header option.

See also:: tcp_option

typedef tcp_socket_data_t* tcp_socket_data_ref

Type definition of the TCP socket specific data pointer.

See also:: tcp_socket_data

typedef struct tcp_socket_data tcp_socket_data_t

Type definition of the TCP socket specific data.

See also:: tcp_socket_data

typedef enum tcp_socket_state tcp_socket_state_t

TCP socket state type definition.

See also:: tcp_socket_state

typedef tcp_timeout_t* tcp_timeout_ref

Type definition of the TCP timeout pointer.

See also:: tcp_timeout

typedef struct tcp_timeout tcp_timeout_t

Type definition of the TCP timeout.

See also:: tcp_timeout

Enumeration Type Documentation

enum tcp_socket_state

TCP socket state.

Enumerator:

TCP_SOCKET_INITIAL	Initial. Not connected or bound.
TCP_SOCKET_LISTEN	Listening. Awaiting a connection request from another TCP layer. When SYN is received a new bound socket in the TCP_SOCKET_SYN_RECEIVED state should be created.
TCP_SOCKET_SYN_SENT	Connecting issued. A~SYN has been sent, and TCP is awaiting the response SYN. Should continue to the TCP_SOCKET_ESTABLISHED state.
TCP_SOCKET_SYN_RECEIVED	Connecting received. A~SYN has been received, a~SYN has been sent, and TCP is awaiting an ACK. Should continue to the TCP_SOCKET_ESTABLISHED state.
TCP_SOCKET_ESTABLISHED	Connected. The three-way handshake has been completed.
TCP_SOCKET_FIN_WAIT_1	Closing started. The local application has issued a~CLOSE. TCP has sent a~FIN, and is awaiting an ACK or a~FIN. Should continue to the TCP_SOCKET_FIN_WAIT_2 state when an ACK is received. Should continue to the TCP_SOCKET_CLOSING state when a~FIN is received.
TCP_SOCKET_FIN_WAIT_2	Closing confirmed. A~FIN has been sent, and an ACK received. TCP is awaiting a~FIN from the remote TCP layer. Should continue to the TCP_SOCKET_CLOSING state.
TCP_SOCKET_CLOSING	Closing. A FIN has been sent, a FIN has been received, and an ACK has been sent. TCP is awaiting an ACK for the FIN that was sent. Should continue to the TCP_SOCKET_TIME_WAIT state.
TCP_SOCKET_CLOSE_WAIT	Closing received. TCP has received a~FIN, and has sent an ACK. It is awaiting a~close request from the local application before sending a~FIN. Should continue to the TCP_SOCKET_SOCKET_LAST_ACK state.
TCP_SOCKET_LAST_ACK	A~FIN has been received, and an ACK and a~FIN have been sent. TCP is awaiting an ACK. Should continue to the TCP_SOCKET_TIME_WAIT state.
TCP_SOCKET_TIME_WAIT	Closing finished. FINs have been received and ACK’d, and TCP is waiting two MSLs to remove the connection from the table.
TCP_SOCKET_CLOSED	Closed. Imaginary, this indicates that a~connection has been removed from the connection table.

Function Documentation

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the TCP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; Other error codes as defined for the tcp_message() function.

References tcp_message().

Here is the call graph for this function:

void module_print_name ( void )

Prints the module name.

See also:: NAME

References NAME.

int module_start ( async_client_conn_t client_connection )

Starts the TCP module.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on successful module termination.; Other error codes as defined for the tcp_initialize() function.; Other error codes as defined for the REGISTER_ME() macro function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, net_connect_module(), tcp_globals::net_phone, pm_destroy(), pm_init(), REGISTER_ME, and tcp_initialize().

Here is the call graph for this function:

int tcp_accept_message	(	socket_cores_ref	local_sockets,
		int	socket_id,
		int	new_socket_id,
		size_t *	data_fragment_size,
		size_t *	addrlen
	)

References socket_core::accepted, tcp_socket_data::addr, tcp_socket_data::addrlen, packet_dimension::content, tcp_socket_data::data_fragment_size, data_reply(), tcp_socket_data::device_id, tcp_globals::dimensions, dyn_fifo_pop(), dyn_fifo_value(), ENOTSOCK, ERROR_DECLARE, ERROR_PROPAGATE, tcp_globals::ip_phone, socket_core::socket_id, socket_core::specific_data, tcp_socket_data::state, TCP_SOCKET_ESTABLISHED, TCP_SOCKET_LISTEN, and tl_get_ip_packet_dimension().

Referenced by tcp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_close_message	(	socket_cores_ref	local_sockets,
		int	socket_id
	)

References tcp_socket_data::device_id, ENOTSOCK, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, tcp_socket_data::local_lock, tcp_globals::lock, tcp_globals::net_phone, socket_destroy(), tcp_globals::sockets, socket_core::specific_data, tcp_socket_data::state, tcp_create_notification_packet(), tcp_free_socket_data(), tcp_get_packets_to_send(), tcp_queue_packet(), tcp_send_packets(), TCP_SOCKET_CLOSE_WAIT, TCP_SOCKET_ESTABLISHED, TCP_SOCKET_FIN_WAIT_1, and TCP_SOCKET_LAST_ACK.

Referenced by tcp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_connect_core	(	socket_core_ref	socket,
		socket_cores_ref	local_sockets,
		struct sockaddr *	addr,
		socklen_t	addrlen
	)

References tcp_socket_data::addr, tcp_socket_data::addrlen, tcp_operation::condvar, tcp_socket_data::dest_port, tcp_socket_data::device_id, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, tcp_socket_data::headerlen, ip_get_route_req(), tcp_globals::ip_phone, IPPROTO_TCP, tcp_globals::last_used_port, tcp_socket_data::local_lock, tcp_globals::lock, tcp_operation::mutex, NET_DEFAULT_TCP_INITIAL_TIMEOUT, tcp_socket_data::operation, packet_get_id(), socket_core::port, tcp_socket_data::pseudo_header, tcp_operation::result, socket_bind_free_port(), tcp_globals::sockets, socket_core::specific_data, tcp_socket_data::state, tcp_create_notification_packet(), TCP_FREE_PORTS_END, TCP_FREE_PORTS_START, tcp_get_packets_to_send(), tcp_prepare_timeout(), tcp_queue_packet(), tcp_send_packets(), TCP_SOCKET_INITIAL, TCP_SOCKET_LISTEN, and tl_get_address_port().

Referenced by tcp_connect_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_connect_message	(	socket_cores_ref	local_sockets,
		int	socket_id,
		struct sockaddr *	addr,
		socklen_t	addrlen
	)

References ENOTSOCK, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, socket_core::port, tcp_globals::sockets, tcp_connect_core(), and tcp_free_socket_data().

Referenced by tcp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_create_notification_packet	(	packet_t *	packet,
		socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		int	synchronize,
		int	finalize
	)

References packet_dimension::addr_len, tcp_socket_data::device_id, tcp_globals::dimensions, ERROR_DECLARE, ERROR_PROPAGATE, tcp_globals::ip_phone, tcp_globals::net_phone, packet_get_4(), PACKET_SUFFIX, packet_dimension::prefix, packet_dimension::suffix, TCP_HEADER_SIZE, tcp_prepare_operation_header(), tcp_release_and_return(), and tl_get_ip_packet_dimension().

Referenced by tcp_close_message(), tcp_connect_core(), tcp_process_established(), and tcp_process_syn_received().

Here is the call graph for this function:

Here is the caller graph for this function:

void tcp_free_socket_data ( socket_core_ref socket )

References tcp_socket_data::addr, tcp_socket_data::addrlen, free, tcp_socket_data::headerlen, tcp_socket_data::pseudo_header, socket_core::socket_id, and socket_core::specific_data.

Referenced by tcp_close_message(), tcp_connect_message(), tcp_process_client_messages(), tcp_process_listen(), and tcp_release_after_timeout().

Here is the caller graph for this function:

packet_t tcp_get_packets_to_send	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data
	)

References ERROR_DECLARE, ERROR_OCCURRED, tcp_socket_data::expected, IS_IN_INTERVAL_OVERFLOW, tcp_socket_data::last_outgoing, tcp_globals::net_phone, tcp_socket_data::next_outgoing, tcp_socket_data::outgoing, packet_get_id(), pq_find(), pq_get_order(), pq_insert_after(), pq_next(), pq_release(), socket_core::specific_data, tcp_prepare_copy(), and tcp_socket_data::treshold.

Referenced by tcp_close_message(), tcp_connect_core(), tcp_process_established(), tcp_process_listen(), tcp_process_syn_received(), tcp_process_syn_sent(), and tcp_send_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_initialize ( async_client_conn_t client_connection )

Initializes the TCP module.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

Referenced by module_start().

Here is the caller graph for this function:

void tcp_initialize_socket_data ( tcp_socket_data_ref socket_data )

References tcp_operation::condvar, tcp_socket_data::data_fragment_size, MAX_TCP_FRAGMENT_SIZE, tcp_operation::mutex, tcp_socket_data::operation, and tcp_refresh_socket_data().

Referenced by tcp_process_client_messages(), and tcp_process_listen().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_listen_message	(	socket_cores_ref	local_sockets,
		int	socket_id,
		int	backlog
	)

References tcp_socket_data::backlog, ENOTSOCK, and socket_core::specific_data.

Referenced by tcp_process_client_messages().

Here is the caller graph for this function:

int tcp_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the TCP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.

See also:: tcp_interface.h; IS_NET_TCP_MESSAGE()

Referenced by module_message().

Here is the caller graph for this function:

packet_t tcp_prepare_copy	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		packet_t	packet,
		size_t	data_length,
		size_t	sequence_number
	)

References tcp_globals::net_phone, packet_get_copy(), socket_core::specific_data, and tcp_send_prepare_packet().

Referenced by tcp_get_packets_to_send(), and tcp_retransmit_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

void tcp_prepare_operation_header	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		tcp_header_ref	header,
		int	synchronize,
		int	finalize
	)

References tcp_socket_data::dest_port, tcp_header::finalize, tcp_header::header_length, htons, socket_core::port, tcp_header::source_port, socket_core::specific_data, tcp_header::synchronize, and TCP_COMPUTE_HEADER_LENGTH.

Referenced by tcp_create_notification_packet(), tcp_process_listen(), tcp_process_syn_sent(), and tcp_send_message().

Here is the caller graph for this function:

int tcp_prepare_timeout	(	int()(void tcp_timeout_t)	timeout_function,
		socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		size_t	sequence_number,
		tcp_socket_state_t	state,
		suseconds_t	timeout,
		int	globals_read_only
	)

References free, tcp_timeout::globals_read_only, socket_core::key, tcp_timeout::key, tcp_timeout::key_length, socket_core::key_length, tcp_socket_data::local_sockets, tcp_timeout::local_sockets, socket_core::port, tcp_timeout::port, tcp_timeout::sequence_number, socket_core::socket_id, tcp_timeout::socket_id, socket_core::specific_data, tcp_timeout::state, and tcp_timeout::timeout.

Referenced by tcp_connect_core(), tcp_process_acknowledgement(), and tcp_send_prepare_packet().

Here is the caller graph for this function:

void tcp_process_acknowledgement	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		tcp_header_ref	header
	)

References tcp_header::acknowledge, tcp_header::acknowledgement_number, tcp_socket_data::expected, tcp_socket_data::expected_count, tcp_socket_data::fin_outgoing, IS_IN_INTERVAL_OVERFLOW, NET_DEFAULT_TCP_TIME_WAIT_TIMEOUT, tcp_globals::net_phone, ntohl, ntohs, tcp_socket_data::outgoing, packet_get_id(), pq_add(), pq_detach(), pq_get_order(), pq_release(), socket_core::specific_data, tcp_socket_data::state, TCP_FAST_RETRANSMIT_COUNT, tcp_prepare_timeout(), tcp_release_after_timeout(), TCP_SOCKET_CLOSING, TCP_SOCKET_FIN_WAIT_1, TCP_SOCKET_FIN_WAIT_2, TCP_SOCKET_LAST_ACK, TCP_SOCKET_TIME_WAIT, tcp_socket_data::treshold, and tcp_header::window.

Referenced by tcp_process_established(), tcp_process_syn_received(), and tcp_process_syn_sent().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_process_client_messages	(	ipc_callid_t	callid,
		ipc_call_t	call
	)

References answer_call(), packet_dimension::content, tcp_socket_data::data_fragment_size, data_receive(), DEVICE_INVALID_ID, tcp_globals::dimensions, free, tcp_globals::ip_phone, IPC_GET_PHONE, tcp_globals::last_used_port, tcp_socket_data::local_lock, tcp_socket_data::local_sockets, tcp_globals::lock, lock, tcp_globals::net_phone, NET_SOCKET, NET_SOCKET_ACCEPT, NET_SOCKET_BIND, NET_SOCKET_CLOSE, NET_SOCKET_CONNECT, NET_SOCKET_GETSOCKOPT, NET_SOCKET_LISTEN, NET_SOCKET_RECV, NET_SOCKET_RECVFROM, NET_SOCKET_SEND, NET_SOCKET_SENDTO, NET_SOCKET_SETSOCKOPT, refresh_answer(), socket_bind(), socket_cores_release(), socket_create(), SOCKET_GET_BACKLOG, SOCKET_GET_DATA_FRAGMENTS, SOCKET_GET_FLAGS, SOCKET_GET_NEW_SOCKET_ID, SOCKET_GET_SOCKET_ID, SOCKET_SET_ADDRESS_LENGTH, SOCKET_SET_DATA_FRAGMENT_SIZE, SOCKET_SET_HEADER_SIZE, SOCKET_SET_READ_DATA_LENGTH, SOCKET_SET_SOCKET_ID, tcp_globals::sockets, socket_core::specific_data, tcp_socket_data::state, tcp_accept_message(), tcp_close_message(), tcp_connect_message(), TCP_FREE_PORTS_END, TCP_FREE_PORTS_START, tcp_free_socket_data(), TCP_HEADER_SIZE, tcp_initialize_socket_data(), tcp_listen_message(), tcp_recvfrom_message(), tcp_send_message(), TCP_SOCKET_LISTEN, and tl_get_ip_packet_dimension().

Here is the call graph for this function:

int tcp_process_established	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		tcp_header_ref	header,
		packet_t	packet,
		int	fragments,
		size_t	total_length
	)

References tcp_socket_data::device_id, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, tcp_socket_data::fin_incoming, tcp_header::finalize, tcp_socket_data::incoming, IS_IN_INTERVAL, IS_IN_INTERVAL_OVERFLOW, tcp_socket_data::last_outgoing, tcp_socket_data::local_lock, tcp_globals::net_phone, tcp_socket_data::next_incoming, ntohl, packet_get_data_length(), packet_get_id(), packet_trim(), pq_add(), pq_detach(), pq_get_order(), pq_insert_after(), pq_next(), pq_release(), pq_set_order(), tcp_header::sequence_number, socket_core::specific_data, tcp_socket_data::state, tcp_create_notification_packet(), tcp_get_packets_to_send(), TCP_HEADER_LENGTH, tcp_process_acknowledgement(), tcp_queue_prepare_packet(), tcp_queue_received_packet(), tcp_release_and_return(), tcp_send_packets(), tcp_send_prepare_packet(), TCP_SOCKET_CLOSE_WAIT, TCP_SOCKET_CLOSING, TCP_SOCKET_FIN_WAIT_1, TCP_SOCKET_FIN_WAIT_2, and tcp_socket_data::window.

Referenced by tcp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_process_listen	(	socket_core_ref	listening_socket,
		tcp_socket_data_ref	listening_socket_data,
		tcp_header_ref	header,
		packet_t	packet,
		struct sockaddr *	src,
		struct sockaddr *	dest,
		size_t	addrlen
	)

References tcp_socket_data::addr, tcp_socket_data::addrlen, tcp_socket_data::dest_port, tcp_socket_data::device_id, ENOTSOCK, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, tcp_socket_data::headerlen, tcp_socket_data::listening_socket_id, tcp_socket_data::local_lock, tcp_socket_data::local_sockets, tcp_globals::lock, tcp_globals::net_phone, tcp_socket_data::next_incoming, ntohl, ntohs, packet_get_data_length(), packet_get_id(), packet_trim(), socket_core::phone, socket_core::port, pq_detach(), pq_release(), tcp_socket_data::pseudo_header, tcp_header::sequence_number, socket_create(), socket_destroy(), socket_core::socket_id, SOCKET_MAP_KEY_LISTENING, socket_port_add(), socket_port_find(), tcp_globals::sockets, tcp_header::source_port, socket_core::specific_data, tcp_socket_data::state, tcp_header::synchronize, tcp_free_socket_data(), tcp_get_packets_to_send(), tcp_initialize_socket_data(), tcp_prepare_operation_header(), tcp_queue_packet(), tcp_release_and_return(), tcp_send_packets(), TCP_SOCKET_LISTEN, TCP_SOCKET_SYN_RECEIVED, tl_set_address_port(), tcp_socket_data::treshold, and tcp_header::window.

Referenced by tcp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_process_packet	(	device_id_t	device_id,
		packet_t	packet,
		services_t	error
	)

References tcp_header::checksum, compact_checksum(), compute_checksum(), tcp_header::destination_port, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, flip_checksum(), free, tcp_socket_data::headerlen, icmp_client_process_packet(), icmp_destination_unreachable_msg(), ICMP_PARAM_POINTER, icmp_parameter_problem_msg(), tcp_globals::icmp_phone, ICMP_PORT_UNREACH, IP_CHECKSUM_ZERO, ip_client_get_pseudo_header(), ip_client_process_packet(), ip_client_set_pseudo_header_data_length(), IPPROTO_TCP, tcp_socket_data::local_lock, tcp_globals::lock, tcp_globals::net_phone, NO_DATA, ntohs, packet_get_addr(), packet_get_data(), packet_get_data_length(), packet_get_id(), packet_trim(), pq_next(), pq_release(), tcp_socket_data::pseudo_header, socket_core::socket_id, SOCKET_MAP_KEY_LISTENING, socket_port_find(), tcp_globals::sockets, tcp_header::source_port, socket_core::specific_data, tcp_socket_data::state, TCP_HEADER_SIZE, tcp_process_established(), tcp_process_listen(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_release_and_return(), TCP_SOCKET_CLOSING, TCP_SOCKET_ESTABLISHED, TCP_SOCKET_FIN_WAIT_1, TCP_SOCKET_FIN_WAIT_2, TCP_SOCKET_LAST_ACK, TCP_SOCKET_LISTEN, TCP_SOCKET_SYN_RECEIVED, TCP_SOCKET_SYN_SENT, tcp_socket_data::timeout_count, tl_prepare_icmp_packet(), and tl_set_address_port().

Referenced by tcp_received_msg().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_process_syn_received	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		tcp_header_ref	header,
		packet_t	packet
	)

References socket_core::accepted, tcp_header::acknowledge, tcp_socket_data::backlog, tcp_socket_data::data_fragment_size, tcp_socket_data::device_id, dyn_fifo_push(), ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, tcp_socket_data::listening_socket_id, tcp_socket_data::local_lock, tcp_socket_data::local_sockets, tcp_globals::net_phone, NET_SOCKET_ACCEPTED, tcp_socket_data::next_incoming, ntohl, packet_get_id(), socket_core::phone, pq_release(), tcp_header::sequence_number, socket_core::socket_id, socket_core::specific_data, tcp_socket_data::state, tcp_create_notification_packet(), tcp_get_packets_to_send(), TCP_HEADER_SIZE, tcp_process_acknowledgement(), tcp_queue_packet(), tcp_release_and_return(), tcp_send_packets(), TCP_SOCKET_ESTABLISHED, and TCP_SOCKET_FIN_WAIT_1.

Referenced by tcp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_process_syn_sent	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		tcp_header_ref	header,
		packet_t	packet
	)

References tcp_operation::condvar, tcp_socket_data::device_id, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, tcp_socket_data::local_lock, tcp_operation::mutex, tcp_globals::net_phone, tcp_socket_data::next_incoming, ntohl, tcp_socket_data::operation, packet_get_data_length(), packet_get_id(), packet_trim(), pq_detach(), pq_release(), tcp_operation::result, tcp_header::sequence_number, socket_core::specific_data, tcp_socket_data::state, tcp_header::synchronize, tcp_get_packets_to_send(), tcp_prepare_operation_header(), tcp_process_acknowledgement(), tcp_queue_packet(), tcp_release_and_return(), tcp_send_packets(), and TCP_SOCKET_ESTABLISHED.

Referenced by tcp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_queue_packet	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		packet_t	packet,
		size_t	data_length
	)

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, tcp_socket_data::next_outgoing, tcp_socket_data::outgoing, pq_add(), socket_core::specific_data, tcp_queue_prepare_packet(), and tcp_release_and_return().

Referenced by tcp_close_message(), tcp_connect_core(), tcp_process_listen(), tcp_process_syn_received(), tcp_process_syn_sent(), and tcp_send_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_queue_prepare_packet	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		packet_t	packet,
		size_t	data_length
	)

References tcp_socket_data::addr, tcp_socket_data::addrlen, tcp_socket_data::dest_port, tcp_header::destination_port, ERROR_DECLARE, ERROR_OCCURRED, tcp_socket_data::fin_outgoing, tcp_header::finalize, htonl, htons, tcp_socket_data::next_outgoing, NO_DATA, packet_get_data(), packet_set_addr(), socket_core::port, tcp_header::sequence_number, tcp_header::source_port, socket_core::specific_data, and tcp_release_and_return().

Referenced by tcp_process_established(), and tcp_queue_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_queue_received_packet	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		packet_t	packet,
		int	fragments,
		size_t	total_length
	)

References packet_dimension::content, tcp_socket_data::data_fragment_size, tcp_socket_data::device_id, tcp_globals::dimensions, dyn_fifo_push(), ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, tcp_globals::ip_phone, NET_SOCKET_RECEIVED, packet_get_id(), socket_core::phone, socket_core::received, socket_core::socket_id, SOCKET_MAX_RECEIVED_SIZE, socket_core::specific_data, tcp_release_and_return(), tl_get_ip_packet_dimension(), and tcp_socket_data::window.

Referenced by tcp_process_established().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_received_msg	(	device_id_t	device_id,
		packet_t	packet,
		services_t	receiver,
		services_t	error
	)

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, tcp_globals::lock, and tcp_process_packet().

Here is the call graph for this function:

int tcp_recvfrom_message	(	socket_cores_ref	local_sockets,
		int	socket_id,
		int	flags,
		size_t *	addrlen
	)

References tcp_socket_data::addr, tcp_socket_data::addrlen, data_reply(), dyn_fifo_pop(), dyn_fifo_value(), ENOTCONN, ENOTSOCK, ERROR_DECLARE, ERROR_PROPAGATE, tcp_globals::net_phone, NO_DATA, packet_get_id(), packet_translate(), pq_release(), socket_core::received, socket_reply_packets(), socket_core::specific_data, tcp_socket_data::state, TCP_SOCKET_CLOSE_WAIT, and TCP_SOCKET_ESTABLISHED.

Referenced by tcp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

void tcp_refresh_socket_data ( tcp_socket_data_ref socket_data )

References tcp_socket_data::acknowledged, tcp_socket_data::device_id, DEVICE_INVALID_ID, tcp_socket_data::expected, tcp_socket_data::last_outgoing, NET_DEFAULT_TCP_INITIAL_TIMEOUT, NET_DEFAULT_TCP_WINDOW, tcp_socket_data::next_outgoing, tcp_socket_data::state, TCP_INITIAL_SEQUENCE_NUMBER, TCP_SOCKET_INITIAL, tcp_socket_data::timeout, tcp_socket_data::treshold, and tcp_socket_data::window.

Referenced by tcp_initialize_socket_data().

Here is the caller graph for this function:

int tcp_release_after_timeout ( void * data )

References free, tcp_timeout::key, tcp_timeout::key_length, tcp_socket_data::local_lock, tcp_timeout::local_sockets, tcp_socket_data::local_sockets, tcp_globals::lock, tcp_globals::net_phone, tcp_timeout::port, socket_destroy(), tcp_timeout::socket_id, socket_core::socket_id, socket_port_find(), tcp_globals::sockets, socket_core::specific_data, tcp_free_socket_data(), and tcp_timeout::timeout.

Referenced by tcp_process_acknowledgement().

Here is the call graph for this function:

Here is the caller graph for this function:

int tcp_release_and_return	(	packet_t	packet,
		int	result
	)

Releases the packet and returns the result.

Parameters:

`[in]`	packet	The packet queue to be released.
`[in]`	result	The result to be returned.

Returns:: The result parameter.

References tcp_globals::net_phone, packet_get_id(), and pq_release().

Referenced by tcp_create_notification_packet(), tcp_process_established(), tcp_process_listen(), tcp_process_packet(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_queue_packet(), tcp_queue_prepare_packet(), tcp_queue_received_packet(), and tcp_send_message().

Here is the call graph for this function:

Here is the caller graph for this function:

void tcp_retransmit_packet	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		size_t	sequence_number
	)

References tcp_socket_data::device_id, tcp_socket_data::local_lock, tcp_socket_data::outgoing, packet_get_id(), pq_find(), pq_get_order(), socket_core::specific_data, tcp_prepare_copy(), and tcp_send_packets().

Here is the call graph for this function:

int tcp_send_message	(	socket_cores_ref	local_sockets,
		int	socket_id,
		int	fragments,
		size_t *	data_fragment_size,
		int	flags
	)

References tcp_socket_data::addr, tcp_socket_data::addrlen, packet_dimension::content, tcp_socket_data::data_fragment_size, tcp_socket_data::device_id, tcp_globals::dimensions, ENOTCONN, ENOTSOCK, ERROR_DECLARE, ERROR_PROPAGATE, tcp_globals::ip_phone, tcp_socket_data::local_lock, tcp_globals::lock, tcp_globals::net_phone, NO_DATA, PACKET_PREFIX, socket_core::specific_data, tcp_socket_data::state, tcp_get_packets_to_send(), TCP_HEADER_SIZE, tcp_prepare_operation_header(), tcp_queue_packet(), tcp_release_and_return(), tcp_send_packets(), TCP_SOCKET_CLOSE_WAIT, TCP_SOCKET_ESTABLISHED, tl_get_ip_packet_dimension(), and tl_socket_read_packet_data().

Referenced by tcp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

void tcp_send_packets	(	device_id_t	device_id,
		packet_t	packet
	)

References tcp_globals::ip_phone, ip_send_msg(), and pq_detach().

Referenced by tcp_close_message(), tcp_connect_core(), tcp_process_established(), tcp_process_listen(), tcp_process_syn_received(), tcp_process_syn_sent(), tcp_retransmit_packet(), and tcp_send_message().

Here is the call graph for this function:

Here is the caller graph for this function:

packet_t tcp_send_prepare_packet	(	socket_core_ref	socket,
		tcp_socket_data_ref	socket_data,
		packet_t	packet,
		size_t	data_length,
		size_t	sequence_number
	)
