Internet Protocol (IP) Service
[Inter-networking layer]

Collaboration diagram for Internet Protocol (IP) Service:

Data Structures
struct	ip_netif
	IP network interfaces. More...
struct	ip_proto
	IP protocol specific data. More...
struct	ip_route
	IP route specific data. More...
struct	ip_globals
	IP global data. More...
struct	ip_header
	Internet header. More...
struct	ip_option
	Internet option header. More...
struct	ipv4_pseudo_header
	Internet version 4 pseudo header. More...
Files
file	ip.c
	IP module implementation.
file	ip.h
	IP module.
file	ip_client.c
	IP client interface implementation.
file	ip_header.h
	IP header and options definitions.
file	ip_messages.h
	IP module messages.
file	ip_module.c
	IP standalone module implementation.
file	ip_module.h
	IP module functions.
file	ip_remote.c
	IP interface implementation for standalone remote modules.
file	ip_client.h
	IP client interface.
file	ip_codes.h
	IP codes and definitions.
file	ip_interface.h
	IP module interface.
file	ip_protocols.h
	Internet protocol numbers according to the on-line IANA - Assigned Protocol numbers - <http://www.iana.org/assignments/protocol-numbers/protocol-numbers.xml>, cited January 14 2009.
Defines
#define	IPV4 4
	IP version 4.
#define	NET_DEFAULT_IPV IPV4
	Default network interface IP version.
#define	NET_DEFAULT_IP_ROUTING false
	Default network interface IP routing.
#define	IP_MIN_CONTENT 576
	Minimum IP packet content.
#define	ARP_NAME "arp"
	ARP module name.
#define	ARP_FILENAME "/srv/arp"
	ARP module filename.
#define	IP_ADDR sizeof(struct sockaddr_in6)
	IP packet address length.
#define	IP_PREFIX sizeof(ip_header_t)
	IP packet prefix length.
#define	IP_SUFFIX 0
	IP packet suffix length.
#define	IP_MAX_CONTENT 65535
	IP packet maximum content length.
#define	IPV4_LOCALHOST_ADDRESS htonl((127 << 24) + 1)
	The IP localhost address.
#define	IP_COMPUTE_FRAGMENT_OFFSET_HIGH(length) ((((length) / 8u) &0x1F00) >> 8)
	Returns the fragment offest high bits.
#define	IP_COMPUTE_FRAGMENT_OFFSET_LOW(length) (((length) / 8u) &0xFF)
	Returns the fragment offest low bits.
#define	IP_COMPUTE_HEADER_LENGTH(length) ((uint8_t) ((length) / 4u))
	Returns the IP header length.
#define	IP_FRAGMENT_OFFSET(header) ((((header)->fragment_offset_high << 8) + (header)->fragment_offset_low) * 8u)
	Returns the fragment offest.
#define	IP_HEADER_CHECKSUM(header) (htons(ip_checksum((uint8_t *)(header), IP_HEADER_LENGTH(header))))
	Returns the IP packet header checksum.
#define	IP_HEADER_DATA_LENGTH(header) (IP_TOTAL_LENGTH(header) - IP_HEADER_LENGTH(header))
	Returns the actual IP packet data length.
#define	IP_HEADER_LENGTH(header) ((header)->header_length * 4u)
	Returns the actual IP header length in bytes.
#define	IP_TOTAL_LENGTH(header) ntohs((header)->total_length)
	Returns the actual IP packet total length.
#define	NAME "IP protocol"
	IP module name.
#define	IPVERSION 4
	Default IPVERSION.
#define	MAXTTL 255
	Maximum time to live counter.
#define	IPDEFTTL 64
	Default time to live counter.
Typedefs
typedef struct ip_globals	ip_globals_t
	Type definition of the IP global data.
typedef struct ip_netif	ip_netif_t
	Type definition of the IP network interface specific data.
typedef ip_netif_t *	ip_netif_ref
	Type definition of the IP network interface specific data pointer.
typedef struct ip_proto	ip_proto_t
	Type definition of the IP protocol specific data.
typedef ip_proto_t *	ip_proto_ref
	Type definition of the IP protocol specific data pointer.
typedef struct ip_route	ip_route_t
	Type definition of the IP route specific data.
typedef ip_route_t *	ip_route_ref
	Type definition of the IP route specific data pointer.
typedef struct ip_header	ip_header_t
	Type definition of the internet header.
typedef ip_header_t *	ip_header_ref
	Type definition of the internet header pointer.
typedef struct ip_option	ip_option_t
	Type definition of the internet option header.
typedef ip_option_t *	ip_option_ref
	Type definition of the internet option header pointer.
typedef struct ipv4_pseudo_header	ipv4_pseudo_header_t
	Type definition of the internet version 4 pseudo header.
typedef ipv4_pseudo_header_t *	ipv4_pseudo_header_ref
	Type definition of the internet version 4 pseudo header pointer.
typedef uint8_t	ip_ttl_t
	IP time to live counter type definition.
typedef uint8_t	ip_tos_t
	IP type of service type definition.
typedef uint8_t	ip_protocol_t
	IP transport protocol type definition.
Enumerations
enum	ip_messages { NET_IP_ADD_ROUTE = NET_IP_FIRST, NET_IP_GET_ROUTE, NET_IP_RECEIVED_ERROR, NET_IP_SET_GATEWAY }
	IP module messages. More...
Functions
int	ip_mtu_changed_message (device_id_t device_id, size_t mtu)
	Updates the device content length according to the new MTU value.
int	ip_device_state_message (device_id_t device_id, device_state_t state)
	Updates the device state.
int	ip_packet_size_message (device_id_t device_id, size_t addr_len, size_t prefix, size_t content, size_t suffix)
	Returns the device packet dimensions for sending.
int	ip_register (int protocol, services_t service, int phone, tl_received_msg_t tl_received_msg)
	Registers the transport layer protocol.
int	ip_netif_initialize (ip_netif_ref ip_netif)
	Initializes a new network interface specific data.
int	ip_send_route (packet_t packet, ip_netif_ref netif, ip_route_ref route, in_addr_t *src, in_addr_t dest, services_t error)
	Sends the packet or the packet queue via the specified route.

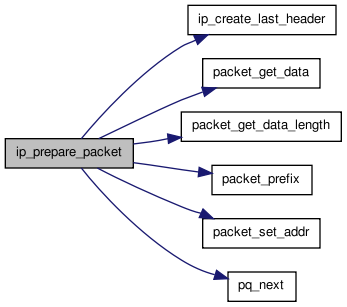

int	ip_prepare_packet (in_addr_t *source, in_addr_t dest, packet_t packet, measured_string_ref destination)
	Prepares the outgoing packet or the packet queue.
packet_t	ip_split_packet (packet_t packet, size_t prefix, size_t content, size_t suffix, socklen_t addr_len, services_t error)
	Checks the packet queue lengths and fragments the packets if needed.
int	ip_fragment_packet (packet_t packet, size_t length, size_t prefix, size_t suffix, socklen_t addr_len)
	Checks the packet length and fragments it if needed.
int	ip_fragment_packet_data (packet_t packet, packet_t new_packet, ip_header_ref header, ip_header_ref new_header, size_t length, const struct sockaddr src, const struct sockaddr dest, socklen_t addrlen)
	Fragments the packet from the end.
ip_header_ref	ip_create_middle_header (packet_t packet, ip_header_ref last)
	Prefixes a middle fragment header based on the last fragment header to the packet.
void	ip_create_last_header (ip_header_ref last, ip_header_ref first)
	Copies the fragment header.
in_addr_t *	ip_netif_address (ip_netif_ref netif)
	Returns the network interface's IP address.
ip_route_ref	ip_find_route (in_addr_t destination)
	Searches all network interfaces if there is a suitable route.
ip_route_ref	ip_netif_find_route (ip_netif_ref netif, in_addr_t destination)
	Searches the network interfaces if there is a suitable route.
int	ip_receive_message (device_id_t device_id, packet_t packet)
	Processes the received IP packet or the packet queue one by one.

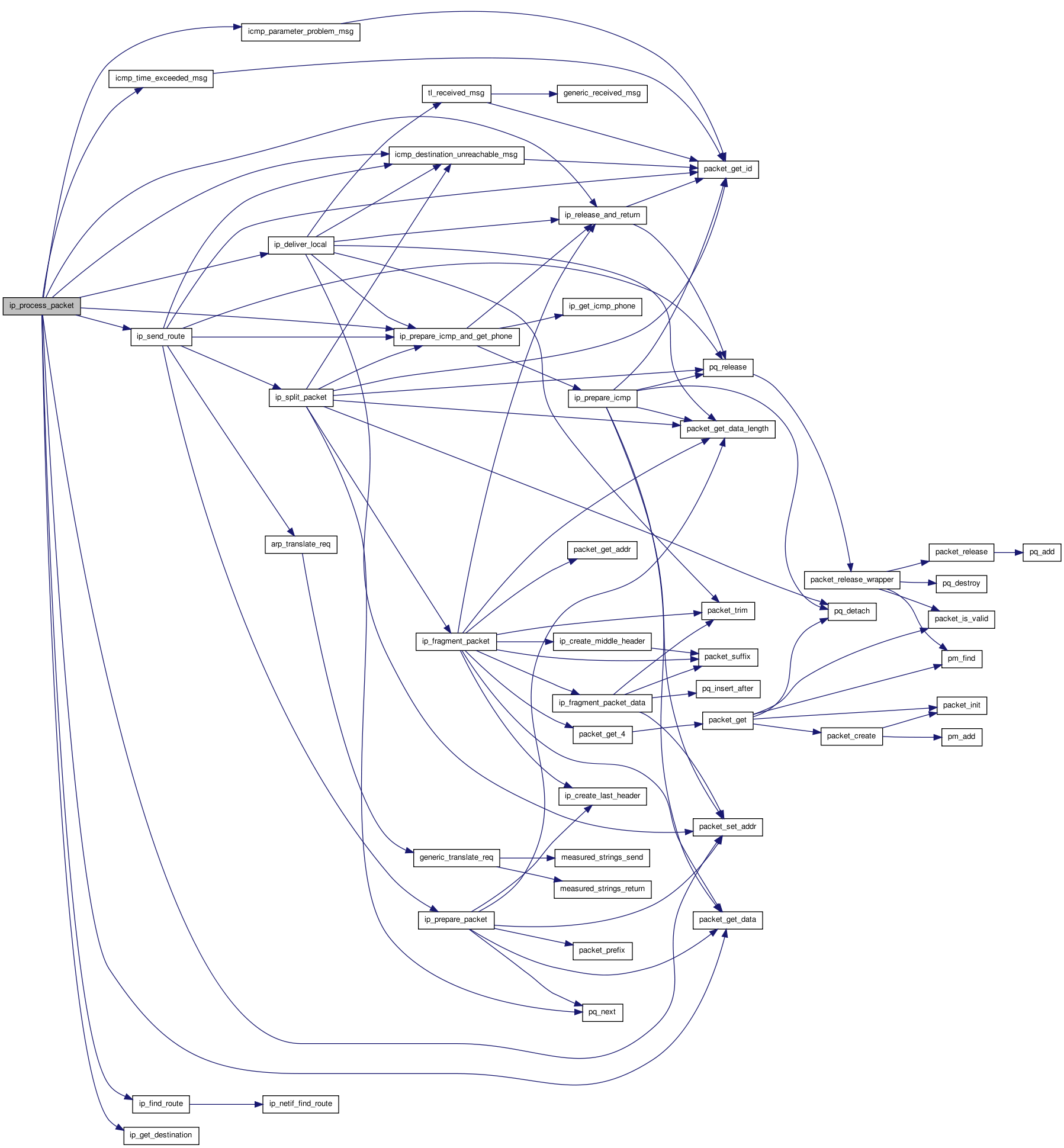

int	ip_process_packet (device_id_t device_id, packet_t packet)
	Processes the received packet.
in_addr_t	ip_get_destination (ip_header_ref header)
	Returns the packet destination address from the IP header.

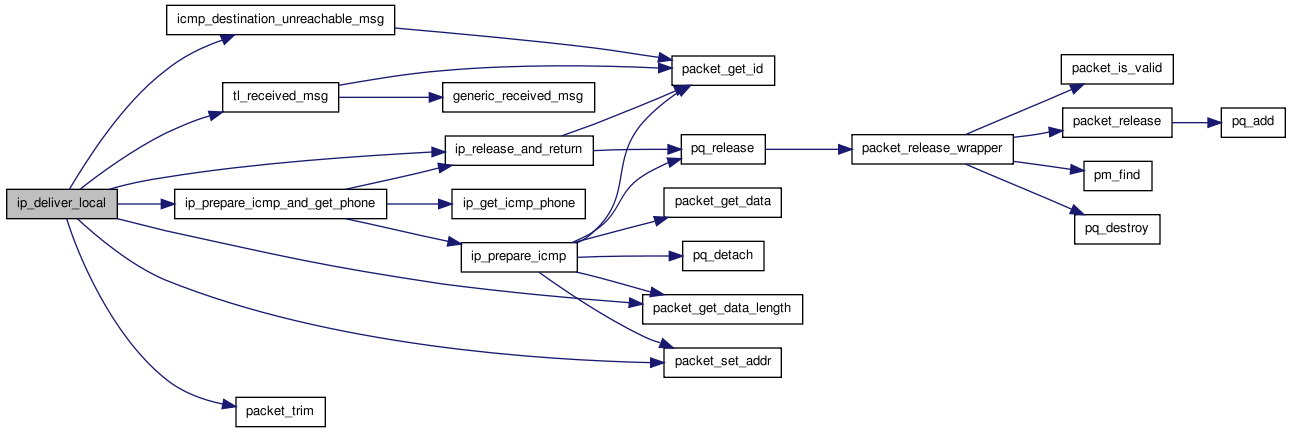

int	ip_deliver_local (device_id_t device_id, packet_t packet, ip_header_ref header, services_t error)
	Delivers the packet to the local host.

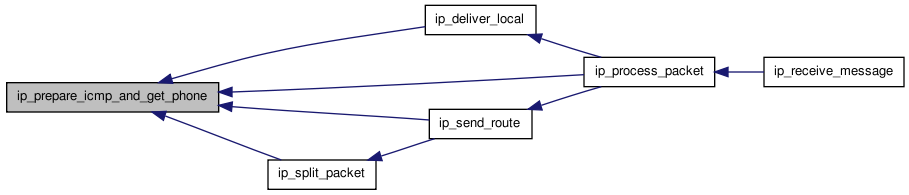

int	ip_prepare_icmp_and_get_phone (services_t error, packet_t packet, ip_header_ref header)
	Prepares the ICMP notification packet.
int	ip_get_icmp_phone (void)
	Returns the ICMP phone.

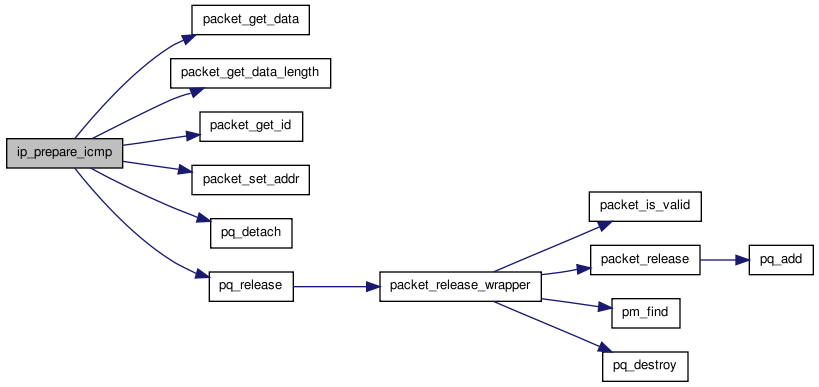

int	ip_prepare_icmp (packet_t packet, ip_header_ref header)
	Prepares the ICMP notification packet.
int	ip_release_and_return (packet_t packet, int result)
	Releases the packet and returns the result.
int	ip_initialize (async_client_conn_t client_connection)
	Initializes the IP module.
int	ip_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the IP message.
size_t	ip_client_header_length (packet_t packet)
	Returns the IP header length.
int	ip_client_get_pseudo_header (ip_protocol_t protocol, struct sockaddr src, socklen_t srclen, struct sockaddr dest, socklen_t destlen, size_t data_length, ip_pseudo_header_ref header, size_t headerlen)
	Constructs the IPv4 pseudo header.
int	ip_client_prepare_packet (packet_t packet, ip_protocol_t protocol, ip_ttl_t ttl, ip_tos_t tos, int dont_fragment, size_t ipopt_length)
	Prepares the packet to be transfered via IP.
int	ip_client_process_packet (packet_t packet, ip_protocol_t protocol, ip_ttl_t ttl, ip_tos_t tos, int dont_fragment, size_t *ipopt_length)
	Processes the received IP packet.

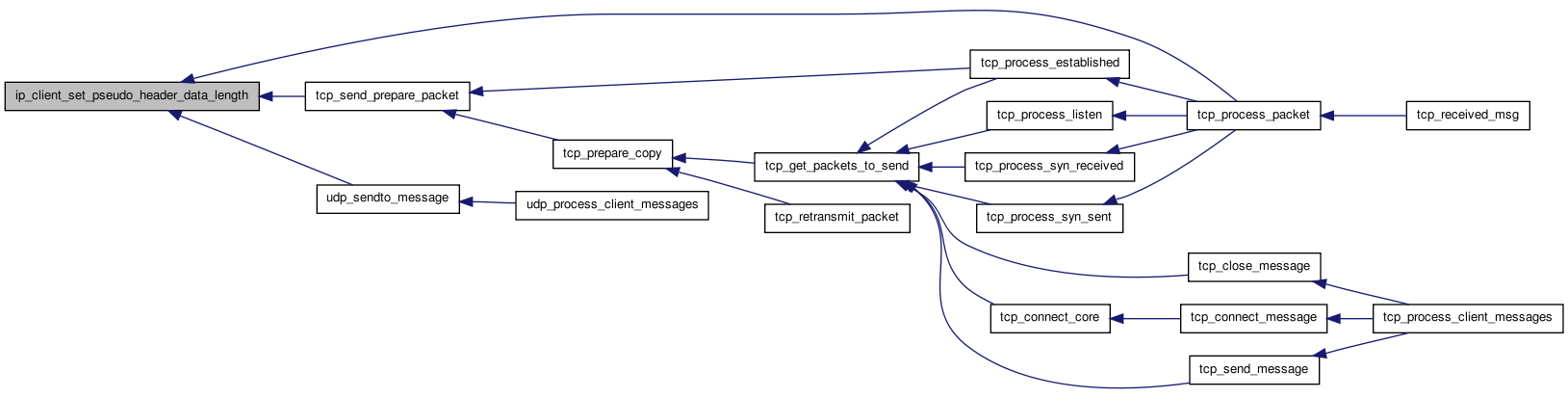

int	ip_client_set_pseudo_header_data_length (ip_pseudo_header_ref header, size_t headerlen, size_t data_length)
	Updates the IPv4 pseudo header data length field.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the IP message.
void	module_print_name (void)
	Prints the module name.
int	module_start (async_client_conn_t client_connection)
	Starts the IP module.
Variables
ip_globals_t	ip_globals
	IP global data.
ip_globals_t	ip_globals
	IP module global data.
IP module interface
This interface is used by other modules.
typedef void *	ip_pseudo_header_ref
	Type definition of the internet pseudo header pointer.
typedef int(*	tl_received_msg_t )(device_id_t device_id, packet_t packet, services_t receiver, services_t error)
	The transport layer notification function type definition.
int	ip_device_req (int ip_phone, device_id_t device_id, services_t netif)
	Registers the new device.
int	ip_connect_module (services_t service)
	Connects to the IP module.
int	ip_bind_service (services_t service, int protocol, services_t me, async_client_conn_t receiver, tl_received_msg_t tl_received_msg)
	Creates bidirectional connection with the ip module service and registers the message receiver.
int	ip_send_msg (int ip_phone, device_id_t device_id, packet_t packet, services_t sender, services_t error)
	Sends the packet queue.
int	ip_packet_size_req (int ip_phone, device_id_t device_id, packet_dimension_ref packet_dimension)
	Returns the device packet dimension for sending.
int	ip_add_route_req (int ip_phone, device_id_t device_id, in_addr_t address, in_addr_t netmask, in_addr_t gateway)
	Adds a route to the device routing table.
int	ip_set_gateway_req (int ip_phone, device_id_t device_id, in_addr_t gateway)
	Sets the default gateway.
int	ip_received_error_msg (int ip_phone, device_id_t device_id, packet_t packet, services_t target, services_t error)
	Notifies the IP module about the received error notification packet.
int	ip_get_route_req (int ip_phone, ip_protocol_t protocol, const struct sockaddr destination, socklen_t addrlen, device_id_t device_id, ip_pseudo_header_ref header, size_t headerlen)
	Returns the device identifier and the IP pseudo header based on the destination address.
IP flags definitions

#define	IPFLAG_FRAGMENT_SHIFT 1
	Fragment flag field shift.
#define	IPFLAG_FRAGMENTED_SHIFT 0
	Fragmented flag field shift.
#define	IPFLAG_DONT_FRAGMENT (0x1 << IPFLAG_FRAGMENT_SHIFT)
	Don't fragment flag value.
#define	IPFLAG_LAST_FRAGMENT (0x0 << IPFLAG_FRAGMENTED_SHIFT)
	Last fragment flag value.
#define	IPFLAG_MAY_FRAGMENT (0x0 << IPFLAG_FRAGMENT_SHIFT)
	May fragment flag value.
#define	IPFLAG_MORE_FRAGMENTS (0x1 << IPFLAG_FRAGMENTED_SHIFT)
	More fragments flag value.
IP specific message parameters definitions

#define	IP_GET_ADDRESS(call) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG3(*call); addr;})
	Returns the address message parameter.
#define	IP_GET_GATEWAY(call) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG2(*call); addr;})
	Returns the gateway message parameter.
#define	IP_SET_HEADERLEN(answer) ((size_t ) &IPC_GET_ARG2(answer))
	Sets the header length in the message answer.
#define	IP_GET_NETMASK(call) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG4(*call); addr;})
	Returns the network mask message parameter.
#define	IP_GET_PROTOCOL(call) ((ip_protocol_t) IPC_GET_ARG1(*call))
	Returns the protocol message parameter.
IP type of service definitions

#define	IPTOS_TOS_MASK 0x1E
	IP TOS mask.
#define	IPTOS_PRECEDENCE_SHIFT 5
	Precedence shift.
#define	IPTOS_DELAY_SHIFT 4
	Delay shift.
#define	IPTOS_THROUGHPUT_SHIFT 3
	Throughput shift.
#define	IPTOS_RELIABILITY_SHIFT 2
	Reliability shift.
#define	IPTOS_COST_SHIFT 1
	Cost shift.
#define	IPTOS_NORMALDELAY (0x0 << IPTOS_DELAY_SHIFT)
	Normal delay.
#define	IPTOS_LOWDELAY (0x1 << IPTOS_DELAY_SHIFT)
	Low delay.
#define	IPTOS_NORMALTHROUGHPUT (0x0 << IPTOS_THROUGHPUT_SHIFT)
	Normal throughput.
#define	IPTOS_THROUGHPUT (0x1 << IPTOS_THROUGHPUT_SHIFT)
	Throughput.
#define	IPTOS_NORMALRELIABILITY (0x0 << IPTOS_RELIABILITY_SHIFT)
	Normal reliability.
#define	IPTOS_RELIABILITY (0x1 << IPTOS_RELIABILITY_SHIFT)
	Reliability.
#define	IPTOS_NORMALCOST (0x0 << IPTOS_COST_SHIFT)
	Normal cost.
#define	IPTOS_MICNCOST (0x1 << IPTOS_COST_SHIFT)
	Minimum cost.
IP TOS precedence definitions

#define	IPTOS_PREC_MASK 0xE0
	Precedence mask.
#define	IPTOS_PREC_ROUTINE (0x0 << IPTOS_PRECEDENCE_SHIFT)
	Routine precedence.
#define	IPTOS_PREC_PRIORITY (0x1 << IPTOS_PRECEDENCE_SHIFT)
	Priority precedence.
#define	IPTOS_PREC_IMMEDIATE (0x2 << IPTOS_PRECEDENCE_SHIFT)
	Immediate precedence.
#define	IPTOS_PREC_FLASH (0x3 << IPTOS_PRECEDENCE_SHIFT)
	Flash precedence.
#define	IPTOS_PREC_FLASHOVERRIDE (0x4 << IPTOS_PRECEDENCE_SHIFT)
	Flash override precedence.
#define	IPTOS_PREC_CRITIC_ECP (0x5 << IPTOS_PRECEDENCE_SHIFT)
	Critical precedence.
#define	IPTOS_PREC_INTERNETCONTROL (0x6 << IPTOS_PRECEDENCE_SHIFT)
	Inter-network control precedence.
#define	IPTOS_PREC_NETCONTROL (0x7 << IPTOS_PRECEDENCE_SHIFT)
	Network control precedence.
IP options definitions

#define	IPOPT_COPY_SHIFT 7
	Copy shift.
#define	IPOPT_CLASS_SHIFT 5
	Class shift.
#define	IPOPT_NUMBER_SHIFT 0
	Number shift.
#define	IPOPT_CLASS_MASK 0x60
	Class mask.
#define	IPOPT_NUMBER_MASK 0x1F
	Number mask.
#define	IPOPT_COPY (1 << IPOPT_COPY_SHIFT)
	Copy flag.
#define	IPOPT_TYPE(copy, class, number) (((copy) &IPOPT_COPY) \| ((class) &IPOPT_CLASS_MASK) \| ((number << IPOPT_NUMBER_SHIFT) &IPOPT_NUMBER_MASK))
	Returns IP option type.
#define	IPOPT_COPIED(o) ((o) &IPOPT_COPY)
	Returns a value indicating whether the IP option should be copied.
#define	IPOPT_CLASS(o) ((o) &IPOPT_CLASS_MASK)
	Returns an IP option class.
#define	IPOPT_NUMBER(o) ((o) &IPOPT_NUMBER_MASK)
	Returns an IP option number.
IP option class definitions

#define	IPOPT_CONTROL (0 << IPOPT_CLASS_SHIFT)
	Control class.
#define	IPOPT_RESERVED1 (1 << IPOPT_CLASS_SHIFT)
	Reserved class 1.
#define	IPOPT_MEASUREMENT (2 << IPOPT_CLASS_SHIFT)
	Measurement class.
#define	IPOPT_RESERVED2 (3 << IPOPT_CLASS_SHIFT)
	Reserved class 2.
IP option type definitions

#define	IPOPT_END IPOPT_TYPE(0, IPOPT_CONTROL, 0)
	End of list.
#define	IPOPT_NOOP IPOPT_TYPE(0, IPOPT_CONTROL, 1)
	No operation.
#define	IPOPT_SEC IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 2)
	Security.
#define	IPOPT_LSRR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 3)
	Loose source.
#define	IPOPT_SSRR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 9)
	Strict route.
#define	IPOPT_RR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 7)
	Record route.
#define	IPOPT_SID IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 8)
	Stream identifier.
#define	IPOPT_SID_LENGTH 4
	Stream identifier length.
#define	IPOPT_TIMESTAMP IPOPT_TYPE(IPOPT_COPY, IPOPT_MEASUREMENT, 4)
	Internet timestamp.
#define	IPOPT_CIPSO IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 5)
	Commercial IP security option.
#define	IPOPT_NOP IPOPT_NOOP
	No operation variant.
#define	IPOPT_EOL IPOPT_END
	End of list variant.
#define	IPOPT_TS IPOPT_TIMESTAMP
	Timestamp variant.
IP security option definitions

#define	IPOPT_SEC_LENGTH 11
	Security length.
#define	IPOPT_SEC_UNCLASIFIED 0x0
	Unclasified.
#define	IPOPT_SEC_CONFIDENTIAL 0xF035
	Confidential.
#define	IPOPT_SEC_EFTO 0x789A
	EFTO.
#define	IPOPT_SEC_MMMM 0xBC4D
	MMMM.
#define	IPOPT_SEC_PROG 0x5E26
	PROG.
#define	IPOPT_SEC_RESTRICTED 0xAF13
	Restricted.
#define	IPOPT_SEC_SECRET 0xD788
	Secret.
#define	IPOPT_SEC_TOP_SECRET 0x6BC5
	Top secret.
IP timestamp option definitions

#define	IPOPT_TS_TSONLY 0
	Tiemstamp only.
#define	IPOPT_TS_TSANDADDR 1
	Timestamps and addresses.
#define	IPOPT_TS_PRESPEC 3
	Specified modules only.
IP protocols definitions

#define	IPPROTO_HOPOPT 0
	IPv6 Hop-by-Hop Option internet protocol number.
#define	IPPROTO_ICMP 1
	Internet Control Message internet protocol number.
#define	IPPROTO_IGMP 2
	Internet Group Management internet protocol number.
#define	IPPROTO_GGP 3
	Gateway-to-Gateway internet protocol number.
#define	IPPROTO_IP 4
	IP in IP (encapsulation) internet protocol number.
#define	IPPROTO_ST 5
	Stream internet protocol number.
#define	IPPROTO_TCP 6
	Transmission Control internet protocol number.
#define	IPPROTO_CBT 7
	CBT internet protocol number.
#define	IPPROTO_EGP 8
	Exterior Gateway Protocol internet protocol number.
#define	IPPROTO_IGP 9
	any private interior gateway (used by Cisco for their IGRP) internet protocol number.
#define	IPPROTO_BBN_RCC_MON 10
	BBN RCC Monitoring internet protocol number.
#define	IPPROTO_NVP_II 11
	Network Voice Protocol internet protocol number.
#define	IPPROTO_PUP 12
	PUP internet protocol number.
#define	IPPROTO_ARGUS 13
	ARGUS internet protocol number.
#define	IPPROTO_EMCON 14
	EMCON internet protocol number.
#define	IPPROTO_XNET 15
	Cross Net Debugger internet protocol number.
#define	IPPROTO_CHAOS 16
	Chaos internet protocol number.
#define	IPPROTO_UDP 17
	User Datagram internet protocol number.
#define	IPPROTO_MUX 18
	Multiplexing internet protocol number.
#define	IPPROTO_DCN_MEAS 19
	DCN Measurement Subsystems internet protocol number.
#define	IPPROTO_HMP 20
	Host Monitoring internet protocol number.
#define	IPPROTO_PRM 21
	Packet Radio Measurement internet protocol number.
#define	IPPROTO_XNS_IDP 22
	XEROX NS IDP internet protocol number.
#define	IPPROTO_TRUNK_1 23
	Trunk-1 internet protocol number.
#define	IPPROTO_TRUNK_2 24
	Trunk-2 internet protocol number.
#define	IPPROTO_LEAF_1 25
	Leaf-1 internet protocol number.
#define	IPPROTO_LEAF_2 26
	Leaf-2 internet protocol number.
#define	IPPROTO_RDP 27
	Reliable Data Protocol internet protocol number.
#define	IPPROTO_IRTP 28
	Internet Reliable Transaction internet protocol number.
#define	IPPROTO_ISO_TP4 29
	ISO Transport Protocol Class 4 internet protocol number.
#define	IPPROTO_NETBLT 30
	Bulk Data Transfer Protocol internet protocol number.
#define	IPPROTO_MFE_NSP 31
	MFE Network Services Protocol internet protocol number.
#define	IPPROTO_MERIT_INP 32
	MERIT Internodal Protocol internet protocol number.
#define	IPPROTO_DCCP 33
	Datagram Congestion Control Protocol internet protocol number.
#define	IPPROTO_3PC 34
	Third Party Connect Protocol internet protocol number.
#define	IPPROTO_IDPR 35
	Inter-Domain Policy Routing Protocol internet protocol number.
#define	IPPROTO_XTP 36
	XTP internet protocol number.
#define	IPPROTO_DDP 37
	Datagram Delivery Protocol internet protocol number.
#define	IPPROTO_IDPR_CMTP 38
	IDPR Control Message Transport Proto internet protocol number.
#define	IPPROTO_TP 39
	TP++ Transport Protocol internet protocol number.
#define	IPPROTO_IL 40
	IL Transport Protocol internet protocol number.
#define	IPPROTO_IPV6 41
	Ipv6 internet protocol number.
#define	IPPROTO_SDRP 42
	Source Demand Routing Protocol internet protocol number.
#define	IPPROTO_IPv6_Route 43
	Routing Header for IPv6 internet protocol number.
#define	IPPROTO_IPv6_Frag 44
	Fragment Header for IPv6 internet protocol number.
#define	IPPROTO_IDRP 45
	Inter-Domain Routing Protocol internet protocol number.
#define	IPPROTO_RSVP 46
	Reservation Protocol internet protocol number.
#define	IPPROTO_GRE 47
	General Routing Encapsulation internet protocol number.
#define	IPPROTO_DSR 48
	Dynamic Source Routing Protocol internet protocol number.
#define	IPPROTO_BNA 49
	BNA internet protocol number.
#define	IPPROTO_ESP 50
	Encap Security Payload internet protocol number.
#define	IPPROTO_AH 51
	Authentication Header internet protocol number.
#define	IPPROTO_I_NLSP 52
	Integrated Net Layer Security TUBA internet protocol number.
#define	IPPROTO_SWIPE 53
	IP with Encryption internet protocol number.
#define	IPPROTO_NARP 54
	NBMA Address Resolution Protocol internet protocol number.
#define	IPPROTO_MOBILE 55
	IP Mobility internet protocol number.
#define	IPPROTO_TLSP 56
	Transport Layer Security Protocol using Kryptonet key management internet protocol number.
#define	IPPROTO_SKIP 57
	SKIP internet protocol number.
#define	IPPROTO_IPv6_ICMP 58
	ICMP for IPv6 internet protocol number.
#define	IPPROTO_IPv6_NoNxt 59
	No Next Header for IPv6 internet protocol number.
#define	IPPROTO_IPv6_Opts 60
	Destination Options for IPv6 internet protocol number.
#define	IPPROTO_AHIP 61
	Any host internal protocol internet protocol number.
#define	IPPROTO_CFTP 62
	CFTP internet protocol number.
#define	IPPROTO_ALN 63
	Any local network internet protocol number.
#define	IPPROTO_SAT_EXPAK 64
	SATNET and Backroom EXPAK internet protocol number.
#define	IPPROTO_KRYPTOLAN 65
	Kryptolan internet protocol number.
#define	IPPROTO_RVD 66
	MIT Remote Virtual Disk Protocol internet protocol number.
#define	IPPROTO_IPPC 67
	Internet Pluribus Packet Core internet protocol number.
#define	IPPROTO_ADFS 68
	Any distributed file system internet protocol number.
#define	IPPROTO_SAT_MON 69
	SATNET Monitoring internet protocol number.
#define	IPPROTO_VISA 70
	VISA Protocol internet protocol number.
#define	IPPROTO_IPCV 71
	Internet Packet Core Utility internet protocol number.
#define	IPPROTO_CPNX 72
	Computer Protocol Network Executive internet protocol number.
#define	IPPROTO_CPHB 73
	Computer Protocol Heart Beat internet protocol number.
#define	IPPROTO_WSN 74
	Wang Span Network internet protocol number.
#define	IPPROTO_PVP 75
	Packet Video Protocol internet protocol number.
#define	IPPROTO_BR_SAT_MON 76
	Backroom SATNET Monitoring internet protocol number.
#define	IPPROTO_SUN_ND 77
	SUN ND IPPROTOCOL_Temporary internet protocol number.
#define	IPPROTO_WB_MON 78
	WIDEBAND Monitoring internet protocol number.
#define	IPPROTO_WB_EXPAK 79
	WIDEBAND EXPAK internet protocol number.
#define	IPPROTO_ISO_IP 80
	ISO Internet Protocol internet protocol number.
#define	IPPROTO_VMTP 81
	VMTP internet protocol number.
#define	IPPROTO_SECURE_VMTP 82
	SECURE-VMTP internet protocol number.
#define	IPPROTO_VINES 83
	VINES internet protocol number.
#define	IPPROTO_TTP 84
	TTP internet protocol number.
#define	IPPROTO_NSFNET_IGP 85
	NSFNET-IGP internet protocol number.
#define	IPPROTO_DGP 86
	Dissimilar Gateway Protocol internet protocol number.
#define	IPPROTO_TCF 87
	TCF internet protocol number.
#define	IPPROTO_EIGRP 88
	EIGRP internet protocol number.
#define	IPPROTO_OSPFIGP 89
	OSPFIGP internet protocol number.
#define	IPPROTO_Sprite_RPC 90
	Sprite RPC Protocol internet protocol number.
#define	IPPROTO_LARP 91
	Locus Address Resolution Protocol internet protocol number.
#define	IPPROTO_MTP 92
	Multicast Transport Protocol internet protocol number.
#define	IPPROTO_AX25 93
	AX.25 Frames internet protocol number.
#define	IPPROTO_IPIP 94
	IP-within-IP Encapsulation Protocol internet protocol number.
#define	IPPROTO_MICP 95
	Mobile Internetworking Control Pro.
#define	IPPROTO_SCC_SP 96
	Semaphore Communications Sec.
#define	IPPROTO_ETHERIP 97
	Ethernet-within-IP Encapsulation internet protocol number.
#define	IPPROTO_ENCAP 98
	Encapsulation Header internet protocol number.
#define	IPPROTO_APES 99
	Any private encryption scheme internet protocol number.
#define	IPPROTO_GMTP 100
	GMTP internet protocol number.
#define	IPPROTO_IFMP 101
	Ipsilon Flow Management Protocol internet protocol number.
#define	IPPROTO_PNNI 102
	PNNI over IP internet protocol number.
#define	IPPROTO_PIM 103
	Protocol Independent Multicast internet protocol number.
#define	IPPROTO_ARIS 104
	ARIS internet protocol number.
#define	IPPROTO_SCPS 105
	SCPS internet protocol number.
#define	IPPROTO_QNX 106
	QNX internet protocol number.
#define	IPPROTO_AN 107
	Active Networks internet protocol number.
#define	IPPROTO_IPComp 108
	IP Payload Compression Protocol internet protocol number.
#define	IPPROTO_SNP 109
	Sitara Networks Protocol internet protocol number.
#define	IPPROTO_Compaq_Peer 110
	Compaq Peer Protocol internet protocol number.
#define	IPPROTO_IPX_in_IP 111
	IPX in IP internet protocol number.
#define	IPPROTO_VRRP 112
	Virtual Router Redundancy Protocol internet protocol number.
#define	IPPROTO_PGM 113
	PGM Reliable Transport Protocol internet protocol number.
#define	IPPROTO_A0HP 114
	Any 0-hop protocol internet protocol number.
#define	IPPROTO_L2TP 115
	Layer Two Tunneling Protocol internet protocol number.
#define	IPPROTO_DDX 116
	D-II Data Exchange (DDX) internet protocol number.
#define	IPPROTO_IATP 117
	Interactive Agent Transfer Protocol internet protocol number.
#define	IPPROTO_STP 118
	Schedule Transfer Protocol internet protocol number.
#define	IPPROTO_SRP 119
	SpectraLink Radio Protocol internet protocol number.
#define	IPPROTO_UTI 120
	UTI internet protocol number.
#define	IPPROTO_SMP 121
	Simple Message Protocol internet protocol number.
#define	IPPROTO_SM 122
	SM internet protocol number.
#define	IPPROTO_PTP 123
	Performance Transparency Protocol internet protocol number.
#define	IPPROTO_ISIS 124
	ISIS over IPv4 internet protocol number.
#define	IPPROTO_FIRE 125
	FIRE internet protocol number.
#define	IPPROTO_CRTP 126
	Combat Radio Transport Protocol internet protocol number.
#define	IPPROTO_CRUDP 127
	Combat Radio User Datagram internet protocol number.
#define	IPPROTO_SSCOPMCE 128
	SSCOPMCE internet protocol number.
#define	IPPROTO_IPLT 129
	IPLT internet protocol number.
#define	IPPROTO_SPS 130
	Secure Packet Shield internet protocol number.
#define	IPPROTO_PIPE 131
	Private IP Encapsulation within IP internet protocol number.
#define	IPPROTO_SCTP 132
	Stream Control Transmission Protocol internet protocol number.
#define	IPPROTO_FC 133
	Fibre Channel internet protocol number.
#define	IPPROTO_RSVP_E2E_IGNORE 134
	RSVP-E2E-IGNORE internet protocol number.
#define	IPPROTO_MH 135
	Mobility Header internet protocol number.
#define	IPPROTO_UDPLITE 136
	UDPLite internet protocol number.
#define	IPPROTO_MPLS_in_IP 137
	MPLS-in-IP internet protocol number.
#define	IPPROTO_manet 138
	MANET Protocols internet protocol number.
#define	IPPROTO_HIP 139
	Host Identity Protocol internet protocol number.
#define	IPPROTO_RAW 255
	Raw internet protocol number.
#define	IPPROTO_MAX (IPPROTO_RAW + 1)
	Maximum internet protocol number.

Define Documentation

#define ARP_FILENAME "/srv/arp"

ARP module filename.

#define ARP_NAME "arp"

ARP module name.

#define IP_ADDR sizeof(struct sockaddr_in6)

IP packet address length.

Referenced by ip_packet_size_message().

#define IP_COMPUTE_FRAGMENT_OFFSET_HIGH ( length ) ((((length) / 8u) &0x1F00) >> 8)

Returns the fragment offest high bits.

Parameters:

[in] length The prefixed data total length.

Referenced by ip_fragment_packet_data(), and ip_prepare_packet().

#define IP_COMPUTE_FRAGMENT_OFFSET_LOW ( length ) (((length) / 8u) &0xFF)

Returns the fragment offest low bits.

Parameters:

[in] length The prefixed data total length.

Referenced by ip_fragment_packet_data(), and ip_prepare_packet().

#define IP_COMPUTE_HEADER_LENGTH ( length ) ((uint8_t) ((length) / 4u))

Returns the IP header length.

Parameters:

[in] length The IP header length in bytes.

#define IP_FRAGMENT_OFFSET ( header ) ((((header)->fragment_offset_high << 8) + (header)->fragment_offset_low) * 8u)

Returns the fragment offest.

Parameters:

[in] header The IP packet header.

Referenced by ip_deliver_local(), ip_fragment_packet_data(), and ip_prepare_icmp().

#define IP_GET_ADDRESS ( call ) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG3(*call); addr;})

Returns the address message parameter.

Parameters:

[in] call The message call structure.

#define IP_GET_GATEWAY ( call ) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG2(*call); addr;})

Returns the gateway message parameter.

Parameters:

[in] call The message call structure.

#define IP_GET_NETMASK ( call ) ({in_addr_t addr; addr.s_addr = IPC_GET_ARG4(*call); addr;})

Returns the network mask message parameter.

Parameters:

[in] call The message call structure.

#define IP_GET_PROTOCOL ( call ) ((ip_protocol_t) IPC_GET_ARG1(*call))

Returns the protocol message parameter.

Parameters:

[in] call The message call structure.

#define IP_HEADER_CHECKSUM ( header ) (htons(ip_checksum((uint8_t *)(header), IP_HEADER_LENGTH(header))))

Returns the IP packet header checksum.

Parameters:

[in] header The IP packet header.

Referenced by ip_fragment_packet(), ip_fragment_packet_data(), ip_prepare_packet(), and ip_process_packet().

#define IP_HEADER_DATA_LENGTH ( header ) (IP_TOTAL_LENGTH(header) - IP_HEADER_LENGTH(header))

Returns the actual IP packet data length.

Parameters:

[in] header The IP packet header.

Referenced by ip_fragment_packet(), and ip_fragment_packet_data().

#define IP_HEADER_LENGTH ( header ) ((header)->header_length * 4u)

Returns the actual IP header length in bytes.

Parameters:

[in] header The IP packet header.

Referenced by ip_create_middle_header(), ip_fragment_packet(), ip_fragment_packet_data(), and ip_prepare_packet().

#define IP_MAX_CONTENT 65535

IP packet maximum content length.

Referenced by ip_packet_size_message(), and ip_prepare_packet().

#define IP_MIN_CONTENT 576

Minimum IP packet content.

Referenced by ip_netif_initialize().

#define IP_PREFIX sizeof(ip_header_t)

IP packet prefix length.

Referenced by ip_packet_size_message().

#define IP_SET_HEADERLEN ( answer ) ((size_t *) &IPC_GET_ARG2(*answer))

Sets the header length in the message answer.

Parameters:

[out] answer The message answer structure.

#define IP_SUFFIX 0

IP packet suffix length.

Referenced by ip_packet_size_message().

#define IP_TOTAL_LENGTH ( header ) ntohs((header)->total_length)

Returns the actual IP packet total length.

Parameters:

[in] header The IP packet header.

Referenced by ip_deliver_local(), ip_fragment_packet(), and ip_fragment_packet_data().

#define IPDEFTTL 64

Default time to live counter.

#define IPFLAG_DONT_FRAGMENT (0x1 << IPFLAG_FRAGMENT_SHIFT)

Don't fragment flag value.

Permits the packet fragmentation.

Referenced by ip_fragment_packet().

#define IPFLAG_FRAGMENT_SHIFT 1

Fragment flag field shift.

#define IPFLAG_FRAGMENTED_SHIFT 0

Fragmented flag field shift.

#define IPFLAG_LAST_FRAGMENT (0x0 << IPFLAG_FRAGMENTED_SHIFT)

Last fragment flag value.

Indicates the last packet fragment.

#define IPFLAG_MAY_FRAGMENT (0x0 << IPFLAG_FRAGMENT_SHIFT)

May fragment flag value.

Allows the packet fragmentation.

#define IPFLAG_MORE_FRAGMENTS (0x1 << IPFLAG_FRAGMENTED_SHIFT)

More fragments flag value.

Indicates that more packet fragments follow.

Referenced by ip_create_middle_header(), ip_deliver_local(), ip_fragment_packet(), and ip_prepare_packet().

#define IPOPT_CIPSO IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 5)

Commercial IP security option.

#define IPOPT_CLASS ( o ) ((o) &IPOPT_CLASS_MASK)

Returns an IP option class.

Parameters:

[in] o The IP option.

#define IPOPT_CLASS_MASK 0x60

Class mask.

#define IPOPT_CLASS_SHIFT 5

Class shift.

#define IPOPT_CONTROL (0 << IPOPT_CLASS_SHIFT)

Control class.

#define IPOPT_COPIED ( o ) ((o) &IPOPT_COPY)

Returns a value indicating whether the IP option should be copied.

Parameters:

[in] o The IP option.

Referenced by ip_create_last_header().

#define IPOPT_COPY (1 << IPOPT_COPY_SHIFT)

Copy flag.

#define IPOPT_COPY_SHIFT 7

Copy shift.

#define IPOPT_END IPOPT_TYPE(0, IPOPT_CONTROL, 0)

End of list.

Referenced by ip_create_last_header().

#define IPOPT_EOL IPOPT_END

End of list variant.

#define IPOPT_LSRR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 3)

Loose source.

#define IPOPT_MEASUREMENT (2 << IPOPT_CLASS_SHIFT)

Measurement class.

#define IPOPT_NOOP IPOPT_TYPE(0, IPOPT_CONTROL, 1)

No operation.

Referenced by ip_create_last_header().

#define IPOPT_NOP IPOPT_NOOP

No operation variant.

#define IPOPT_NUMBER ( o ) ((o) &IPOPT_NUMBER_MASK)

Returns an IP option number.

Parameters:

[in] o The IP option.

#define IPOPT_NUMBER_MASK 0x1F

Number mask.

#define IPOPT_NUMBER_SHIFT 0

Number shift.

#define IPOPT_RESERVED1 (1 << IPOPT_CLASS_SHIFT)

Reserved class 1.

#define IPOPT_RESERVED2 (3 << IPOPT_CLASS_SHIFT)

Reserved class 2.

#define IPOPT_RR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 7)

Record route.

#define IPOPT_SEC IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 2)

Security.

#define IPOPT_SEC_CONFIDENTIAL 0xF035

Confidential.

#define IPOPT_SEC_EFTO 0x789A

EFTO.

#define IPOPT_SEC_LENGTH 11

Security length.

#define IPOPT_SEC_MMMM 0xBC4D

MMMM.

#define IPOPT_SEC_PROG 0x5E26

PROG.

#define IPOPT_SEC_RESTRICTED 0xAF13

Restricted.

#define IPOPT_SEC_SECRET 0xD788

Secret.

#define IPOPT_SEC_TOP_SECRET 0x6BC5

Top secret.

#define IPOPT_SEC_UNCLASIFIED 0x0

Unclasified.

#define IPOPT_SID IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 8)

Stream identifier.

#define IPOPT_SID_LENGTH 4

Stream identifier length.

#define IPOPT_SSRR IPOPT_TYPE(IPOPT_COPY, IPOPT_CONTROL, 9)

Strict route.

#define IPOPT_TIMESTAMP IPOPT_TYPE(IPOPT_COPY, IPOPT_MEASUREMENT, 4)

Internet timestamp.

#define IPOPT_TS IPOPT_TIMESTAMP

Timestamp variant.

#define IPOPT_TS_PRESPEC 3

Specified modules only.

#define IPOPT_TS_TSANDADDR 1

Timestamps and addresses.

#define IPOPT_TS_TSONLY 0

Tiemstamp only.

#define IPOPT_TYPE	(	copy,
		class,
		number	)	(((copy) &IPOPT_COPY) \| ((class) &IPOPT_CLASS_MASK) \| ((number << IPOPT_NUMBER_SHIFT) &IPOPT_NUMBER_MASK))

Returns IP option type.

Parameters:

`[in]`	copy	The value indication whether the IP option should be copied.
`[in]`	class	The IP option class.
`[in]`	number	The IP option number.

#define IPPROTO_3PC 34

Third Party Connect Protocol internet protocol number.

#define IPPROTO_A0HP 114

Any 0-hop protocol internet protocol number.

#define IPPROTO_ADFS 68

Any distributed file system internet protocol number.

#define IPPROTO_AH 51

Authentication Header internet protocol number.

#define IPPROTO_AHIP 61

Any host internal protocol internet protocol number.

#define IPPROTO_ALN 63

Any local network internet protocol number.

#define IPPROTO_AN 107

Active Networks internet protocol number.

#define IPPROTO_APES 99

Any private encryption scheme internet protocol number.

#define IPPROTO_ARGUS 13

ARGUS internet protocol number.

#define IPPROTO_ARIS 104

ARIS internet protocol number.

#define IPPROTO_AX25 93

AX.25 Frames internet protocol number.

#define IPPROTO_BBN_RCC_MON 10

BBN RCC Monitoring internet protocol number.

#define IPPROTO_BNA 49

BNA internet protocol number.

#define IPPROTO_BR_SAT_MON 76

Backroom SATNET Monitoring internet protocol number.

#define IPPROTO_CBT 7

CBT internet protocol number.

#define IPPROTO_CFTP 62

CFTP internet protocol number.

#define IPPROTO_CHAOS 16

Chaos internet protocol number.

#define IPPROTO_Compaq_Peer 110

Compaq Peer Protocol internet protocol number.

#define IPPROTO_CPHB 73

Computer Protocol Heart Beat internet protocol number.

#define IPPROTO_CPNX 72

Computer Protocol Network Executive internet protocol number.

#define IPPROTO_CRTP 126

Combat Radio Transport Protocol internet protocol number.

#define IPPROTO_CRUDP 127

Combat Radio User Datagram internet protocol number.

#define IPPROTO_DCCP 33

Datagram Congestion Control Protocol internet protocol number.

#define IPPROTO_DCN_MEAS 19

DCN Measurement Subsystems internet protocol number.

#define IPPROTO_DDP 37

Datagram Delivery Protocol internet protocol number.

#define IPPROTO_DDX 116

D-II Data Exchange (DDX) internet protocol number.

#define IPPROTO_DGP 86

Dissimilar Gateway Protocol internet protocol number.

#define IPPROTO_DSR 48

Dynamic Source Routing Protocol internet protocol number.

#define IPPROTO_EGP 8

Exterior Gateway Protocol internet protocol number.

#define IPPROTO_EIGRP 88

EIGRP internet protocol number.

#define IPPROTO_EMCON 14

EMCON internet protocol number.

#define IPPROTO_ENCAP 98

Encapsulation Header internet protocol number.

#define IPPROTO_ESP 50

Encap Security Payload internet protocol number.

#define IPPROTO_ETHERIP 97

Ethernet-within-IP Encapsulation internet protocol number.

#define IPPROTO_FC 133

Fibre Channel internet protocol number.

#define IPPROTO_FIRE 125

FIRE internet protocol number.

#define IPPROTO_GGP 3

Gateway-to-Gateway internet protocol number.

#define IPPROTO_GMTP 100

GMTP internet protocol number.

#define IPPROTO_GRE 47

General Routing Encapsulation internet protocol number.

#define IPPROTO_HIP 139

Host Identity Protocol internet protocol number.

#define IPPROTO_HMP 20

Host Monitoring internet protocol number.

#define IPPROTO_HOPOPT 0

IPv6 Hop-by-Hop Option internet protocol number.

#define IPPROTO_I_NLSP 52

Integrated Net Layer Security TUBA internet protocol number.

#define IPPROTO_IATP 117

Interactive Agent Transfer Protocol internet protocol number.

#define IPPROTO_ICMP 1

Internet Control Message internet protocol number.

Referenced by icmp_send_packet(), ip_get_icmp_phone(), and ip_prepare_icmp().

#define IPPROTO_IDPR 35

Inter-Domain Policy Routing Protocol internet protocol number.

#define IPPROTO_IDPR_CMTP 38

IDPR Control Message Transport Proto internet protocol number.

#define IPPROTO_IDRP 45

Inter-Domain Routing Protocol internet protocol number.

#define IPPROTO_IFMP 101

Ipsilon Flow Management Protocol internet protocol number.

#define IPPROTO_IGMP 2

Internet Group Management internet protocol number.

#define IPPROTO_IGP 9

any private interior gateway (used by Cisco for their IGRP) internet protocol number.

#define IPPROTO_IL 40

IL Transport Protocol internet protocol number.

#define IPPROTO_IP 4

IP in IP (encapsulation) internet protocol number.

#define IPPROTO_IPComp 108

IP Payload Compression Protocol internet protocol number.

#define IPPROTO_IPCV 71

Internet Packet Core Utility internet protocol number.

#define IPPROTO_IPIP 94

IP-within-IP Encapsulation Protocol internet protocol number.

#define IPPROTO_IPLT 129

IPLT internet protocol number.

#define IPPROTO_IPPC 67

Internet Pluribus Packet Core internet protocol number.

#define IPPROTO_IPV6 41

Ipv6 internet protocol number.

#define IPPROTO_IPv6_Frag 44

Fragment Header for IPv6 internet protocol number.

#define IPPROTO_IPv6_ICMP 58

ICMP for IPv6 internet protocol number.

#define IPPROTO_IPv6_NoNxt 59

No Next Header for IPv6 internet protocol number.

#define IPPROTO_IPv6_Opts 60

Destination Options for IPv6 internet protocol number.

#define IPPROTO_IPv6_Route 43

Routing Header for IPv6 internet protocol number.

#define IPPROTO_IPX_in_IP 111

IPX in IP internet protocol number.

#define IPPROTO_IRTP 28

Internet Reliable Transaction internet protocol number.

#define IPPROTO_ISIS 124

ISIS over IPv4 internet protocol number.

#define IPPROTO_ISO_IP 80

ISO Internet Protocol internet protocol number.

#define IPPROTO_ISO_TP4 29

ISO Transport Protocol Class 4 internet protocol number.

#define IPPROTO_KRYPTOLAN 65

Kryptolan internet protocol number.

#define IPPROTO_L2TP 115

Layer Two Tunneling Protocol internet protocol number.

#define IPPROTO_LARP 91

Locus Address Resolution Protocol internet protocol number.

#define IPPROTO_LEAF_1 25

Leaf-1 internet protocol number.

#define IPPROTO_LEAF_2 26

Leaf-2 internet protocol number.

#define IPPROTO_manet 138

MANET Protocols internet protocol number.

#define IPPROTO_MAX (IPPROTO_RAW + 1)

Maximum internet protocol number.

#define IPPROTO_MERIT_INP 32

MERIT Internodal Protocol internet protocol number.

#define IPPROTO_MFE_NSP 31

MFE Network Services Protocol internet protocol number.

#define IPPROTO_MH 135

Mobility Header internet protocol number.

#define IPPROTO_MICP 95

Mobile Internetworking Control Pro.

internet protocol number.

#define IPPROTO_MOBILE 55

IP Mobility internet protocol number.

#define IPPROTO_MPLS_in_IP 137

MPLS-in-IP internet protocol number.

#define IPPROTO_MTP 92

Multicast Transport Protocol internet protocol number.

#define IPPROTO_MUX 18

Multiplexing internet protocol number.

#define IPPROTO_NARP 54

NBMA Address Resolution Protocol internet protocol number.

#define IPPROTO_NETBLT 30

Bulk Data Transfer Protocol internet protocol number.

#define IPPROTO_NSFNET_IGP 85

NSFNET-IGP internet protocol number.

#define IPPROTO_NVP_II 11

Network Voice Protocol internet protocol number.

#define IPPROTO_OSPFIGP 89

OSPFIGP internet protocol number.

#define IPPROTO_PGM 113

PGM Reliable Transport Protocol internet protocol number.

#define IPPROTO_PIM 103

Protocol Independent Multicast internet protocol number.

#define IPPROTO_PIPE 131

Private IP Encapsulation within IP internet protocol number.

#define IPPROTO_PNNI 102

PNNI over IP internet protocol number.

#define IPPROTO_PRM 21

Packet Radio Measurement internet protocol number.

#define IPPROTO_PTP 123

Performance Transparency Protocol internet protocol number.

#define IPPROTO_PUP 12

PUP internet protocol number.

#define IPPROTO_PVP 75

Packet Video Protocol internet protocol number.

#define IPPROTO_QNX 106

QNX internet protocol number.

#define IPPROTO_RAW 255

Raw internet protocol number.

#define IPPROTO_RDP 27

Reliable Data Protocol internet protocol number.

#define IPPROTO_RSVP 46

Reservation Protocol internet protocol number.

#define IPPROTO_RSVP_E2E_IGNORE 134

RSVP-E2E-IGNORE internet protocol number.

#define IPPROTO_RVD 66

MIT Remote Virtual Disk Protocol internet protocol number.

#define IPPROTO_SAT_EXPAK 64

SATNET and Backroom EXPAK internet protocol number.

#define IPPROTO_SAT_MON 69

SATNET Monitoring internet protocol number.

#define IPPROTO_SCC_SP 96

Semaphore Communications Sec.

Pro. internet protocol number.

#define IPPROTO_SCPS 105

SCPS internet protocol number.

#define IPPROTO_SCTP 132

Stream Control Transmission Protocol internet protocol number.

#define IPPROTO_SDRP 42

Source Demand Routing Protocol internet protocol number.

#define IPPROTO_SECURE_VMTP 82

SECURE-VMTP internet protocol number.

#define IPPROTO_SKIP 57

SKIP internet protocol number.

#define IPPROTO_SM 122

SM internet protocol number.

#define IPPROTO_SMP 121

Simple Message Protocol internet protocol number.

#define IPPROTO_SNP 109

Sitara Networks Protocol internet protocol number.

#define IPPROTO_Sprite_RPC 90

Sprite RPC Protocol internet protocol number.

#define IPPROTO_SPS 130

Secure Packet Shield internet protocol number.

#define IPPROTO_SRP 119

SpectraLink Radio Protocol internet protocol number.

#define IPPROTO_SSCOPMCE 128

SSCOPMCE internet protocol number.

#define IPPROTO_ST 5

Stream internet protocol number.

#define IPPROTO_STP 118

Schedule Transfer Protocol internet protocol number.

#define IPPROTO_SUN_ND 77

SUN ND IPPROTOCOL_Temporary internet protocol number.

#define IPPROTO_SWIPE 53

IP with Encryption internet protocol number.

#define IPPROTO_TCF 87

TCF internet protocol number.

#define IPPROTO_TCP 6

Transmission Control internet protocol number.

Referenced by socket(), tcp_connect_core(), tcp_process_packet(), and tcp_send_prepare_packet().

#define IPPROTO_TLSP 56

Transport Layer Security Protocol using Kryptonet key management internet protocol number.

#define IPPROTO_TP 39

TP++ Transport Protocol internet protocol number.

#define IPPROTO_TRUNK_1 23

Trunk-1 internet protocol number.

#define IPPROTO_TRUNK_2 24

Trunk-2 internet protocol number.

#define IPPROTO_TTP 84

TTP internet protocol number.

#define IPPROTO_UDP 17

User Datagram internet protocol number.

Referenced by socket(), udp_process_packet(), and udp_sendto_message().

#define IPPROTO_UDPLITE 136

UDPLite internet protocol number.

#define IPPROTO_UTI 120

UTI internet protocol number.

#define IPPROTO_VINES 83

VINES internet protocol number.

#define IPPROTO_VISA 70

VISA Protocol internet protocol number.

#define IPPROTO_VMTP 81

VMTP internet protocol number.

#define IPPROTO_VRRP 112

Virtual Router Redundancy Protocol internet protocol number.

#define IPPROTO_WB_EXPAK 79

WIDEBAND EXPAK internet protocol number.

#define IPPROTO_WB_MON 78

WIDEBAND Monitoring internet protocol number.

#define IPPROTO_WSN 74

Wang Span Network internet protocol number.

#define IPPROTO_XNET 15

Cross Net Debugger internet protocol number.

#define IPPROTO_XNS_IDP 22

XEROX NS IDP internet protocol number.

#define IPPROTO_XTP 36

XTP internet protocol number.

#define IPTOS_COST_SHIFT 1

Cost shift.

#define IPTOS_DELAY_SHIFT 4

Delay shift.

#define IPTOS_LOWDELAY (0x1 << IPTOS_DELAY_SHIFT)

Low delay.

#define IPTOS_MICNCOST (0x1 << IPTOS_COST_SHIFT)

Minimum cost.

#define IPTOS_NORMALCOST (0x0 << IPTOS_COST_SHIFT)

Normal cost.

#define IPTOS_NORMALDELAY (0x0 << IPTOS_DELAY_SHIFT)

Normal delay.

#define IPTOS_NORMALRELIABILITY (0x0 << IPTOS_RELIABILITY_SHIFT)

Normal reliability.

#define IPTOS_NORMALTHROUGHPUT (0x0 << IPTOS_THROUGHPUT_SHIFT)

Normal throughput.

#define IPTOS_PREC_CRITIC_ECP (0x5 << IPTOS_PRECEDENCE_SHIFT)

Critical precedence.

#define IPTOS_PREC_FLASH (0x3 << IPTOS_PRECEDENCE_SHIFT)

Flash precedence.

#define IPTOS_PREC_FLASHOVERRIDE (0x4 << IPTOS_PRECEDENCE_SHIFT)

Flash override precedence.

#define IPTOS_PREC_IMMEDIATE (0x2 << IPTOS_PRECEDENCE_SHIFT)

Immediate precedence.

#define IPTOS_PREC_INTERNETCONTROL (0x6 << IPTOS_PRECEDENCE_SHIFT)

Inter-network control precedence.

#define IPTOS_PREC_MASK 0xE0

Precedence mask.

#define IPTOS_PREC_NETCONTROL (0x7 << IPTOS_PRECEDENCE_SHIFT)

Network control precedence.

#define IPTOS_PREC_PRIORITY (0x1 << IPTOS_PRECEDENCE_SHIFT)

Priority precedence.

#define IPTOS_PREC_ROUTINE (0x0 << IPTOS_PRECEDENCE_SHIFT)

Routine precedence.

#define IPTOS_PRECEDENCE_SHIFT 5

Precedence shift.

#define IPTOS_RELIABILITY (0x1 << IPTOS_RELIABILITY_SHIFT)

Reliability.

#define IPTOS_RELIABILITY_SHIFT 2

Reliability shift.

#define IPTOS_THROUGHPUT (0x1 << IPTOS_THROUGHPUT_SHIFT)

Throughput.

#define IPTOS_THROUGHPUT_SHIFT 3

Throughput shift.

#define IPTOS_TOS_MASK 0x1E

IP TOS mask.

#define IPV4 4

IP version 4.

Referenced by ip_netif_initialize(), and ip_prepare_packet().

#define IPV4_LOCALHOST_ADDRESS htonl((127 << 24) + 1)

The IP localhost address.

#define IPVERSION 4

Default IPVERSION.

Referenced by ip_deliver_local(), ip_prepare_icmp(), and ip_process_packet().

#define MAXTTL 255

Maximum time to live counter.

#define NAME "IP protocol"

IP module name.

#define NET_DEFAULT_IP_ROUTING false

Default network interface IP routing.

Referenced by ip_netif_initialize().

#define NET_DEFAULT_IPV IPV4

Default network interface IP version.

Referenced by ip_netif_initialize().

Typedef Documentation

typedef struct ip_globals ip_globals_t

Type definition of the IP global data.

See also:: ip_globals

typedef ip_header_t* ip_header_ref

Type definition of the internet header pointer.

See also:: ip_header

typedef struct ip_header ip_header_t

Type definition of the internet header.

See also:: ip_header

typedef ip_netif_t* ip_netif_ref

Type definition of the IP network interface specific data pointer.

See also:: ip_netif

typedef struct ip_netif ip_netif_t

Type definition of the IP network interface specific data.

See also:: ip_netif

typedef ip_option_t* ip_option_ref

Type definition of the internet option header pointer.

See also:: ip_header

typedef struct ip_option ip_option_t

Type definition of the internet option header.

See also:: ip_header

typedef ip_proto_t* ip_proto_ref

Type definition of the IP protocol specific data pointer.

See also:: ip_proto

typedef struct ip_proto ip_proto_t

Type definition of the IP protocol specific data.

See also:: ip_proto

typedef uint8_t ip_protocol_t

IP transport protocol type definition.

typedef void* ip_pseudo_header_ref

Type definition of the internet pseudo header pointer.

typedef ip_route_t* ip_route_ref

Type definition of the IP route specific data pointer.

See also:: ip_route

typedef struct ip_route ip_route_t

Type definition of the IP route specific data.

See also:: ip_route

typedef uint8_t ip_tos_t

IP type of service type definition.

typedef uint8_t ip_ttl_t

IP time to live counter type definition.

typedef ipv4_pseudo_header_t* ipv4_pseudo_header_ref

Type definition of the internet version 4 pseudo header pointer.

See also:: ipv4_pseudo_header

typedef struct ipv4_pseudo_header ipv4_pseudo_header_t

Type definition of the internet version 4 pseudo header.

See also:: ipv4_pseudo_header

typedef int(* tl_received_msg_t)(device_id_t device_id, packet_t packet, services_t receiver, services_t error)

The transport layer notification function type definition.

Notifies the transport layer modules about the received packet/s.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	packet	The received packet or the received packet queue.
`[in]`	receiver	The receiving module service.
`[in]`	error	The packet error reporting service. Prefixes the received packet.

Returns:: EOK on success.

Enumeration Type Documentation

enum ip_messages

IP module messages.

Enumerator:

NET_IP_ADD_ROUTE	Adds the routing entry. See also: ip_add_route()
NET_IP_GET_ROUTE	Gets the actual route information. See also: ip_get_route()
NET_IP_RECEIVED_ERROR	Processes the received error notification. See also: ip_received_error_msg()
NET_IP_SET_GATEWAY	Sets the default gateway. See also: ip_set_default_gateway()

Function Documentation

int ip_add_route_req	(	int	ip_phone,
		device_id_t	device_id,
		in_addr_t	address,
		in_addr_t	netmask,
		in_addr_t	gateway
	)

Adds a route to the device routing table.

The target network is routed using this device.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The device identifier.
`[in]`	address	The target network address.
`[in]`	netmask	The target network mask.
`[in]`	gateway	The target network gateway. Not used if zero.

References NET_IP_ADD_ROUTE, and in_addr::s_addr.

int ip_bind_service	(	services_t	service,
		int	protocol,
		services_t	me,
		async_client_conn_t	receiver,
		tl_received_msg_t	tl_received_msg
	)

Creates bidirectional connection with the ip module service and registers the message receiver.

Parameters:

`[in]`	service	The IP module service.
`[in]`	protocol	The transport layer protocol.
`[in]`	me	The requesting module service.
`[in]`	receiver	The message receiver. Used for remote connection.
`[in]`	tl_received_msg	The message processing function. Used if bundled together.

Returns:: The phone of the needed service.; EOK on success.; Other error codes as defined for the bind_service() function.

References bind_service().

Here is the call graph for this function:

int ip_client_get_pseudo_header	(	ip_protocol_t	protocol,
		struct sockaddr *	src,
		socklen_t	srclen,
		struct sockaddr *	dest,
		socklen_t	destlen,
		size_t	data_length,
		ip_pseudo_header_ref *	header,
		size_t *	headerlen
	)

Constructs the IPv4 pseudo header.

Parameters:

`[in]`	protocol	The transport protocol.
`[in]`	src	The source address.
`[in]`	srclen	The source address length.
`[in]`	dest	The destination address.
`[in]`	destlen	The destination address length.
`[in]`	data_length	The data length to be set.
`[out]`	header	The constructed IPv4 pseudo header.
`[out]`	headerlen	The length of the IP pseudo header in bytes.

Returns:: EOK on success.; EBADMEM if the header and/or the headerlen parameter is NULL.; EINVAL if the source address and/or the destination address parameter is NULL.; EINVAL if the source address length is less than struct sockaddr length.; EINVAL if the source address length differs from the destination address length.; EINVAL if the source address family differs from the destination family.; EAFNOSUPPORT if the address family is not supported.; ENOMEM if there is not enough memory left.

Referenced by tcp_process_packet(), and udp_process_packet().

Here is the caller graph for this function:

size_t ip_client_header_length ( packet_t packet )

Returns the IP header length.

Parameters:

[in] packet The packet.

Returns:: The IP header length in bytes.; Zero (0) if there is no IP header.

Referenced by icmp_prepare_packet(), and icmp_process_packet().

Here is the caller graph for this function:

int ip_client_prepare_packet	(	packet_t	packet,
		ip_protocol_t	protocol,
		ip_ttl_t	ttl,
		ip_tos_t	tos,
		int	dont_fragment,
		size_t	ipopt_length
	)

Prepares the packet to be transfered via IP.

The IP header is prefixed.

Parameters:

`[in,out]`	packet	The packet to be prepared.
`[in]`	protocol	The transport protocol.
`[in]`	ttl	The time to live counter. The IPDEFTTL is set if zero (0).
`[in]`	tos	The type of service.
`[in]`	dont_fragment	The value indicating whether fragmentation is disabled.
`[in]`	ipopt_length	The prefixed IP options length in bytes.

Returns:: EOK on success.; ENOMEM if there is not enough memory left in the packet.

Referenced by icmp_send_packet(), tcp_send_prepare_packet(), and udp_sendto_message().

Here is the caller graph for this function:

int ip_client_process_packet	(	packet_t	packet,
		ip_protocol_t *	protocol,
		ip_ttl_t *	ttl,
		ip_tos_t *	tos,
		int *	dont_fragment,
		size_t *	ipopt_length
	)

Processes the received IP packet.

Fills set header fields. Returns the prefixed IP header length.

Parameters:

`[in]`	packet	The received packet.
`[out]`	protocol	The transport protocol. May be NULL if not desired.
`[out]`	ttl	The time to live counter. May be NULL if not desired.
`[out]`	tos	The type of service. May be NULL if not desired.
`[out]`	dont_fragment	The value indicating whether the fragmentation is disabled. May be NULL if not desired.
`[out]`	ipopt_length	The IP options length in bytes. May be NULL if not desired.

Returns:: The prefixed IP header length in bytes on success.; ENOMEM if the packet is too short to contain the IP header.

Referenced by tcp_process_packet(), and udp_process_packet().

Here is the caller graph for this function:

int ip_client_set_pseudo_header_data_length	(	ip_pseudo_header_ref	header,
		size_t	headerlen,
		size_t	data_length
	)

Updates the IPv4 pseudo header data length field.

Parameters:

`[in,out]`	header	The IPv4 pseudo header to be updated.
`[in]`	headerlen	The length of the IP pseudo header in bytes.
`[in]`	data_length	The data length to be set.

Returns:: EOK on success.; EBADMEM if the header parameter is NULL.; EINVAL if the headerlen parameter is not IPv4 pseudo header length.

Referenced by tcp_process_packet(), tcp_send_prepare_packet(), and udp_sendto_message().

Here is the caller graph for this function:

int ip_connect_module ( services_t service )

Connects to the IP module.

Parameters:

service

The IP module service. Ignored parameter.

Returns:: The IP module phone on success.; 0 if called by the bundle module.

References connect_to_service().

Referenced by net_initialize_build().

Here is the call graph for this function:

Here is the caller graph for this function:

void ip_create_last_header	(	ip_header_ref	last,
		ip_header_ref	first
	)

Copies the fragment header.

Copies only the header itself and relevant IP options.

Parameters:

`[out]`	last	The created header.
`[in]`	first	The original header to be copied.

References ip_header::header_checksum, ip_header::header_length, IPOPT_COPIED, IPOPT_END, IPOPT_NOOP, ip_option::length, and ip_option::type.

Referenced by ip_fragment_packet(), and ip_prepare_packet().

Here is the caller graph for this function:

ip_header_ref ip_create_middle_header	(	packet_t	packet,
		ip_header_ref	last
	)

Prefixes a middle fragment header based on the last fragment header to the packet.

Parameters:

`[in]`	packet	The packet to be prefixed.
`[in]`	last	The last header to be copied.

Returns:: The prefixed middle header.; NULL on error.

References ip_header::flags, IP_HEADER_LENGTH, IPFLAG_MORE_FRAGMENTS, and packet_suffix().

Referenced by ip_fragment_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_deliver_local	(	device_id_t	device_id,
		packet_t	packet,
		ip_header_ref	header,
		services_t	error
	)

Delivers the packet to the local host.

The packet is either passed to another module or released on error. The ICMP_PROT_UNREACH error notification may be sent if the protocol is not found.

Parameters:

`[in]`	device_id	The source device identifier.
`[in]`	packet	The packet to be delivered.
`[in]`	header	The first packet IP header. May be NULL.
`[in]`	error	The packet error service.

Returns:: EOK on success.; ENOTSUP if the packet is a fragment.; EAFNOSUPPORT if the address family is not supported.; ENOENT if the target protocol is not found.; Other error codes as defined for the packet_set_addr() function.; Other error codes as defined for the packet_trim() function.; Other error codes as defined for the protocol specific tl_received_msg function.

References AF_INET, ip_header::destination_address, EAFNOSUPPORT, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ip_header::flags, icmp_destination_unreachable_msg(), ICMP_PROT_UNREACH, IP_FRAGMENT_OFFSET, ip_prepare_icmp_and_get_phone(), ip_release_and_return(), IP_TOTAL_LENGTH, IPFLAG_MORE_FRAGMENTS, IPVERSION, packet_get_data_length(), packet_set_addr(), packet_trim(), ip_proto::phone, ip_header::protocol, ip_globals::protos, ip_globals::protos_lock, ip_proto::received_msg, in_addr::s_addr, ip_proto::service, sockaddr_in::sin_addr, sockaddr_in::sin_family, ip_header::source_address, tl_received_msg(), and ip_header::version.

Referenced by ip_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_device_req	(	int	ip_phone,
		device_id_t	device_id,
		services_t	netif
	)

Registers the new device.

Registers itself as the ip packet receiver. If the device uses ARP registers also the new ARP device.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The new device identifier.
`[in]`	netif	The underlying device network interface layer service.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.; EINVAL if the device configuration is invalid.; ENOTSUP if the device uses IPv6.; ENOTSUP if the device uses DHCP.; Other error codes as defined for the net_get_device_conf_req() function.; Other error codes as defined for the arp_device_req() function.

References generic_device_req(), and NET_IL_DEVICE.

Referenced by start_device().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_device_state_message	(	device_id_t	device_id,
		device_state_t	state
	)

Updates the device state.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	state	The new state value.

Returns:: EOK on success.; ENOENT if device is not found.

References ip_globals::netifs, ip_globals::netifs_lock, and ip_netif::state.

ip_route_ref ip_find_route ( in_addr_t destination )

Searches all network interfaces if there is a suitable route.

Parameters:

[in] destination The destination address.

Returns:: The found route.; NULL if no route was found.

References ip_globals::gateway, ip_netif_find_route(), NETIF_ACTIVE, ip_globals::netifs, and ip_netif::state.

Referenced by ip_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_fragment_packet	(	packet_t	packet,
		size_t	length,
		size_t	prefix,
		size_t	suffix,
		socklen_t	addr_len
	)

Checks the packet length and fragments it if needed.

The new fragments are queued before the original packet.

Parameters:

`[in,out]`	packet	The packet to be checked.
`[in]`	length	The maximum packet length.
`[in]`	prefix	The minimum prefix size.
`[in]`	suffix	The minimum suffix size.
`[in]`	addr_len	The minimum address length.

Returns:: EOK on success.; EINVAL if the packet_get_addr() function fails.; EINVAL if the packet does not contain the IP header.; EPERM if the packet needs to be fragmented and the fragmentation is not allowed.; ENOMEM if there is not enough memory left.; ENOMEM if there is no packet available.; ENOMEM if the packet is too small to contain the IP header.; Other error codes as defined for the packet_trim() function.; Other error codes as defined for the ip_create_middle_header() function.; Other error codes as defined for the ip_fragment_packet_data() function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ip_header::flags, ip_header::header_checksum, ip_create_last_header(), ip_create_middle_header(), ip_fragment_packet_data(), IP_HEADER_CHECKSUM, IP_HEADER_DATA_LENGTH, IP_HEADER_LENGTH, ip_release_and_return(), IP_TOTAL_LENGTH, IPFLAG_DONT_FRAGMENT, IPFLAG_MORE_FRAGMENTS, ip_globals::net_phone, packet_get_4(), packet_get_addr(), packet_get_data(), packet_get_data_length(), packet_suffix(), and packet_trim().

Referenced by ip_split_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_fragment_packet_data	(	packet_t	packet,
		packet_t	new_packet,
		ip_header_ref	header,
		ip_header_ref	new_header,
		size_t	length,
		const struct sockaddr *	src,
		const struct sockaddr *	dest,
		socklen_t	addrlen
	)

Fragments the packet from the end.

Parameters:

`[in]`	packet	The packet to be fragmented.
`[in,out]`	new_packet	The new packet fragment.
`[in,out]`	header	The original packet header.
`[in,out]`	new_header	The new packet fragment header.
`[in]`	length	The new fragment length.
`[in]`	src	The source address.
`[in]`	dest	The destiantion address.
`[in]`	addrlen	The address length.

Returns:: EOK on success.; ENOMEM if the target packet is too small.; Other error codes as defined for the packet_set_addr() function.; Other error codes as defined for the pq_insert_after() function.

References ERROR_DECLARE, ERROR_PROPAGATE, ip_header::fragment_offset_high, ip_header::fragment_offset_low, ip_header::header_checksum, htons, IP_COMPUTE_FRAGMENT_OFFSET_HIGH, IP_COMPUTE_FRAGMENT_OFFSET_LOW, IP_FRAGMENT_OFFSET, IP_HEADER_CHECKSUM, IP_HEADER_DATA_LENGTH, IP_HEADER_LENGTH, IP_TOTAL_LENGTH, packet_set_addr(), packet_suffix(), packet_trim(), pq_insert_after(), and ip_header::total_length.

Referenced by ip_fragment_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

in_addr_t ip_get_destination ( ip_header_ref header )

Returns the packet destination address from the IP header.

Parameters:

[in] header The packet IP header to be read.

Returns:: The packet destination address.

References ip_header::destination_address, and in_addr::s_addr.

Referenced by ip_process_packet().

Here is the caller graph for this function:

int ip_get_icmp_phone ( void )

Returns the ICMP phone.

Searches the registered protocols.

Returns:: The found ICMP phone.; ENOENT if the ICMP is not registered.

References IPPROTO_ICMP, ip_proto::phone, ip_globals::protos, and ip_globals::protos_lock.

Referenced by ip_prepare_icmp_and_get_phone().

Here is the caller graph for this function:

int ip_get_route_req	(	int	ip_phone,
		ip_protocol_t	protocol,
		const struct sockaddr *	destination,
		socklen_t	addrlen,
		device_id_t *	device_id,
		ip_pseudo_header_ref *	header,
		size_t *	headerlen
	)

Returns the device identifier and the IP pseudo header based on the destination address.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	protocol	The transport protocol.
`[in]`	destination	The destination address.
`[in]`	addrlen	The destination address length.
`[out]`	device_id	The device identifier.
`[out]`	header	The constructed IP pseudo header.
`[out]`	headerlen	The IP pseudo header length.

References free, IPC_GET_DEVICE, and NET_IP_GET_ROUTE.

Referenced by tcp_connect_core(), and udp_sendto_message().

Here is the caller graph for this function:

int ip_initialize ( async_client_conn_t client_connection )

Initializes the IP module.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

Referenced by module_start().

Here is the caller graph for this function:

int ip_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the IP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.

See also:: ip_interface.h; il_interface.h; IS_NET_IP_MESSAGE()

Referenced by module_message().

Here is the caller graph for this function:

int ip_mtu_changed_message	(	device_id_t	device_id,
		size_t	mtu
	)

Updates the device content length according to the new MTU value.

Parameters:

`[in]`	device_id	The device identifier.
`[in]`	mtu	The new mtu value.

Returns:: EOK on success.; ENOENT if device is not found.

References packet_dimension::content, ip_globals::netifs, ip_globals::netifs_lock, and ip_netif::packet_dimension.

in_addr_t * ip_netif_address ( ip_netif_ref netif )

Returns the network interface's IP address.

Parameters:

[in] netif The network interface.

Returns:: The IP address.; NULL if no IP address was found.

References ip_route::address, and ip_netif::routes.

ip_route_ref ip_netif_find_route	(	ip_netif_ref	netif,
		in_addr_t	destination
	)

Searches the network interfaces if there is a suitable route.

Parameters:

`[in]`	netif	The network interface to be searched for routes. May be NULL.
`[in]`	destination	The destination address.

Returns:: The found route.; NULL if no route was found.

References ip_route::address, ip_route::netmask, ip_netif::routes, and in_addr::s_addr.

Referenced by ip_find_route().

Here is the caller graph for this function:

int ip_netif_initialize ( ip_netif_ref ip_netif )

Initializes a new network interface specific data.

Connects to the network interface layer module, reads the netif configuration, starts an ARP module if needed and sets the netif routing table. The device identifier and the nil service has to be set.

Parameters:

[in,out] ip_netif Network interface specific data.

Returns:: EOK on success.; ENOTSUP if DHCP is configured.; ENOTSUP if IPv6 is configured.; EINVAL if any of the addresses is invalid.; EINVAL if the used ARP module is not known.; ENOMEM if there is not enough memory left.; Other error codes as defined for the net_get_device_conf_req() function.; Other error codes as defined for the bind_service() function.; Other error codes as defined for the specific arp_device_req() function.; Other error codes as defined for the nil_packet_size_req() function.

References ip_route::address, AF_INET, ip_netif::arp, arp_device_req(), ip_netif::broadcast, ip_globals::client_connection, packet_dimension::content, CONVERT_SIZE, count, ip_netif::device_id, ip_netif::dhcp, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, free, ip_globals::gateway, ip_route::gateway, get_running_module(), inet_pton(), IP_MIN_CONTENT, ip_netif::ipv, IPV4, measured_string::length, ip_globals::modules, NET_DEFAULT_IP_ROUTING, NET_DEFAULT_IPV, net_free_settings(), net_get_device_conf_req(), ip_globals::net_phone, ip_route::netif, ip_globals::netifs, ip_route::netmask, nil_bind_service, nil_packet_size_req, ip_netif::packet_dimension, module_struct::phone, ip_netif::phone, ip_netif::routes, ip_netif::routing, in_addr::s_addr, ip_netif::service, and measured_string::value.

Here is the call graph for this function:

int ip_packet_size_message	(	device_id_t	device_id,
		size_t *	addr_len,
		size_t *	prefix,
		size_t *	content,
		size_t *	suffix
	)

Returns the device packet dimensions for sending.

Parameters:

`[in]`	phone	The service module phone.
`[in]`	message	The service specific message.
`[in]`	device_id	The device identifier.
`[out]`	addr_len	The minimum reserved address length.
`[out]`	prefix	The minimum reserved prefix size.
`[out]`	content	The maximum content size.
`[out]`	suffix	The minimum reserved suffix size.

Returns:: EOK on success.

References packet_dimension::addr_len, IP_ADDR, IP_MAX_CONTENT, IP_PREFIX, IP_SUFFIX, ip_globals::netifs, ip_globals::netifs_lock, ip_netif::packet_dimension, packet_dimension::prefix, and packet_dimension::suffix.

int ip_packet_size_req	(	int	ip_phone,
		device_id_t	device_id,
		packet_dimension_ref	packet_dimension
	)

Returns the device packet dimension for sending.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The device identifier.
`[out]`	packet_dimension	The packet dimension.

Returns:: EOK on success.; ENOENT if there is no such device.; Other error codes as defined for the generic_packet_size_req() function.

References generic_packet_size_req(), and NET_IL_PACKET_SPACE.

Referenced by icmp_echo(), and udp_sendto_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_prepare_icmp	(	packet_t	packet,
		ip_header_ref	header
	)

Prepares the ICMP notification packet.

Releases additional packets and keeps only the first one.

Parameters:

`[in]`	packet	The packet or the packet queue to be reported as faulty.
`[in]`	header	The first packet IP header. May be NULL.

Returns:: EOK on success.; EINVAL if there are no data in the packet.; EINVAL if the packet is a fragment.; ENOMEM if the packet is too short to contain the IP header.; EAFNOSUPPORT if the address family is not supported.; EPERM if the protocol is not allowed to send ICMP notifications. The ICMP protocol itself.; Other error codes as defined for the packet_set_addr().

References AF_INET, EAFNOSUPPORT, IP_FRAGMENT_OFFSET, IPPROTO_ICMP, IPVERSION, ip_globals::net_phone, packet_get_data(), packet_get_data_length(), packet_get_id(), packet_set_addr(), pq_detach(), pq_release(), ip_header::protocol, in_addr::s_addr, sockaddr_in::sin_addr, sockaddr_in::sin_family, ip_header::source_address, and ip_header::version.

Referenced by ip_prepare_icmp_and_get_phone().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_prepare_icmp_and_get_phone	(	services_t	error,
		packet_t	packet,
		ip_header_ref	header
	)

Prepares the ICMP notification packet.

Releases additional packets and keeps only the first one. All packets is released on error.

Parameters:

`[in]`	error	The packet error service.
`[in]`	packet	The packet or the packet queue to be reported as faulty.
`[in]`	header	The first packet IP header. May be NULL.

Returns:: The found ICMP phone.; EINVAL if the error parameter is set.; EINVAL if the ICMP phone is not found.; EINVAL if the ip_prepare_icmp() fails.

References ip_get_icmp_phone(), ip_prepare_icmp(), and ip_release_and_return().

Referenced by ip_deliver_local(), ip_process_packet(), ip_send_route(), and ip_split_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_prepare_packet	(	in_addr_t *	source,
		in_addr_t	dest,
		packet_t	packet,
		measured_string_ref	destination
	)

Prepares the outgoing packet or the packet queue.

The packet queue is a fragmented packet Updates the first packet's IP header. Prefixes the additional packets with fragment headers.

Parameters:

`[in]`	source	The source address.
`[in]`	dest	The destination address.
`[in,out]`	packet	The packet to be sent.
`[in]`	destination	The destination hardware address.

Returns:: EOK on success.; EINVAL if the packet is too small to contain the IP header.; EINVAL if the packet is too long than the IP allows.; ENOMEM if there is not enough memory left.; Other error codes as defined for the packet_set_addr() function.

References CONVERT_SIZE, ip_header::destination_address, ERROR_DECLARE, ERROR_PROPAGATE, ip_header::flags, ip_header::fragment_offset_high, ip_header::fragment_offset_low, free, ip_header::header_checksum, htons, ip_header::identification, IP_COMPUTE_FRAGMENT_OFFSET_HIGH, IP_COMPUTE_FRAGMENT_OFFSET_LOW, ip_create_last_header(), IP_HEADER_CHECKSUM, IP_HEADER_LENGTH, IP_MAX_CONTENT, IPFLAG_MORE_FRAGMENTS, IPV4, measured_string::length, ip_globals::lock, ip_globals::packet_counter, packet_get_data(), packet_get_data_length(), packet_prefix(), packet_set_addr(), pq_next(), in_addr::s_addr, ip_header::source_address, ip_header::total_length, measured_string::value, and ip_header::version.

Referenced by ip_send_route().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_process_packet	(	device_id_t	device_id,
		packet_t	packet
	)

Processes the received packet.

The packet is either passed to another module or released on error. The ICMP_PARAM_POINTER error notification may be sent if the checksum is invalid. The ICMP_EXC_TTL error notification may be sent if the TTL is less than two (2). The ICMP_HOST_UNREACH error notification may be sent if no route was found. The ICMP_HOST_UNREACH error notification may be sent if the packet is for another host and the routing is disabled.

Parameters:

`[in]`	device_id	The source device identifier.
`[in]`	packet	The received packet to be processed.

Returns:: EOK on success.; EINVAL if the TTL is less than two (2).; EINVAL if the checksum is invalid.; EAFNOSUPPORT if the address family is not supported.; ENOENT if no route was found.; ENOENT if the packet is for another host and the routing is disabled.

References ip_route::address, AF_INET, EAFNOSUPPORT, ERROR_DECLARE, ERROR_PROPAGATE, ip_header::header_checksum, icmp_destination_unreachable_msg(), ICMP_EXC_TTL, ICMP_HOST_UNREACH, ICMP_PARAM_POINTER, icmp_parameter_problem_msg(), icmp_time_exceeded_msg(), IP_CHECKSUM_ZERO, ip_deliver_local(), ip_find_route(), ip_get_destination(), IP_HEADER_CHECKSUM, ip_prepare_icmp_and_get_phone(), ip_release_and_return(), ip_send_route(), IPVERSION, ip_route::netif, packet_get_data(), packet_set_addr(), ip_netif::routing, in_addr::s_addr, sockaddr_in::sin_addr, sockaddr_in::sin_family, ip_header::ttl, and ip_header::version.

Referenced by ip_receive_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_receive_message	(	device_id_t	device_id,
		packet_t	packet
	)

Processes the received IP packet or the packet queue one by one.

The packet is either passed to another module or released on error.

Parameters:

`[in]`	device_id	The source device identifier.
`[in,out]`	packet	The received packet.

Returns:: EOK on success and the packet is no longer needed.; EINVAL if the packet is too small to carry the IP packet.; EINVAL if the received address lengths differs from the registered values.; ENOENT if the device is not found in the cache.; ENOENT if the protocol for the device is not found in the cache.; ENOMEM if there is not enough memory left.

References ip_process_packet(), and pq_detach().

Here is the call graph for this function:

int ip_received_error_msg	(	int	ip_phone,
		device_id_t	device_id,
		packet_t	packet,
		services_t	target,
		services_t	error
	)

Notifies the IP module about the received error notification packet.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The device identifier.
`[in]`	packet	The received packet or the received packet queue.
`[in]`	target	The target internetwork module service to be delivered to.
`[in]`	error	The packet error reporting service. Prefixes the received packet.

Returns:: EOK on success.

References generic_received_msg(), NET_IP_RECEIVED_ERROR, and packet_get_id().

Referenced by icmp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_register	(	int	protocol,
		services_t	service,
		int	phone,
		tl_received_msg_t	tl_received_msg
	)

Registers the transport layer protocol.

The traffic of this protocol will be supplied using either the receive function or IPC message.

Parameters:

`[in]`	protocol	The transport layer module protocol.
`[in]`	service	The transport layer module service.
`[in]`	phone	The transport layer module phone.
`[in]`	tl_received_msg	The receiving function.

Returns:: EOK on success.; EINVAL if the protocol parameter and/or the service parameter is zero (0).; EINVAL if the phone parameter is not a positive number and the tl_receive_msg is NULL.; ENOMEM if there is not enough memory left.

References free, ip_proto::phone, ip_proto::protocol, ip_globals::protos, ip_globals::protos_lock, ip_proto::received_msg, and ip_proto::service.

int ip_release_and_return	(	packet_t	packet,
		int	result
	)

Releases the packet and returns the result.

Parameters:

`[in]`	packet	The packet queue to be released.
`[in]`	result	The result to be returned.

Returns:: The result parameter.

References ip_globals::net_phone, packet_get_id(), and pq_release().

Referenced by ip_deliver_local(), ip_fragment_packet(), ip_prepare_icmp_and_get_phone(), and ip_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_send_msg	(	int	ip_phone,
		device_id_t	device_id,
		packet_t	packet,
		services_t	sender,
		services_t	error
	)

Sends the packet queue.

The packets may get fragmented if needed.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The device identifier.
`[in]`	packet	The packet fragments as a~packet queue. All the packets have to have the same destination address.
`[in]`	sender	The sending module service.
`[in]`	error	The packet error reporting service. Prefixes the received packet.

Returns:: EOK on success.; Other error codes as defined for the generic_send_msg() function.

References generic_send_msg(), NET_IL_SEND, and packet_get_id().

Referenced by icmp_send_packet(), tcp_send_packets(), and udp_sendto_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_send_route	(	packet_t	packet,
		ip_netif_ref	netif,
		ip_route_ref	route,
		in_addr_t *	src,
		in_addr_t	dest,
		services_t	error
	)

Sends the packet or the packet queue via the specified route.

The ICMP_HOST_UNREACH error notification may be sent if route hardware destination address is found.

Parameters:

`[in,out]`	packet	The packet to be sent.
`[in]`	netif	The target network interface.
`[in]`	route	The target route.
`[in]`	src	The source address.
`[in]`	dest	The destination address.
`[in]`	error	The error module service.

Returns:: EOK on success.; Other error codes as defined for the arp_translate_req() function.; Other error codes as defined for the ip_prepare_packet() function.

References packet_dimension::addr_len, ip_route::address, ip_netif::arp, arp_translate_req(), packet_dimension::content, CONVERT_SIZE, ip_netif::device_id, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, ip_route::gateway, icmp_destination_unreachable_msg(), ICMP_HOST_UNREACH, ip_prepare_icmp_and_get_phone(), ip_prepare_packet(), ip_split_packet(), measured_string::length, ip_globals::net_phone, nil_send_msg, ip_netif::packet_dimension, packet_get_id(), ip_netif::phone, module_struct::phone, pq_release(), packet_dimension::prefix, in_addr::s_addr, packet_dimension::suffix, and measured_string::value.

Referenced by ip_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int ip_set_gateway_req	(	int	ip_phone,
		device_id_t	device_id,
		in_addr_t	gateway
	)

Sets the default gateway.

This gateway is used if no other route is found.

Parameters:

`[in]`	ip_phone	The IP module phone used for (semi)remote calls.
`[in]`	device_id	The device identifier.
`[in]`	gateway	The default gateway.

References NET_IP_SET_GATEWAY, and in_addr::s_addr.

packet_t ip_split_packet	(	packet_t	packet,
		size_t	prefix,
		size_t	content,
		size_t	suffix,
		socklen_t	addr_len,
		services_t	error
	)

Checks the packet queue lengths and fragments the packets if needed.

The ICMP_FRAG_NEEDED error notification may be sent if the packet needs to be fragmented and the fragmentation is not allowed.

Parameters:

`[in,out]`	packet	The packet or the packet queue to be checked.
`[in]`	prefix	The minimum prefix size.
`[in]`	content	The maximum content size.
`[in]`	suffix	The minimum suffix size.
`[in]`	addr_len	The minimum address length.
`[in]`	error	The error module service.

Returns:: The packet or the packet queue of the allowed length.; NULL if there are no packets left.

References icmp_destination_unreachable_msg(), ICMP_FRAG_NEEDED, ip_fragment_packet(), ip_prepare_icmp_and_get_phone(), ip_globals::net_phone, packet_get_data_length(), packet_get_id(), pq_detach(), pq_next(), and pq_release().

Referenced by ip_send_route().

Here is the call graph for this function:

Here is the caller graph for this function:

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the IP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; Other error codes as defined for the ip_message() function.

References ip_message().

Here is the call graph for this function:

void module_print_name ( void )

Prints the module name.

See also:: NAME

References NAME.

int module_start ( async_client_conn_t client_connection )

Starts the IP module.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on successful module termination.; Other error codes as defined for the ip_initialize() function.; Other error codes as defined for the REGISTER_ME() macro function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, ip_initialize(), net_connect_module(), ip_globals::net_phone, pm_destroy(), pm_init(), and REGISTER_ME.

Here is the call graph for this function:

Variable Documentation

ip_globals_t ip_globals

IP module global data.

ip_globals_t ip_globals

IP global data.

IP module global data.

Internet Protocol (IP) Service [Inter-networking layer]

Data Structures

Files

Defines

Typedefs

Enumerations

Functions

Variables

IP module interface

IP flags definitions

IP specific message parameters definitions

IP type of service definitions

IP TOS precedence definitions

IP options definitions

IP option class definitions

IP option type definitions

IP security option definitions

IP timestamp option definitions

IP protocols definitions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation

Internet Protocol (IP) Service
[Inter-networking layer]
