Internet Control Message Protocol (ICMP) Service
[Transport layer]

Collaboration diagram for Internet Control Message Protocol (ICMP) Service:

Data Structures
struct	icmp_reply
	ICMP reply data. More...
struct	icmp_globals
	ICMP global data. More...
struct	icmp_echo
	Echo specific data. More...
struct	icmp_header
	Internet control message header. More...
Files
file	icmp_api.h
	ICMP module application interface.
file	icmp_client.h
	ICMP client interface.
file	icmp_codes.h
	ICMP types and codes according to the on-line IANA - ICMP Type Numbers - <http://http://www.iana.org/assignments/icmp-parameters>, cited September 14 2009.
file	icmp_common.h
	ICMP module common interface.
file	icmp_interface.h
	ICMP module interface.
file	icmp.c
	ICMP module implementation.
file	icmp.h
	ICMP module.
file	icmp_api.c
	ICMP application interface implementation.
file	icmp_client.c
	ICMP client interface implementation.
file	icmp_common.c
	ICMP common interface implementation.
file	icmp_header.h
	ICMP header definition.
file	icmp_messages.h
	ICMP module messages.
file	icmp_module.c
	ICMP standalone module implementation.
file	icmp_module.h
	ICMP module functions.
file	icmp_remote.c
	ICMP interface implementation for standalone remote modules.
Defines
#define	ICMP_CONNECT_TIMEOUT (1 * 1000 * 1000)
	Default timeout for incoming connections in microseconds.
#define	NET_DEFAULT_ICMP_ERROR_REPORTING true
	Default ICMP error reporting.
#define	NET_DEFAULT_ICMP_ECHO_REPLYING true
	Default ICMP echo replying.
#define	ICMP_KEEP_LENGTH 8
	Original datagram length in bytes transfered to the error notification message.
#define	ICMP_FREE_IDS_START 1
	Free identifier numbers pool start.
#define	ICMP_FREE_IDS_END MAX_UINT16
	Free identifier numbers pool end.
#define	ICMP_CHECKSUM(header, length) htons(ip_checksum((uint8_t *) (header), (length)))
	Computes the ICMP datagram checksum.
#define	ICMP_ECHO_TEXT "Hello from HelenOS."
	An echo request datagrams pattern.
#define	ICMP_GET_REPLY_KEY(id, sequence) (((id) << 16) \| (sequence &0xFFFF))
	Computes an ICMP reply data key.
#define	ICMP_HEADER_SIZE sizeof(icmp_header_t)
	ICMP header size in bytes.
#define	NAME "ICMP protocol"
	ICMP module name.
Typedefs
typedef size_t	mseconds_t
	Miliseconds type definition.
typedef uint8_t	icmp_type_t
	ICMP type type definition.
typedef uint8_t	icmp_code_t
	ICMP code type definition.
typedef uint16_t	icmp_param_t
	ICMP parameter type definition.
typedef struct icmp_reply	icmp_reply_t
	Type definition of the ICMP reply data.
typedef icmp_reply_t *	icmp_reply_ref
	Type definition of the ICMP reply data pointer.
typedef struct icmp_globals	icmp_globals_t
	Type definition of the ICMP global data.
typedef struct icmp_echo	icmp_echo_t
	Type definition of the echo specific data.
typedef icmp_echo_t *	icmp_echo_ref
	Type definition of the echo specific data pointer.
typedef struct icmp_header	icmp_header_t
	Type definition of the internet control message header.
typedef icmp_header_t *	icmp_header_ref
	Type definition of the internet control message header pointer.
Enumerations
enum	icmp_messages { NET_ICMP_ECHO = NET_ICMP_FIRST, NET_ICMP_DEST_UNREACH, NET_ICMP_SOURCE_QUENCH, NET_ICMP_TIME_EXCEEDED, NET_ICMP_PARAMETERPROB, NET_ICMP_INIT }
	ICMP module messages. More...
Functions
int	icmp_client_process_packet (packet_t packet, icmp_type_t type, icmp_code_t code, icmp_param_t pointer, icmp_param_t mtu)
	Processes the received packet prefixed with an ICMP header.
size_t	icmp_client_header_length (packet_t packet)
	Returns the ICMP header length.
int	icmp_connect_module (services_t service, suseconds_t timeout)
	Connects to the ICMP module.
int	icmp_received_msg (device_id_t device_id, packet_t packet, services_t receiver, services_t error)
	Processes the received ICMP packet.
int	icmp_process_packet (packet_t packet, services_t error)
	Processes the received ICMP packet.
int	icmp_process_client_messages (ipc_callid_t callid, ipc_call_t call)
	Processes the client messages.
int	icmp_process_message (ipc_call_t *call)
	Processes the generic client messages.
int	icmp_release_and_return (packet_t packet, int result)
	Releases the packet and returns the result.
int	icmp_echo (icmp_param_t id, icmp_param_t sequence, size_t size, mseconds_t timeout, ip_ttl_t ttl, ip_tos_t tos, int dont_fragment, const struct sockaddr *addr, socklen_t addrlen)
	Requests an echo message.
icmp_header_ref	icmp_prepare_packet (packet_t packet)
	Prepares the ICMP error packet.
int	icmp_send_packet (icmp_type_t type, icmp_code_t code, packet_t packet, icmp_header_ref header, services_t error, ip_ttl_t ttl, ip_tos_t tos, int dont_fragment)
	Sends the ICMP message.
int	icmp_process_echo_reply (packet_t packet, icmp_header_ref header, icmp_type_t type, icmp_code_t code)
	Tries to set the pending reply result as the received message type.
int	icmp_bind_free_id (icmp_echo_ref echo_data)
	Assigns a new identifier for the connection.
	INT_MAP_IMPLEMENT (icmp_replies, icmp_reply_t)
	INT_MAP_IMPLEMENT (icmp_echo_data, icmp_echo_t)
int	icmp_initialize (async_client_conn_t client_connection)
	Initializes the ICMP module.
int	icmp_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the ICMP message.
	INT_MAP_DECLARE (icmp_replies, icmp_reply_t)
	Pending replies map.
	INT_MAP_DECLARE (icmp_echo_data, icmp_echo_t)
	Echo specific data map.
void	module_print_name (void)
	Prints the module name.
int	module_start (async_client_conn_t client_connection)
	Starts the ICMP module.
int	module_message (ipc_callid_t callid, ipc_call_t call, ipc_call_t answer, int *answer_count)
	Processes the ICMP message.
Variables
icmp_globals_t	icmp_globals
	ICMP global data.
icmp_globals_t	icmp_globals
	ICMP module global data.
ICMP module application interface
This interface is used by other application modules.
int	icmp_echo_msg (int icmp_phone, size_t size, mseconds_t timeout, ip_ttl_t ttl, ip_tos_t tos, int dont_fragment, const struct sockaddr *addr, socklen_t addrlen)
	Requests an echo message.
ICMP module interface
This interface is used by other modules.
int	icmp_destination_unreachable_msg (int icmp_phone, icmp_code_t code, icmp_param_t mtu, packet_t packet)
	Sends the Destination Unreachable error notification packet.
int	icmp_source_quench_msg (int icmp_phone, packet_t packet)
	Sends the Source Quench error notification packet.
int	icmp_time_exceeded_msg (int icmp_phone, icmp_code_t code, packet_t packet)
	Sends the Time Exceeded error notification packet.
int	icmp_parameter_problem_msg (int icmp_phone, icmp_code_t code, icmp_param_t pointer, packet_t packet)
	Sends the Parameter Problem error notification packet.
ICMP types definitions

#define	ICMP_ECHOREPLY 0
	Echo Reply.
#define	ICMP_DEST_UNREACH 3
	Destination Unreachable.
#define	ICMP_SOURCE_QUENCH 4
	Source Quench.
#define	ICMP_REDIRECT 5
	Redirect.
#define	ICMP_ALTERNATE_ADDR 6
	Alternate Host Address.
#define	ICMP_ECHO 8
	Echo Request.
#define	ICMP_ROUTER_ADV 9
	Router Advertisement.
#define	ICMP_ROUTER_SOL 10
	Router solicitation.
#define	ICMP_TIME_EXCEEDED 11
	Time Exceeded.
#define	ICMP_PARAMETERPROB 12
	Parameter Problem.
#define	ICMP_TIMESTAMP 13
	Timestamp Request.
#define	ICMP_TIMESTAMPREPLY 14
	Timestamp Reply.
#define	ICMP_INFO_REQUEST 15
	Information Request.
#define	ICMP_INFO_REPLY 16
	Information Reply.
#define	ICMP_ADDRESS 17
	Address Mask Request.
#define	ICMP_ADDRESSREPLY 18
	Address Mask Reply.
#define	ICMP_TRACEROUTE 30
	Traceroute.
#define	ICMP_CONVERSION_ERROR 31
	Datagram Conversion Error.
#define	ICMP_REDIRECT_MOBILE 32
	Mobile Host Redirect.
#define	ICMP_IPV6_WHERE_ARE_YOU 33
	IPv6 Where-Are-You.
#define	ICMP_IPV6_I_AM_HERE 34
	IPv6 I-Am-Here.
#define	ICMP_MOBILE_REQUEST 35
	Mobile Registration Request.
#define	ICMP_MOBILE_REPLY 36
	Mobile Registration Reply.
#define	ICMP_DN_REQUEST 37
	Domain name request.
#define	ICMP_DN_REPLY 38
	Domain name reply.
#define	ICMP_SKIP 39
	SKIP.
#define	ICMP_PHOTURIS 40
	Photuris.
ICMP_DEST_UNREACH codes definitions

#define	ICMP_NET_UNREACH 0
	Network Unreachable.
#define	ICMP_HOST_UNREACH 1
	Host Unreachable.
#define	ICMP_PROT_UNREACH 2
	Protocol Unreachable.
#define	ICMP_PORT_UNREACH 3
	Port Unreachable.
#define	ICMP_FRAG_NEEDED 4
	Fragmentation needed but the Do Not Fragment bit was set.
#define	ICMP_SR_FAILED 5
	Source Route failed.
#define	ICMP_NET_UNKNOWN 6
	Destination network unknown.
#define	ICMP_HOST_UNKNOWN 7
	Destination host unknown.
#define	ICMP_HOST_ISOLATED 8
	Source host isolated (obsolete).
#define	ICMP_NET_ANO 9
	Destination network administratively prohibited.
#define	ICMP_HOST_ANO 10
	Destination host administratively prohibited.
#define	ICMP_NET_UNR_TOS 11
	Network unreachable for this type of service.
#define	ICMP_HOST_UNR_TOS 12
	Host unreachable for this type of service.
#define	ICMP_PKT_FILTERED 13
	Communication administratively prohibited by filtering.
#define	ICMP_PREC_VIOLATION 14
	Host precedence violation.
#define	ICMP_PREC_CUTOFF 15
	Precedence cutoff in effect.
ICMP_REDIRECT codes definitions

#define	ICMP_REDIR_NET 0
	Network redirect (or subnet).
#define	ICMP_REDIR_HOST 1
	Host redirect.
#define	ICMP_REDIR_NETTOS 2
	Network redirect for this type of service.
#define	ICMP_REDIR_HOSTTOS 3
	Host redirect for this type of service.
ICMP_ALTERNATE_ADDRESS codes definitions

#define	ICMP_ALTERNATE_HOST 0
	Alternate address for host.
ICMP_ROUTER_ADV codes definitions

#define	ICMP_ROUTER_NORMAL 0
	Normal router advertisement.
#define	ICMP_ROUTER_NO_NORMAL_TRAFFIC 16
	Does not route common traffic.
ICMP_TIME_EXCEEDED codes definitions

#define	ICMP_EXC_TTL 0
	Transit TTL exceeded.
#define	ICMP_EXC_FRAGTIME 1
	Reassembly TTL exceeded.
ICMP_PARAMETERPROB codes definitions

#define	ICMP_PARAM_POINTER 0
	Pointer indicates the error.
#define	ICMP_PARAM_MISSING 1
	Missing required option.
#define	ICMP_PARAM_LENGTH 2
	Bad length.
ICMP_PHOTURIS codes definitions

#define	ICMP_PHOTURIS_BAD_SPI 0
	Bad SPI.
#define	ICMP_PHOTURIS_AUTHENTICATION 1
	Authentication failed.
#define	ICMP_PHOTURIS_DECOMPRESSION 2
	Decompression failed.
#define	ICMP_PHOTURIS_DECRYPTION 3
	Decryption failed.
#define	ICMP_PHOTURIS_NEED_AUTHENTICATION 4
	Need authentication.
#define	ICMP_PHOTURIS_NEED_AUTHORIZATION 5
	Need authorization.
ICMP specific message parameters definitions

#define	ICMP_GET_CODE(call) (icmp_code_t) IPC_GET_ARG1(*call)
	Returns the ICMP code message parameter.
#define	ICMP_GET_MTU(call) (icmp_param_t) IPC_GET_ARG3(*call)
	Returns the ICMP link MTU message parameter.
#define	ICMP_GET_POINTER(call) (icmp_param_t) IPC_GET_ARG3(*call)
	Returns the pointer message parameter.
#define	ICMP_GET_SIZE(call) (size_t) IPC_GET_ARG1(call)
	Returns the size message parameter.
#define	ICMP_GET_TIMEOUT(call) ((suseconds_t) IPC_GET_ARG2(call))
	Returns the timeout message parameter.
#define	ICMP_GET_TTL(call) (ip_ttl_t) IPC_GET_ARG3(call)
	Returns the time to live message parameter.
#define	ICMP_GET_TOS(call) (ip_tos_t) IPC_GET_ARG4(call)
	Returns the type of service message parameter.
#define	ICMP_GET_DONT_FRAGMENT(call) (int) IPC_GET_ARG5(call)
	Returns the dont fragment message parameter.

Define Documentation

#define ICMP_ADDRESS 17

Address Mask Request.

#define ICMP_ADDRESSREPLY 18

Address Mask Reply.

#define ICMP_ALTERNATE_ADDR 6

Alternate Host Address.

Referenced by icmp_process_packet().

#define ICMP_ALTERNATE_HOST 0

Alternate address for host.

#define ICMP_CHECKSUM	(	header,
		length		)	htons(ip_checksum((uint8_t *) (header), (length)))

Computes the ICMP datagram checksum.

Parameters:

`[in,out]`	header	The ICMP datagram header.
`[in]`	length	The total datagram length.

Returns:: The computed checksum.

Referenced by icmp_process_packet(), and icmp_send_packet().

#define ICMP_CONNECT_TIMEOUT (1 * 1000 * 1000)

Default timeout for incoming connections in microseconds.

Referenced by main().

#define ICMP_CONVERSION_ERROR 31

Datagram Conversion Error.

Referenced by icmp_process_packet().

#define ICMP_DEST_UNREACH 3

Destination Unreachable.

Referenced by icmp_process_packet().

#define ICMP_DN_REPLY 38

Domain name reply.

#define ICMP_DN_REQUEST 37

Domain name request.

#define ICMP_ECHO 8

Echo Request.

Referenced by icmp_echo(), icmp_process_packet(), and main().

#define ICMP_ECHO_TEXT "Hello from HelenOS."

An echo request datagrams pattern.

Referenced by icmp_echo().

#define ICMP_ECHOREPLY 0

Echo Reply.

Referenced by icmp_process_packet().

#define ICMP_EXC_FRAGTIME 1

Reassembly TTL exceeded.

#define ICMP_EXC_TTL 0

Transit TTL exceeded.

Referenced by ip_process_packet().

#define ICMP_FRAG_NEEDED 4

Fragmentation needed but the Do Not Fragment bit was set.

Referenced by ip_split_packet().

#define ICMP_FREE_IDS_END MAX_UINT16

Free identifier numbers pool end.

Referenced by icmp_bind_free_id().

#define ICMP_FREE_IDS_START 1

Free identifier numbers pool start.

Referenced by icmp_bind_free_id().

#define ICMP_GET_CODE ( call ) (icmp_code_t) IPC_GET_ARG1(*call)

Returns the ICMP code message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_message().

#define ICMP_GET_DONT_FRAGMENT ( call ) (int) IPC_GET_ARG5(call)

Returns the dont fragment message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_client_messages().

#define ICMP_GET_MTU ( call ) (icmp_param_t) IPC_GET_ARG3(*call)

Returns the ICMP link MTU message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_message().

#define ICMP_GET_POINTER ( call ) (icmp_param_t) IPC_GET_ARG3(*call)

Returns the pointer message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_message().

#define ICMP_GET_REPLY_KEY	(	id,
		sequence		)	(((id) << 16) \| (sequence &0xFFFF))

Computes an ICMP reply data key.

Parameters:

`[in]`	id	The message identifier.
`[in]`	sequence	The message sequence number.

Returns:: The computed ICMP reply data key.

Referenced by icmp_echo(), and icmp_process_echo_reply().

#define ICMP_GET_SIZE ( call ) (size_t) IPC_GET_ARG1(call)

Returns the size message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_client_messages().

#define ICMP_GET_TIMEOUT ( call ) ((suseconds_t) IPC_GET_ARG2(call))

Returns the timeout message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_client_messages().

#define ICMP_GET_TOS ( call ) (ip_tos_t) IPC_GET_ARG4(call)

Returns the type of service message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_client_messages().

#define ICMP_GET_TTL ( call ) (ip_ttl_t) IPC_GET_ARG3(call)

Returns the time to live message parameter.

Parameters:

[in] call The message call structure.

Referenced by icmp_process_client_messages().

#define ICMP_HEADER_SIZE sizeof(icmp_header_t)

ICMP header size in bytes.

Referenced by icmp_echo(), and icmp_process_packet().

#define ICMP_HOST_ANO 10

Destination host administratively prohibited.

#define ICMP_HOST_ISOLATED 8

Source host isolated (obsolete).

#define ICMP_HOST_UNKNOWN 7

Destination host unknown.

#define ICMP_HOST_UNR_TOS 12

Host unreachable for this type of service.

#define ICMP_HOST_UNREACH 1

Host Unreachable.

Referenced by ip_process_packet(), and ip_send_route().

#define ICMP_INFO_REPLY 16

Information Reply.

#define ICMP_INFO_REQUEST 15

Information Request.

#define ICMP_IPV6_I_AM_HERE 34

IPv6 I-Am-Here.

#define ICMP_IPV6_WHERE_ARE_YOU 33

IPv6 Where-Are-You.

#define ICMP_KEEP_LENGTH 8

Original datagram length in bytes transfered to the error notification message.

Referenced by icmp_prepare_packet().

#define ICMP_MOBILE_REPLY 36

Mobile Registration Reply.

#define ICMP_MOBILE_REQUEST 35

Mobile Registration Request.

#define ICMP_NET_ANO 9

Destination network administratively prohibited.

#define ICMP_NET_UNKNOWN 6

Destination network unknown.

#define ICMP_NET_UNR_TOS 11

Network unreachable for this type of service.

#define ICMP_NET_UNREACH 0

Network Unreachable.

#define ICMP_PARAM_LENGTH 2

Bad length.

#define ICMP_PARAM_MISSING 1

Missing required option.

#define ICMP_PARAM_POINTER 0

Pointer indicates the error.

Referenced by ip_process_packet(), tcp_process_packet(), and udp_process_packet().

#define ICMP_PARAMETERPROB 12

Parameter Problem.

Referenced by icmp_process_packet().

#define ICMP_PHOTURIS 40

Photuris.

Referenced by icmp_process_packet().

#define ICMP_PHOTURIS_AUTHENTICATION 1

Authentication failed.

#define ICMP_PHOTURIS_BAD_SPI 0

Bad SPI.

#define ICMP_PHOTURIS_DECOMPRESSION 2

Decompression failed.

#define ICMP_PHOTURIS_DECRYPTION 3

Decryption failed.

#define ICMP_PHOTURIS_NEED_AUTHENTICATION 4

Need authentication.

#define ICMP_PHOTURIS_NEED_AUTHORIZATION 5

Need authorization.

#define ICMP_PKT_FILTERED 13

Communication administratively prohibited by filtering.

#define ICMP_PORT_UNREACH 3

Port Unreachable.

Referenced by tcp_process_packet(), and udp_process_packet().

#define ICMP_PREC_CUTOFF 15

Precedence cutoff in effect.

#define ICMP_PREC_VIOLATION 14

Host precedence violation.

#define ICMP_PROT_UNREACH 2

Protocol Unreachable.

Referenced by ip_deliver_local().

#define ICMP_REDIR_HOST 1

Host redirect.

#define ICMP_REDIR_HOSTTOS 3

Host redirect for this type of service.

#define ICMP_REDIR_NET 0

Network redirect (or subnet).

#define ICMP_REDIR_NETTOS 2

Network redirect for this type of service.

#define ICMP_REDIRECT 5

Redirect.

Referenced by icmp_process_packet().

#define ICMP_REDIRECT_MOBILE 32

Mobile Host Redirect.

Referenced by icmp_process_packet().

#define ICMP_ROUTER_ADV 9

Router Advertisement.

Referenced by icmp_process_packet().

#define ICMP_ROUTER_NO_NORMAL_TRAFFIC 16

Does not route common traffic.

#define ICMP_ROUTER_NORMAL 0

Normal router advertisement.

#define ICMP_ROUTER_SOL 10

Router solicitation.

Referenced by icmp_process_packet().

#define ICMP_SKIP 39

SKIP.

Referenced by icmp_process_packet().

#define ICMP_SOURCE_QUENCH 4

Source Quench.

Referenced by icmp_process_packet().

#define ICMP_SR_FAILED 5

Source Route failed.

#define ICMP_TIME_EXCEEDED 11

Time Exceeded.

Referenced by icmp_process_packet().

#define ICMP_TIMESTAMP 13

Timestamp Request.

#define ICMP_TIMESTAMPREPLY 14

Timestamp Reply.

#define ICMP_TRACEROUTE 30

Traceroute.

#define NAME "ICMP protocol"

ICMP module name.

#define NET_DEFAULT_ICMP_ECHO_REPLYING true

Default ICMP echo replying.

#define NET_DEFAULT_ICMP_ERROR_REPORTING true

Default ICMP error reporting.

Typedef Documentation

typedef uint8_t icmp_code_t

ICMP code type definition.

typedef icmp_echo_t* icmp_echo_ref

Type definition of the echo specific data pointer.

See also:: icmp_echo

typedef struct icmp_echo icmp_echo_t

Type definition of the echo specific data.

See also:: icmp_echo

typedef struct icmp_globals icmp_globals_t

Type definition of the ICMP global data.

See also:: icmp_globals

typedef icmp_header_t* icmp_header_ref

Type definition of the internet control message header pointer.

See also:: icmp_header

typedef struct icmp_header icmp_header_t

Type definition of the internet control message header.

See also:: icmp_header

typedef uint16_t icmp_param_t

ICMP parameter type definition.

typedef icmp_reply_t* icmp_reply_ref

Type definition of the ICMP reply data pointer.

See also:: icmp_reply

typedef struct icmp_reply icmp_reply_t

Type definition of the ICMP reply data.

See also:: icmp_reply

typedef uint8_t icmp_type_t

ICMP type type definition.

typedef size_t mseconds_t

Miliseconds type definition.

Enumeration Type Documentation

enum icmp_messages

ICMP module messages.

Enumerator:

NET_ICMP_ECHO	Sends echo request. See also: icmp_echo()
NET_ICMP_DEST_UNREACH	Sends destination unreachable error message. See also: icmp_destination_unreachable_msg()
NET_ICMP_SOURCE_QUENCH	Sends source quench error message. See also: icmp_source_quench_msg()
NET_ICMP_TIME_EXCEEDED	Sends time exceeded error message. See also: icmp_time_exceeded_msg()
NET_ICMP_PARAMETERPROB	Sends parameter problem error message. See also: icmp_parameter_problem_msg()
NET_ICMP_INIT	Initializes new connection.

Function Documentation

int icmp_bind_free_id ( icmp_echo_ref echo_data )

Assigns a new identifier for the connection.

Fills the echo data parameter with the assigned values.

Parameters:

[in,out] echo_data The echo data to be bound.

Returns:: Index of the inserted echo data.; EBADMEM if the echo_data parameter is NULL.; ENOTCONN if no free identifier have been found.

References icmp_globals::echo_data, ENOTCONN, ICMP_FREE_IDS_END, ICMP_FREE_IDS_START, icmp_echo::identifier, icmp_globals::last_used_id, and icmp_echo::sequence_number.

Referenced by icmp_process_client_messages().

Here is the caller graph for this function:

size_t icmp_client_header_length ( packet_t packet )

Returns the ICMP header length.

Parameters:

[in] packet The packet.

Returns:: The ICMP header length in bytes.

References packet_get_data_length().

Here is the call graph for this function:

int icmp_client_process_packet	(	packet_t	packet,
		icmp_type_t *	type,
		icmp_code_t *	code,
		icmp_param_t *	pointer,
		icmp_param_t *	mtu
	)

Processes the received packet prefixed with an ICMP header.

Parameters:

`[in]`	packet	The received packet.
`[out]`	type	The ICMP header type.
`[out]`	code	The ICMP header code.
`[out]`	pointer	The ICMP header pointer.
`[out]`	mtu	The ICMP header MTU.

Returns:: The ICMP header length.; Zero (0) if the packet contains no data.

References icmp_header::code, icmp_header::frag, packet_get_data(), packet_get_data_length(), packet_get_id(), icmp_header::param, icmp_header::type, and icmp_header::un.

Referenced by icmp_process_packet(), tcp_process_packet(), and udp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_connect_module	(	services_t	service,
		suseconds_t	timeout
	)

Connects to the ICMP module.

Parameters:

	service	The ICMP module service. Ignored parameter.
`[in]`	timeout	The connection timeout in microseconds. No timeout if set to zero (0).

Returns:: The ICMP module phone on success.; The ICMP socket identifier if called by the bundle module.; ETIMEOUT if the connection timeouted.

References connect_to_service_timeout(), and NET_ICMP_INIT.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_destination_unreachable_msg	(	int	icmp_phone,
		icmp_code_t	code,
		icmp_param_t	mtu,
		packet_t	packet
	)

Sends the Destination Unreachable error notification packet.

Beginning of the packet is sent as the notification packet data. The source and the destination addresses should be set in the original packet.

Parameters:

`[in]`	icmp_phone	The ICMP module phone used for (semi)remote calls.
`[in]`	code	The error specific code.
`[in]`	mtu	The error MTU value.
`[in]`	packet	The original packet.

Returns:: EOK on success.; EPERM if the ICMP error notifications are disabled.; ENOMEM if there is not enough memory left.

References NET_ICMP_DEST_UNREACH, and packet_get_id().

Referenced by icmp_process_message(), ip_deliver_local(), ip_process_packet(), ip_send_route(), ip_split_packet(), tcp_process_packet(), and udp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_echo	(	icmp_param_t	id,
		icmp_param_t	sequence,
		size_t	size,
		mseconds_t	timeout,
		ip_ttl_t	ttl,
		ip_tos_t	tos,
		int	dont_fragment,
		const struct sockaddr *	addr,
		socklen_t	addrlen
	)

Requests an echo message.

Sends a packet with specified parameters to the target host and waits for the reply upto the given timeout. Blocks the caller until the reply or the timeout occurs.

Parameters:

`[in]`	id	The message identifier.
`[in]`	sequence	The message sequence parameter.
`[in]`	size	The message data length in bytes.
`[in]`	timeout	The timeout in miliseconds.
`[in]`	ttl	The time to live.
`[in]`	tos	The type of service.
`[in]`	dont_fragment	The value indicating whether the datagram must not be fragmented. Is used as a MTU discovery.
`[in]`	addr	The target host address.
`[in]`	addrlen	The torget host address length.

Returns:: ICMP_ECHO on success.; ETIMEOUT if the reply has not arrived before the timeout.; ICMP type of the received error notification.; EINVAL if the addrlen parameter is less or equal to zero (<=0).; ENOMEM if there is not enough memory left.; EPARTY if there was an internal error.

References packet_dimension::addr_len, icmp_reply::condvar, icmp_header::echo, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, free, ICMP_ECHO, ICMP_ECHO_TEXT, ICMP_GET_REPLY_KEY, ICMP_HEADER_SIZE, icmp_release_and_return(), icmp_send_packet(), icmp_echo::identifier, ip_packet_size_req(), icmp_globals::ip_phone, packet::length, icmp_globals::lock, icmp_reply::mutex, icmp_globals::net_phone, icmp_globals::packet_dimension, packet_get_4(), PACKET_PREFIX, packet_set_addr(), packet_suffix(), packet_dimension::prefix, icmp_globals::replies, reply(), icmp_reply::result, icmp_echo::sequence_number, packet_dimension::suffix, and icmp_header::un.

Referenced by icmp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_echo_msg	(	int	icmp_phone,
		size_t	size,
		mseconds_t	timeout,
		ip_ttl_t	ttl,
		ip_tos_t	tos,
		int	dont_fragment,
		const struct sockaddr *	addr,
		socklen_t	addrlen
	)

Requests an echo message.

Sends a packet with specified parameters to the target host and waits for the reply upto the given timeout. Blocks the caller until the reply or the timeout occurres.

Parameters:

`[in]`	icmp_phone	The ICMP module phone used for (semi)remote calls.
`[in]`	size	The message data length in bytes.
`[in]`	timeout	The timeout in miliseconds.
`[in]`	ttl	The time to live.
`[in]`	tos	The type of service.
`[in]`	dont_fragment	The value indicating whether the datagram must not be fragmented. Is used as a MTU discovery.
`[in]`	addr	The target host address.
`[in]`	addrlen	The torget host address length.

Returns:: ICMP_ECHO on success.; ETIMEOUT if the reply has not arrived before the timeout.; ICMP type of the received error notification.; EINVAL if the addrlen parameter is less or equal to zero (<=0).; ENOMEM if there is not enough memory left.; EPARTY if there was an internal error.

References NET_ICMP_ECHO.

Referenced by main().

Here is the caller graph for this function:

int icmp_initialize ( async_client_conn_t client_connection )

Initializes the ICMP module.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on success.; ENOMEM if there is not enough memory left.

Referenced by module_start().

Here is the caller graph for this function:

int icmp_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the ICMP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; ENOTSUP if the message is not known.

See also:: icmp_interface.h; IS_NET_ICMP_MESSAGE()

Referenced by module_message().

Here is the caller graph for this function:

int icmp_parameter_problem_msg	(	int	icmp_phone,
		icmp_code_t	code,
		icmp_param_t	pointer,
		packet_t	packet
	)

Sends the Parameter Problem error notification packet.

Beginning of the packet is sent as the notification packet data. The source and the destination addresses should be set in the original packet.

Parameters:

`[in]`	icmp_phone	The ICMP module phone used for (semi)remote calls.
`[in]`	code	The error specific code.
`[in]`	pointer	The problematic parameter offset.
`[in]`	packet	The original packet.

Returns:: EOK on success.; EPERM if the ICMP error notifications are disabled.; ENOMEM if there is not enough memory left.

References NET_ICMP_PARAMETERPROB, and packet_get_id().

Referenced by icmp_process_message(), ip_process_packet(), tcp_process_packet(), and udp_process_packet().

Here is the call graph for this function:

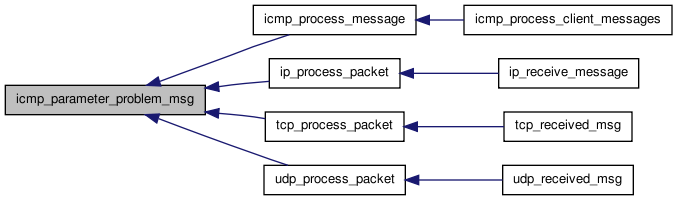

Here is the caller graph for this function:

icmp_header_ref icmp_prepare_packet ( packet_t packet )

Prepares the ICMP error packet.

Truncates the original packet if longer than ICMP_KEEP_LENGTH bytes. Prefixes and returns the ICMP header.

Parameters:

[in,out] packet The original packet.

Returns:: The prefixed ICMP header.; NULL on errors.

References ICMP_KEEP_LENGTH, ip_client_header_length(), packet_get_data_length(), PACKET_PREFIX, and packet_trim().

Here is the call graph for this function:

int icmp_process_client_messages	(	ipc_callid_t	callid,
		ipc_call_t	call
	)

Processes the client messages.

Remembers the assigned identifier and sequence numbers. Runs until the client module disconnects.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.

Returns:: EOK.

See also:: icmp_interface.h; icmp_api.h

References answer_call(), icmp_globals::echo_data, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, free, icmp_bind_free_id(), icmp_echo(), ICMP_GET_DONT_FRAGMENT, ICMP_GET_SIZE, ICMP_GET_TIMEOUT, ICMP_GET_TOS, ICMP_GET_TTL, icmp_process_message(), icmp_echo::identifier, packet::length, icmp_globals::lock, NET_ICMP_ECHO, refresh_answer(), and icmp_echo::sequence_number.

Here is the call graph for this function:

int icmp_process_echo_reply	(	packet_t	packet,
		icmp_header_ref	header,
		icmp_type_t	type,
		icmp_code_t	code
	)

Tries to set the pending reply result as the received message type.

If the reply data is not present, the reply timed out and the other fibril is already awake. Releases the packet.

Parameters:

`[in]`	packet	The received reply message.
`[in]`	header	The ICMP message header.
`[in]`	type	The received reply message type.
`[in]`	code	The received reply message code.

Returns:: EOK.

References icmp_reply::condvar, icmp_header::echo, ICMP_GET_REPLY_KEY, icmp_echo::identifier, icmp_globals::lock, icmp_globals::net_phone, packet_get_id(), pq_release(), icmp_globals::replies, reply(), icmp_reply::result, icmp_echo::sequence_number, and icmp_header::un.

Referenced by icmp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_process_message ( ipc_call_t * call )

Processes the generic client messages.

Parameters:

[in] call The message parameters.

Returns:: EOK on success.; ENOTSUP if the message is not known.; Other error codes as defined for the packet_translate() function.; Other error codes as defined for the icmp_destination_unreachable_msg() function.; Other error codes as defined for the icmp_source_quench_msg() function.; Other error codes as defined for the icmp_time_exceeded_msg() function.; Other error codes as defined for the icmp_parameter_problem_msg() function.

See also:: icmp_interface.h

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, icmp_destination_unreachable_msg(), ICMP_GET_CODE, ICMP_GET_MTU, ICMP_GET_POINTER, icmp_parameter_problem_msg(), icmp_source_quench_msg(), icmp_time_exceeded_msg(), IPC_GET_PACKET, NET_ICMP_DEST_UNREACH, NET_ICMP_PARAMETERPROB, NET_ICMP_SOURCE_QUENCH, NET_ICMP_TIME_EXCEEDED, icmp_globals::net_phone, and packet_translate().

Referenced by icmp_process_client_messages().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_process_packet	(	packet_t	packet,
		services_t	error
	)

Processes the received ICMP packet.

Notifies the destination socket application.

Parameters:

`[in,out]`	packet	The received packet.
`[in]`	error	The packet error reporting service. Prefixes the received packet.

Returns:: EOK on success.; EINVAL if the packet is not valid.; EINVAL if the stored packet address is not the an_addr_t.; EINVAL if the packet does not contain any data.; NO_DATA if the packet content is shorter than the user datagram header.; ENOMEM if there is not enough memory left.; EADDRNOTAVAIL if the destination socket does not exist.; Other error codes as defined for the ip_client_process_packet() function.

References icmp_header::checksum, icmp_globals::echo_replying, ERROR_DECLARE, ERROR_PROPAGATE, ICMP_ALTERNATE_ADDR, ICMP_CHECKSUM, icmp_client_process_packet(), ICMP_CONVERSION_ERROR, ICMP_DEST_UNREACH, ICMP_ECHO, ICMP_ECHOREPLY, ICMP_HEADER_SIZE, ICMP_PARAMETERPROB, ICMP_PHOTURIS, icmp_process_echo_reply(), ICMP_REDIRECT, ICMP_REDIRECT_MOBILE, ICMP_ROUTER_ADV, ICMP_ROUTER_SOL, icmp_send_packet(), ICMP_SKIP, ICMP_SOURCE_QUENCH, ICMP_TIME_EXCEEDED, IP_CHECKSUM_ZERO, ip_client_header_length(), icmp_globals::ip_phone, ip_received_error_msg(), packet::length, packet_get_addr(), packet_get_data(), packet_get_data_length(), packet_set_addr(), packet_trim(), and icmp_header::type.

Referenced by icmp_received_msg().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_received_msg	(	device_id_t	device_id,
		packet_t	packet,
		services_t	receiver,
		services_t	error
	)

Processes the received ICMP packet.

Is used as an entry point from the underlying IP module. Releases the packet on error.

Parameters:

	device_id	The device identifier. Ignored parameter.
`[in,out]`	packet	The received packet.
	receiver	The target service. Ignored parameter.
`[in]`	error	The packet error reporting service. Prefixes the received packet.

Returns:: EOK on success.; Other error codes as defined for the icmp_process_packet() function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, icmp_process_packet(), and icmp_release_and_return().

Here is the call graph for this function:

int icmp_release_and_return	(	packet_t	packet,
		int	result
	)

Releases the packet and returns the result.

Parameters:

`[in]`	packet	The packet queue to be released.
`[in]`	result	The result to be returned.

Returns:: The result parameter.

References icmp_globals::net_phone, packet_get_id(), and pq_release().

Referenced by icmp_echo(), icmp_received_msg(), and icmp_send_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_send_packet	(	icmp_type_t	type,
		icmp_code_t	code,
		packet_t	packet,
		icmp_header_ref	header,
		services_t	error,
		ip_ttl_t	ttl,
		ip_tos_t	tos,
		int	dont_fragment
	)

Sends the ICMP message.

Sets the message type and code and computes the checksum. Error messages are sent only if allowed in the configuration. Releases the packet on errors.

Parameters:

`[in]`	type	The message type.
`[in]`	code	The message code.
`[in]`	packet	The message packet to be sent.
`[in]`	header	The ICMP header.
`[in]`	error	The error service to be announced. Should be SERVICE_ICMP or zero (0).
`[in]`	ttl	The time to live.
`[in]`	tos	The type of service.
`[in]`	dont_fragment	The value indicating whether the datagram must not be fragmented. Is used as a MTU discovery.

Returns:: EOK on success.; EPERM if the error message is not allowed.

References icmp_header::checksum, icmp_header::code, ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, icmp_globals::error_reporting, ICMP_CHECKSUM, icmp_release_and_return(), ip_client_prepare_packet(), icmp_globals::ip_phone, ip_send_msg(), IPPROTO_ICMP, packet_get_data_length(), and icmp_header::type.

Referenced by icmp_echo(), and icmp_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_source_quench_msg	(	int	icmp_phone,
		packet_t	packet
	)

Sends the Source Quench error notification packet.

Beginning of the packet is sent as the notification packet data. The source and the destination addresses should be set in the original packet.

Parameters:

`[in]`	icmp_phone	The ICMP module phone used for (semi)remote calls.
`[in]`	packet	The original packet.

Returns:: EOK on success.; EPERM if the ICMP error notifications are disabled.; ENOMEM if there is not enough memory left.

References NET_ICMP_SOURCE_QUENCH, and packet_get_id().

Referenced by icmp_process_message().

Here is the call graph for this function:

Here is the caller graph for this function:

int icmp_time_exceeded_msg	(	int	icmp_phone,
		icmp_code_t	code,
		packet_t	packet
	)

Sends the Time Exceeded error notification packet.

Beginning of the packet is sent as the notification packet data. The source and the destination addresses should be set in the original packet.

Parameters:

`[in]`	icmp_phone	The ICMP module phone used for (semi)remote calls.
`[in]`	code	The error specific code.
`[in]`	packet	The original packet.

Returns:: EOK on success.; EPERM if the ICMP error notifications are disabled.; ENOMEM if there is not enough memory left.

References NET_ICMP_TIME_EXCEEDED, and packet_get_id().

Referenced by icmp_process_message(), and ip_process_packet().

Here is the call graph for this function:

Here is the caller graph for this function:

INT_MAP_DECLARE	(	icmp_echo_data	,
		icmp_echo_t
	)

Echo specific data map.

The bundle module gets an identifier of the assigned echo specific data while connecting. The identifier is used in the future semi-remote calls instead of the ICMP phone.

INT_MAP_DECLARE	(	icmp_replies	,
		icmp_reply_t
	)

Pending replies map.

Maps message identifiers to the pending replies. Sending fibril waits for its associated reply event. Receiving fibril sets the associated reply with the return value and signals the event.

INT_MAP_IMPLEMENT	(	icmp_echo_data	,
		icmp_echo_t
	)

INT_MAP_IMPLEMENT	(	icmp_replies	,
		icmp_reply_t
	)

int module_message	(	ipc_callid_t	callid,
		ipc_call_t *	call,
		ipc_call_t *	answer,
		int *	answer_count
	)

Processes the ICMP message.

Parameters:

`[in]`	callid	The message identifier.
`[in]`	call	The message parameters.
`[out]`	answer	The message answer parameters.
`[out]`	answer_count	The last parameter for the actual answer in the answer parameter.

Returns:: EOK on success.; Other error codes as defined for the icmp_message() function.

References icmp_message().

Here is the call graph for this function:

void module_print_name ( void )

Prints the module name.

See also:: NAME

References NAME.

int module_start ( async_client_conn_t client_connection )

Starts the ICMP module.

Initializes the client connection serving function, initializes the module, registers the module service and starts the async manager, processing IPC messages in an infinite loop.

Parameters:

[in] client_connection The client connection processing function. The module skeleton propagates its own one.

Returns:: EOK on successful module termination.; Other error codes as defined for the arp_initialize() function.; Other error codes as defined for the REGISTER_ME() macro function.

References ERROR_CODE, ERROR_DECLARE, ERROR_OCCURRED, ERROR_PROPAGATE, icmp_initialize(), net_connect_module(), icmp_globals::net_phone, pm_destroy(), pm_init(), and REGISTER_ME.

Here is the call graph for this function:

Variable Documentation

icmp_globals_t icmp_globals

ICMP module global data.

icmp_globals_t icmp_globals

ICMP global data.

ICMP module global data.

Internet Control Message Protocol (ICMP) Service [Transport layer]

Data Structures

Files

Defines

Typedefs

Enumerations

Functions

Variables

ICMP module application interface

ICMP module interface

ICMP types definitions

ICMP_DEST_UNREACH codes definitions

ICMP_REDIRECT codes definitions

ICMP_ALTERNATE_ADDRESS codes definitions

ICMP_ROUTER_ADV codes definitions

ICMP_TIME_EXCEEDED codes definitions

ICMP_PARAMETERPROB codes definitions

ICMP_PHOTURIS codes definitions

ICMP specific message parameters definitions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation

Internet Control Message Protocol (ICMP) Service
[Transport layer]
